Description
ZXR10 6812 overview

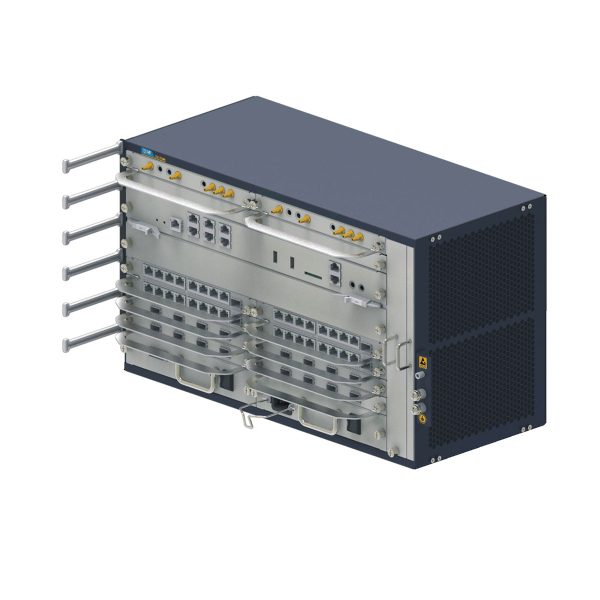

The height of the ZXR10 6812 chassis is 6U (1U = 44.45 mm), and the dimensions (height × width × depth) are 264 mm × 442 mm × 200 mm. For the main components of the chassis.
Heat Dissipating Method
The ZXR10 6812 chassis uses forced air cooling for heat dissipation. The ZXR10 6812 chassis can automatically adjust the fan speed, monitor the status of the fan module, and report alarms if faults occur. Cool air is taken in from one side of the chassis, goes through the boards and power supply modules inside the chassis, and is blown out from the other side of the chassis
Power Supplies
The ZXR10 ASR series routers support 100 V to 240 V AC power supply and -72 V to -38 V DC power supply. The ZXR10 6812 routers support dual-power-supply 1+1 redundancy and mixed configuration of AC and DC power supply modules. A power supply module provides the following functions:
- Input/output over/under voltage alarm and protection
- Output over current alarm and protection
- Temperature alarm and overheating protection
Description of the Main Components of the ZXR10 6812 Chassis
Component Name | Description |
---|---|
Board area | In the board area of the ZXR10 6812 chassis, two slots are provided for Management and Packet Forwarding Units (MPFUs) and 12 slots for Physical line Interface Units (PIUs).1 |
Power supply module | The ZXR10 6812 chassis has two power supply modules. |
Fan module | The ZXR10 6812 chassis has one vertical fan module. |
Air filter | The ZXR10 6812 chassis has one vertical air filter. |
