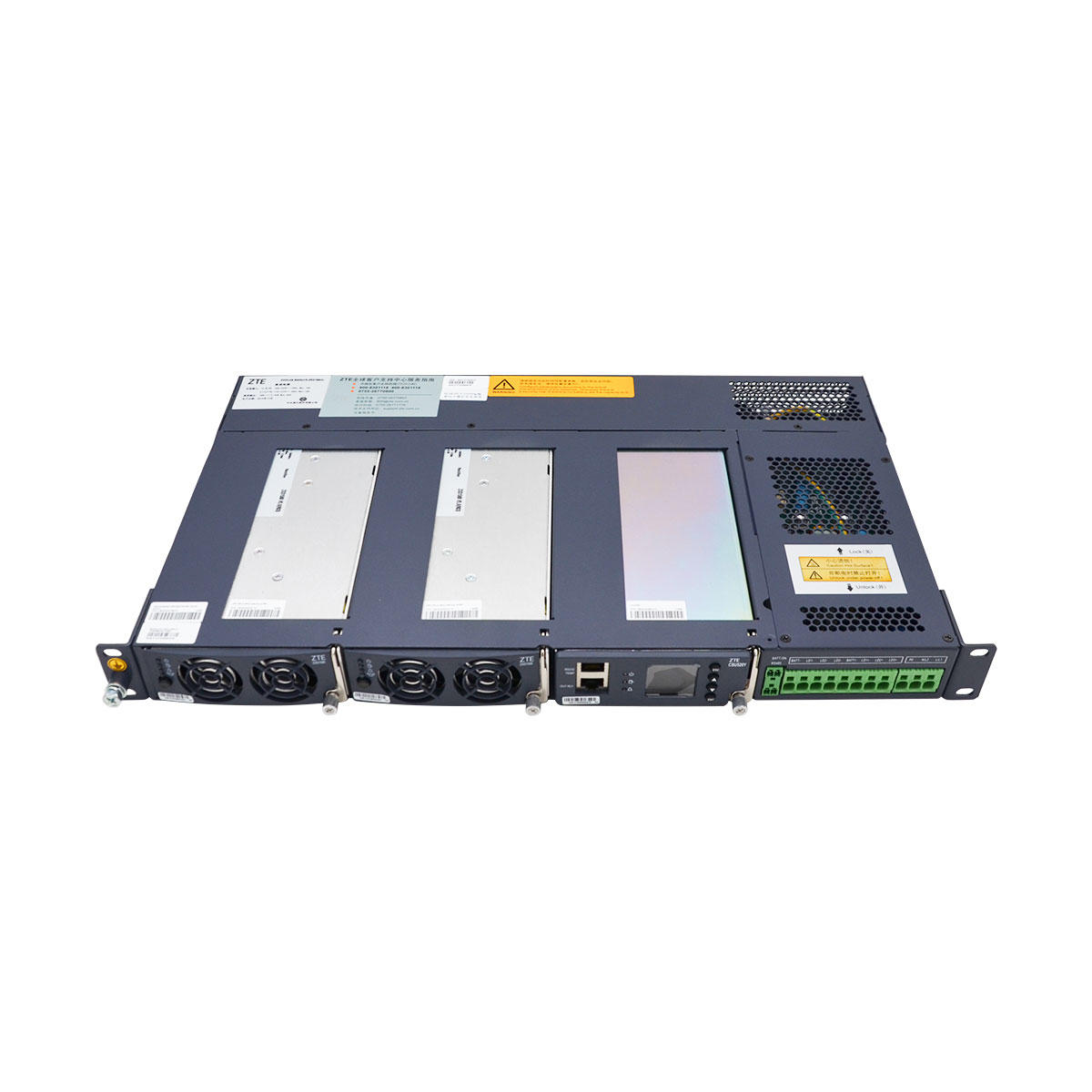

ZTE ZXDU48 B600 1U high/19 inch wide output power 3200w, maximum output current 60A/53.5V embedded communication DC power system can be insert 1*monitoring module ZTE CSU520Y  2*rectifier module ZTE ZXD1500

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ZTE ZXDU48 B600 Overview

ZXDU48 B600 is a 1U high/19 inch wide embedded communication DC power system can be insert 1*monitoring module ZTE CSU520Y  2*rectifier module ZTE ZXD1500. which is -48 V Series communication equipment power supply.
l Adopt single-phase three-wire AC input mode (L/N/PE), suitable for 220 V/380 V power grid. At the same time, compatible with 110V dual live wire access.
l Fully configured with 2 ZXD1500 (V5.0) rectifiers, rated output power is 3200 W, maximum output current is 60A/53.5 V DC.

The ZXDU48 B600 DC power system can be installed into a 19-inch cabinet to supply power to -48V communication devices.

ZXDU48-B600

  • Unit:mm

ZXDU48 B600 1

  • 1: Rectifier
  • 2: Monitoring unit
  • 3: Power distribution unit
ZXDU48 B600 Datasheet
Item ZXDU48 B600
Working temperature -33 ℃~+55 ℃
  • >55℃，the load is reduced
  • >75℃，automatically shut down
Storage temperature -45 ℃～+70 ℃
Relative humidity 10%~90% (non-condensing), 40%~60% is recommended
Altitude requirements
  • 0~2000 m: full power output
  • 2000 m~3000 m: The system derates by 1% for every 100 m increase in altitude.
Site requirements
  • Install horizontally, keep the cabinet vertical, without vibrations and bumps
  • Do not drop liquid or conductive objects directly above the device to avoid short circuits
  • There is no danger of flooding, corrosive gas, or explosion around the equipment
  • There is no conductive dust or strong electromagnetic field interference around the equipment
System capacity Fully equipped with 2 ZXD1500 (V5.0) rectifiers, the rated output power is 3200W, and the maximum output current is 60 A/53.5 V.
System efficiency ≥ 95% (rated input, rated output, 50% load)
Mean time between failures (excluding batteries) MTBF≥3.2 × 105 h
Service life (not including battery) 10 years
Maximum Power Consumption(W) 920 (BSUF-100)
Dimensions(mm)
  • 1U high/19 inches wide
  • 43.6 mm × 482.6 mm × 262 mm (H × W × D)
Weight(kg) about 8 kg
\

Additional information

Weight 7.0000 kg
Dimensions 44.5000 × 26.0000 × 4.5000 cm
ZXDU48 B600 Datasheet
Item ZXDU48 B600
Working temperature -33 ℃~+55 ℃
  • >55℃，the load is reduced
  • >75℃，automatically shut down
Storage temperature -45 ℃～+70 ℃
Relative humidity 10%~90% (non-condensing), 40%~60% is recommended
Altitude requirements
  • 0~2000 m: full power output
  • 2000 m~3000 m: The system derates by 1% for every 100 m increase in altitude.
Site requirements
  • Install horizontally, keep the cabinet vertical, without vibrations and bumps
  • Do not drop liquid or conductive objects directly above the device to avoid short circuits
  • There is no danger of flooding, corrosive gas, or explosion around the equipment
  • There is no conductive dust or strong electromagnetic field interference around the equipment
System capacity Fully equipped with 2 ZXD1500 (V5.0) rectifiers, the rated output power is 3200W, and the maximum output current is 60 A/53.5 V.
System efficiency ≥ 95% (rated input, rated output, 50% load)
Mean time between failures (excluding batteries) MTBF≥3.2 × 105 h
Service life (not including battery) 10 years
Maximum Power Consumption(W) 920 (BSUF-100)
Dimensions(mm)
  • 1U high/19 inches wide
  • 43.6 mm × 482.6 mm × 262 mm (H × W × D)
Weight(kg) about 8 kg
\
