ZTE ZXA10 C320 GE DC

2 Reviews Write a review
SKU8506
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

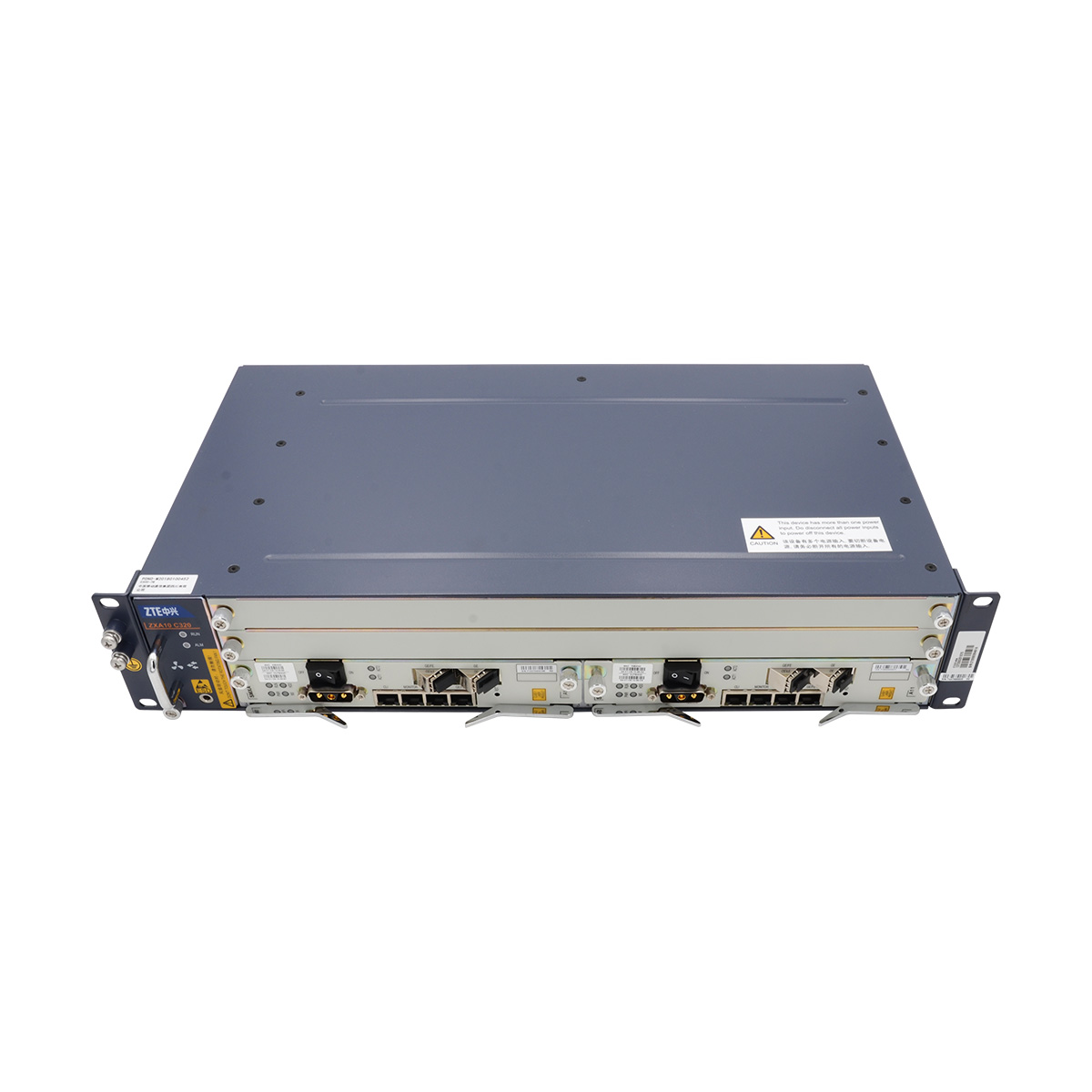

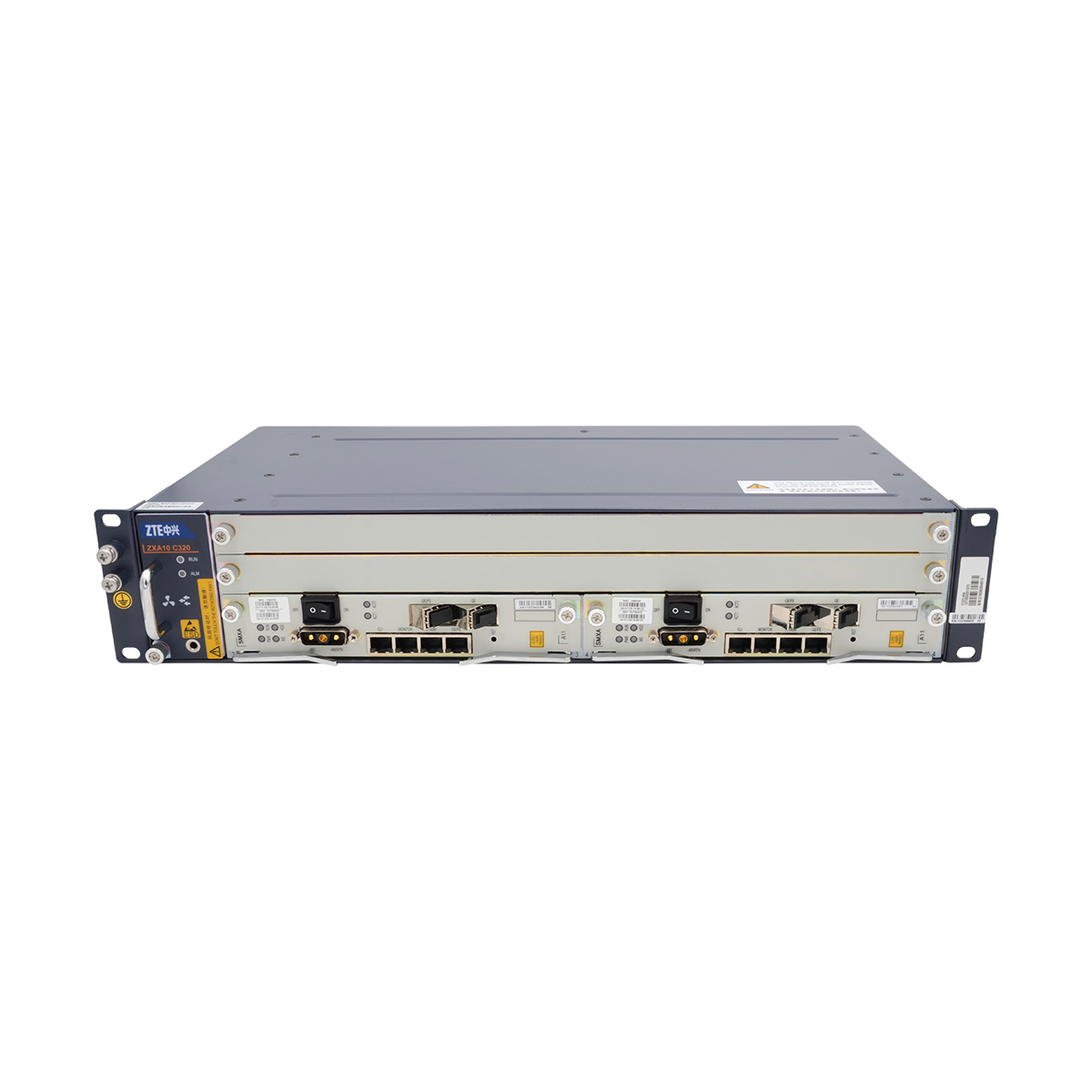

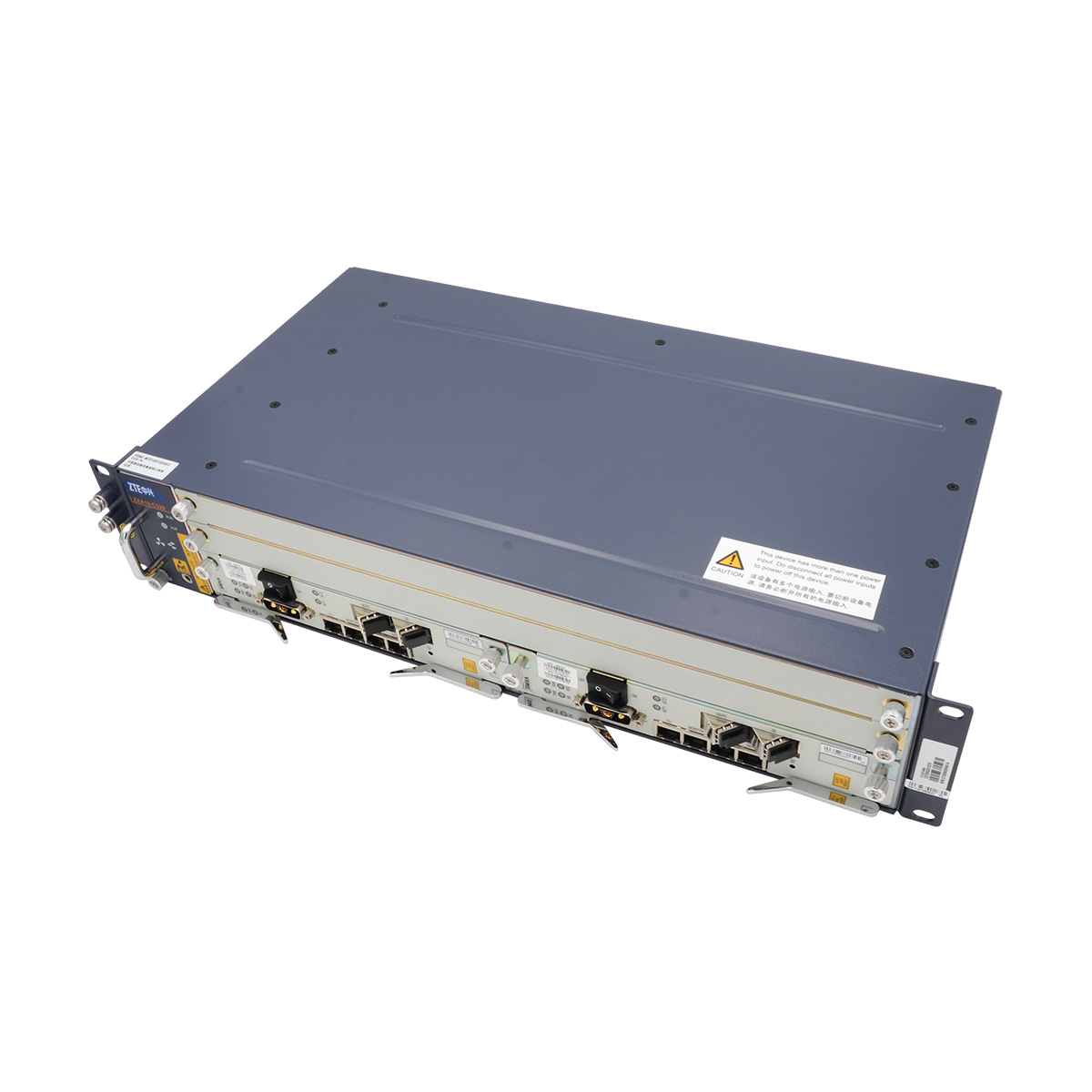

ZTE ZXA10 C320 Chassis with Single or Dual SMXA/1(SMXA+UCDC1) GE Main Control Board with DC power port embeded.

Description

ZTE C320 Overview

ZTE ZXA10 C320 19 inch chassis with 2 service slots, come with GE Main Control Board and DC power, but you can choose other main control cards and power boards solutions.

About the control board:

SMXA/1(SMXA+UCDC/1, with 2-port GE  SFP uplink),

SMXA/3(SMXA+UCDC/3, with 1 GE SFP and 1 10GE SFP+ uplink)

SMXA/5(SMXA+UCDC/5, with 1 GE SFP and 1 10GE SFP+ uplink)

About the power board:

The DC power interface is integrated on the main control card by default.

If the AC power supply is needed, one of the main control slots would be ocucupied by the AC power supply unit: PRAM.

Supported Pon Board for ZTE OLT
GPON XG-PON XGS-PON XG-PON and GPON Combo XGS-PON and GPON Combo Port
ZTE C300/C320/C350 GTGO GTXO GTTO GTBO 8
GTGH 16
C600/C650/C680 GFGH GFXH GFTH GFBN/GFBH GFCH 16
ZTE ZXA10 C320 OLT Product Feature

The ZXA10 C320 is the industry’s first compact FTTx central office access platform oriented to next-generation PON evolution. It is vastly deployed for low-density areas, outdoor deployment, and limited space scenarios. It offers ultrafast bandwidth, meets full-service access and multiple scenario requirements, and provides carrier-class QoS and security guarantee.

Multiple access modes and coexistence of different generations of PON technologies ensure a sustainable evolution of the network

  • Supports a full range of GPON solutions at 10G PON
  • A unified platform that supports the coexistence of multiple PON technologies

2U high, supports up to 32 PON ports

  • Greatly save installation space compared to large OLTs
  • 2U height requires less equipment space and supports deployment in a wide range of scenarios

Adapts to a wide variety of network modes and scenarios to implement flexible, on-demand deployment

  • Unified platform: enables coexistence of GPON / EPON and 10G PON and supports upgrade on demand
  • Adaptable to a wide variety of scenarios – Adapts to low-density, enterprise access, outdoor deployment, limited space, and FTTM scenarios
  • Flexible network: Supports star, link, and Ethernet ring network modes

Multiple outdoor cabinets to suit more application scenarios supported

  • Supports AC, DC and backup power supplies.
  • Supports a wide range of outdoor cabinets to meet user demands.
  • Meets the requirements of extreme environments.

The industry’s first innovative Combo PON solution significantly reduces the difficulty and cost of upgrading from GPON to 10G PON

  • 3-in-1 function (GPON + 10G PON + WDM1r) in a Combo PON port and two generations of PON technologies built into one card help smoothly upgrade from GPON to 10G PON
  • Utilize existing shelves, racks, ODFs, and other resources to dramatically reduce equipment room space and save capital expenditures.
  • No additional insertion loss. It is not necessary to change the existing ODN
  • Saves spare parts and maintenance costs and reduces operating expenses

Ecological and energy saving platform

  • Intelligent speed control fans
  • Supports ALS port detection

Fast provisioning of services through “zero” data planning and “zero” manual configuration

  • Automatic service configuration
  • Automatic access to ONU
  • Export ONU data in batches and implement ONU plug-and-play
  • Convenient and efficient service provision
ZTE ZXA10 C320 Datasheet
Item ZTE ZXA10 C320
Backplane capacity 420 Gbit/s
Switching capacity 84 Gbit/s
Number of service cards 2 (GPON/P2P/XG-PON1)
Number of combined control cards 2
Number of power supply cards 1
Number of uplink cards 1 (10GE/GE/FE/E1/T1)
Maximum number of GPON subscribers 4096
Management Interfaces CLI, SSH, SNMP, telnet
Power -48 V (DC), 230V (AC)
Working temperature and humidity -25°C – +55°C, 5% – 95%
Split Ratio up to 1:128
Range 20-60 km
Maximum attenuation SFP B+ 28 dB, SFP C+ 32 dB
Dynamic Bandwidth Allocation NSR-DBA, SR-DBA
Support FEC, AES128, SCB, OLS
Dimensions 86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)
Power Supply Dual DC: 48V/60VAC: 100V~240V
Cabinet Indoor: 2200mm x 600mm x 300mm standard cabinet  Outdoor: EC90EB, EC70E

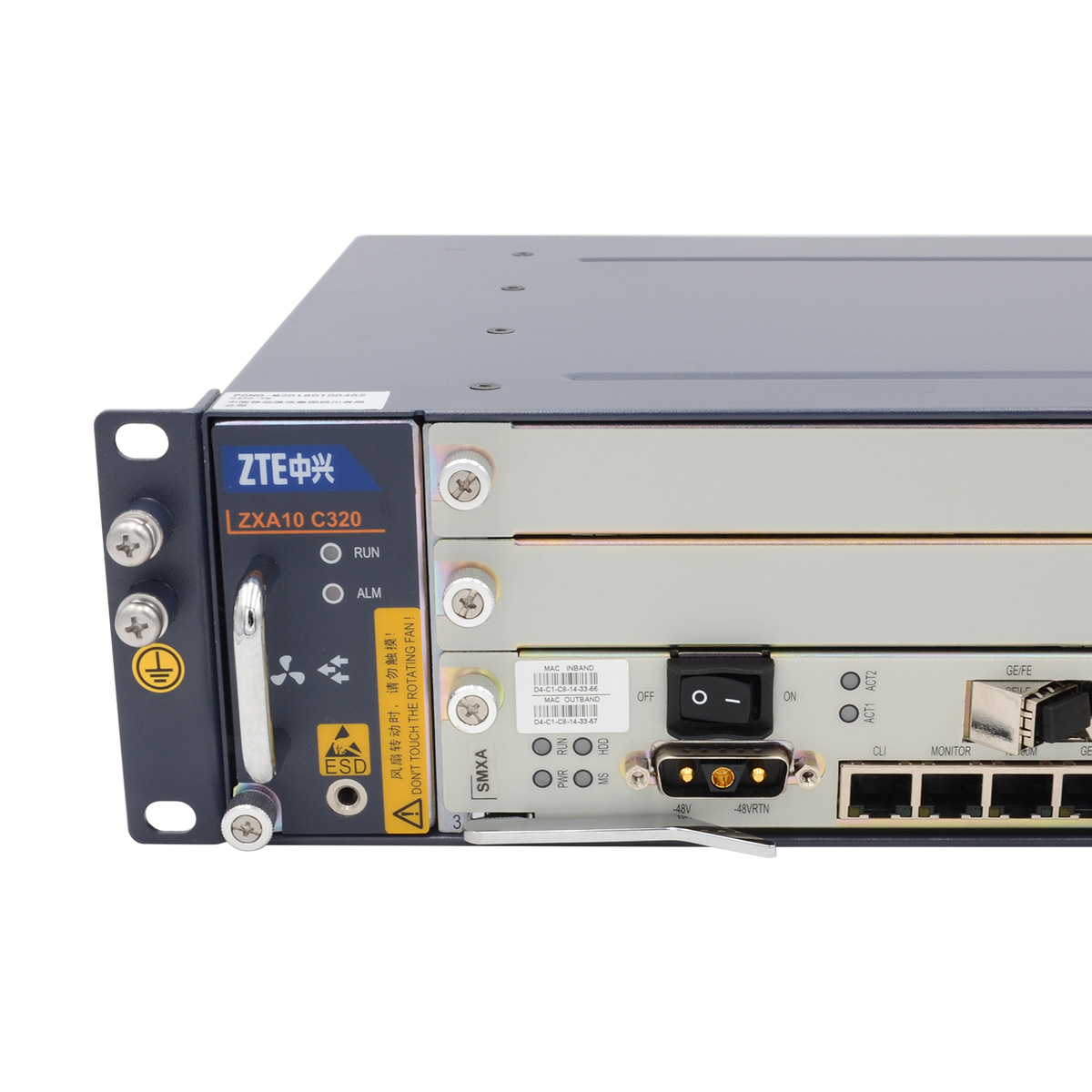

Main-Control Switching Card SMXA Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical) 1*serial port+ 1*management FE+ 1*environment detecting port Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE
Service Card  (2 slots) GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON1)

Additional information

Weight 12.0000 kg
Dimensions 60.0000 × 39.0000 × 25.0000 cm
ZTE ZXA10 C320 Datasheet
Item ZTE ZXA10 C320
Backplane capacity 420 Gbit/s
Switching capacity 84 Gbit/s
Number of service cards 2 (GPON/P2P/XG-PON1)
Number of combined control cards 2
Number of power supply cards 1
Number of uplink cards 1 (10GE/GE/FE/E1/T1)
Maximum number of GPON subscribers 4096
Management Interfaces CLI, SSH, SNMP, telnet
Power -48 V (DC), 230V (AC)
Working temperature and humidity -25°C – +55°C, 5% – 95%
Split Ratio up to 1:128
Range 20-60 km
Maximum attenuation SFP B+ 28 dB, SFP C+ 32 dB
Dynamic Bandwidth Allocation NSR-DBA, SR-DBA
Support FEC, AES128, SCB, OLS
Dimensions 86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)
Power Supply Dual DC: 48V/60VAC: 100V~240V
Cabinet Indoor: 2200mm x 600mm x 300mm standard cabinet  Outdoor: EC90EB, EC70E
Main-Control Switching Card SMXA Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical) 1*serial port+ 1*management FE+ 1*environment detecting port Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE
Service Card  (2 slots) GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON1)

Reviews

  1. Roberto

    Este OLT pequeño y económico es adecuado para nuestra pequeña red ahora, comprará más cuando se expanda.

  2. Jeremy

    Telecomate.com provides us a solution: ZTE ZXA10 C320 GE DC works with ETP-48100, which perfectly solves our needs for developing optical fiber business in rural areas.
