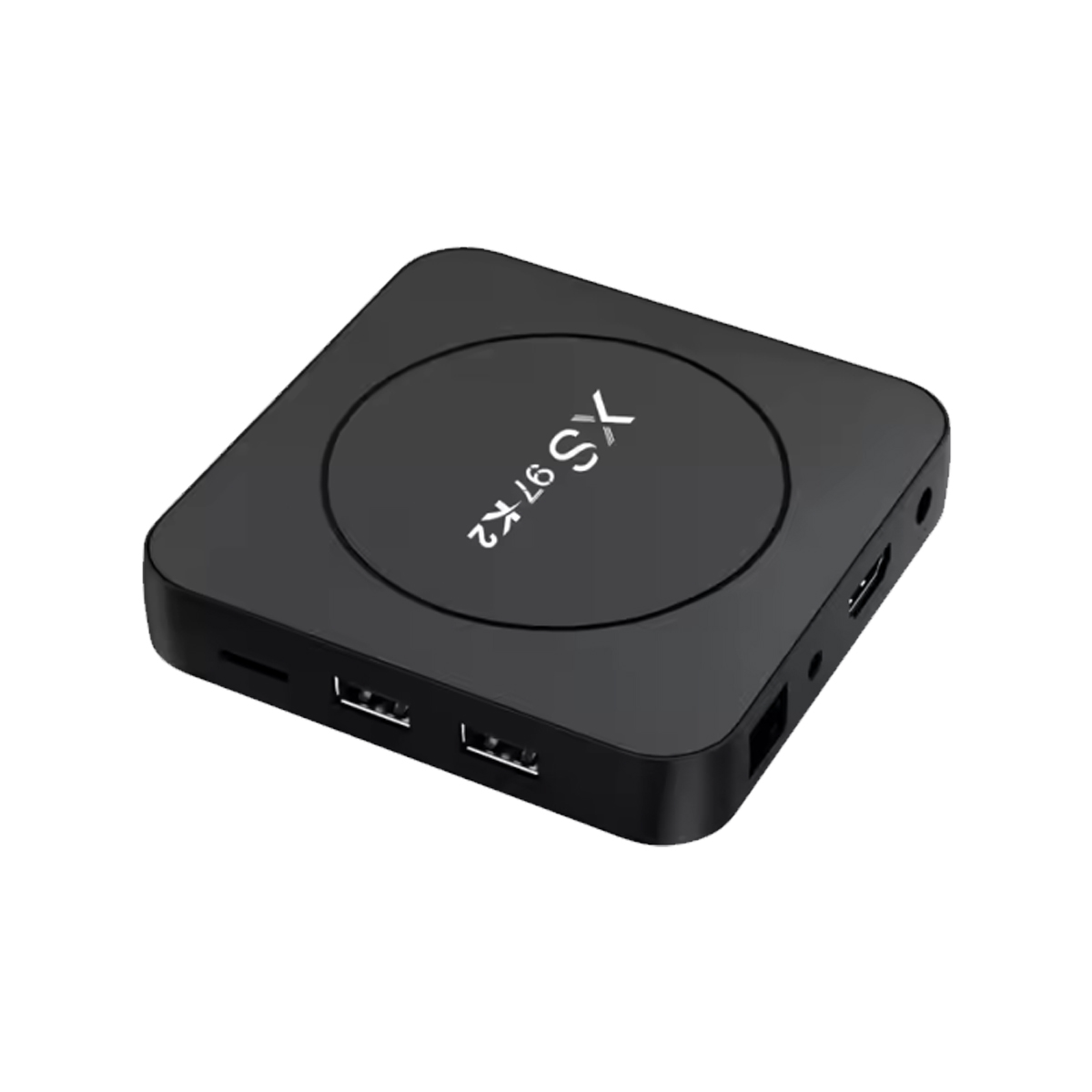

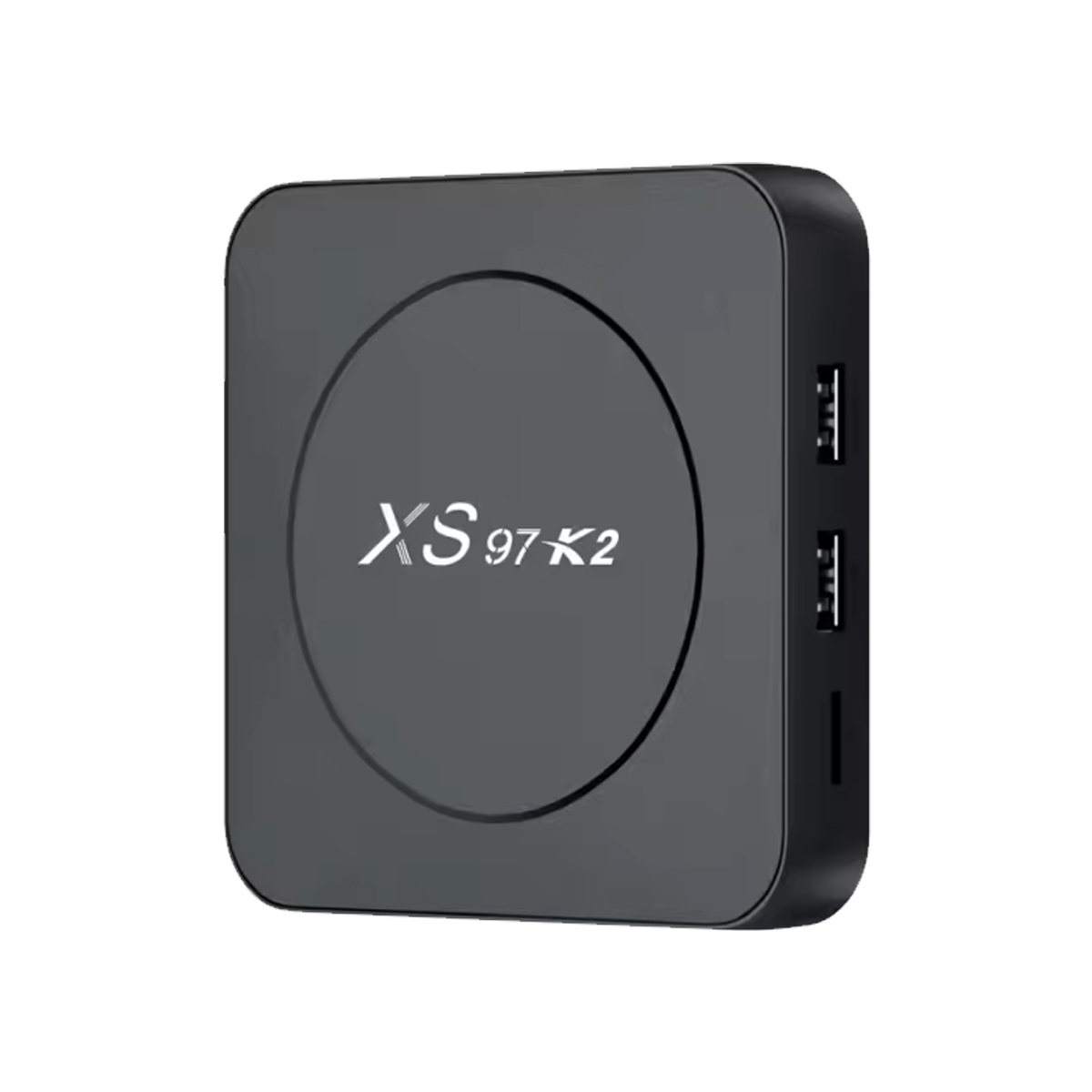

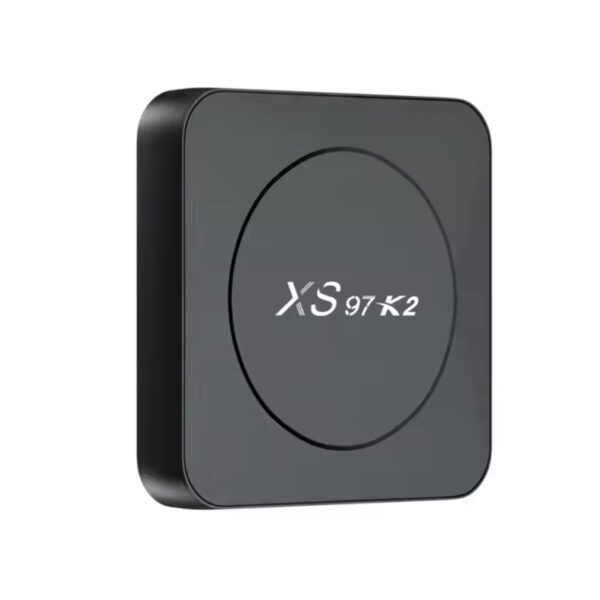

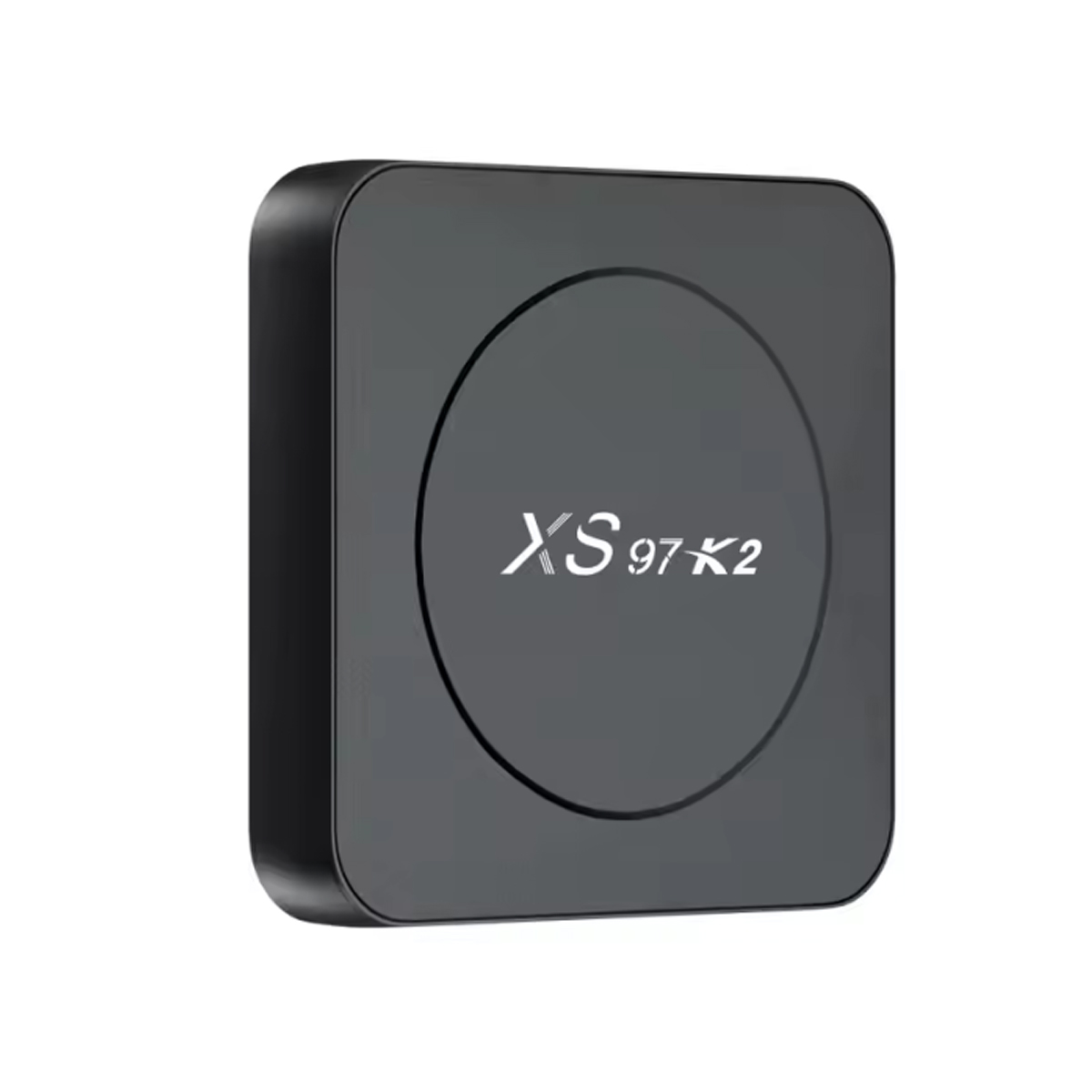

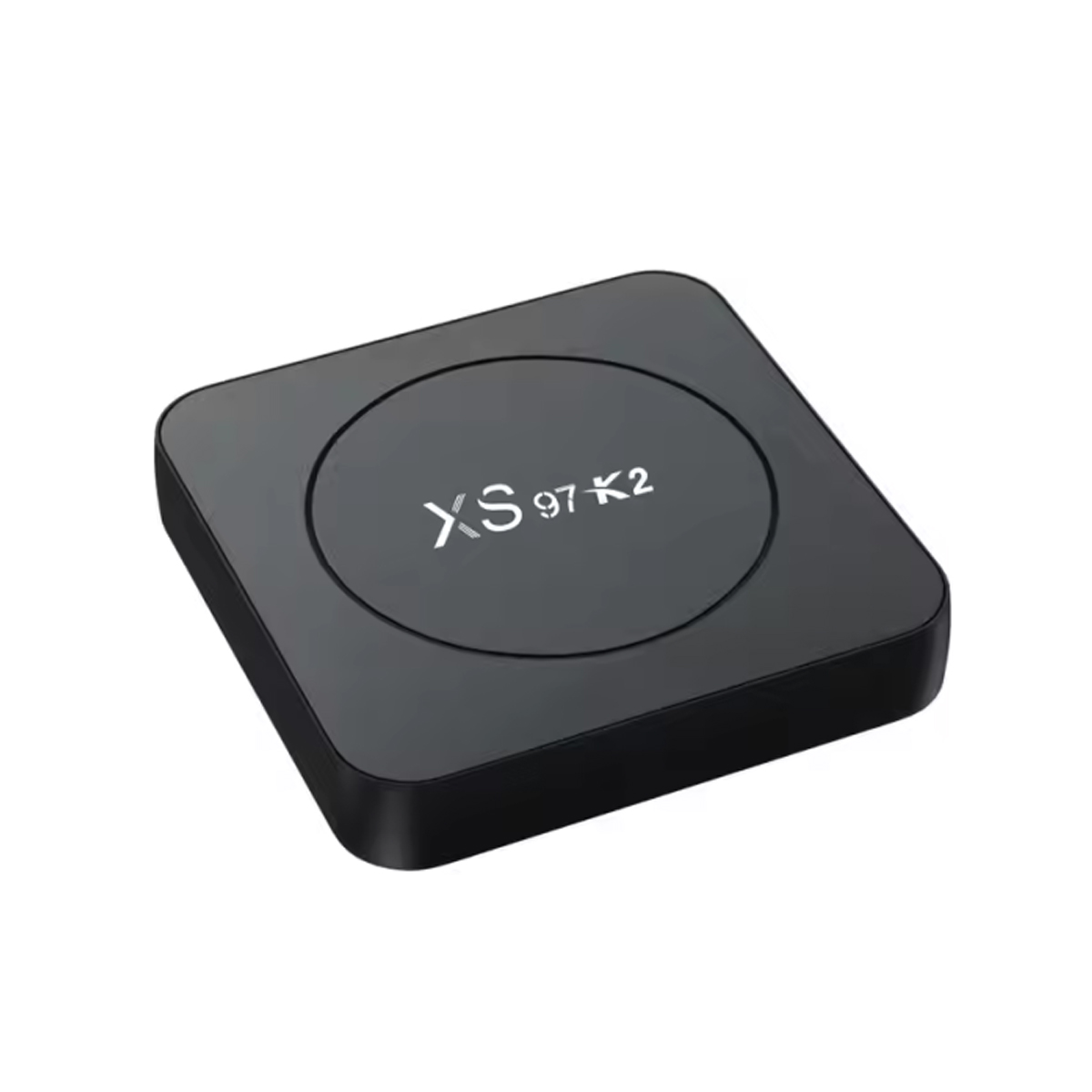

XS97 K2 BT with Allwinner H313 Quad Core ARM Cortex A53
XS97 K2 BT Overview
| Item | XS97 K2 BT | |
| CPU | Allwinner H313 Quad Core ARM Cortex A53 | |
| GPU | G31 OPenGL3.2 | |
| Memory | DDR3：2GB | |
| Flash | eMMC：8GB | |
| WiFi&BT | 2.4G/5G dual wifi with BT | |
| Moudle | Plastic : Black Color | |
| I/O | 1*HDMI | 4K*2K UHD Output, HDMI 2.0A |
| 1*AV OUT | 480i/576i standard definition output | |
| 2*USB | 1* USB Host Port ,1*USB Device | |
| 1*IR Reciver | Remote Reciver Connect | |
| 1*RJ45 | Ethernet Interface | |
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |
| Power | DC 5V/2A；LED indicator，Working ：Blue; Standby：Red | |
| OS | Android 10.0 | |
| Vedio | AllwinnerVideo Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4K@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding - VP9 Profile-2 up to 4K@30fps - H.265 Main10@L5.1 up to 4K@60fps - AVS2 JiZhun 10bit Profile up to 4K@60fps - H.264 BP/MP/HP@L4.2 up to 4K@30fps - H.263 BP up to 1080P@60fps - MPEG-4 SP/ASP@L5 up to 1080P@60fps - MPEG-2 MP/HL up to 1080P@60fps - MPEG-1 MP/HL up to 1080P@60fps - Xvid up to 1080P@60fps - Sorenson Spark up to 1080P@60fps - VP8 up to 1080P@60fps - AVS/AVS+ JiZhun Profile up to 1080P@60fps - WMV9/VC1 SP/MP/AP up to 1080P@60fps - JPEG HFIF file format up to 45M PPS - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output • Two DAC channels • Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR) • One Audio HUB, supporting internal mixing function • Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier) • Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode • I2S mode supports 8 channels, and 32-bit/192kbit sample rate • I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate • One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs • Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones | |
| Image | HD JPEG、BMP、GIF、PNG、TIF | |
| Language | English French German Spanish Italian etc multilateral languages | |
| Appliactions | ||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |
| Apps | Apps download freely form android market、amazon app store etc. | |
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . | |
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard | |
| Packing | Product dimension | 98*98*17(mm) |
| Qty per unit packing | 1pcs | |
| Unit packing: (LxWxH) | 180*109*53(mm) | |
| Unit packing (G.W.) | 0.40Kg | |
| Qty per export carton | 40PCS | |
| Export carton (WxHxL) | 575*380*238（mm） | |
| Export carton (G.W.) | 16Kg | |
| Accessories | 1、HDMI cable *1 | |
| 2、IR Remote *1 | ||
| 3、User Manual *1 | ||
| 4、Package box *1 | ||
| 5、Power adapter *1 | ||
| Item | XS97 K2 BT | |
| CPU | Allwinner H313 Quad Core ARM Cortex A53 | |
| GPU | G31 OPenGL3.2 | |
| Memory | DDR3：2GB | |
| Flash | eMMC：8GB | |
| WiFi&BT | 2.4G/5G dual wifi with BT | |
| Moudle | Plastic : Black Color | |
| I/O | 1*HDMI | 4K*2K UHD Output, HDMI 2.0A |
| 1*AV OUT | 480i/576i standard definition output | |
| 2*USB | 1* USB Host Port ,1*USB Device | |
| 1*IR Reciver | Remote Reciver Connect | |
| 1*RJ45 | Ethernet Interface | |
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |
| Power | DC 5V/2A；LED indicator，Working ：Blue; Standby：Red | |
| OS | Android 10.0 | |
| Vedio | AllwinnerVideo Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4K@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding - VP9 Profile-2 up to 4K@30fps - H.265 Main10@L5.1 up to 4K@60fps - AVS2 JiZhun 10bit Profile up to 4K@60fps - H.264 BP/MP/HP@L4.2 up to 4K@30fps - H.263 BP up to 1080P@60fps - MPEG-4 SP/ASP@L5 up to 1080P@60fps - MPEG-2 MP/HL up to 1080P@60fps - MPEG-1 MP/HL up to 1080P@60fps - Xvid up to 1080P@60fps - Sorenson Spark up to 1080P@60fps - VP8 up to 1080P@60fps - AVS/AVS+ JiZhun Profile up to 1080P@60fps - WMV9/VC1 SP/MP/AP up to 1080P@60fps - JPEG HFIF file format up to 45M PPS - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output • Two DAC channels • Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR) • One Audio HUB, supporting internal mixing function • Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier) • Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode • I2S mode supports 8 channels, and 32-bit/192kbit sample rate • I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate • One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs • Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones | |
| Image | HD JPEG、BMP、GIF、PNG、TIF | |
| Language | English French German Spanish Italian etc multilateral languages | |
| Appliactions | ||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |
| Apps | Apps download freely form android market、amazon app store etc. | |
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . | |
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard | |
| Packing | Product dimension | 98*98*17(mm) |
| Qty per unit packing | 1pcs | |
| Unit packing: (LxWxH) | 180*109*53(mm) | |
| Unit packing (G.W.) | 0.40Kg | |
| Qty per export carton | 40PCS | |
| Export carton (WxHxL) | 575*380*238（mm） | |
| Export carton (G.W.) | 16Kg | |
| Accessories | 1、HDMI cable *1 | |
| 2、IR Remote *1 | ||
| 3、User Manual *1 | ||
| 4、Package box *1 | ||
| 5、Power adapter *1 | ||
