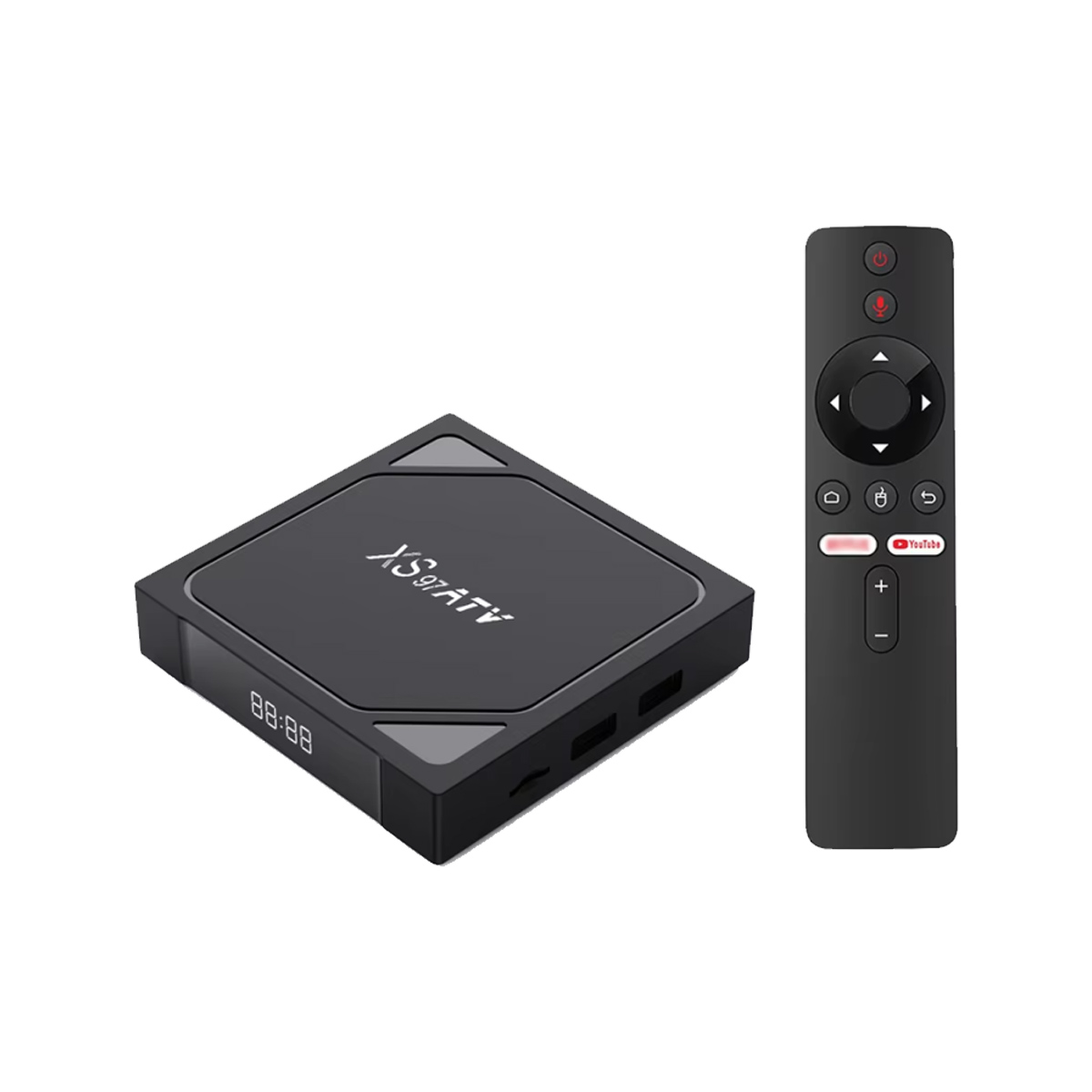

XS97 ATV Quad core 64 bit 4K HDR Android TV Box
XS97 ATV Overview
Quad core 64 bit 4K HDR Android TV Box
Android base TV system
H.264 1080p 60fps Video encoding
H.264/H.265 10bit HDR decoding up to 4K@60fps
HDMI 2.0 max to 4K60 output
| Item | XS97 ATV | |
| CPU | Quad-core ARM Cortex™-A53 | |
| GPU | Mali-G31 | |
| Memory | DDR3：2GB | |
| Flash | EMMC 16GB | |
| OS | Android 10.0 | |
| Network | RJ45 Interface 10M/100M adaptive | |
| Build in Wi-Fi 2.4GHz+5GHz | ||
| I/O | Video Output | HDMI2.0(4K60), AV |
| Network | RJ45, Buildin Wi-Fi antenna | |
| Peripheral Interface | USB2.0x2 | |
| Power Interface | DC 5V 2A | |
| Other Interface | IR receiver, LED indicato | |
| Video | Decoder: • H.265 Main10@L5.1 decoder up to 4K@60fps • VP9 Profile 2 decoder up to 4K@30fps • AVS2 JiZhun 10bit decoder up to 4K@30fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps • Multi-format 1080p@60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc | |
| Format: MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. | ||
| Audio | Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio, AC-3/DD+/AC-4, MPEG-H | |
| Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| Multi-screen interactive | Miracast, DLNA and Airplay | |
| Local Media Playback | Video/Audio/Picture | |
| TV APP | Stalker/Ministra/Xtream code/M3U(4K HDR10), Google Play(TV version), Google Voice Assistant, YouTube(4K), Netflix(TV Version), Disney+(TV Version up to 720P), HBO Max(TV Version) Android TV APP | |
| External Storage | USB storage max to 2TB (FAT32/NTFS) | |
| System Upgrading | Upgrading via USB disk or internet | |
| Input Voltage | DC IN 5V/2A | |
| Power Consumption | 8W Max | |
| Operation Temperature | 0~40℃, Humidity<95% | |
| Physical characteristics | Size: 100*100*18MM | |
| Proposed Accessory | Power adapter, User manual, HDMI cable, BT Voice RCU | |
| Item | XS97 ATV | |
| CPU | Quad-core ARM Cortex™-A53 | |
| GPU | Mali-G31 | |
| Memory | DDR3：2GB | |
| Flash | EMMC 16GB | |
| OS | Android 10.0 | |
| Network | RJ45 Interface 10M/100M adaptive | |
| Build in Wi-Fi 2.4GHz+5GHz | ||
| I/O | Video Output | HDMI2.0(4K60), AV |
| Network | RJ45, Buildin Wi-Fi antenna | |
| Peripheral Interface | USB2.0x2 | |
| Power Interface | DC 5V 2A | |
| Other Interface | IR receiver, LED indicato | |
| Video | Decoder: • H.265 Main10@L5.1 decoder up to 4K@60fps • VP9 Profile 2 decoder up to 4K@30fps • AVS2 JiZhun 10bit decoder up to 4K@30fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps • Multi-format 1080p@60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc | |
| Format: MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. | ||
| Audio | Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio, AC-3/DD+/AC-4, MPEG-H | |
| Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| Multi-screen interactive | Miracast, DLNA and Airplay | |
| Local Media Playback | Video/Audio/Picture | |
| TV APP | Stalker/Ministra/Xtream code/M3U(4K HDR10), Google Play(TV version), Google Voice Assistant, YouTube(4K), Netflix(TV Version), Disney+(TV Version up to 720P), HBO Max(TV Version) Android TV APP | |
| External Storage | USB storage max to 2TB (FAT32/NTFS) | |
| System Upgrading | Upgrading via USB disk or internet | |
| Input Voltage | DC IN 5V/2A | |
| Power Consumption | 8W Max | |
| Operation Temperature | 0~40℃, Humidity<95% | |
| Physical characteristics | Size: 100*100*18MM | |
| Proposed Accessory | Power adapter, User manual, HDMI cable, BT Voice RCU | |
