HuaWei XH9000 series XH9110-24BQ8DQ-B switch 24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

XH9110-24BQ8DQ-B overview



This Huawei switch comes with 24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake, which is one of the XH9000 serise switches.

Huawei XH9000 series switches are next-generation access switches that provide high performance and high port density in AI-powered data centers. They have an advanced hardware architecture and offer high-density 200GE and 400GE ports. They also support extensive data center service features and flexible airflow directions.

The XH9000 series switches can work with CloudEngine XH16800 series data center core switches to build an elastic, virtualized, high-quality, and fully-connected 40GE, 100GE, 200GE, or 400GE data center network, meeting network requirements of data centers in the cloud era. Designed for high-density 200GE and 400GE access in data centers, they help enterprises and carriers build a data center network platform for AI scenarios.

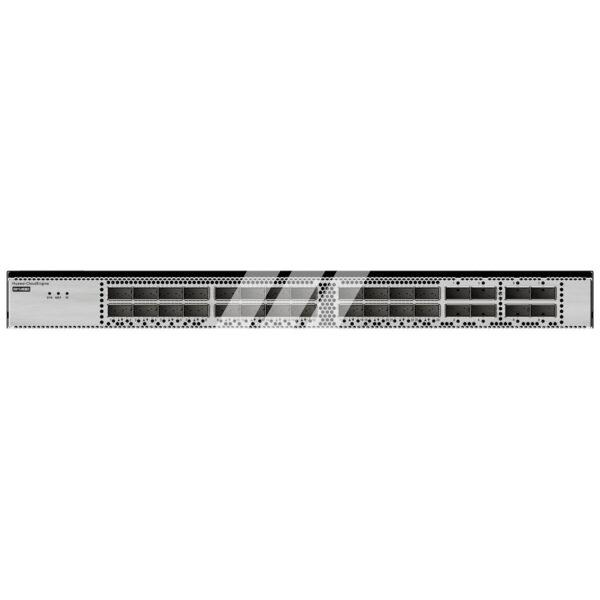

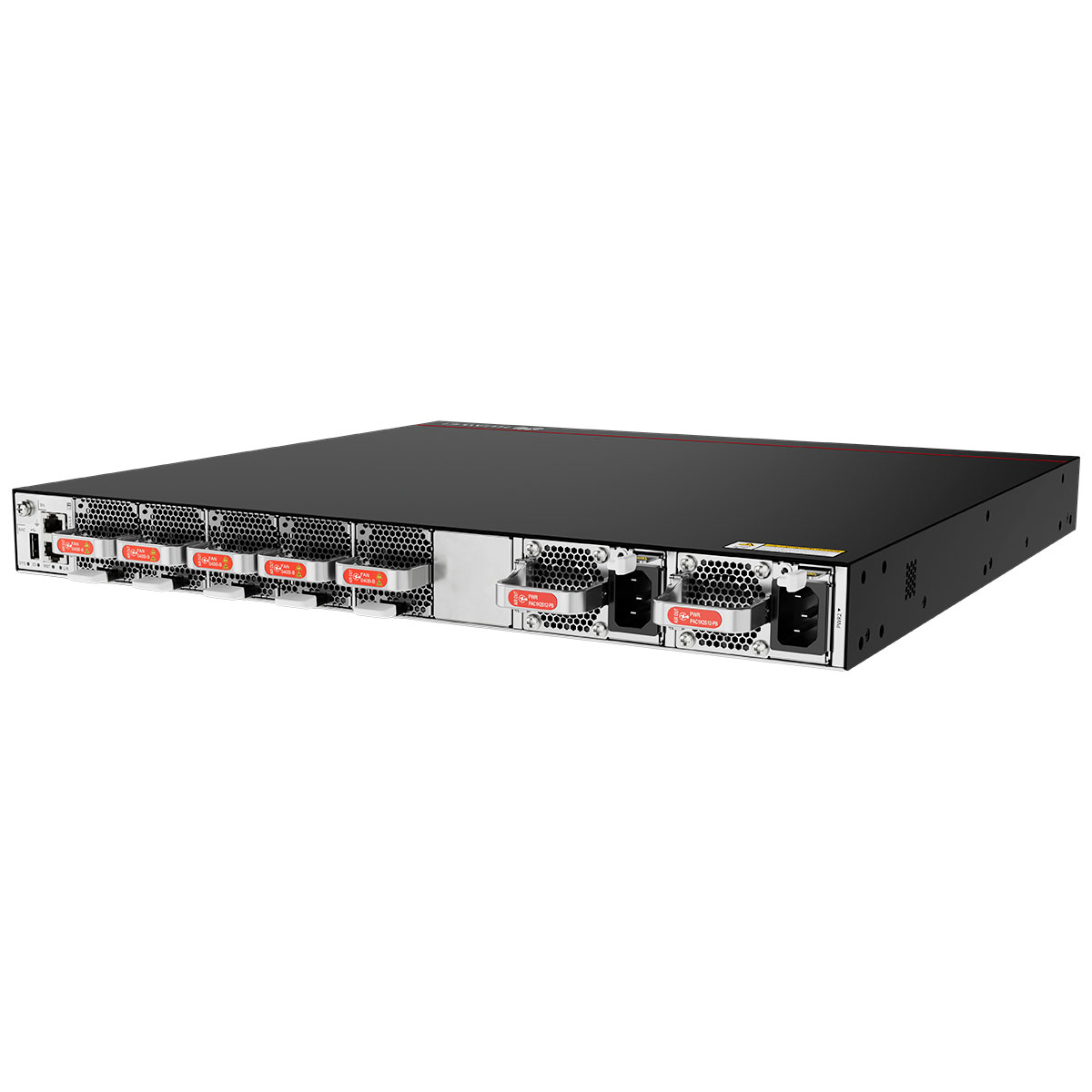

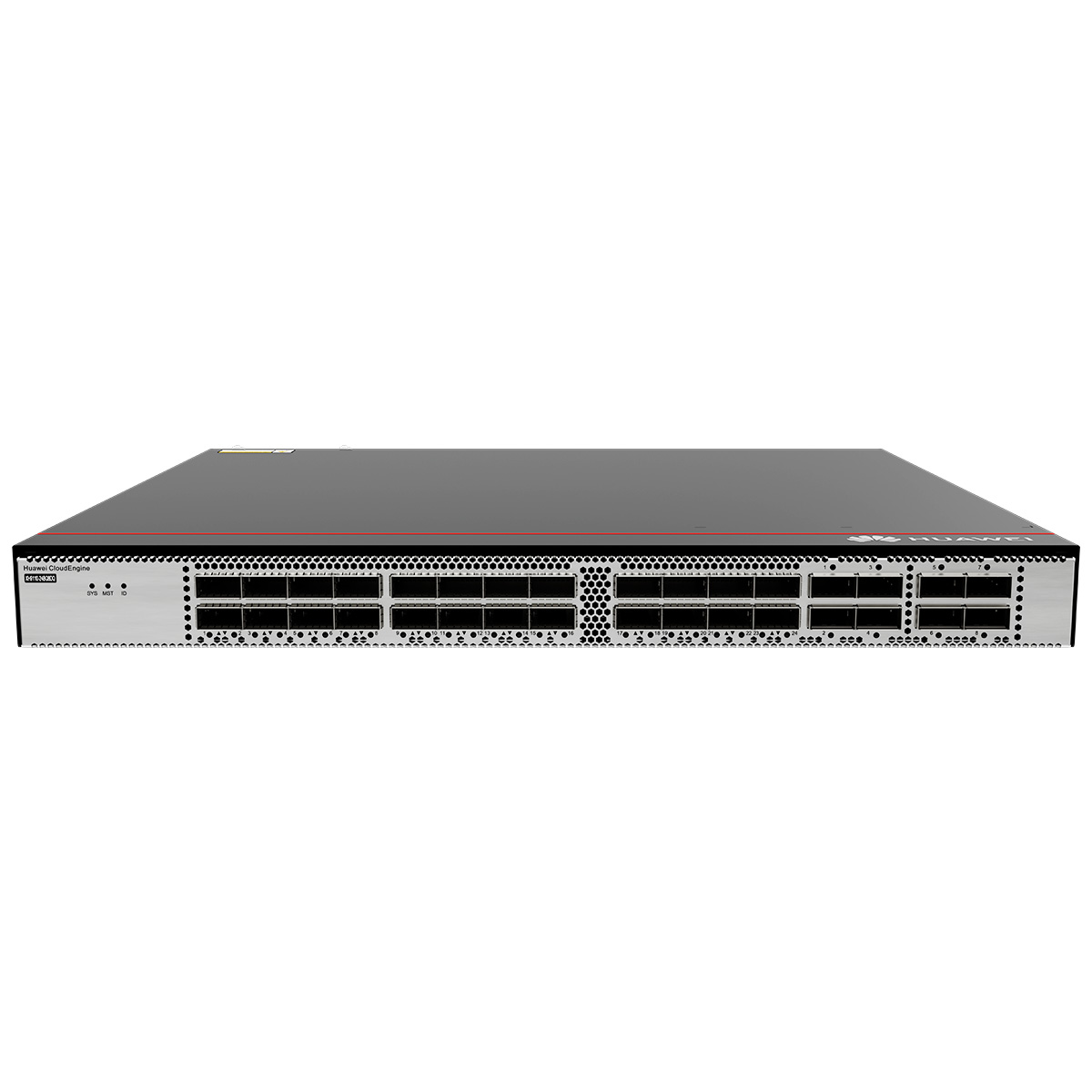

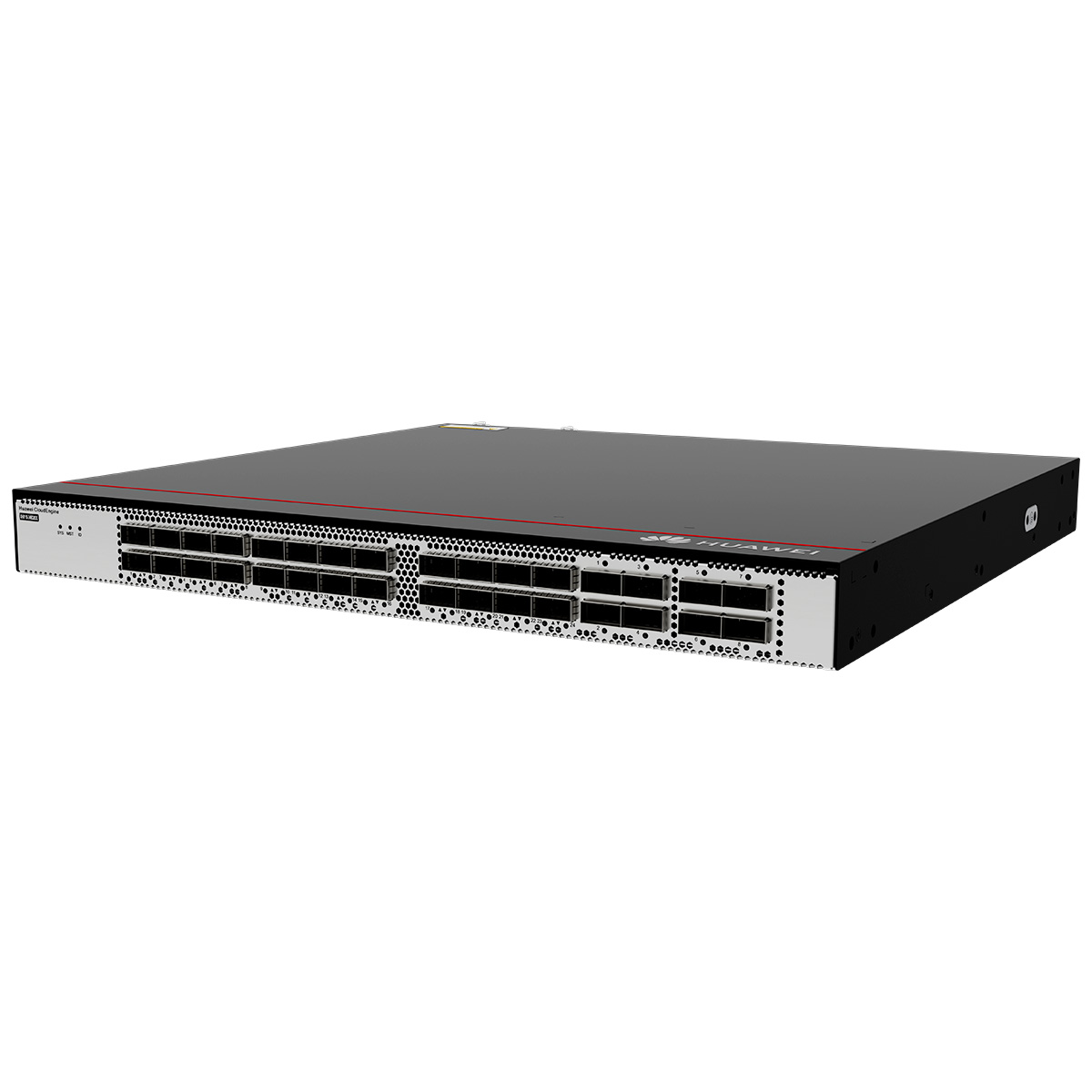

XH9110-24BQ8DQ-B appearance and structure

XH9110-24BQ8DQ-B

1. Ground screw

2. Equipment serial number (ESN) and MAC address

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

3. Console port

4. ETH management port (RJ45)

5. USB port

6. Five Fan slots

Applicable fan modules:

  • FAN-040B-B
  • FAN-040B-F

7. Two Power supply slots

Applicable power modules:

  • PAC1K2S12-PB
  • PAC1K2S12-PF
  • PDC1K2S12-CE
  • PDC1K2S12-PB

8. Twenty-four 200GE QSFP56 Ethernet optical ports

9. Eight 400GE QSFP-DD Ethernet optical ports

10. Three port-side mounting holes for mounting brackets

11. Two middle mounting holes for mounting brackets

12. Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

13. Four power-supply-side mounting holes for mounting brackets

–

–



Item XH9110-24BQ8DQ-B
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Typical power consumption [W]

291 W (100% traffic load, copper cables on 12 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)

382 W (100% traffic load, short-distance optical modules on 12 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]

993 BTU/hour (100% traffic load, copper cables on 12 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)

1303 BTU/hour (100% traffic load, short-distance optical modules on 12 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)
Static power consumption [W] 247 W
Static heat dissipation [BTU/hour] 843 BTU/hour
Maximum power consumption [W]

522 W (100% traffic load, short-distance optical modules on 24 x 200GE + 8 x 400GE ports, normal temperature, dual AC power modules)

770 W (100% traffic load, long-distance optical modules on 24 x 200GE + 8 x 400GE ports, high temperature, dual AC power modules)
Maximum heat dissipation [BTU/hour]

1781 BTU/hour (100% traffic load, short-distance optical modules on 24 x 200GE + 8 x 400GE ports, normal temperature, dual AC power modules)

2627 BTU/hour (100% traffic load, long-distance optical modules on 24 x 200GE + 8 x 400GE ports, high temperature, dual AC power modules)
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 1200 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
  • 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC
Input voltage range [V]
  • 1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
  • 1200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
Maximum input current [A]
  • 1200 W AC&240 V DC power module: 10 A (100 V AC to 130 V AC); 8 A (200 V AC to 240 V AC); 8 A (240 V DC)
  • 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC)
Rated output power [W]
  • 1200 W AC&240 V DC power module: 1200 W
  • 1200 W DC power module: 1200 W
Certification

· Compliance with safety standards

· Compliance with EMC standards

· Compliance with environment and environmental protection standards
Power supply surge protection [kV]

AC: 6 kV in common mode and 6 kV in differential mode

DC: 4 kV in common mode and 2 kV in differential mode

HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 5
Redundant fans The device supports 4+1 backup of fan modules that work in hot standby mode. If a single fan module fails, the device can work properly in a short period of time. To guarantee long-term operation of the device, you are advised to replace the failed fan module immediately
Heat dissipation mode Air cooling
Airflow direction Port-side air intake/port-side air exhaust, depending on the selected fan module and power module.
Availability 0.999994996
MTBF [year] 34.22 years
MTTR [hour] 1.5 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]
  • Front-to-back airflow: 50.9 dB(A) on average; maximum: 53.8 dB(A)
  • Back-to-front airflow: 50.8 dB(A) on average; maximum: 54.6 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]
  • Front-to-back airflow: 76.2 dB(A) on average; maximum: 79 dB(A)
  • Back-to-front airflow: 73.1 dB(A) on average; maximum: 79.2 dB(A)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]

0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)

NOTE:

When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum dimensions (the depth is the maximum distance from the protruding port on the front panel to the module handle on the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging [kg (lb)] 6.74 kg (14.86 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 9.16 kg (20.19 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)] 9.71 kg (21.41 lb)
Weight with packaging (full configuration) [kg (lb)] 12.17 kg (26.83 lb)
Installation Type Cabinet installation
CPU 4-core, 1.4 GHz
Memory DRAM: 8 GB
NOR Flash 64 MB
SSD Flash 4GB SSD
USB

It can be used for log backup and USB-based deployment.

This function is reserved.
Power supply mode
  • AC
  • DC
  • HVDC
Console port RJ45
Downlink Service interface 24 x 200G QSFP56
Uplink Service interface 8 x 400G QSFP-DD
