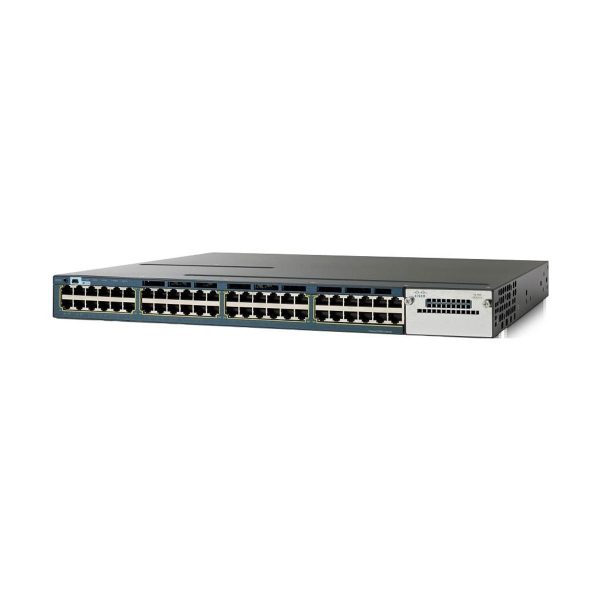

WS-C3560X-48P-L

WS-C3560X-48P-L overview

Cisco Catalyst WS-C3560X-48P-L is 48 Gigabit Ethernet POE+ ports standalone switch in LAN base feature set with no stacking option. Four optional network modules and license-base software feature provide flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. WS-C3560X-48P-L support IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. LAN base feature set offers up to 255-Vlans and comprehensive layer 2 feature with static routing and SVI interface supporting.

WS-C3560X-48P-L is designed for enterprise access layer switching; however, customers can transparently upgrade the software feature to by purchasing either IP base license or IP services license to activate layer 3 capability, 1005 VLans supporting. WS-C3560X-48P-L comes with one default power supply module, customers can purchase additional power supply insert into power supply bay 2 in order to power redundancy.

• 48 * 10/100/1000 Gigabit Ethernet POE+ ports with optional uplink network modules
• 435W POE power budget with up to 30W per port
• Dual redundant, modular power supplies and fans
• LAN base feature set with upgrade option to IP base or IP service
• Layer 2 switching with static routing and SVI supporting
• 64MB flash and 256 memory (DRAM)
• USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

Optional network modules:
