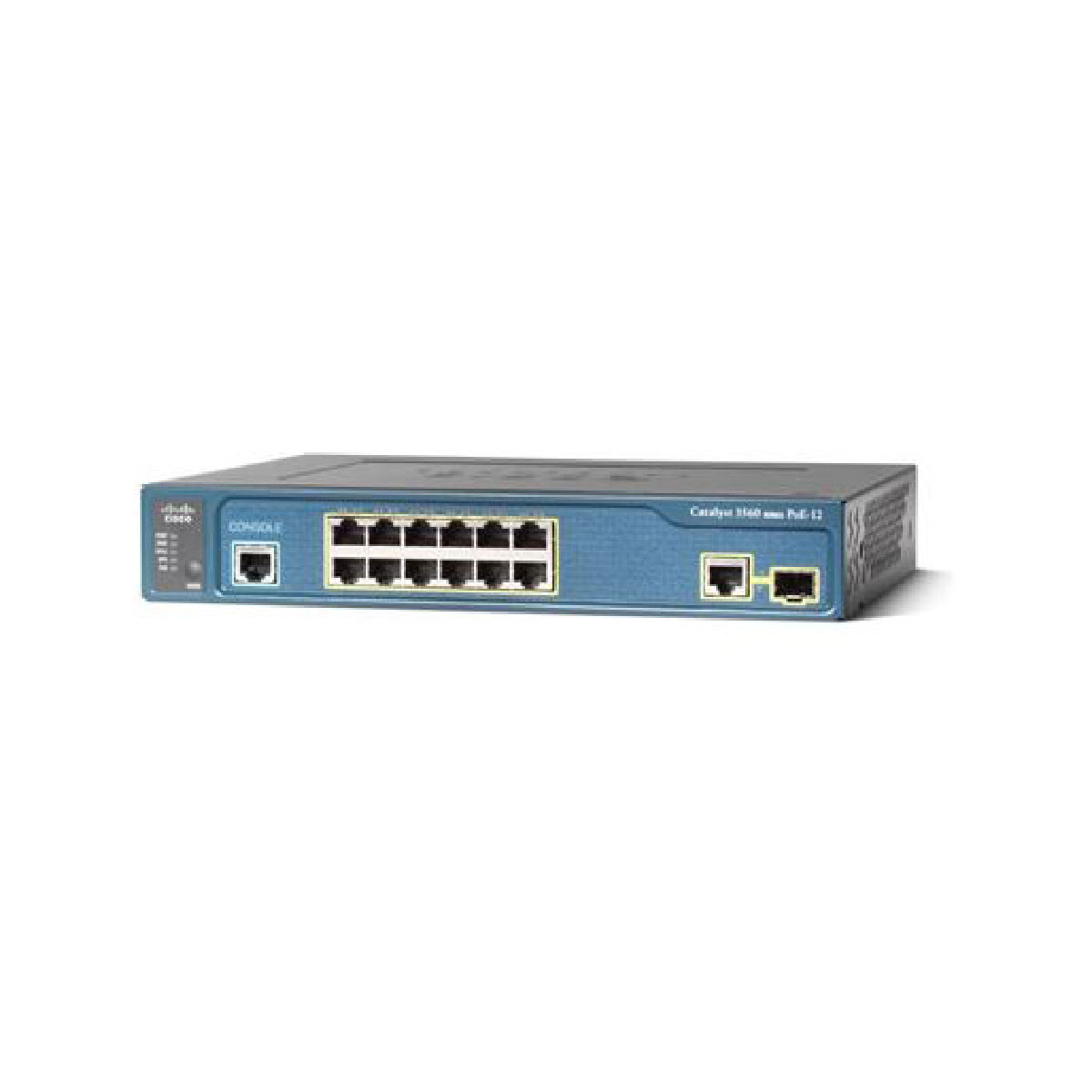

WS-C3560-12PC-S
Categories:

WS-C3560-12PC-S

0 Reviews Write a review
SKU2011136
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Cisco WS-C3560-12PC-S switch supports 12 10/100 Ethernet ports, 1 dual-purpose 10/100/1000 and SFP port, PoE supported

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

WS-C3560-12PC-S overview

Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.

• 12 Ethernet 10/100 ports and 1 dual-purpose 10/100/1000 and SFP port
• Compact form-factor with no fan
• Enterprise-class intelligent services delivered to the network edge
• IEEE 802.3af and Cisco prestandard Power over Ethernet
• IP Base software feature set (IPB)



Items WS-C3560-12PC-S
Topology Ethernet (10/100BaseTX) Ethernet (10/100/1000 Ethernet Ports BaseT) Gigabit Ethernet (SFP)
Maximum Port density 12 10/100 PoE ports
Uplinks 1 dual-purpose (10/100/1000 Ethernet Ports or SFP) ports
Modular/Expansion Slots n/a
Architecture Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Layer 3 Switching, Voice Enabled
Form Factor Fixed, Rack Mountable, Standalone/Clustering
Dimensions 1.73 x 1o.6 x 9.1 in.
DRAM 128 MB
Hardware Redundancy External Redundant Power Supply
High Availability/Resilliency PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w, HSRP
Management features SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management
WAN Interface Support n/a
Throughput 2.7 Mpps
Backplane Capacity 8.8 Gbps
Number of VLANs 4k, 1024

Additional information

Brand

Cisco
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Items WS-C3560-12PC-S
Topology Ethernet (10/100BaseTX) Ethernet (10/100/1000 Ethernet Ports BaseT) Gigabit Ethernet (SFP)
Maximum Port density 12 10/100 PoE ports
Uplinks 1 dual-purpose (10/100/1000 Ethernet Ports or SFP) ports
Modular/Expansion Slots n/a
Architecture Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Layer 3 Switching, Voice Enabled
Form Factor Fixed, Rack Mountable, Standalone/Clustering
Dimensions 1.73 x 1o.6 x 9.1 in.
DRAM 128 MB
Hardware Redundancy External Redundant Power Supply
High Availability/Resilliency PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w, HSRP
Management features SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management
WAN Interface Support n/a
Throughput 2.7 Mpps
Backplane Capacity 8.8 Gbps
Number of VLANs 4k, 1024
