Description

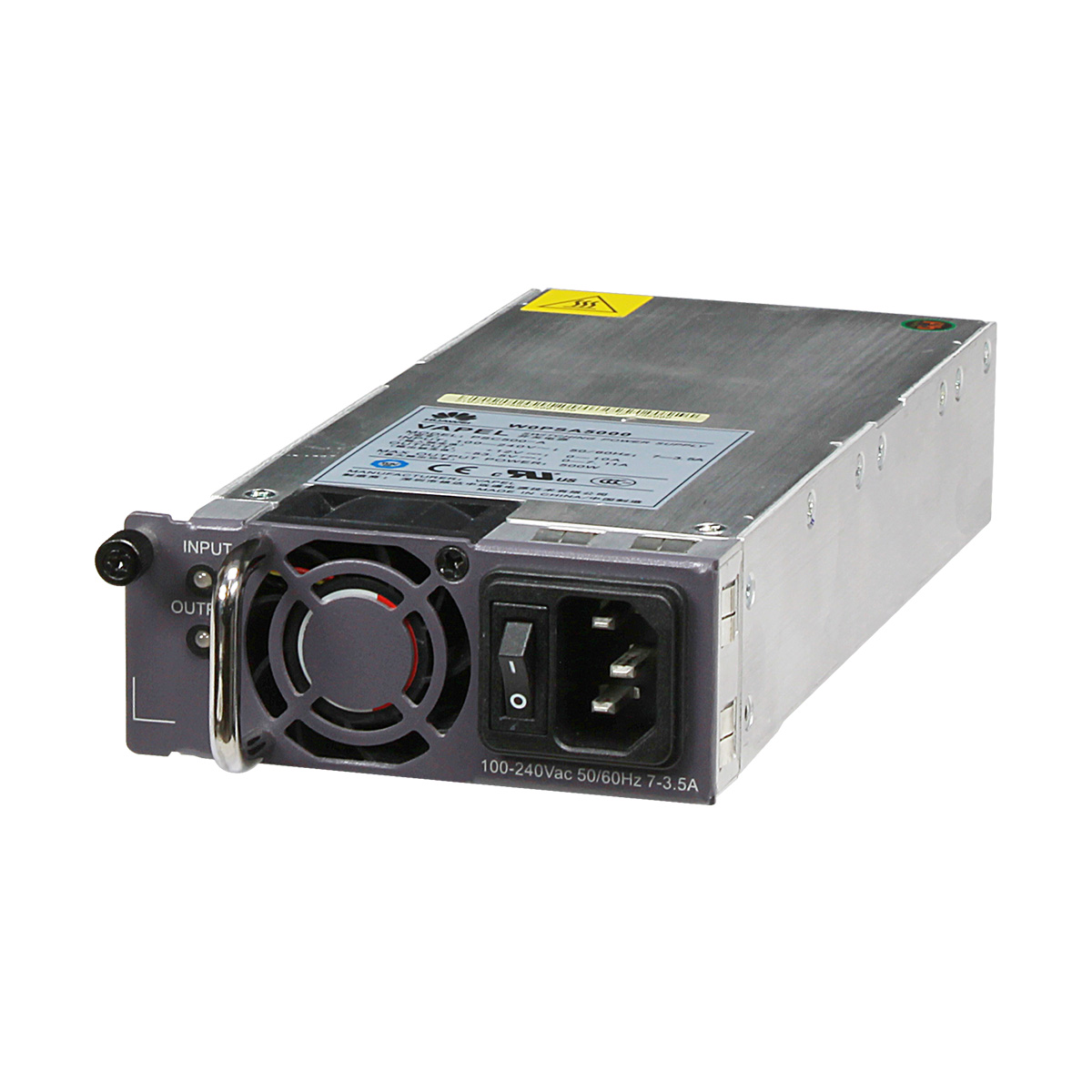

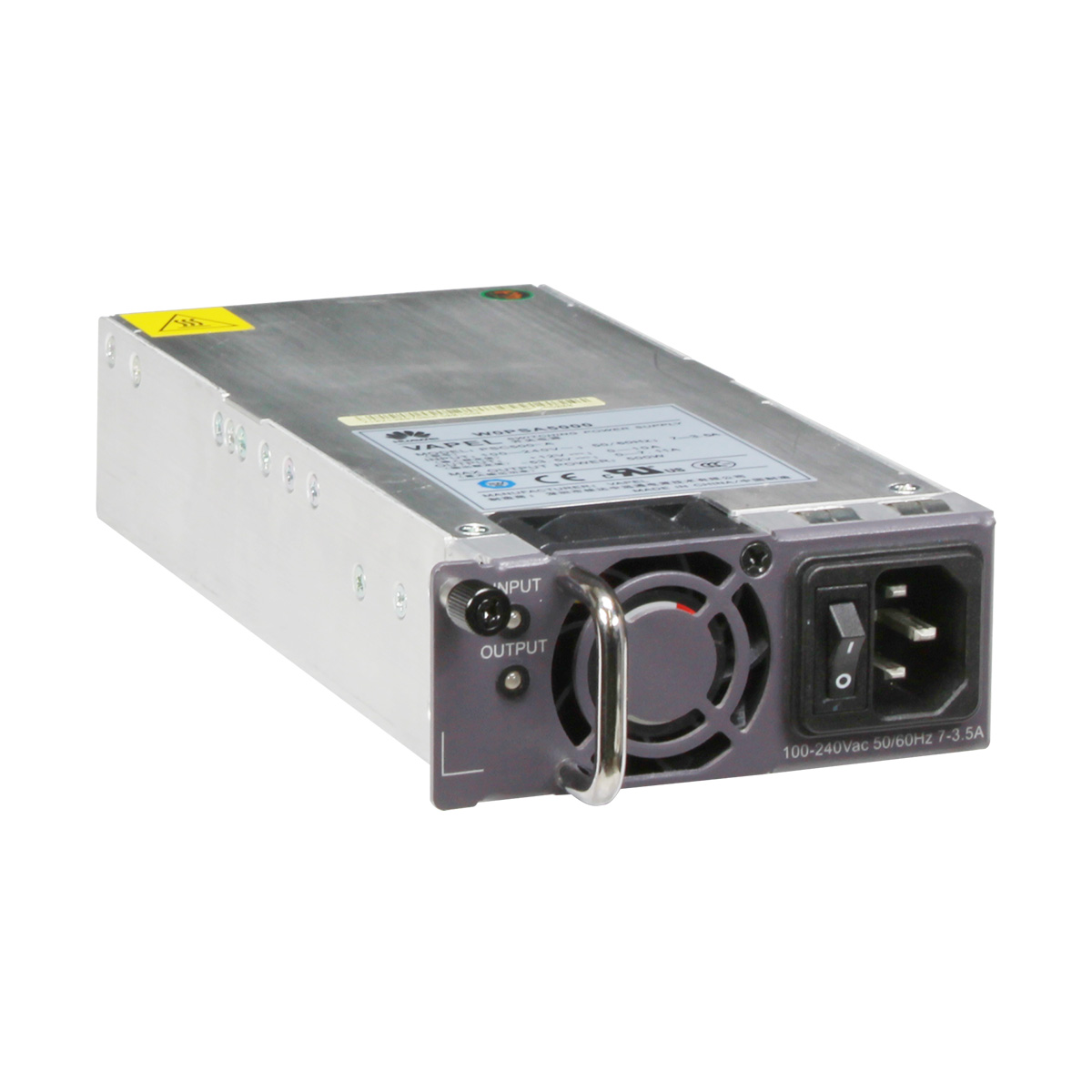

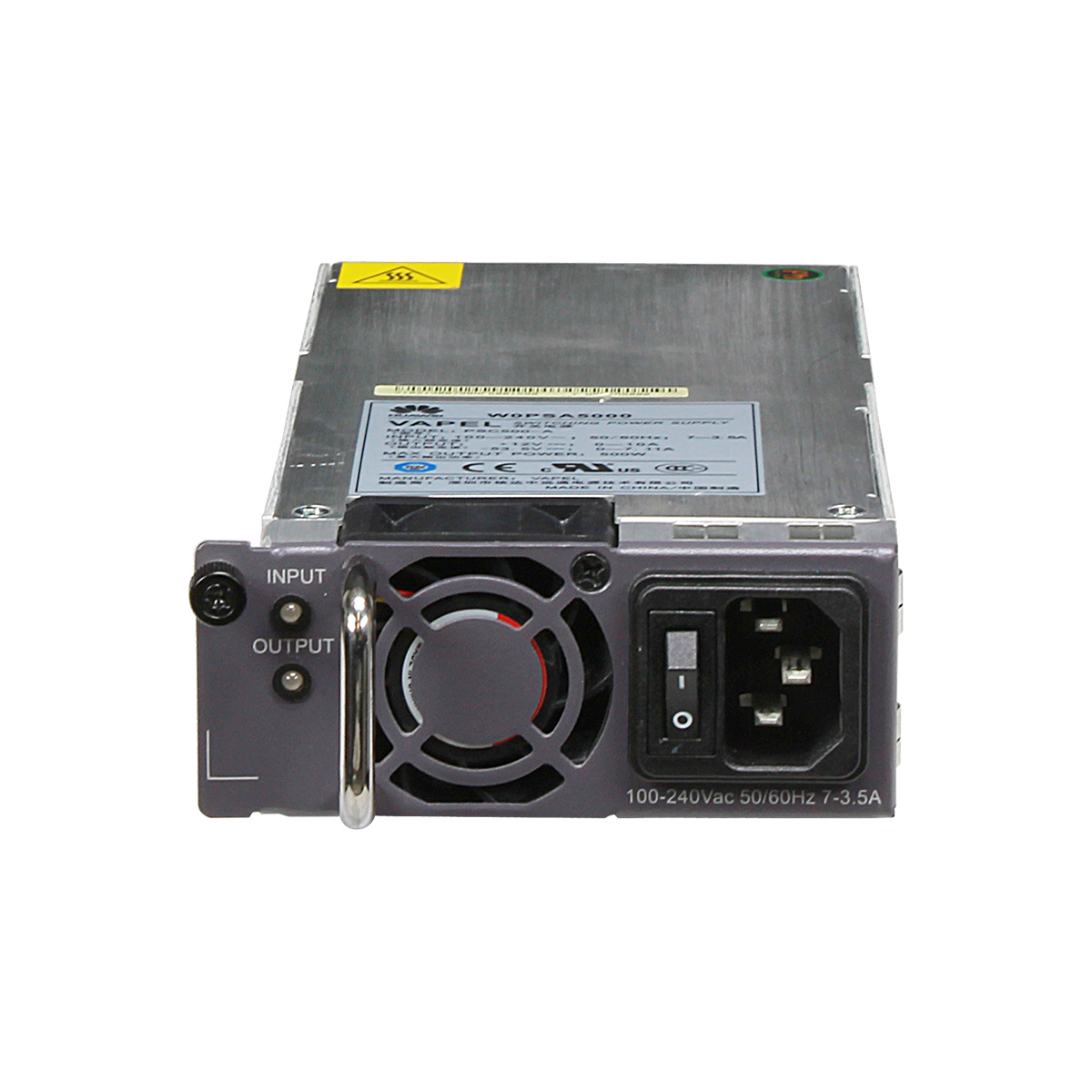

W0PSA5000 overview
Huawei W0PSA5000 supports 500 W AC PoE Power Module apply to S5700/5710 series switch.
Product support for a 500 W AC PoE power module
| Power Module Name | Product Support |
|---|---|
| W0PSA5000 (purple gray) | S5700-28C-PWR-EI, S5700-52C-PWR-EI, S5700-28C-PWR-SI, S5700-52C-PWR-SI, S5700-24TP-PWR-SI, S5700-48TP-PWR-SI, S5710-28C-PWR-LI, S5710-52C-PWR-LI |
| PAC-500WA-BE (black) | S5720-28X-PWR-SI-AC, S5720-28X-PWR-SI-DC, S5720-52X-PWR-SI-AC, S5720-52X-PWR-SI-DC, S5720-36C-PWR-EI-AC, S5720-36C-PWR-EI-DC, S5720-56C-PWR-EI-DC, S5720-56C-PWR-EI-AC, S5730-48C-PWR-SI-AC, S5730S-48C-PWR-EI, S5730-68C-PWR-SI-AC, S5730-68C-PWR-SI, S5730S-68C-PWR-EI, S5730-36C-PWH-HI, S5730-44C-PWH-HI, S5730-60C-PWH-HI, S5730-68C-PWH-HI |
Functions of a 500 W AC PoE power module
| Function | Description |
|---|---|
| PoE power supply | Complying with IEEE 802.3af and IEEE 802.3at, the PoE power module is able to remotely provide power for the devices of different vendors. IEEE 802.3af supports a maximum of 15.4 W power and IEEE 802.3at supports a maximum of 30 W power. |
| Input protection | Input overcurrent and undervoltage protection is provided. |
| Output protection | Output undervoltage, overvoltage, overcurrent, and short-circuit protection is provided. |
| Overtemperature protection | – |
| Surge protection | – |
| Hot swapping | Supported |

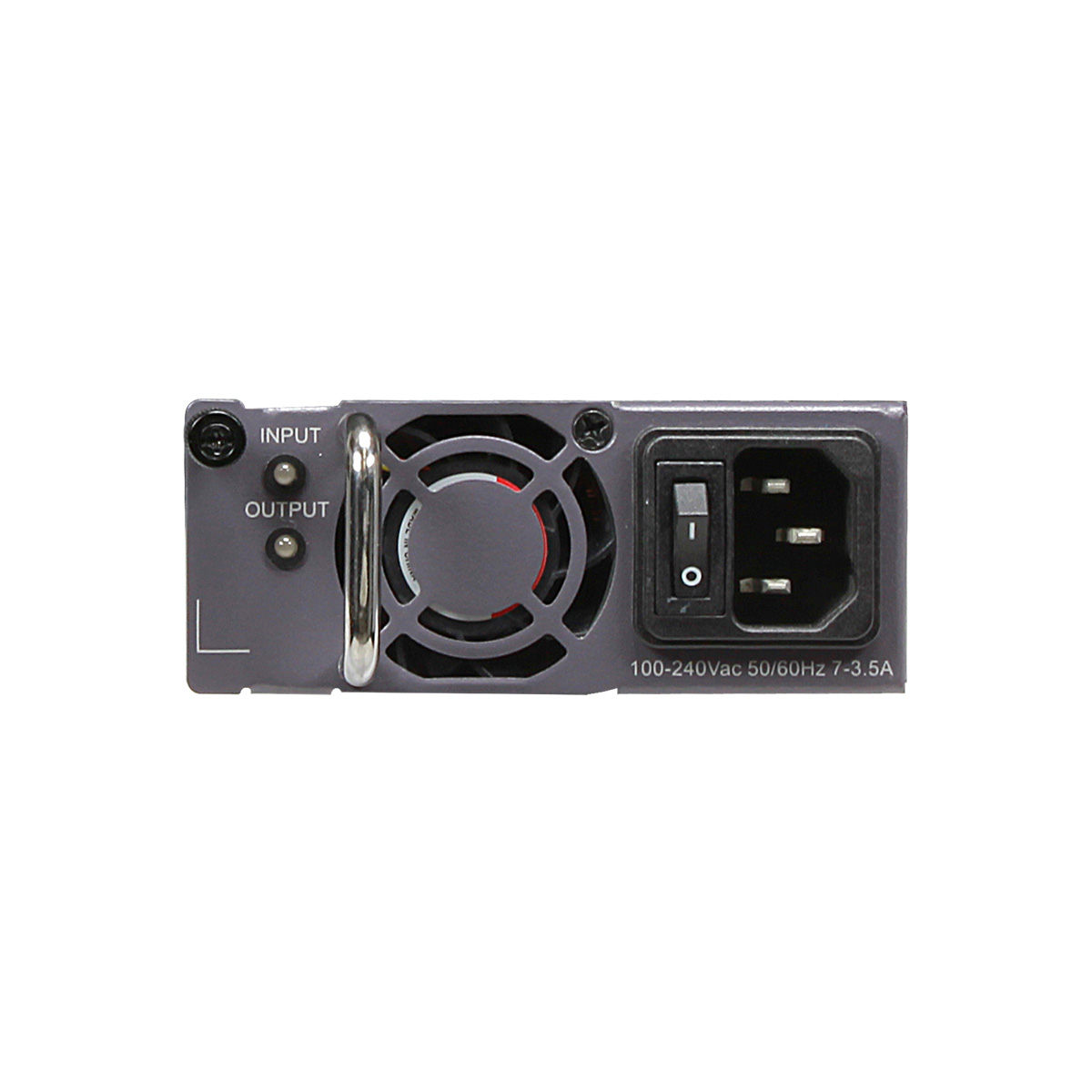

Panel of a 500 W AC PoE power module (W0PSA5000)
| 1. Power status indicator | 2. Handle | 3. Fan | 4. Switch |
| 5. AC power socket | 6. Captive screw | – | – |
Technical specifications of a 500 W AC PoE power module
| Item | Description |
|---|---|
| Dimensions (H x W x D) | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight | 1.06 kg (2.34 lb) |
| Rated input voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum input voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current | 7 A to 3.5 A |
| Maximum output current |
|
| Maximum output power |
|
| Part number | W0PSA5000: 02130879
PAC-500WA-BE: 02311BXV |
