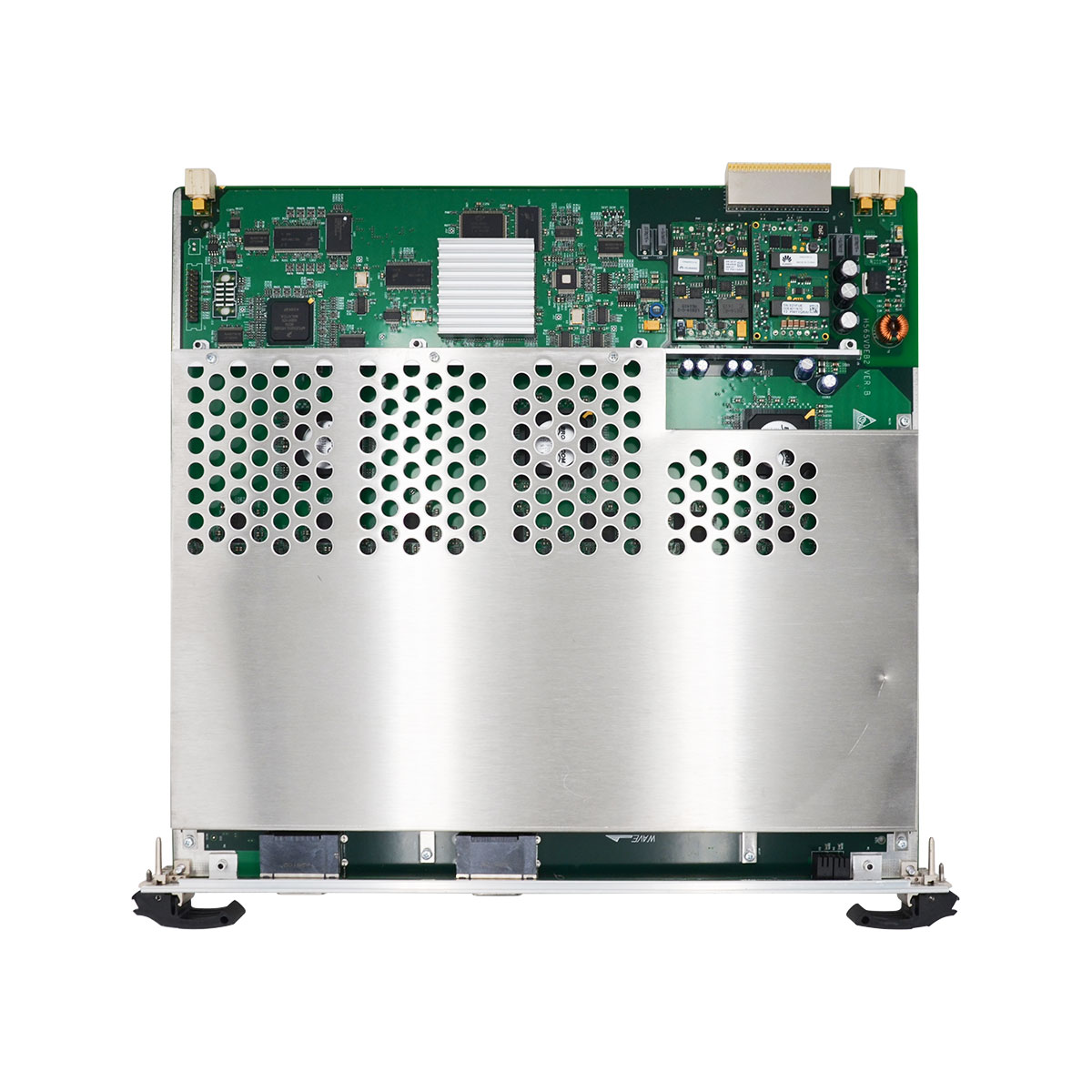

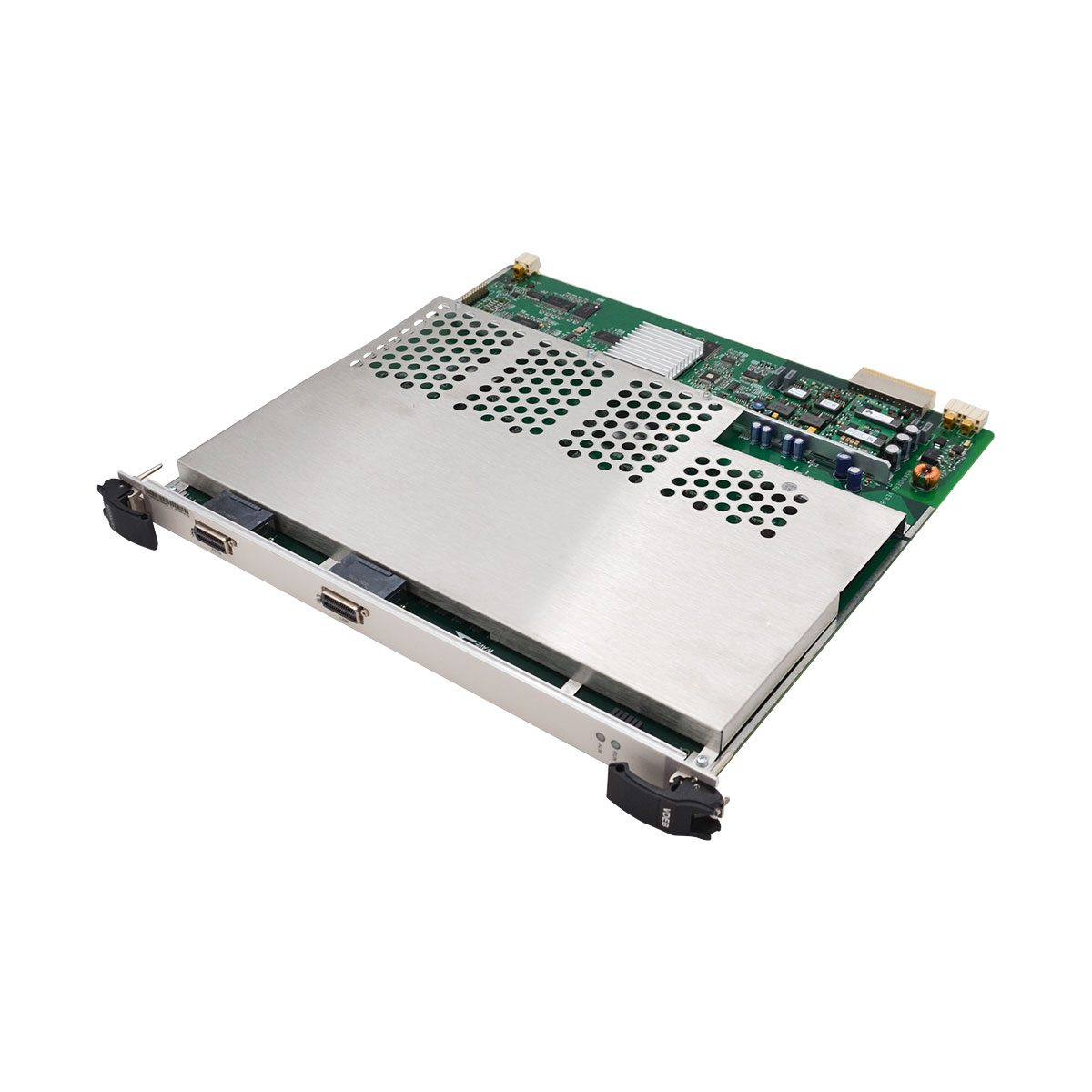

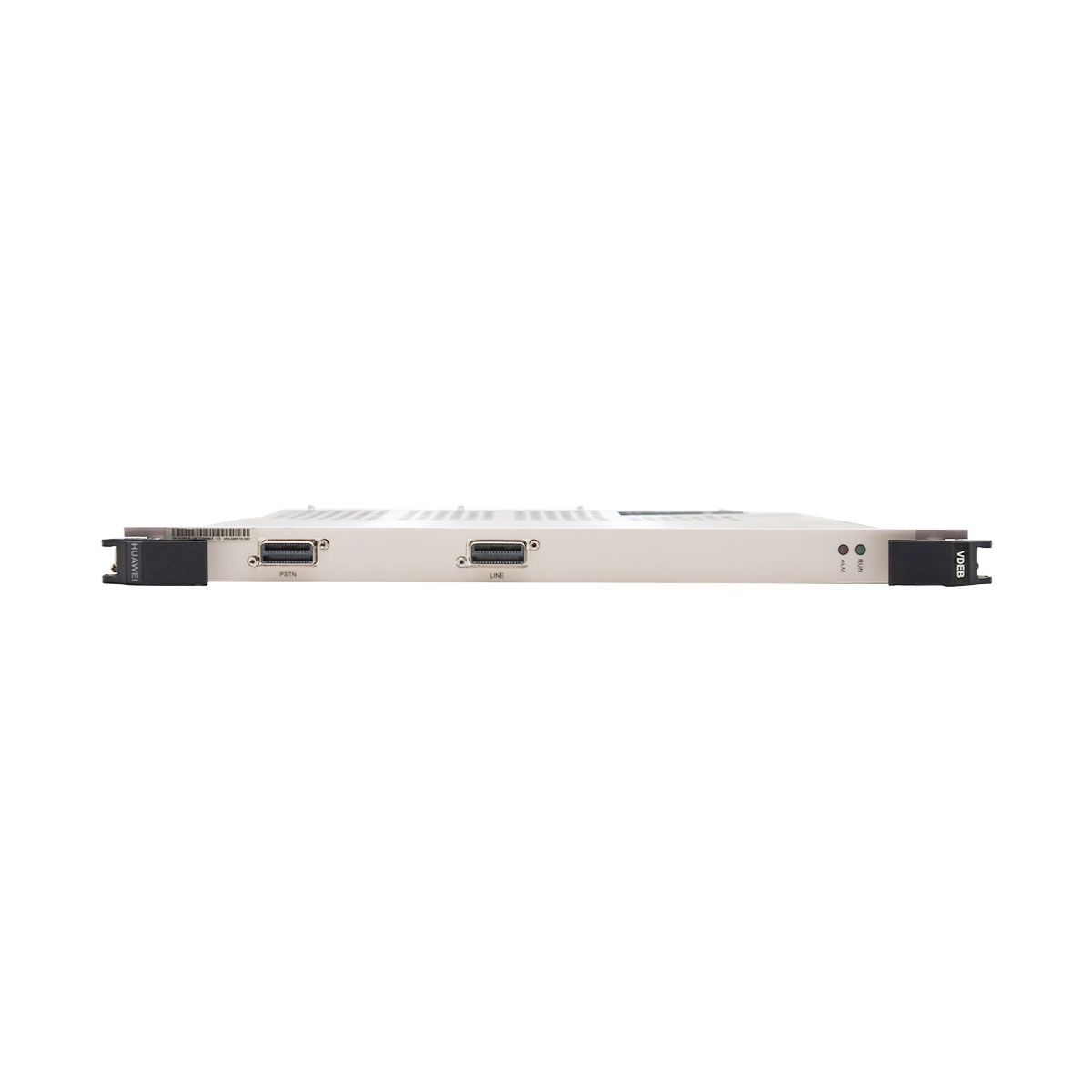

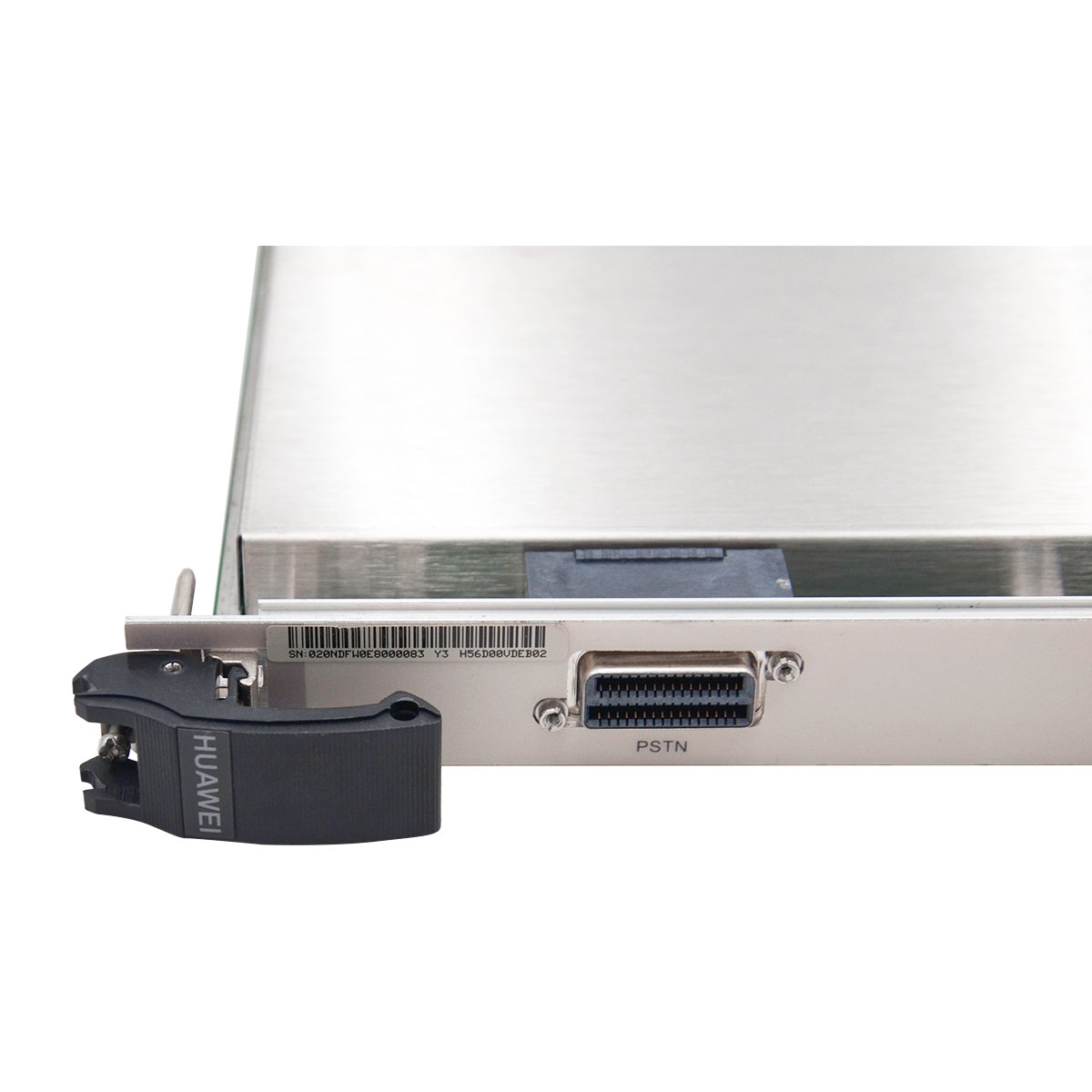

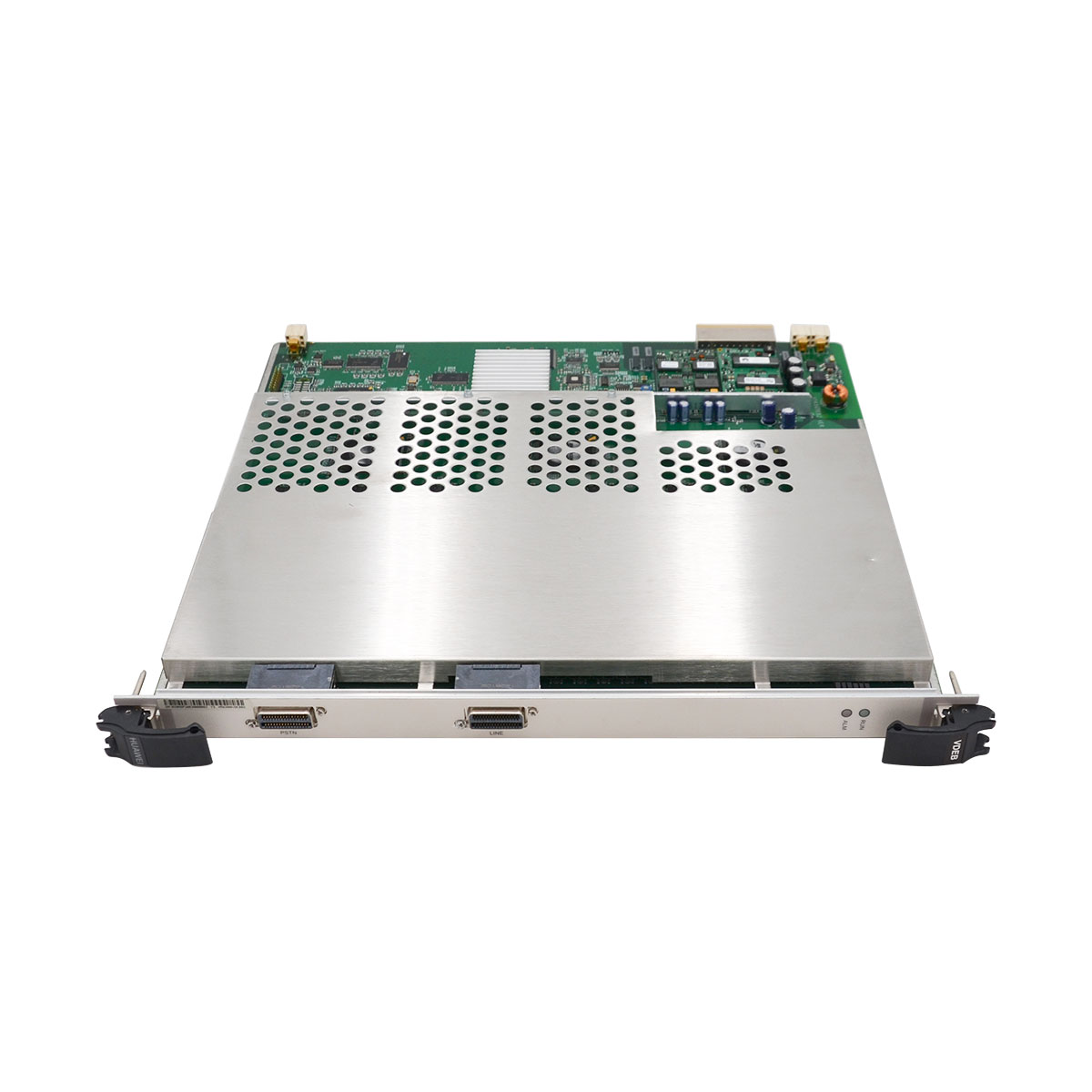

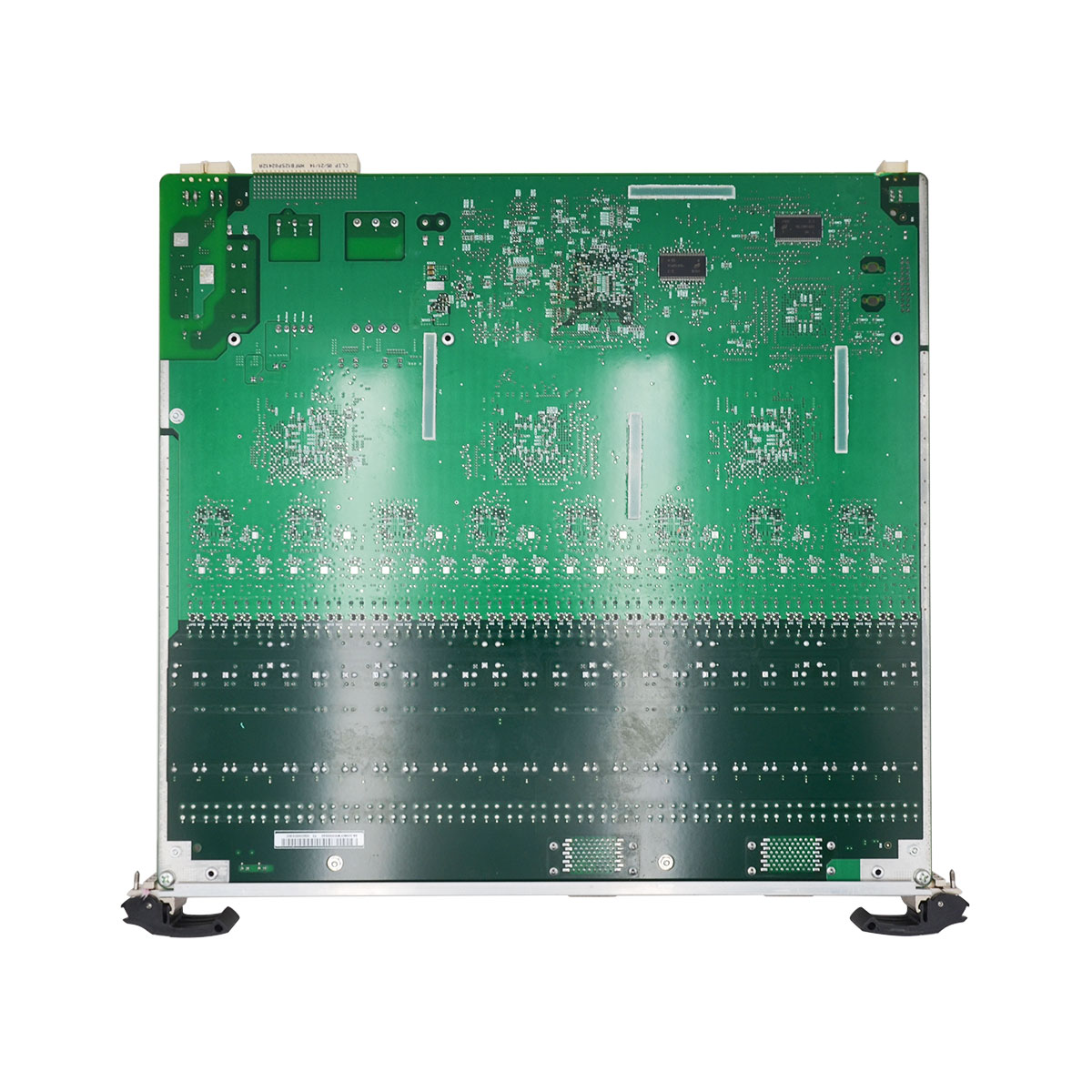

Huawei DSLAM MA5600 32-channel VDSL2 over POTS Service Board with a built-in splitter
The VDEB board is a 32-channel VDSL2 service board with a built-in splitter. It provides 32 channels of VDSL2 over POTS services and supports line protection. The VDEB board can be installed in slots 0-6 and 9-15 of the MA5600 service shelf, or in slots 1-6 of the MA5603.
Huawei DSLAM MA5600 VDEB Service Board
Provide 32 channels of VDSL2 over POTS services
Support line protection.
VDEB have the following Model H56D00VDEB02
VDEB doesn’t come with subscriber cables
| Item | VDEB |
| LINE | Provides 32 channels of VDSL2 signals |
| PSTN | Provides 32 channels of POTS port. |
| Vaild slot | MA5600: slots 0-6 and 9-15 MA5603: slots 1-6 |
| Power consumption | 69 W |
| Dimensions(mm) | 25.4 mm x 372 mm x 399.5 mm |
| Weight | 3.0000 kg |
|---|
| Item | VDEB |
| LINE | Provides 32 channels of VDSL2 signals |
| PSTN | Provides 32 channels of POTS port. |
| Vaild slot | MA5600: slots 0-6 and 9-15 MA5603: slots 1-6 |
| Power consumption | 69 W |
| Dimensions(mm) | 25.4 mm x 372 mm x 399.5 mm |
