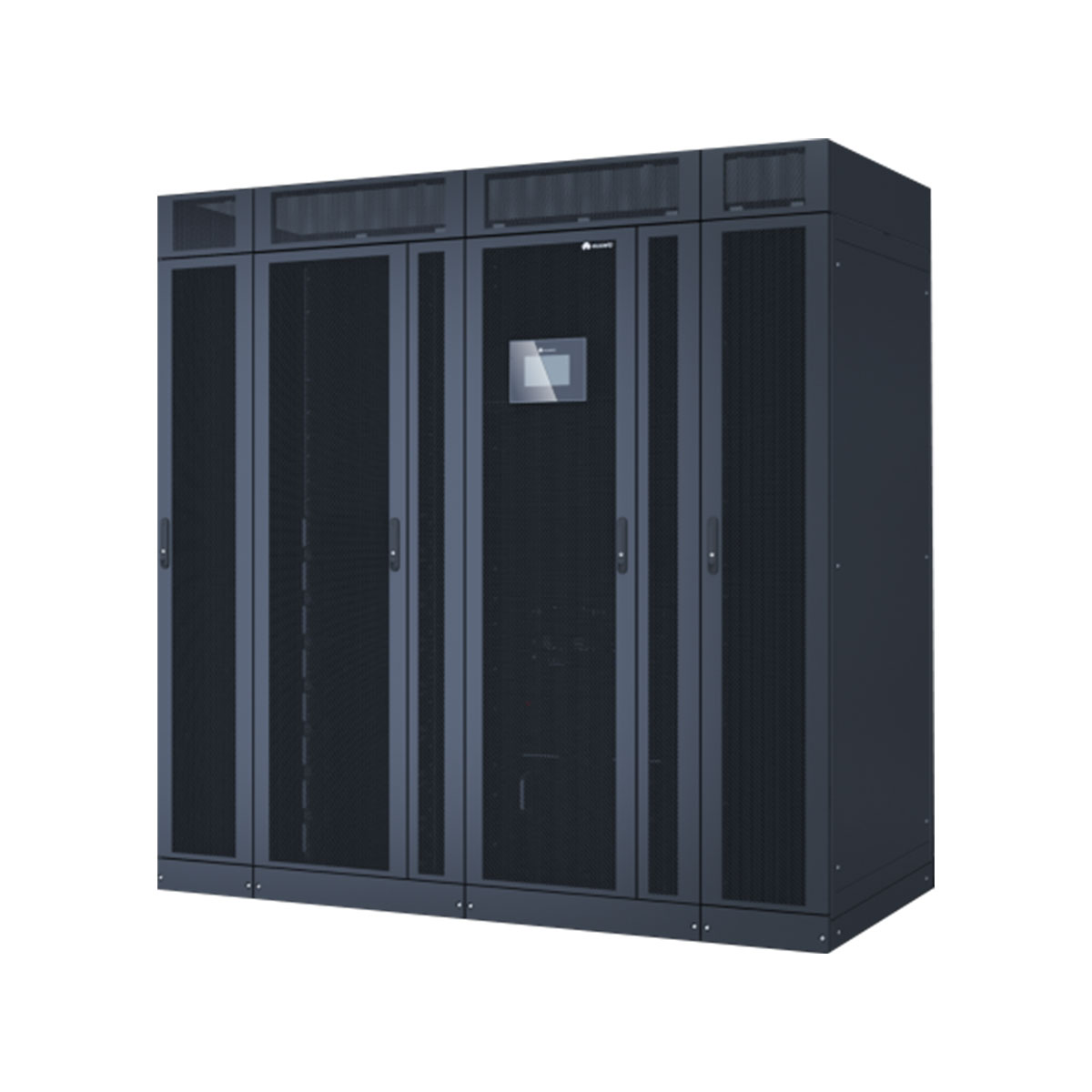

UPS5000-H

Cabling

Top cable routing

Bottom cable routing (if a bottom cabling cabinet is configured)

IP rating

IP20

Communication

Supports dry contacts, RS485 ports, and FE ports. Supports SNMP and Modbus.

Dimensions (H x W x D)

2000 mm x 800 mm x 1000 mm

Weight

< 690 kg

Battery type

• Lead-acid battery (VRLA)
• SmartLi: For the supported version, contact technical support.

Battery voltage (lead-acid battery)

360–600 V DC

• 12 V batteries (30–50 batteries, 0 by default)
  • 40–50 batteries: not derated
  • 38–39 batteries: derated to 90%
  • 34–37 batteries: derated to 80%
  • 30–33 batteries: derated to 70%
• 2 V batteries (180–300 batteries, 0 by default)
  • 240–300 batteries: not derated
  • 228–239 batteries: derated to 90%
  • 204–227 batteries: derated to 80%
  • 180–203 batteries: derated to 70%

Nominal discharge current (lead-acid battery)

877 A (480 V, forty 12 V batteries in standard configuration)

Maximum discharge current (lead-acid battery)

1062 A. It is the EOD current of forty 12 V batteries in standard configuration, that is, two hundred and forty 2 V battery cells (1.67 V/cell).

Battery cold start

If a utility power outage occurs, batteries can start the UPS to supply power to loads.

Charger output power

The maximum charge power is 15% of power of a single module, and the charge current is limited to 30 A.

Battery string sharing

• Lead-acid battery: Battery string sharing is supported in a parallel system. No battery is shared by default.
• SmartLi 2.0: Battery string sharing is supported in a parallel system. No battery is shared by default.
• SmartLi 3.0: Battery string sharing is not supported.

Charging voltage (lead-acid battery)

• Equalized charging voltage: 2.35 V/cell
• Float charging voltage: 2.25 V/cell

Rated voltage (line voltage)

380 V AC

400 V AC

415 V AC

Rated current (capacity: 400 kVA)

743 A

706 A

680 A

Power system

Three-phase four-wire + PE

Voltage range

• 0–30°C: not derated at 323–485 V, derated from 100% load to 45% load at 323–191 V, and derated from 45% load to 35% load at 191–138 V
• 30–40°C: not derated at 342–485 V, derated from 100% load to 45% load at 342–191 V, and derated from 45% load to 35% load at 191–138 V

Rated frequency

50/60 Hz

Frequency range

40–70 Hz

Power factor

• > 0.99 (100% load)
• > 0.98 (50% load)
• > 0.94 (30% load)

Harmonic current

• THDi < 9% (30% linear load), THDi < 6% (50% linear load), THDi < 3% (100% linear load)
• THDi < 11% (30% non-linear load), THDi < 8% (50% non-linear load), THDi < 5% (100% non-linear load)

Overvoltage category

OVC II
