Understanding POE Switch Power Supply Standards and the 100-Meter Limit

Power over Ethernet (PoE) technology has revolutionized the way network devices are powered, enabling both data and electrical power to be transmitted over a single Ethernet cable. This innovation has simplified installations, reduced costs, and increased flexibility in deploying devices like IP cameras, wireless access points, and VoIP phones. However, one question often arises: why is the power supply distance for PoE switches limited to 100 meters? In this article, we’ll explore the power supply standards for PoE switches, the technical reasons behind the 100-meter limitation, and how this impacts network design and deployment.

What is PoE and How Does It Work?

PoE technology allows network cables to carry electrical power alongside data, eliminating the need for separate power cables. This is particularly useful for devices located in hard-to-reach areas or where power outlets are scarce. PoE switches are the backbone of this system, providing both network connectivity and power to connected devices.

Key PoE Standards:

1. IEEE 802.3af (PoE): Provides up to 15.4 watts of power per port.
2. IEEE 802.3at (PoE+): Delivers up to 30 watts of power per port, supporting higher-power devices.
3. IEEE 802.3bt (PoE++): Offers up to 60 watts (Type 3) or 100 watts (Type 4) per port, catering to demanding applications like PTZ cameras and LED lighting.

These standards ensure compatibility and safety across PoE devices, but they also impose certain limitations, including the 100-meter power supply distance.

Why is the Power Supply Distance Limited to 100 Meters?

The 100-meter limit for PoE power supply is not arbitrary; it is rooted in the technical specifications of Ethernet cables and the need to maintain reliable data transmission and power delivery.

1. Ethernet Cable Limitations

Ethernet cables, particularly Cat5e and Cat6, are designed to support data transmission up to 100 meters without significant signal degradation. Beyond this distance, signal attenuation (loss of signal strength) becomes a major issue, affecting both data integrity and power delivery.

2. Voltage Drop

As electrical current travels through a cable, it encounters resistance, leading to a voltage drop. Over longer distances, this drop becomes more pronounced, reducing the amount of power available to the connected device. The 100-meter limit ensures that the voltage drop remains within acceptable levels, allowing devices to operate reliably.

3. Power Loss and Heat Dissipation

Longer cables result in higher power loss due to resistance, which also generates heat. Excessive heat can damage the cable and connected equipment, posing safety risks. The 100-meter limit helps mitigate these issues by keeping power loss and heat generation within safe bounds.

4. Compliance with Standards

The 100-meter limit is a key requirement of IEEE PoE standards. Adhering to this limit ensures interoperability between PoE switches and devices from different manufacturers, maintaining a consistent and reliable network ecosystem.

Extending the 100-Meter Limit

While the 100-meter limit is a standard, there are scenarios where longer distances are required. Fortunately, several solutions can help extend the range of PoE networks:

1. PoE Extenders

PoE extenders are devices that amplify the signal and power, allowing you to extend the reach of PoE networks beyond 100 meters. These devices are particularly useful for outdoor installations or large facilities.

2. Fiber Optic Cabling

For very long distances, fiber optic cables can be used in conjunction with media converters. While fiber does not carry power, it can transmit data over much longer distances without signal degradation. Power can be supplied locally at the remote end.

3. Midspan PoE Injectors

Midspan injectors can be placed between the switch and the device, providing an additional power boost to overcome voltage drop over longer distances.

Practical Applications of PoE Switches

PoE switches are widely used in various industries due to their convenience and efficiency. Here are some common applications:

1. Surveillance Systems: PoE switches power IP cameras and transmit video data over a single cable, simplifying installation and reducing costs.
2. Wireless Networks: Access points in large buildings or outdoor areas can be powered and connected using PoE switches.
3. Smart Buildings: PoE is used to power and control lighting, HVAC systems, and other IoT devices in smart buildings.
4. Retail and Hospitality: Digital signage, point-of-sale systems, and VoIP phones often rely on PoE for power and connectivity.

Challenges and Considerations

While PoE technology offers numerous benefits, there are challenges to consider:

1. Power Budget: PoE switches have a limited total power budget, which must be carefully allocated to connected devices.
2. Cable Quality: Using high-quality Ethernet cables is essential to minimize power loss and ensure reliable performance.
3. Heat Management: Proper ventilation and cable management are necessary to prevent overheating in PoE installations.

Conclusion

The 100-meter power supply distance for PoE switches is a well-established standard, driven by the technical limitations of Ethernet cables and the need for reliable power delivery. While this limit may seem restrictive, it ensures the safety, efficiency, and interoperability of PoE networks. For scenarios requiring longer distances, solutions like PoE extenders and fiber optic cabling provide viable alternatives. As PoE technology continues to evolve, its applications will expand, making it an indispensable tool for modern network infrastructure. By understanding the standards and limitations of PoE, network administrators can design and deploy systems that meet their specific needs while maintaining optimal performance.

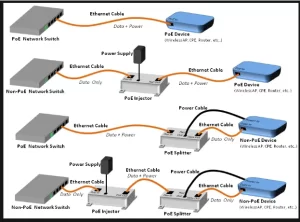

Note: The image below illustrates a typical PoE network setup, showcasing how power and data are transmitted over Ethernet cables to connected devices.

Image Source: Networking Industry Resources

As the demand for PoE technology grows, so does the importance of understanding its standards and limitations. Whether you’re deploying a small office network or a large-scale surveillance system, PoE switches offer a powerful and flexible solution for your connectivity and power needs.
