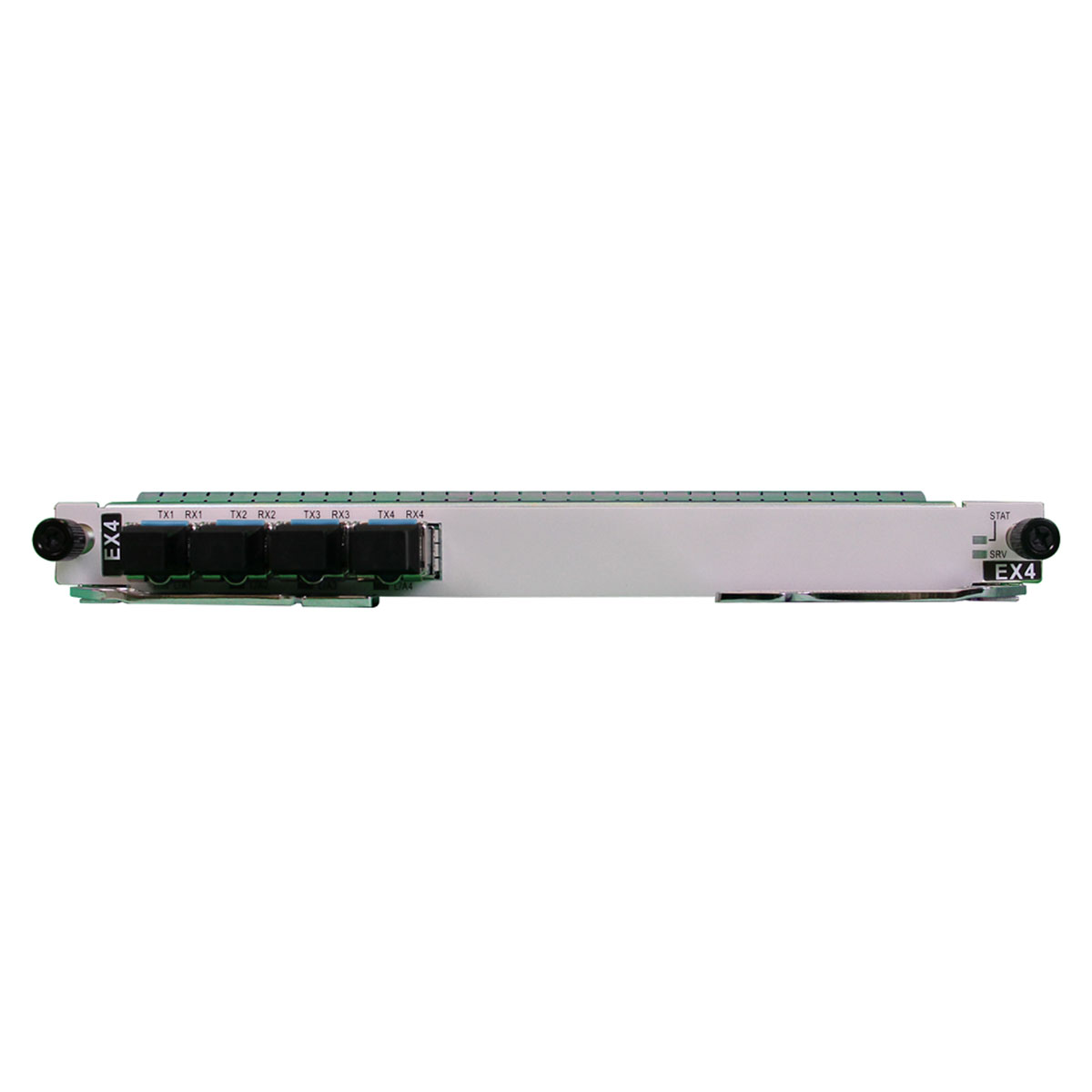

Huawei OSN1800V TNZ8EX4 4*10GE ethernet processing board, 03025KYM

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNZ8EX4 overview

TNZ5EX4 4*10GE(XFP) ethernet processing board applied to Huawei OSN 1800V.

The EX4 board is a packet board. It supports access of 10GE LAN services and transmits service signals to cross-connect boards for packet data processing and centralized grooming at the equipment level. On the WDM side, the EX4 board works with a board providing the packet service processing function to implement packet service transmission on the WDM network.

The EX4 board receives and transmits a maximum of 4 10GE LAN optical services. The EX4 board implements Ethernet service functions by working with packet switching units on the system control, switching, and timing boards.



Item TNZ8EX4
Basic function Receives and transmits the following services:
  • 4 x 10GE LAN
Backplane bandwidth 40 Gbit/s
Supported service 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Working mode 10G Full-Duplex LAN
Port flow control Comply with IEEE802.3x (Only supports response request).
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
MFL The MFL value ranges from 1518 bytes to 9600 bytes with a default value of 1522 bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL+ 72 bytes.
Service type E-Line (VPWS), E-LAN (VPLS)
Service bearing medium Port, PW, QinQ
E-Line services
  • Native ETH services:
  • E-Line services based on point-to-point transparent transmission
  • E-Line services based on virtual local area networks (VLANs)
  • E-Line services based on 802.1q in 802.1q (QinQ)
  • ETH pseudo wire emulation edge-to-edge (PWE3) services: E-Line services carried by PWs (VPWS services)
E-LAN services Native ETH services:
  • E-LAN services based on IEEE 802.1d bridges
  • E-LAN services based on IEEE 802.1q bridges
MS-PW Supported

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item TNZ8EX4
Basic function Receives and transmits the following services:
  • 4 x 10GE LAN
Backplane bandwidth 40 Gbit/s
Supported service 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Working mode 10G Full-Duplex LAN
Port flow control Comply with IEEE802.3x (Only supports response request).
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
MFL The MFL value ranges from 1518 bytes to 9600 bytes with a default value of 1522 bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL+ 72 bytes.
Service type E-Line (VPWS), E-LAN (VPLS)
Service bearing medium Port, PW, QinQ
E-Line services
  • Native ETH services:
  • E-Line services based on point-to-point transparent transmission
  • E-Line services based on virtual local area networks (VLANs)
  • E-Line services based on 802.1q in 802.1q (QinQ)
  • ETH pseudo wire emulation edge-to-edge (PWE3) services: E-Line services carried by PWs (VPWS services)
E-LAN services Native ETH services:
  • E-LAN services based on IEEE 802.1d bridges
  • E-LAN services based on IEEE 802.1q bridges
MS-PW Supported
