Categories:OSN 1800 V Series

TNZ5UNQ2

0 Reviews Write a review

PN03031SUV

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

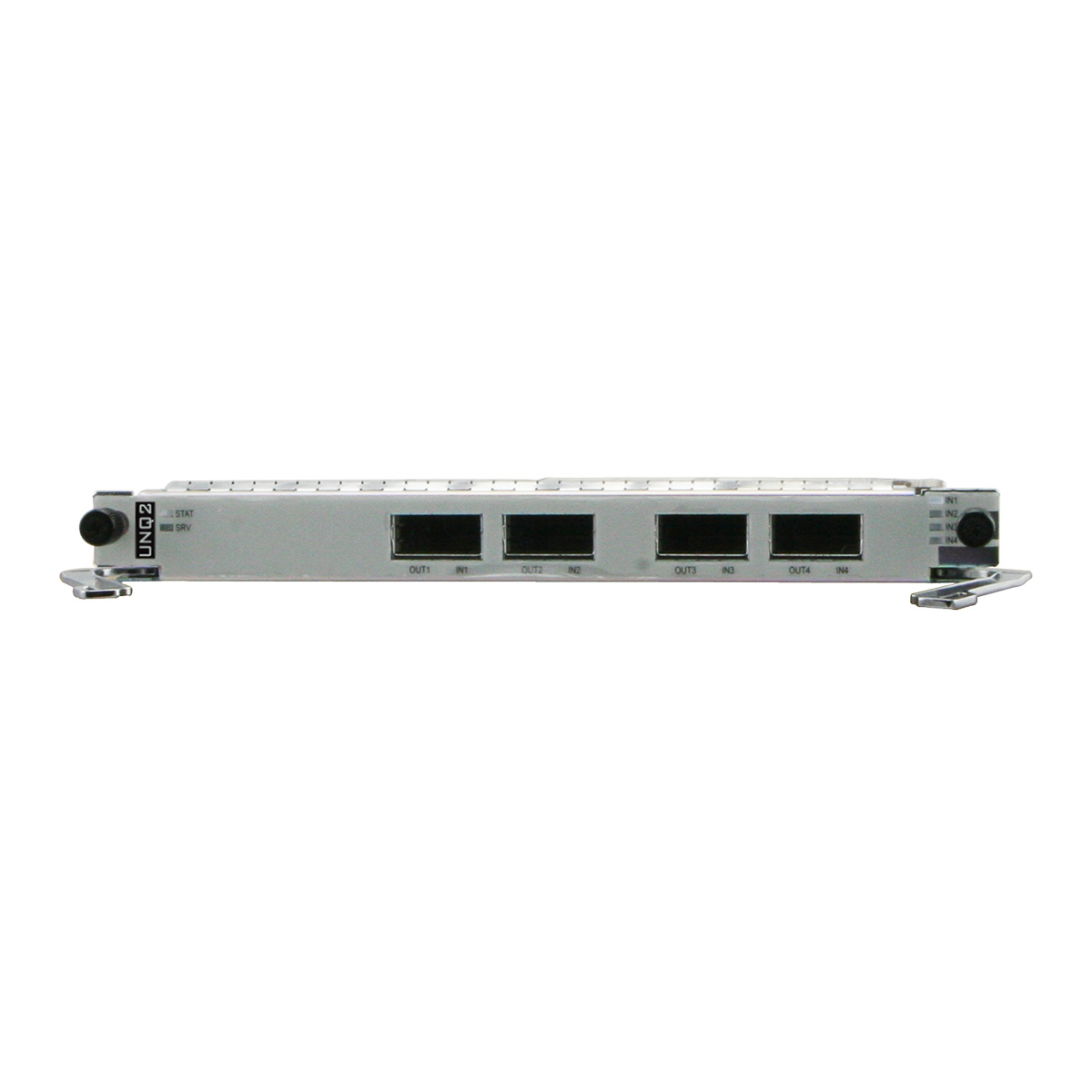

Huawei OSN1800V TNZ5UNQ2 4*10G universal line service processing board, 03031SUV

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNZ5UNQ2 overview

TNZ5UNQ2 4*10G universal line service processing board applied to Huawei OSN 1800V.

The UNQ2 board is a universal line board and supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, ODUflex, VC-12, VC-3, VC4, and packet services with the total bandwidth not exceeding 40 Gbit/s (the total bandwidth of SDH services does not exceed 20 Gbit/s). It can also receive and transmit only one or two of the three services. The UNQ2 board processes and converts the received service signals into four OTU2/OTU2e signals, which are carried over four ITU-T G.694.1-compliant DWDM wavelengths.

UNQ2 boards support hybrid transmission of optical transport network OTN, SDH, and packet services, and functions such as Layer 2 switching, OTN ports, and SDH overhead processing.

One UNQ2 board supports hybrid transmission of ODU0, ODU1, ODUflex, ODU2, ODU2e, STM-16, STM-64, and packet services with a maximum bandwidth of 40 Gbit/s (ODU is the abbreviated form of optical channel data unit).

Item	TNZ5UNQ2
Basic functions	OTN signals	32 x ODU0/16 x ODU1/4 x ODU2/32 x ODUflex<->4 x OTU2 (OTU is the abbreviated form of optical channel transport unit.) 4 x ODU2e<->4 x OTU2e
	SDH signals	8 x STM-16<->8 x ODU1<->2 x ODU2<->2 x OTU2 2 x STM-64<->2 x ODU2<->2 x OTU2
	Clock synchronization	OTN services: Supported (ODU0/ODU1/ODUflex) SDH services: SDH clock synchronization is supported when SDH virtual ports are configured. Packet services: Physical-layer (ODU0/ODU1/ODUflex) clock synchronization is supported when packet virtual ports are configured.
OTN functions supported by UNQ2 boards
Basic functions	Cross-connect functionality	Implements service grooming when working with cross-connect boards. 32 x ODU0/16 x ODU1/32 x ODUflex/4 x ODU2/4 x ODU2e
Basic functions	Wavelength division multiplexing (WDM) specifications	Supports ITU-T G.694.1-compliant dense wavelength division multiplexing (DWDM) specifications.
Protection schemes	Intra-Board 1+1 Protection	Supported
	ODUk SNCP	Supported
	Tributary SNCP	Supported
Maintenance features	Loopbacks	Supports system-side channel inloops and outloops. Supports WDM-side inloops and outloops. (This function has no impact on overheads and the PRBS function.)
	Pseudo random binary sequence (PRBS) test function	Supported
	Test frames	Not supported
	Delay measurement (DM)	Supported
	Alarms and performance events monitoring	Monitors parameters such as the bias current, operating temperature, and optical power of a laser. Monitors OTN alarms and performance events. Monitors bit interleaved parity 8 (BIP8) bytes (Bursty mode) to help locate line failures.
Overtemperature protection	If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Automatic laser shutdown (ALS)	Not supported
OTN Overheads	Adopts the ITU-T G.709-compliant frame format and overhead processing. Provides path monitoring (PM) for ODU2, ODUflex, ODU1, and ODU0. Provides section monitoring (SM) for OTU2. Provides tandem connection monitoring (TCM) for ODU2, ODU1, and ODU0.
Outband DCN	Supports ESC communication.
FEC Mode	Supports ITU-T G.709-compliant forward error correction (FEC) encoding. Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC)-2 encoding.
Electrical-layer ASON	Supported
SDH functions supported by UNQ2 boards
Service processing	Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-64c, and VC-4-16c services (VC-4-4c, VC-4-64c, and VC-4-16c services are concatenated services).
Overhead processing	Processes section overheads of STM-16/STM-64 signals. Transparently transmits and terminates path overheads. Supports the setting and querying of J0 (to be received), J1, and C2 bytes. Provides transparent DCCs and orderwire byte channels.
Protection schemes	Supports subnetwork connection protection (SNCP). Supports subnetwork connection tunnel protection (SNCTP). Supports linear multiplex section protection (LMSP). Supports ring multiplex section protection (RMSP).
Overtemperature protection	If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Alarms and performance events monitoring	Monitors B1 and B2 bytes to help locate line failures.
Loopbacks	Supports inloops and outloops on VC-4 paths and virtual ports.
Outband data communication network (DCN)	Supported
SDH ASON	When working with TNZ5UXCMS, the board supports this function.
2M ASON	When working with TNZ5UXCMS, the board supports this function.
Dimensions (W x H x D, unit: mm/in.)	193.8 x 19.8 x 205.9 (7.6 x 0.8 x 8.1)
Weight:	1.2 kg
UNQ1 Power Consumption (W)	63-72

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
