Categories:OSN 1800 V Series

TNZ5EG10

0 Reviews Write a review

PN03023BTK

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

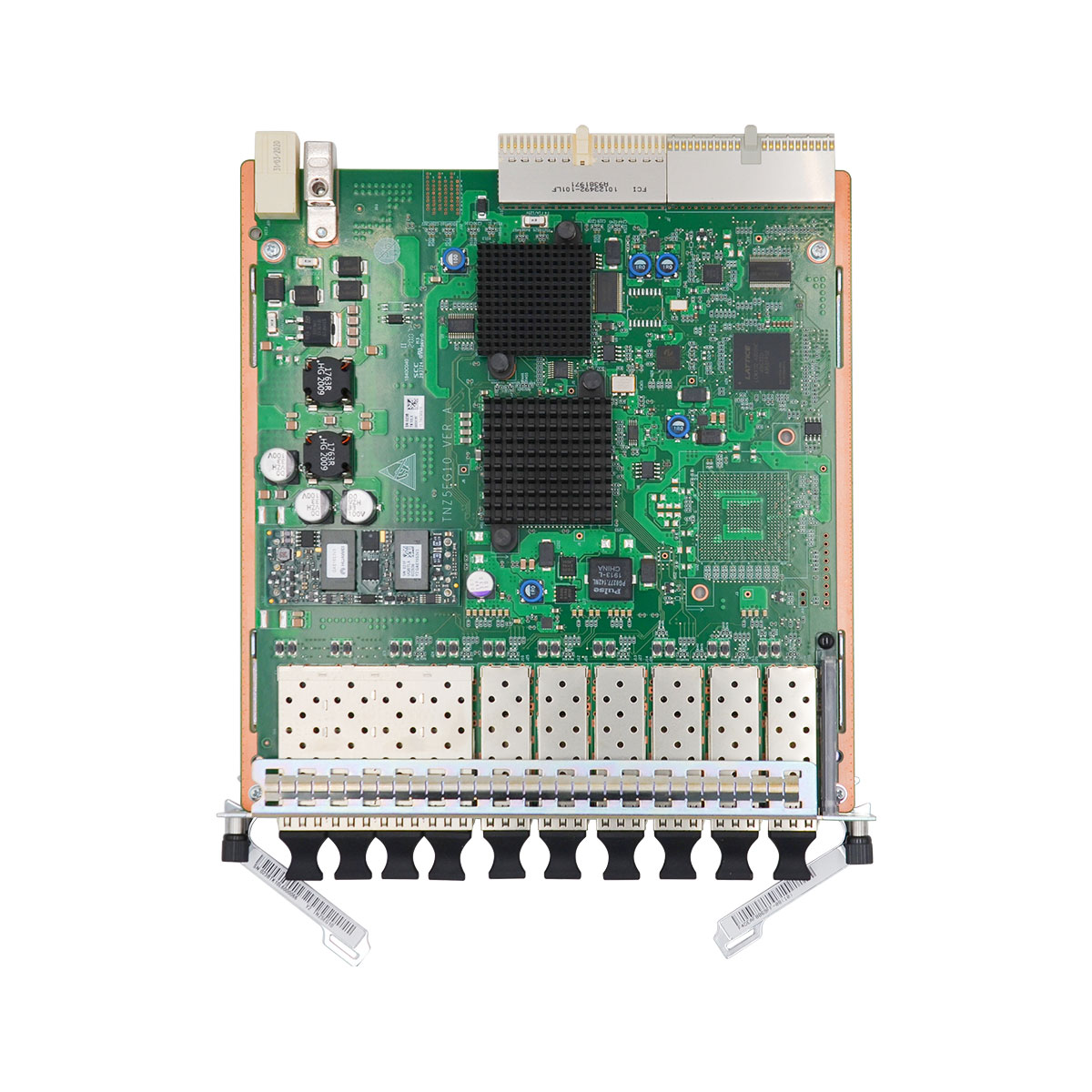

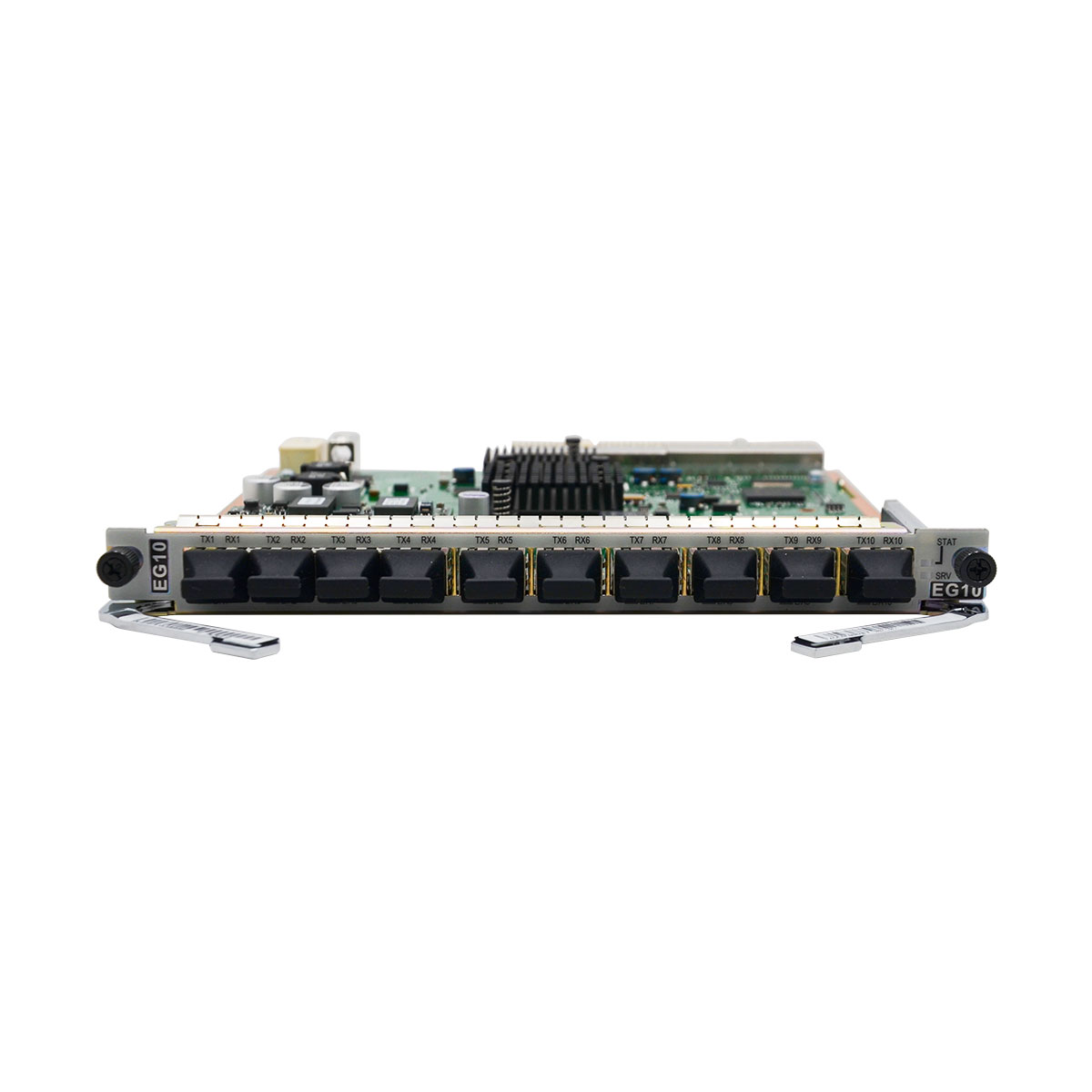

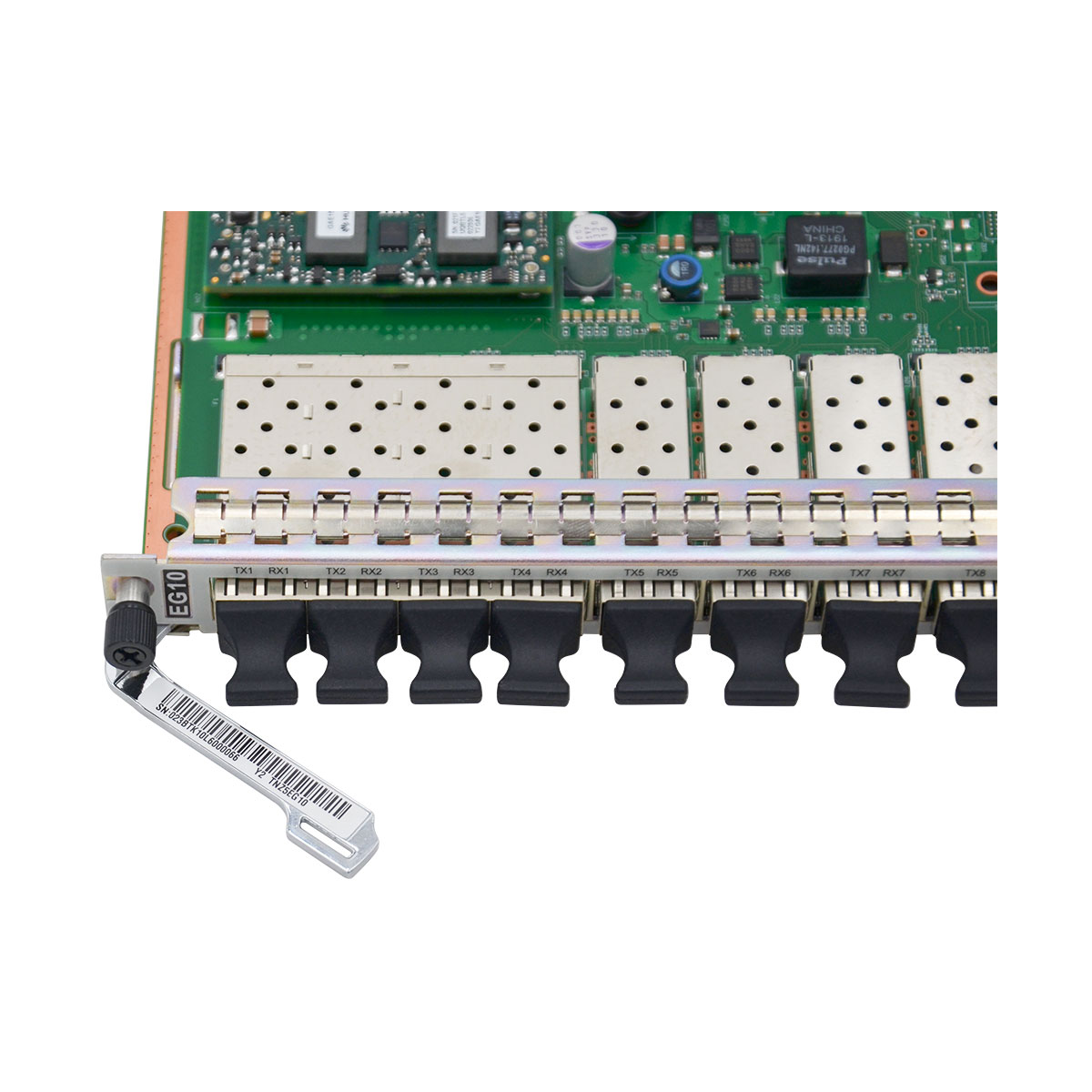

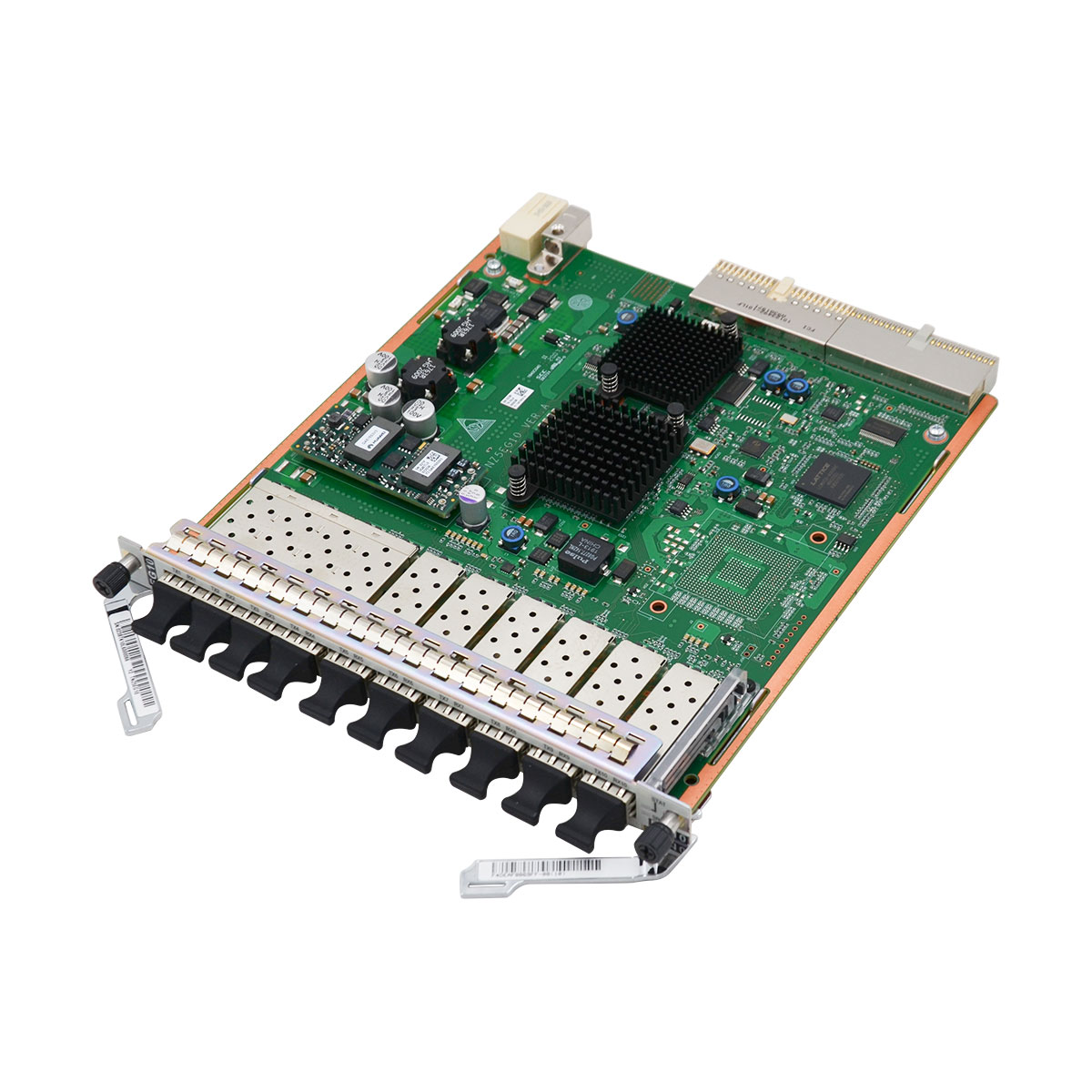

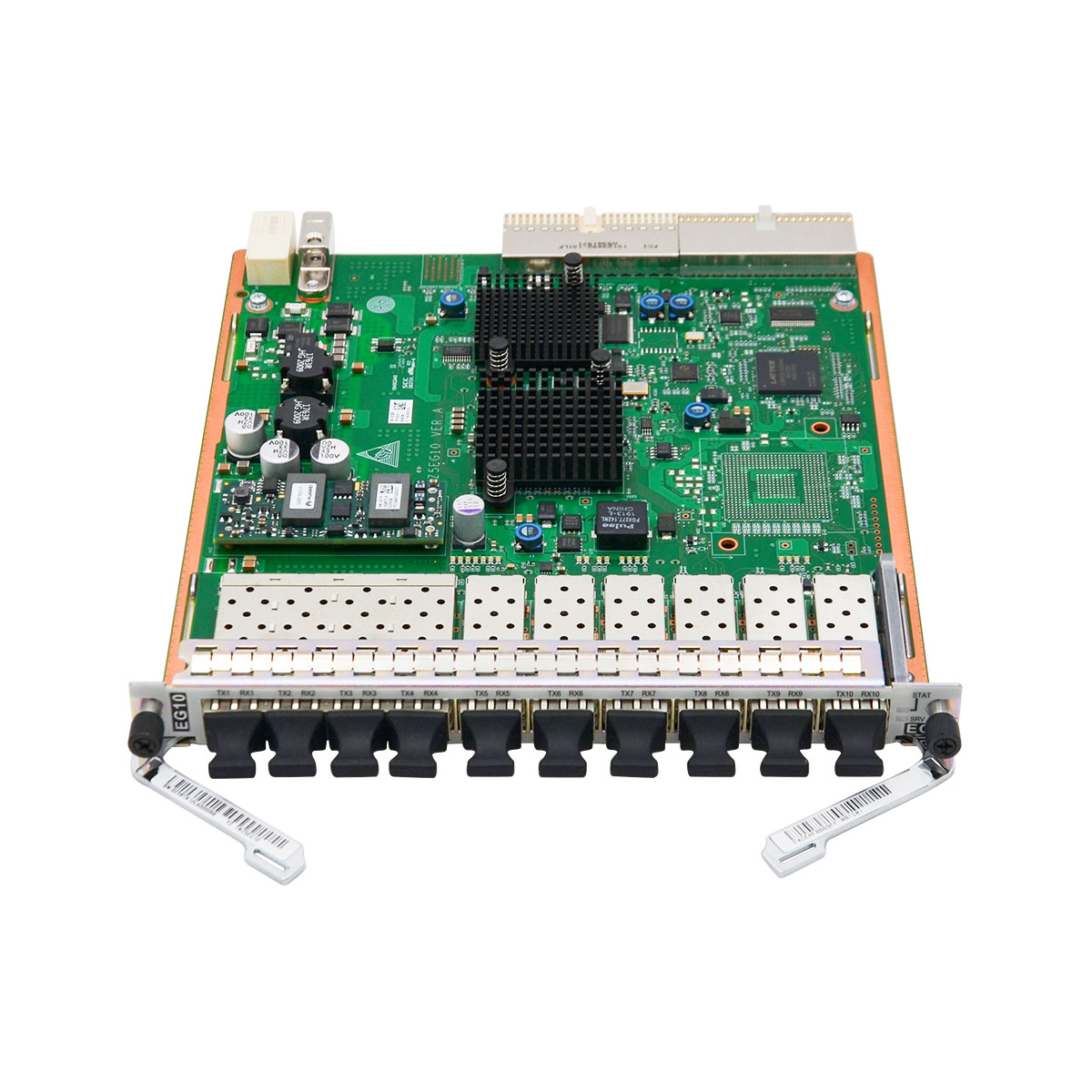

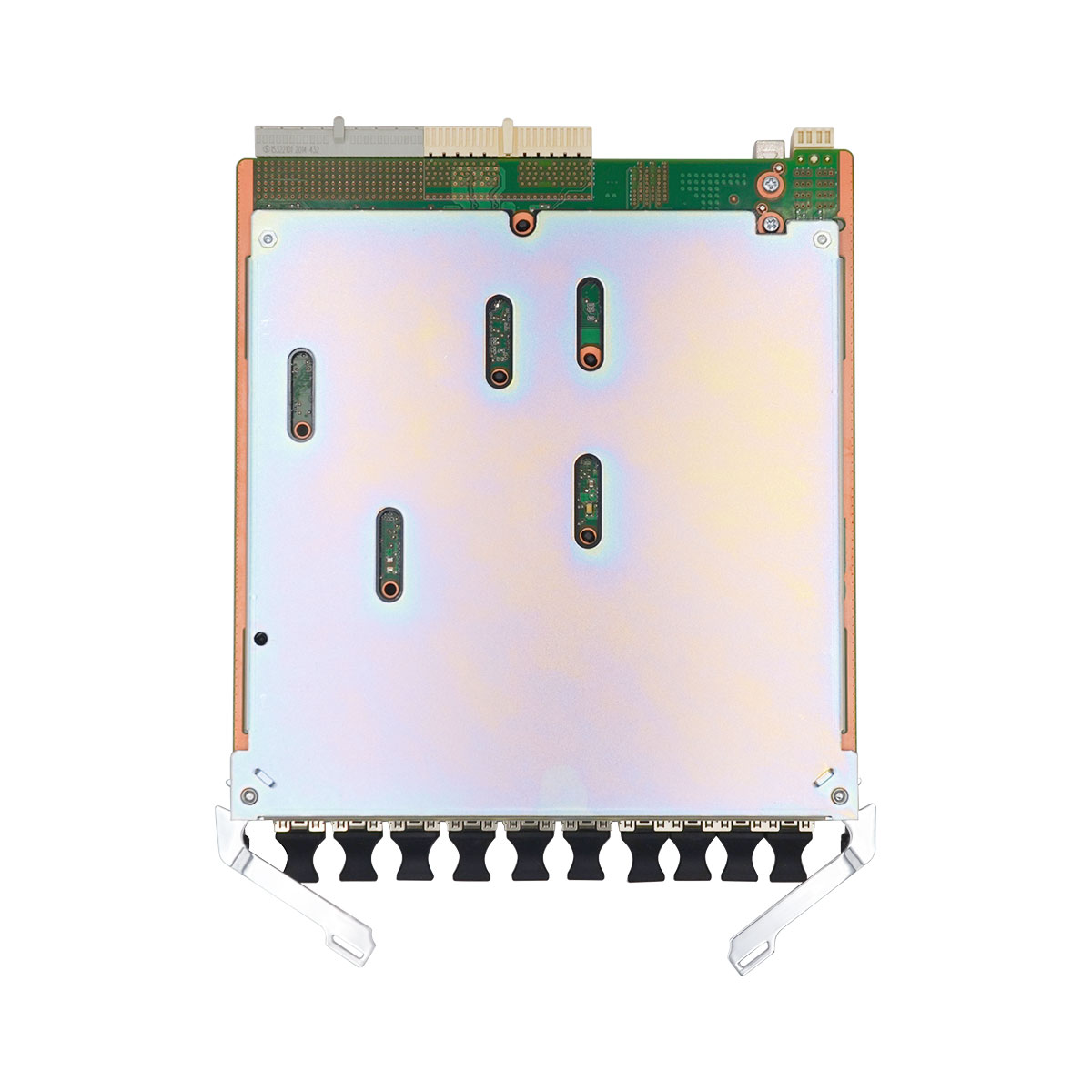

Huawei OSN1800V TNZ5EG10 10*GE(SFP) ethernet processing board, 03023BTK

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNZ5EG10 overview

TNZ5EG10 10*GE(SFP) ethernet processing board applied to Huawei OSN 1800V.

The EG10 board is a packet board. It supports access of 10 GE/FE services and transmits service signals to cross-connect boards for packet data processing and centralized grooming at the equipment level. On the WDM side, the EG10 board works with a board providing the packet service processing function to implement packet service transmission on the WDM network.

The EG10 board receives and transmits a maximum of ten GE/FE services. The EG10 board implements Ethernet service functions by working with packet switching units on the system control, switching, and timing boards.

Item		TNZ5EG10
Basic function		Receives and transmits GE/FE optical services or GE electrical services. For GE/FE optical services, a maximum of 10 services is supported. For GE electrical services: If unshielded network cables are used, a maximum of six services is supported. If shielded network cables are used, a maximum of four services is supported.
Backplane bandwidth		10 Gbit/s
Supported service		FE: Ethernet service at a rate of 125 Mbit/s. GE: Ethernet service at a rate of 1.25 Gbit/s.
Working mode		GE optical port: 1000M Full-Duplex, Auto-Negotiation FE optical port: 100M Full-Duplex GE electrical port: 10M Full-Duplex, 100M Full-Duplex, 1000M Full-Duplex, Auto–Negotiation
Flow control at ports		Supported. Comply with IEEE802.3x (Only supports response request).
Ethernet data frame format		IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
MFL		The MFL value ranges from 1518 bytes to 9600 bytes with a default value of 1522 bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL+72 bytes.
Service type		E-Line (VPWS), E-LAN (VPLS)
Service bearing medium		Port, PW, QinQ
E-Line services		Native ETH services: E-Line services based on point-to-point transparent transmission E-Line services based on virtual local area networks (VLANs) E-Line services based on 802.1q in 802.1q (QinQ) ETH pseudo wire emulation edge-to-edge (PWE3) services: E-Line services carried by PWs (VPWS services)
E-LAN services		Native ETH services: E-LAN services based on IEEE 802.1d bridges E-LAN services based on IEEE 802.1q bridges
MS-PW		Supported

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item		TNZ5EG10
Basic function		Receives and transmits GE/FE optical services or GE electrical services. For GE/FE optical services, a maximum of 10 services is supported. For GE electrical services: If unshielded network cables are used, a maximum of six services is supported. If shielded network cables are used, a maximum of four services is supported.
Backplane bandwidth		10 Gbit/s
Supported service		FE: Ethernet service at a rate of 125 Mbit/s. GE: Ethernet service at a rate of 1.25 Gbit/s.
Working mode		GE optical port: 1000M Full-Duplex, Auto-Negotiation FE optical port: 100M Full-Duplex GE electrical port: 10M Full-Duplex, 100M Full-Duplex, 1000M Full-Duplex, Auto–Negotiation
Flow control at ports		Supported. Comply with IEEE802.3x (Only supports response request).
Ethernet data frame format		IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
MFL		The MFL value ranges from 1518 bytes to 9600 bytes with a default value of 1522 bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL+72 bytes.
Service type		E-Line (VPWS), E-LAN (VPLS)
Service bearing medium		Port, PW, QinQ
E-Line services		Native ETH services: E-Line services based on point-to-point transparent transmission E-Line services based on virtual local area networks (VLANs) E-Line services based on 802.1q in 802.1q (QinQ) ETH pseudo wire emulation edge-to-edge (PWE3) services: E-Line services carried by PWs (VPWS services)
E-LAN services		Native ETH services: E-LAN services based on IEEE 802.1d bridges E-LAN services based on IEEE 802.1q bridges
MS-PW		Supported
