TNZ5EC1 overview

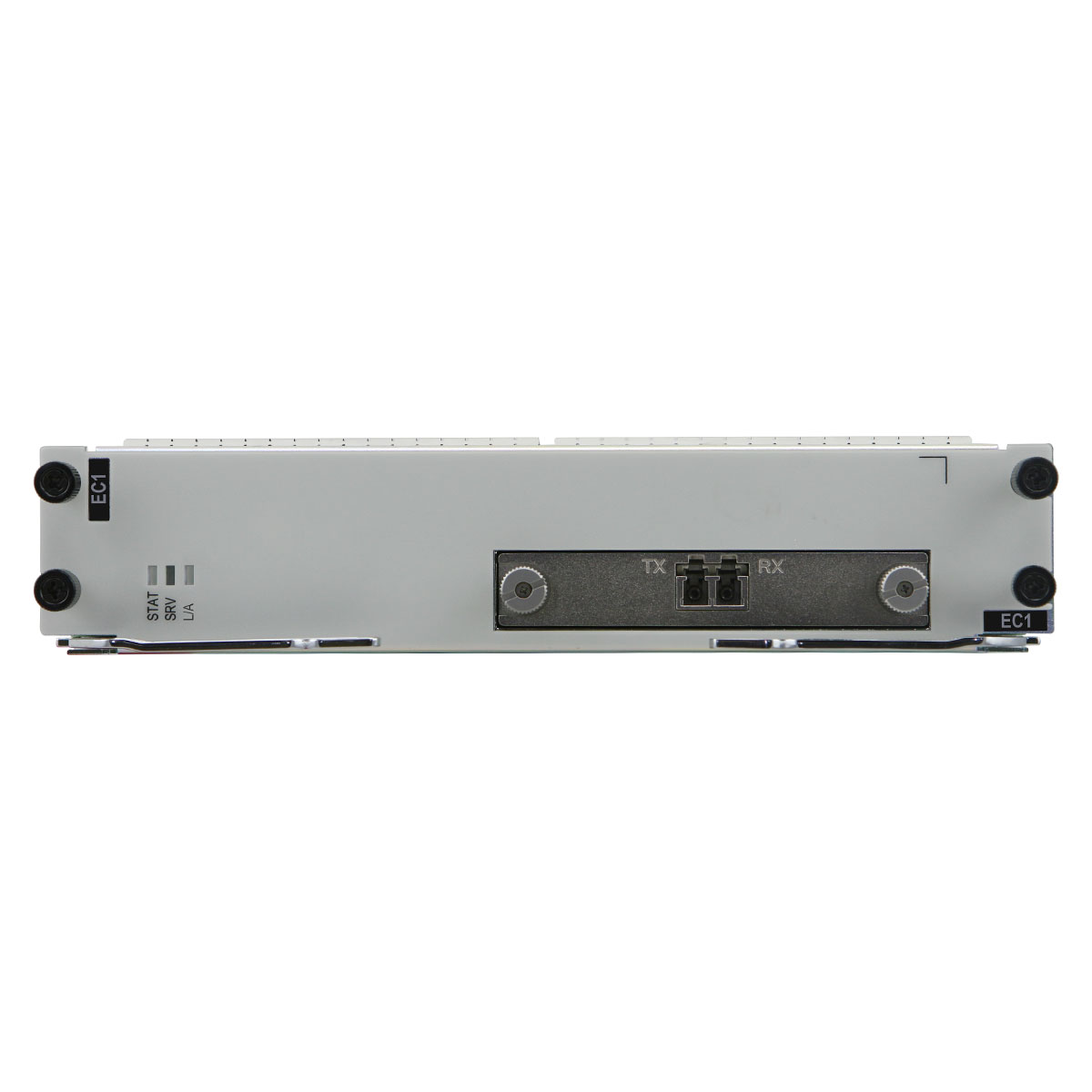

TNZ5EC1 1*100GE(CFP) ethernet processing board applied to Huawei OSN 1800V.

The EC1 board is a packet board. It supports access of 100GE services and transmits service signals to cross-connect boards for packet data processing and centralized grooming at the equipment level. On the WDM side, the EC1 board works with a board providing the packet service processing function to implement packet service transmission on the WDM network.

The EC1 board receives and transmits one 100GE service. The EC1 board implements Ethernet service functions by working with packet switching units on the system control, switching, and timing boards.



Item TNZ5EC1
Basic function Receives and transmits the following services:
  • 1 x 100GE
Backplane bandwidth 100 Gbit/s
Supported service 100GE: Ethernet service at a rate of 103.125 Gbit/s
Port flow control Supported Comply with IEEE802.3x (Only supports response request).
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
MFL The MFL value ranges from 1518 to 9600, in bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL+ 72 bytes.
Service type E-Line (VPWS), E-LAN (VPLS)
Service bearing medium Port, PW, QinQ
QinQ Supports basic QinQ.
E-Line services
  • Native ETH services:
  • E-Line services based on point-to-point transparent transmission
  • E-Line services based on virtual local area networks (VLANs)
  • E-Line services based on 802.1q in 802.1q (QinQ)
  • ETH pseudo wire emulation edge-to-edge (PWE3) services: E-Line services carried by PWs (VPWS services)
E-LAN services Native ETH services:
  • E-LAN services based on IEEE 802.1d bridges
  • E-LAN services based on IEEE 802.1q bridges
MS-PW Supported
Dimensions (W x H x D, unit: mm/in.) 193.8 x 40.1 x 205.9 (7.6 x 1.6 x 8.1)
Weight 1.75 kg (3.86 lb.)
Power Consumption (W) 85-93.5

Features supported by the EC1 board
Protection scheme Tunnel APS
  • Supports 1:1 tunnel automatic protection switching (APS).
  • Supports 1+1 tunnel automatic protection switching (APS).
PW FPS Supports 1:1 PW FPS.
PW APS Supports 1:1 PW APS.
LAG Supported intra-board LAG and inter-board LAG. Comply with IEEE 802.1ax.
MC-LAG Supported
MSTP Not supported
LPT Supports point-to-point and point-to-multipoint link-state pass through (LPT) functions.
MRPS Supported NOTE: MRPS protection can be configured together with PW APS but cannot be configured with tunnel APS.
MC-PW APS Supported
ERPS Supported
LLDP Supported
QoS Diffserv Supported, compliant with RFC 2474 and RFC 2475.
traffic classification Complex traffic classification. The ACL rules are customized based on packet information.
traffic policing Committed access rate (CAR), two rate three color marker (trTCM) compliant with RFC 4115.
Congestion management Class of service (CoS), supporting SP/WFQ scheduling algorithms.
Congestion avoidance WRED, tail dropping.
traffic shaping Supports packet shaping at egress ports and in egress port queues
IGMP Snooping V1/V2 Supported
Maintenance Ethernet service OAM (CFM) Supported
Ethernet port OAM (EFM) Not supported
MPLS-TP OAM Supported, compliant with ITU-T G.8113.1
RMON Supported
Support for port traffic mirroring
Loopback PHY Outloop
MAC Outloop
Synchronization Synchronous Ethernet Not supported
IEEE 1588v2 Not supported
Inband DCN Supported NOTE: After the EC1 board is installed, you need to add the logical board of the EC1. Otherwise, the DCN will become unavailable.
HQoS Supported

Additional information

Brand

Huawei
Lead Time

3-5 days
