Description

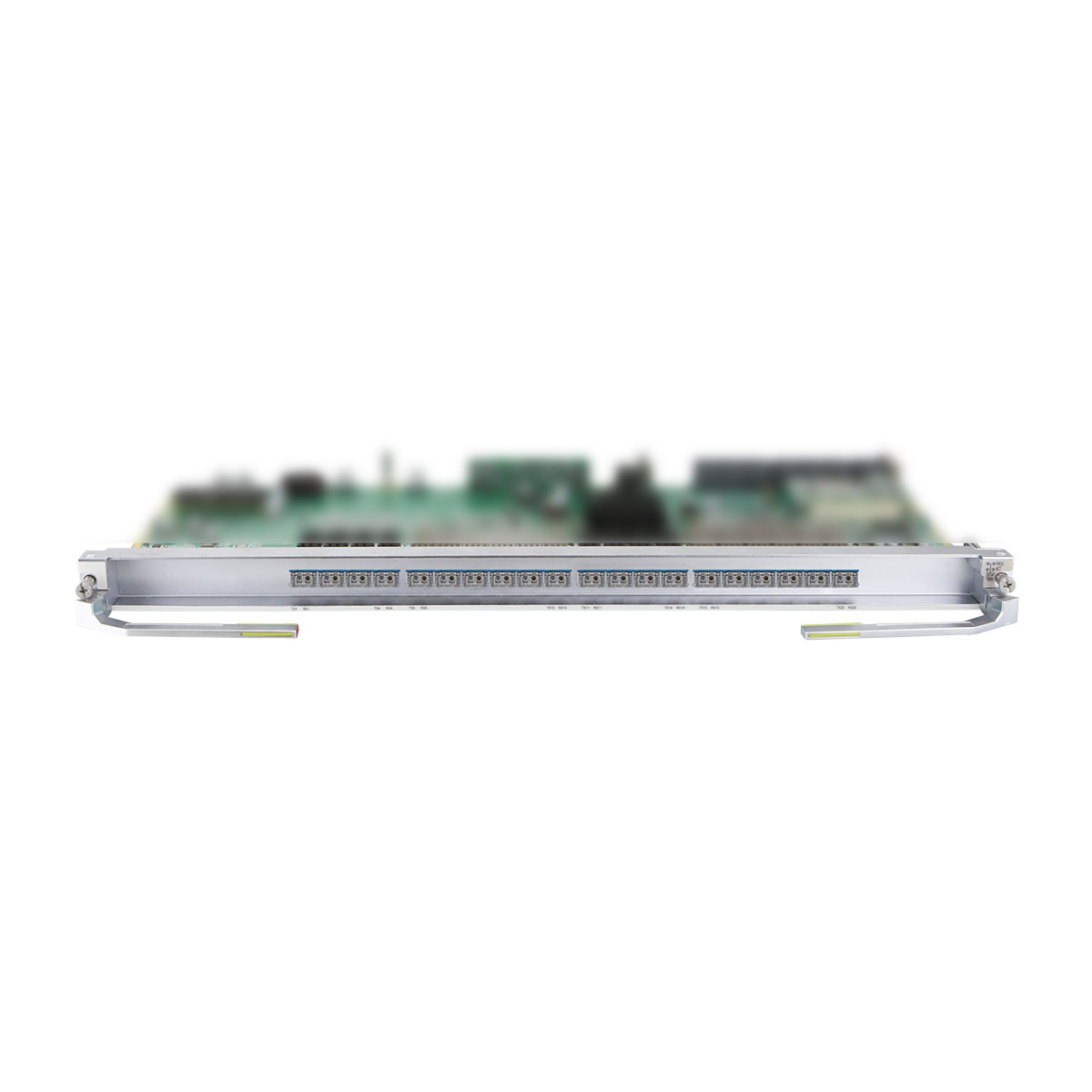

TNV7T220 overview

TNV7T220 20*10 Gbit/s Tributary Service Processing Board applied to Huawei OptiX OSN 9800 U16/U32/U64/M24

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

TNV7T220 also comes with TNV3T220, TNV6T220 and TNV3T220E board version.

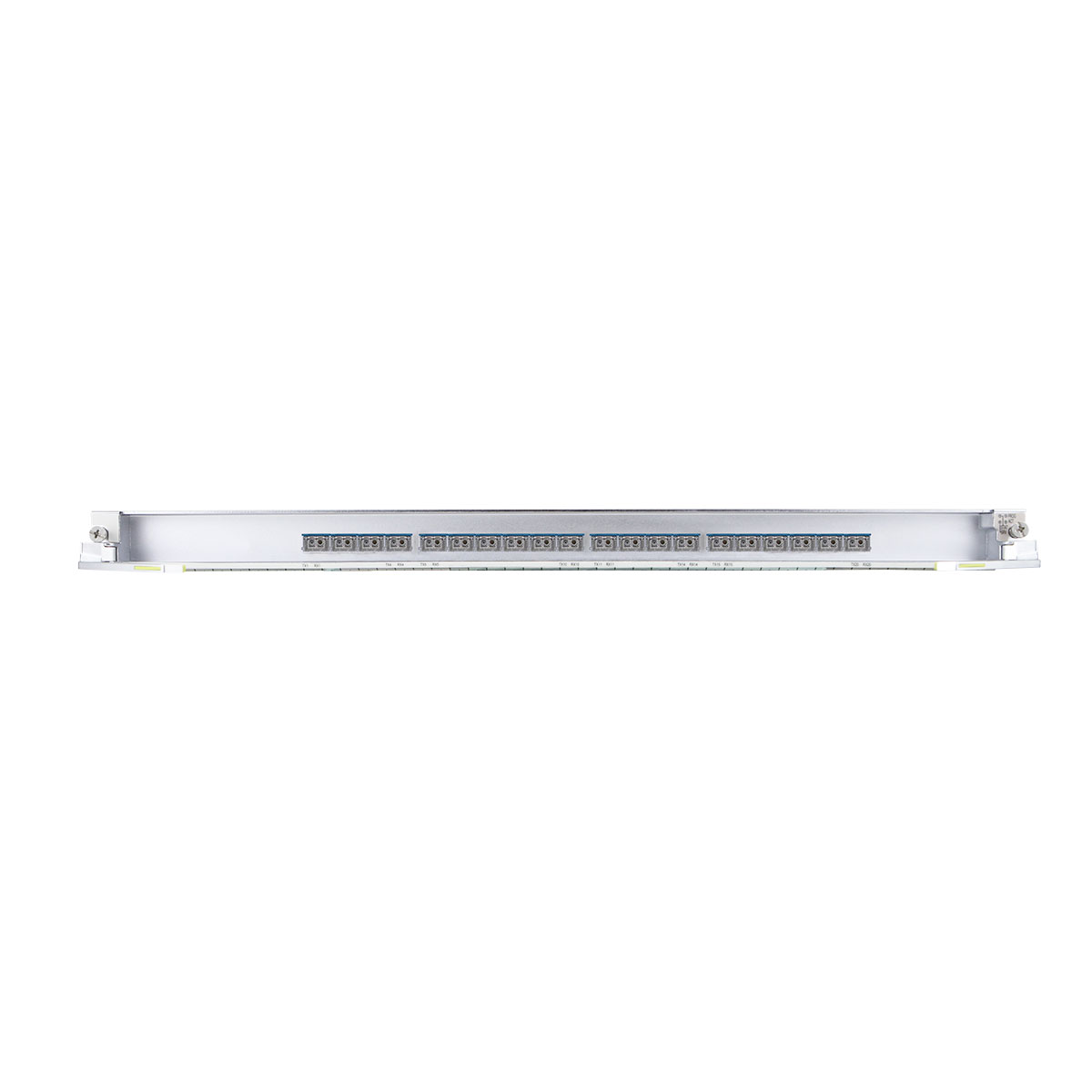

Front panel of the TNV7T220 board

Valid slots for the TNV7T220 board

Product	Valid Slots
OSN 9800 U32 Standard Subrack	IU1-IU32
OSN 9800 U32 Enhanced subrack	IU1-IU32
OSN 9800 U64 Standard Subrack	IU1-IU64
OSN 9800 U64 Enhanced Subrack	IU1-IU64
OptiX OSN 9800 U16 subrack	IU1-IU14

Item	TNV7T220
Basic function	Supports the following service conversions:
	ODU0 non-convergence mode (Any->ODU0)
	20 x (125 Mbit/s to 1.25 Gbit/s signals) <-> 20 x ODU0.
	ODU1 non-convergence mode (Any->ODU1)
	20 x (1.49 Gbit/s to 2.67 Gbit/s signals) <-> 20 x ODU1.
	ODU2 non-convergence mode (Any->ODU2(e))
	20 x 10GE LAN(GFP-F)/10GE WAN/STM-64/OC-192/OTU2/FC800/FICON8G<-> 20 x ODU2
	20 x 10GE LAN(BMP)/OTU2e/FC1200<-> 20 x ODU2e
	ODUflex non-convergence mode (Any->ODUflex(n x 1.25Gbit/s, n≤160))
	20 x 3G-SDI/3G-SDIRBR/FC400/FICON4G/FC800/FICON8G/10GE LAN(GFP-F)<-> 20 x ODUflex
	8 x 25GE(GFP-F)/25GE(BMP)<->8 x ODUflex
	6 x FC3200<->6 x ODUflex
	12 x FC1600<->12 x ODUflex
	ODU1_ODU0 mode (OTU1->ODU1->ODU0)
	20 x OTU1<-> 40 x ODU0
	ODU1 convergence mode (16*Any->ODU1)
	16 x (125 Mbit/s to 2.5 Gbit/s signals) <-> ODU1
Backplane bandwidth	200 Gbit/s
Service encryption	Supports setting the encryption function by port.
Client-side service type	SDH/SONET service:
	STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s
	STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s
	STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s
	STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s
	Ethernet service:
	FE: Ethernet service at a rate of 125 Mbit/s
	GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals.
	10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
	10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
	25GE: Ethernet service at a rate of 25.78 Gbit/s
	OTN service:
	OTU1: OTN service at a rate of 2.67 Gbit/s
	OTU2: OTN service at a rate of 10.71 Gbit/s
	OTU2e: OTN service at a rate of 11.1 Gbit/s
	SAN service:
	FC100: SAN service at a rate of 1.06 Gbit/s
	FC200: SAN service at a rate of 2.12 Gbit/s
	FC400: SAN service at a rate of 4.25 Gbit/s
	FICON: SAN service at a rate of 1.06 Gbit/s
	FICON Express: SAN service at a rate of 2.12 Gbit/s
	FICON4G: SAN service at a rate of 4.25 Gbit/s
	FC800: SAN service at a rate of 8.5 Gbit/s
	FICON8G: SAN service at a rate of 8.5 Gbit/s
	FC1200: SAN service at a rate of 10.51 Gbit/s
	FC1600: SAN service at a rate of 14.025 Gbit/s
	FC3200: SAN service at a rate of 28.05 Gbit/s
	ESCON: SAN service at a rate of 200 Mbit/s
	FDDI: SAN service at a rate of 125 Mbit/s
	Video service:
	SDI: Serial digital interface at a rate of 270 Mbit/s
	HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
	HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
	3G-SDI: Video service at a rate of 2.97 Gbit/s
	3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
	DVB-ASI: Video service at a rate of 270 Mbit/s
Cross-connect capabilities	Supports backplane cross-connections of 20 channels ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
			OTN function	Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
ODUflex layer: supports PM overhead processing.
ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OTU1/OTU2 layer: supports SM overhead processing.
ESC function	Supported when the client-side service type is OTU1/OTU2/OTU2e.
PRBS test function	Supported.
LLDP function	When the client-side service type is ethernet service, the board supports the LLDP function.
LPT function	Supported when the client-side service type is FE, GE or 10GE LAN.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors B1 bytes to help locate faults.
	Monitors OTN alarms and performance events.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Supports the remote monitoring (RMON) of Ethernet services.
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
Test frame	Supported
Electrical-layer ASON	Supported
Latency measurement	When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2	Supports TC mode, TC+OC mode, BC mode and OC mode.
ITU-T G.8275.1	Supported
ITU-T G.8273.2	Only the board of an 9800 M24 subrack supports ITU-T G.8273.2.
Physical clock	GE(TTT-GMP), 10GE LAN(BMP), 25GE(BMP): Supports synchronous Ethernet transparent transmission
	GE(GFP-T), 10GE LAN(GFP-F), 25GE(GFP-F): Supports synchronous Ethernet processing
Protection scheme	Supports client 1+1 protection.
	Supports ODUk SNCP.
	Supports tributary SNCP protection.
Port MTU	The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Ethernet service mapping mode	GE: GE(TTT-GMP), GE(GFP-T)
	25GE: 25GE(BMP), 25GE (GFP-F)
	10GE LAN: Bit transparent Mapping (11.1G), MAC transparent Mapping (10.7G)
Protocols or standards compliance	Protocols or standards for transparent transmission (non-performance monitoring)	IEEE 802.3u
		IEEE 802.3z
		ITU-T G.707
		ITU-T G.782
		ITU-T G.783
		GR-253-CORE Synchronous Optical Network (SONET) transport Systems: Common Generic
		NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI)
		NCITS FIBRE CHANNEL LINK SERVICES (FC-LS)
		NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2)
		NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3)
		NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3)
		NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH)
		NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2)
		SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems
		ETSI tr 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI)
		SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface
		NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON)
		ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC)
		ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY)
		ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM)
	Protocols or standards for service processing (performance monitoring)	ITU-T G.805
		ITU-T G.806
		ITU-T G.709
		ITU-T G.872
		ITU-T G.7710
		ITU-T G.798
		ITU-T G.874
		ITU-T M.3100
		ITU-T G.874.1
		ITU-T G.875
		ITU-T G.808.1
		ITU-T G.841
		ITU-T G.8201
		ITU-T G.873.1
		ITU-T G.694.1
Dimensions of the front panel (H x W x D)	477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
Weight	2.62 kg (5.7 lb.)
Power Consumption (W)	159-170

Specifications for Optical Modules

Board	Optical Modules	Service type	Service type	Position
TNV7T220	eSFP-2.125G-850nm-MMF-0.5km-I	GE, FC100, FICON	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-1.25G-1310nm-SMF-10km	GE, FC100, FICON	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-1.25G-1310nm-SMF-40km Specifications	GE, FC100, FICON	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-1.25G-1550nm-SMF-80km-01 Specifications	GE, FC100, FICON	Pluggable Optical Module	Client-Side
TNV7T220	SFP-1000Base-T-autonegotiation-100m-RJ45-I	GE	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-2.5G-1310nm-SMF-15km Specifications	FE, FDDI, STM-1, OC-3, ESCON, STM-4, OC-12, GE, FC100, FICON, FC200, FICON Express, STM-16, OC-48, OTU1	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-80km Specifications	FE, FDDI, STM-1, OC-3, ESCON, STM-4, OC-12, GE, FC100, FICON, FC200, FICON Express, STM-16, OC-48, OTU1	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-2.5G-TX1310/RX1490nm(BIDI)-SMF-15km-I Specifications	FE, FDDI, STM-1, OC-3, ESCON, STM-4, OC-12, GE, FC100, FICON, FC200, FICON Express, STM-16, OC-48, OTU1	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-2.5G-TX1490/RX1310nm(BIDI)-SMF-15km-I Specifications	FE, FDDI, STM-1, OC-3, ESCON, STM-4, OC-12, GE, FC100, FICON, FC200, FICON Express, STM-16, OC-48, OTU1	Pluggable Optical Module	Client-Side
TNV7T220	eSFP,1550.12nm,125M~2.67Gbps,0~4.0dBm,-28.0dBm,LC,120km	FE, FDDI, STM-1, OC-3, ESCON, STM-4, OC-12, GE, FC100, FICON, FC200, FICON Express, STM-16, OC-48, OTU1	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-4.25G-850nm-MMF-0.3km-I Specifications	FC200, FICON Express, FC400, FICON4G	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-4.25G-1310nm-SMF-10km Specifications	FC200, FICON Express, FC400, FICON4G	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -GE(LX)/10GE(LR/LW)-1310nm-SMF-10km	GE, FC100, FICON, FC800, FICON8G, 10GE WAN, 10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G(with CDR)-1310nm-SMF-10km	FC800, FICON8G, STM-64, OC-192, 10GE WAN, 10GE LAN, FC1200, OTU2(e)	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G(with CDR)-1550nm-SMF-40km Specifications	FC800, FICON8G, STM-64, OC-192, 10GE WAN, 10GE LAN, FC1200, OTU2(e)	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G(with CDR)-1550nm-SMF-80km Specifications	FC800, FICON8G, STM-64, OC-192, 10GE WAN, 10GE LAN, FC1200, OTU2(e)	Pluggable Optical Module	Client-Side
TNV7T220	SFP28-28.05G-850nm-MMF-0.1km Specifications	FC800, FC1600, FC3200	Pluggable Optical Module	Client-Side
TNV7T220	SFP28-28.05G-1310nm-SMF-10km Specifications	FC800, FC1600, FC3200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -8.5G to 10.5G-850nm-MMF-0.3km Specifications	FC800, FICON8G, 10GE WAN, 10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G(10GE,LR/LW)-1310nm-SMF-10km	FC800, FICON8G, 10GE WAN, 10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G-1550nm-SMF-40km Specifications	FC800, FICON8G, 10GE WAN, 10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G(10GE,ZR/ZW)-1550nm-SMF-80km	FC800, FICON8G, 10GE WAN, 10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-10km-I Specifications	STM-16, OTU1, 10GE WAN, 10GE LAN	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-10km-I Specifications	STM-16, OTU1, 10GE WAN, 10GE LAN	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-3G-1310nm-SMF-10km Specifications	DVB-ASI, SDI, HD-SDI, HD–SDIRBR, 3G-SDI, 3G-SDIRBR	Pluggable Optical Module	Client-Side
TNV7T220	SFP28-25G-850nm-LC-MMF-0.1km	25GE	Pluggable Optical Module	Client-Side
TNV7T220	SFP28-25G-1310nm-10km-SM-I Specifications	25GE	Pluggable Optical Module	Client-Side

Item	TNV7T220
Basic function	Supports the following service conversions:
	ODU0 non-convergence mode (Any->ODU0)
	20 x (125 Mbit/s to 1.25 Gbit/s signals) <-> 20 x ODU0.
	ODU1 non-convergence mode (Any->ODU1)
	20 x (1.49 Gbit/s to 2.67 Gbit/s signals) <-> 20 x ODU1.
	ODU2 non-convergence mode (Any->ODU2(e))
	20 x 10GE LAN(GFP-F)/10GE WAN/STM-64/OC-192/OTU2/FC800/FICON8G<-> 20 x ODU2
	20 x 10GE LAN(BMP)/OTU2e/FC1200<-> 20 x ODU2e
	ODUflex non-convergence mode (Any->ODUflex(n x 1.25Gbit/s, n≤160))
	20 x 3G-SDI/3G-SDIRBR/FC400/FICON4G/FC800/FICON8G/10GE LAN(GFP-F)<-> 20 x ODUflex
	8 x 25GE(GFP-F)/25GE(BMP)<->8 x ODUflex
	6 x FC3200<->6 x ODUflex
	12 x FC1600<->12 x ODUflex
	ODU1_ODU0 mode (OTU1->ODU1->ODU0)
	20 x OTU1<-> 40 x ODU0
	ODU1 convergence mode (16*Any->ODU1)
	16 x (125 Mbit/s to 2.5 Gbit/s signals) <-> ODU1
Backplane bandwidth	200 Gbit/s
Service encryption	Supports setting the encryption function by port.
Client-side service type	SDH/SONET service:
	STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s
	STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s
	STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s
	STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s
	Ethernet service:
	FE: Ethernet service at a rate of 125 Mbit/s
	GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals.
	10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
	10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
	25GE: Ethernet service at a rate of 25.78 Gbit/s
	OTN service:
	OTU1: OTN service at a rate of 2.67 Gbit/s
	OTU2: OTN service at a rate of 10.71 Gbit/s
	OTU2e: OTN service at a rate of 11.1 Gbit/s
	SAN service:
	FC100: SAN service at a rate of 1.06 Gbit/s
	FC200: SAN service at a rate of 2.12 Gbit/s
	FC400: SAN service at a rate of 4.25 Gbit/s
	FICON: SAN service at a rate of 1.06 Gbit/s
	FICON Express: SAN service at a rate of 2.12 Gbit/s
	FICON4G: SAN service at a rate of 4.25 Gbit/s
	FC800: SAN service at a rate of 8.5 Gbit/s
	FICON8G: SAN service at a rate of 8.5 Gbit/s
	FC1200: SAN service at a rate of 10.51 Gbit/s
	FC1600: SAN service at a rate of 14.025 Gbit/s
	FC3200: SAN service at a rate of 28.05 Gbit/s
	ESCON: SAN service at a rate of 200 Mbit/s
	FDDI: SAN service at a rate of 125 Mbit/s
	Video service:
	SDI: Serial digital interface at a rate of 270 Mbit/s
	HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
	HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
	3G-SDI: Video service at a rate of 2.97 Gbit/s
	3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
	DVB-ASI: Video service at a rate of 270 Mbit/s
Cross-connect capabilities	Supports backplane cross-connections of 20 channels ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
			OTN function	Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
ODUflex layer: supports PM overhead processing.
ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OTU1/OTU2 layer: supports SM overhead processing.
ESC function	Supported when the client-side service type is OTU1/OTU2/OTU2e.
PRBS test function	Supported.
LLDP function	When the client-side service type is ethernet service, the board supports the LLDP function.
LPT function	Supported when the client-side service type is FE, GE or 10GE LAN.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors B1 bytes to help locate faults.
	Monitors OTN alarms and performance events.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Supports the remote monitoring (RMON) of Ethernet services.
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
Test frame	Supported
Electrical-layer ASON	Supported
Latency measurement	When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2	Supports TC mode, TC+OC mode, BC mode and OC mode.
ITU-T G.8275.1	Supported
ITU-T G.8273.2	Only the board of an 9800 M24 subrack supports ITU-T G.8273.2.
Physical clock	GE(TTT-GMP), 10GE LAN(BMP), 25GE(BMP): Supports synchronous Ethernet transparent transmission
	GE(GFP-T), 10GE LAN(GFP-F), 25GE(GFP-F): Supports synchronous Ethernet processing
Protection scheme	Supports client 1+1 protection.
	Supports ODUk SNCP.
	Supports tributary SNCP protection.
Port MTU	The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Ethernet service mapping mode	GE: GE(TTT-GMP), GE(GFP-T)
	25GE: 25GE(BMP), 25GE (GFP-F)
	10GE LAN: Bit transparent Mapping (11.1G), MAC transparent Mapping (10.7G)
Protocols or standards compliance	Protocols or standards for transparent transmission (non-performance monitoring)	IEEE 802.3u
		IEEE 802.3z
		ITU-T G.707
		ITU-T G.782
		ITU-T G.783
		GR-253-CORE Synchronous Optical Network (SONET) transport Systems: Common Generic
		NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI)
		NCITS FIBRE CHANNEL LINK SERVICES (FC-LS)
		NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2)
		NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3)
		NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3)
		NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH)
		NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2)
		SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems
		ETSI tr 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI)
		SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface
		NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON)
		ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC)
		ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY)
		ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM)
	Protocols or standards for service processing (performance monitoring)	ITU-T G.805
		ITU-T G.806
		ITU-T G.709
		ITU-T G.872
		ITU-T G.7710
		ITU-T G.798
		ITU-T G.874
		ITU-T M.3100
		ITU-T G.874.1
		ITU-T G.875
		ITU-T G.808.1
		ITU-T G.841
		ITU-T G.8201
		ITU-T G.873.1
		ITU-T G.694.1
Dimensions of the front panel (H x W x D)	477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
Weight	2.62 kg (5.7 lb.)
Power Consumption (W)	159-170

Specifications for Optical Modules

Board	Optical Modules	Service type	Service type	Position
TNV7T220	eSFP-2.125G-850nm-MMF-0.5km-I	GE, FC100, FICON	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-1.25G-1310nm-SMF-10km	GE, FC100, FICON	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-1.25G-1310nm-SMF-40km Specifications	GE, FC100, FICON	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-1.25G-1550nm-SMF-80km-01 Specifications	GE, FC100, FICON	Pluggable Optical Module	Client-Side
TNV7T220	SFP-1000Base-T-autonegotiation-100m-RJ45-I	GE	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-2.5G-1310nm-SMF-15km Specifications	FE, FDDI, STM-1, OC-3, ESCON, STM-4, OC-12, GE, FC100, FICON, FC200, FICON Express, STM-16, OC-48, OTU1	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-80km Specifications	FE, FDDI, STM-1, OC-3, ESCON, STM-4, OC-12, GE, FC100, FICON, FC200, FICON Express, STM-16, OC-48, OTU1	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-2.5G-TX1310/RX1490nm(BIDI)-SMF-15km-I Specifications	FE, FDDI, STM-1, OC-3, ESCON, STM-4, OC-12, GE, FC100, FICON, FC200, FICON Express, STM-16, OC-48, OTU1	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-2.5G-TX1490/RX1310nm(BIDI)-SMF-15km-I Specifications	FE, FDDI, STM-1, OC-3, ESCON, STM-4, OC-12, GE, FC100, FICON, FC200, FICON Express, STM-16, OC-48, OTU1	Pluggable Optical Module	Client-Side
TNV7T220	eSFP,1550.12nm,125M~2.67Gbps,0~4.0dBm,-28.0dBm,LC,120km	FE, FDDI, STM-1, OC-3, ESCON, STM-4, OC-12, GE, FC100, FICON, FC200, FICON Express, STM-16, OC-48, OTU1	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-4.25G-850nm-MMF-0.3km-I Specifications	FC200, FICON Express, FC400, FICON4G	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-4.25G-1310nm-SMF-10km Specifications	FC200, FICON Express, FC400, FICON4G	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -GE(LX)/10GE(LR/LW)-1310nm-SMF-10km	GE, FC100, FICON, FC800, FICON8G, 10GE WAN, 10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G(with CDR)-1310nm-SMF-10km	FC800, FICON8G, STM-64, OC-192, 10GE WAN, 10GE LAN, FC1200, OTU2(e)	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G(with CDR)-1550nm-SMF-40km Specifications	FC800, FICON8G, STM-64, OC-192, 10GE WAN, 10GE LAN, FC1200, OTU2(e)	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G(with CDR)-1550nm-SMF-80km Specifications	FC800, FICON8G, STM-64, OC-192, 10GE WAN, 10GE LAN, FC1200, OTU2(e)	Pluggable Optical Module	Client-Side
TNV7T220	SFP28-28.05G-850nm-MMF-0.1km Specifications	FC800, FC1600, FC3200	Pluggable Optical Module	Client-Side
TNV7T220	SFP28-28.05G-1310nm-SMF-10km Specifications	FC800, FC1600, FC3200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -8.5G to 10.5G-850nm-MMF-0.3km Specifications	FC800, FICON8G, 10GE WAN, 10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G(10GE,LR/LW)-1310nm-SMF-10km	FC800, FICON8G, 10GE WAN, 10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G-1550nm-SMF-40km Specifications	FC800, FICON8G, 10GE WAN, 10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -10G(10GE,ZR/ZW)-1550nm-SMF-80km	FC800, FICON8G, 10GE WAN, 10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-10km-I Specifications	STM-16, OTU1, 10GE WAN, 10GE LAN	Pluggable Optical Module	Client-Side
TNV7T220	SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-10km-I Specifications	STM-16, OTU1, 10GE WAN, 10GE LAN	Pluggable Optical Module	Client-Side
TNV7T220	eSFP-3G-1310nm-SMF-10km Specifications	DVB-ASI, SDI, HD-SDI, HD–SDIRBR, 3G-SDI, 3G-SDIRBR	Pluggable Optical Module	Client-Side
TNV7T220	SFP28-25G-850nm-LC-MMF-0.1km	25GE	Pluggable Optical Module	Client-Side
TNV7T220	SFP28-25G-1310nm-10km-SM-I Specifications	25GE	Pluggable Optical Module	Client-Side
