Huawei OptiX OSN 9800 board TNV6T220 20*10 Gbit/s Tributary Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNV6T220 overview

Huawei OptiX OSN 9800 board TNV6T220 20*10 Gbit/s Tributary Service Processing Board.

As an OTN tributary board, the T220 board can support a mix of ODU0, ODU1, ODU2(e) and ODUflex signals.

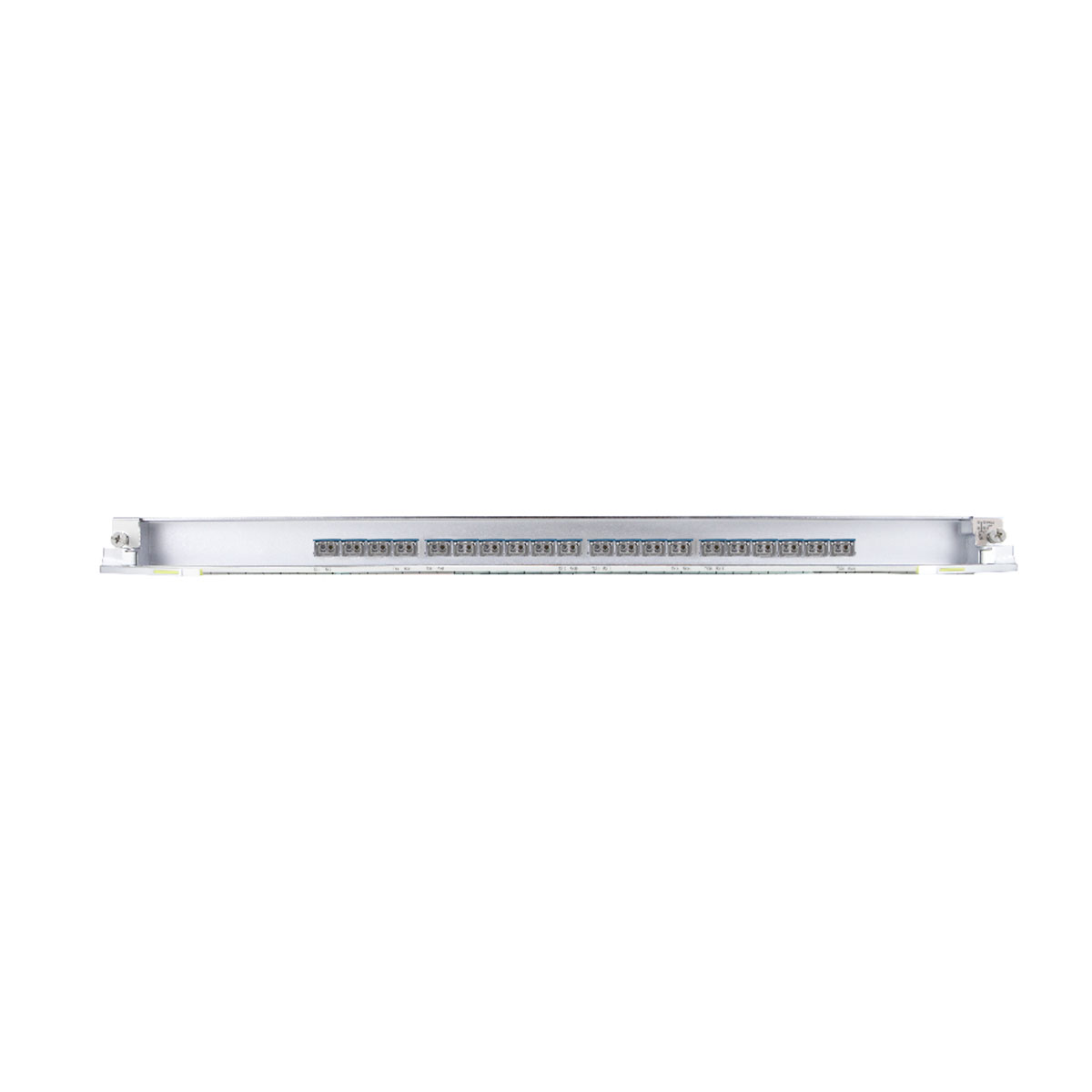

Appearance of the TNV6T220

Valid slots


Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M24	2	(IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24)	IU1 to IU12
OptiX OSN 9800 U32 Enhanced	1	IU1 to IU32	IU1 to IU32
OptiX OSN 9800 U32 Standard	1	IU1 to IU32	IU1 to IU32
OptiX OSN 9800 U64 Enhanced	1	IU1 to IU64	IU1 to IU64
OptiX OSN 9800 U64 Standard	1	IU1 to IU64	IU1 to IU64

Item	TNV6T220
Backplane capacity	The total bandwidth is 200 Gbit/s. NOTE: Supports backplane cross-connections of 20 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
Client-side service type	SDH service: STM-1: SDH service at a rate of 155.52 Mbit/s STM-4: SDH service at a rate of 622.08 Mbit/s STM-16: SDH service at a rate of 2488.32 Mbit/s STM-64: SDH service at a rate of 9.95 Gbit/s SONET service: OC-3: SONET service at a rate of 155.52 Mbit/s OC-12: SONET service at a rate of 622.08 Mbit/s OC-48: SONET service at a rate of 2488.32 Mbit/s OC-192: SONET service at a rate of 9.95 Gbit/s Ethernet service: FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s. 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s OTN service: OTU1: OTN service at a rate of 2.67 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s SAN service: FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FC400: SAN service at a rate of 4.25 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s FICON4G: SAN service at a rate of 4.25 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FICON8G: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s FC1600: SAN service at a rate of 14.025 Gbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s Video service: SDI: Serial digital interface at a rate of 270 Mbit/s HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s 3G-SDI: Video service at a rate of 2.97 Gbit/s 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s NOTE: Supports GE optical signals and GE electrical signals. When 10GE LAN services are received on the client side and mapped into ODUflex, the client equipment must support flow control response.
Service mapping mode	Supports encapsulating GE services into GE (TTT-GMP) or GE (GFP-T) services. Supports encapsulating 10GE LAN services into bit transparent mapping (11.1G) or MAC transparent mapping (10.7G) services.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
OTN overhead	ODUflex layer: supports PM overhead processing. ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. OTU1/OTU2 layer: supports SM overhead processing. NOTE: Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
Maximum frame length for a port	1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT	Supported on the client side when FE/GE/10GE LAN services are received. NOTE: The port equipped with an electrical module does not support LPT.
Client 1+1 protection	Supported NOTE: When OTU1 services are received on the client side of a T220 board, client 1+1 protection is only supported in ODU1 non-convergence mode.
ODUk SNCP	Supported
Tributary SNCP	Supported NOTE: The board supports tributary SNCP protection only when the client-side service type is OTN, SDH or SONET. The board supports tributary SNCP for ODU0 only when working in ODU1_ODU0 (OTU1->ODU1->ODU0) mode.
Electrical-layer ASON	Supported
L1 Service Encryption	Supported NOTE: The board supports setting the encryption function by port. When working in ODU1 convergence mode and ODU1_ODU0 mode, the board does not support encryption.
ALS	Supported on the client side when non-OTN services are received. NOTE: The port equipped with an electrical module does not support ALS.
LLDP	Not supported
Physical clock	Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving GE(GFP-T)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side. Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving GE(TTT-GMP)/10GE LAN(Bit Transparent Mapping(11.1G)) services on the client side.
IEEE 1588v2	Supported NOTE: The board supports the TC, TC+OC, BC, and OC modes when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G). Only ports 1-15 support IEEE 1588v2. The port equipped with an electrical module does not support IEEE 1588v2.
ITU-T G.8275.1	Supported NOTE: The board supports the BC modes when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G). Only ports 1-15 support ITU-T G.8275.1. The port equipped with an electrical module does not support ITU-T G.8275.1.
ITU-T G.8273.2	Supported NOTE: The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
Outband DCN	Supported communication over ESCs when the client-side service type is OTU1/OTU2/OTU2e. NOTE: Only the TX1/RX1-TX16/RX16 optical ports support ESC function.
Test frame	Supported NOTE: Supports this function only in ODU1 convergence mode when receiving FE services on the client side. Supports this function when receiving GE (GFP-T) services on the client side. Supports this function when receiving 10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G).
PRBS	Supported NOTE: A maximum of three ports on a V6T220 board support PRBS testing. When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction. The PRBS function in the optical port direction is supported only when the client-side service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, STM-64, OC-192, OTU2 or OTU2e.
Delay measurement	When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback	Supports inloops and outloops on channels. NOTE: ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Port loopback	Supports inloops and outloops on the client side. Supports ODUk inloops and ODUk outloops on the client side. NOTE: When the board works in ODU1 convergence mode, you must configure intra-board cross-connections before loopbacks. Otherwise, the loopbacks become abnormal. The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured. When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported. When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors B1 bytes to help locate faults. Monitors OTN alarms and performance events. Monitors parameters such as the bias current, temperature, and optical power of the laser. Supports the remote monitoring (RMON) of Ethernet services.

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	TNV6T220
Backplane capacity	The total bandwidth is 200 Gbit/s. NOTE: Supports backplane cross-connections of 20 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
Client-side service type	SDH service: STM-1: SDH service at a rate of 155.52 Mbit/s STM-4: SDH service at a rate of 622.08 Mbit/s STM-16: SDH service at a rate of 2488.32 Mbit/s STM-64: SDH service at a rate of 9.95 Gbit/s SONET service: OC-3: SONET service at a rate of 155.52 Mbit/s OC-12: SONET service at a rate of 622.08 Mbit/s OC-48: SONET service at a rate of 2488.32 Mbit/s OC-192: SONET service at a rate of 9.95 Gbit/s Ethernet service: FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s. 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s OTN service: OTU1: OTN service at a rate of 2.67 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s SAN service: FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FC400: SAN service at a rate of 4.25 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s FICON4G: SAN service at a rate of 4.25 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FICON8G: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s FC1600: SAN service at a rate of 14.025 Gbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s Video service: SDI: Serial digital interface at a rate of 270 Mbit/s HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s 3G-SDI: Video service at a rate of 2.97 Gbit/s 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s NOTE: Supports GE optical signals and GE electrical signals. When 10GE LAN services are received on the client side and mapped into ODUflex, the client equipment must support flow control response.
Service mapping mode	Supports encapsulating GE services into GE (TTT-GMP) or GE (GFP-T) services. Supports encapsulating 10GE LAN services into bit transparent mapping (11.1G) or MAC transparent mapping (10.7G) services.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
OTN overhead	ODUflex layer: supports PM overhead processing. ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. OTU1/OTU2 layer: supports SM overhead processing. NOTE: Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
Maximum frame length for a port	1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT	Supported on the client side when FE/GE/10GE LAN services are received. NOTE: The port equipped with an electrical module does not support LPT.
Client 1+1 protection	Supported NOTE: When OTU1 services are received on the client side of a T220 board, client 1+1 protection is only supported in ODU1 non-convergence mode.
ODUk SNCP	Supported
Tributary SNCP	Supported NOTE: The board supports tributary SNCP protection only when the client-side service type is OTN, SDH or SONET. The board supports tributary SNCP for ODU0 only when working in ODU1_ODU0 (OTU1->ODU1->ODU0) mode.
Electrical-layer ASON	Supported
L1 Service Encryption	Supported NOTE: The board supports setting the encryption function by port. When working in ODU1 convergence mode and ODU1_ODU0 mode, the board does not support encryption.
ALS	Supported on the client side when non-OTN services are received. NOTE: The port equipped with an electrical module does not support ALS.
LLDP	Not supported
Physical clock	Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving GE(GFP-T)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side. Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving GE(TTT-GMP)/10GE LAN(Bit Transparent Mapping(11.1G)) services on the client side.
IEEE 1588v2	Supported NOTE: The board supports the TC, TC+OC, BC, and OC modes when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G). Only ports 1-15 support IEEE 1588v2. The port equipped with an electrical module does not support IEEE 1588v2.
ITU-T G.8275.1	Supported NOTE: The board supports the BC modes when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G). Only ports 1-15 support ITU-T G.8275.1. The port equipped with an electrical module does not support ITU-T G.8275.1.
ITU-T G.8273.2	Supported NOTE: The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
Outband DCN	Supported communication over ESCs when the client-side service type is OTU1/OTU2/OTU2e. NOTE: Only the TX1/RX1-TX16/RX16 optical ports support ESC function.
Test frame	Supported NOTE: Supports this function only in ODU1 convergence mode when receiving FE services on the client side. Supports this function when receiving GE (GFP-T) services on the client side. Supports this function when receiving 10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G).
PRBS	Supported NOTE: A maximum of three ports on a V6T220 board support PRBS testing. When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction. The PRBS function in the optical port direction is supported only when the client-side service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, STM-64, OC-192, OTU2 or OTU2e.
Delay measurement	When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback	Supports inloops and outloops on channels. NOTE: ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Port loopback	Supports inloops and outloops on the client side. Supports ODUk inloops and ODUk outloops on the client side. NOTE: When the board works in ODU1 convergence mode, you must configure intra-board cross-connections before loopbacks. Otherwise, the loopbacks become abnormal. The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured. When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported. When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors B1 bytes to help locate faults. Monitors OTN alarms and performance events. Monitors parameters such as the bias current, temperature, and optical power of the laser. Supports the remote monitoring (RMON) of Ethernet services.
