Huawei OptiX OSN 9800 board TNV5U210 10*10 Gbit/s Universal Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNV5U210 overview

TNV5U210 supports 10*10 Gbit/s Universal Line Service Processing Board applied to Huawei OptiX OSN 9800.

The TNV5U210 board is a universal line board and supports a mix of OTN, SDH and packet services. It can also receive and transmit only one of the three services.

The board processes and converts the received service signals into ten or twenty OTU2/OTU2e signals, which are carried over ten or twenty ITU-T G.694.1-compliant DWDM wavelengths.

An optional version of the TNV5U210 is the TNV6U210.

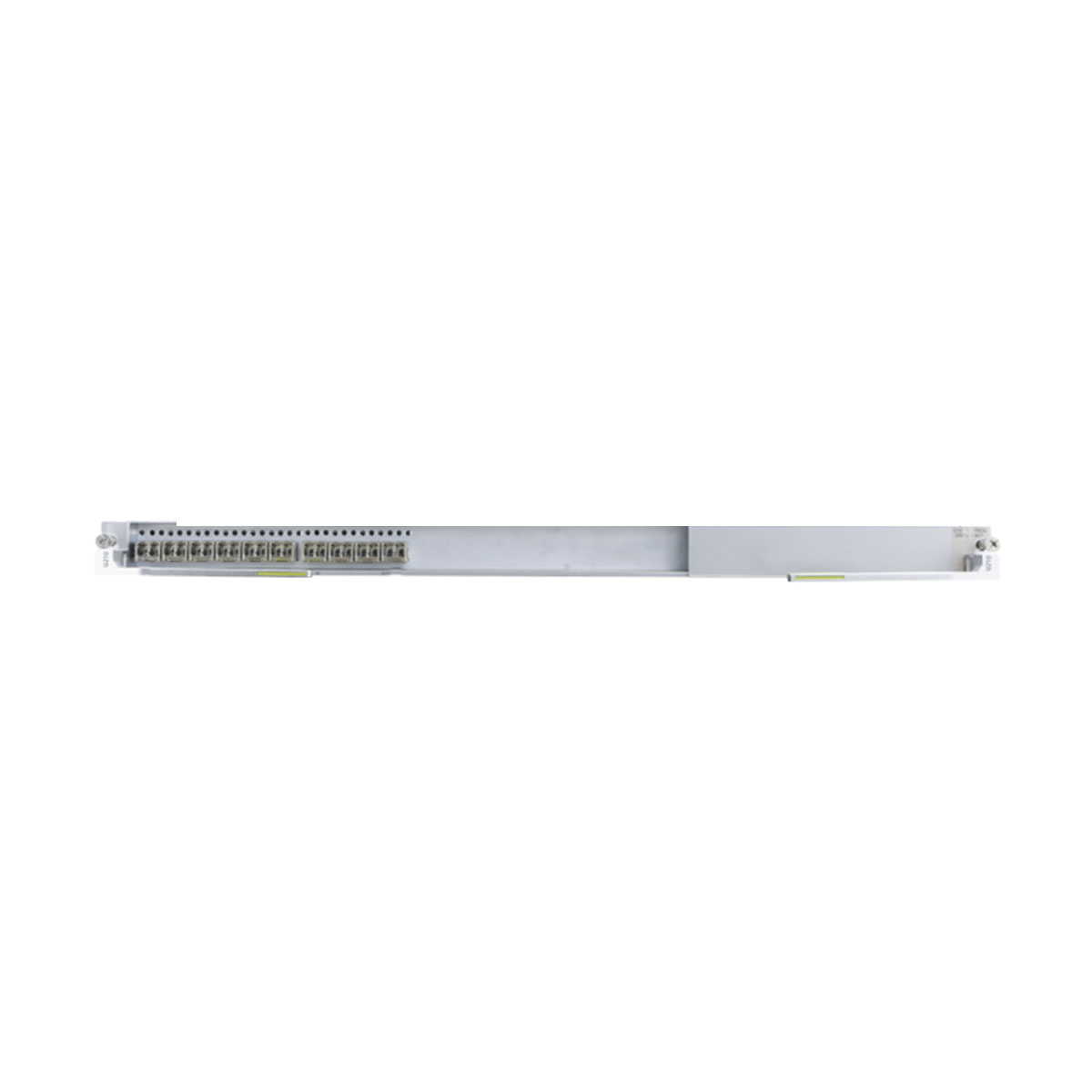

Appearance of the TNV5U210

Valid slots for the TNV5U210 board in a U64/U32 subrack

Product	Valid Slots
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1-IU32
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1-IU64

Valid slots for the TNV5U210 board in an M24 subrack

Product	Valid Slots
OptiX OSN 9800 M24 subrack	(IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) In the 1:3 mode, service boards cannot be installed in slots (IU6, IU18) and (IU7, IU19). NOTE: The slot ID displayed on the NMS is the ID of the lower one of the two slots occupied by the U210/U220 board in a subrack. For example, when the U210/U220 board occupies slots IU1 and IU13 in a subrack, the slot ID displayed on the NMS is IU1.

Product

Valid Slots

OptiX OSN 9800 M24 subrack

(IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24)

In the 1:3 mode, service boards cannot be installed in slots (IU6, IU18) and (IU7, IU19).

NOTE:

The slot ID displayed on the NMS is the ID of the lower one of the two slots occupied by the U210/U220 board in a subrack. For example, when the U210/U220 board occupies slots IU1 and IU13 in a subrack, the slot ID displayed on the NMS is IU1.

Item	TNV5U210
OTN functions	Supports the OTU2 interface on the WDM side. Supports the OTN frame format and overhead processing defined in ITU-T G.709. OTU2 layer: supports SM overhead processing. ODUk (k=0, 1, 2, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. ODUflex layer: supports PM overhead processing, and non-intrusive monitoring of the PM overhead.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for: 40 wavelengths tunable in the C band with 100 GHz channel spacing 80 wavelengths tunable in the C band with 50 GHz channel spacing
PRBS test function	Supports the PRBS function on the WDM side.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side. Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side. NOTE: Only ports IN1/OUT1 to IN10/OUT10 of the U220 board support AFEC-2 encoding. NOTE: Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Regeneration board	WDM-side signals from U210/U220 board can be regenerated by another U210/U220 board.
Test frame	Not supported
Latency measurement	Supported
Physical clock	Supported (ODU0, ODU1, ODUflex) NOTE: Services support only the Huawei mode of physical-layer clocks.
IEEE 1588v2	Supported NOTE: Only the Huawei mode of IEEE 1588v2 is supported. A maximum of four channels of IEEE 1588v2 clock signals are supported concurrently. On the V5U220 board, only ports IN1/OUT1 to IN15/OUT15 support IEEE 1588v2.
G.8275.1	Supported NOTE: Only the Huawei mode of G.8275.1 is supported. A maximum of four channels of G.8275.1 clock signals are supported concurrently. On the V5U220 board, only ports IN1/OUT1 to IN15/OUT15 support G.8275.1.
G.8273.2	U210/U220 supports G.8273.2 only in M24 subracks.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported
Protection schemes	Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP or DCP board). NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. ODUk SNCP protection and tributary SNCP are not supported when packet services are cross-connected from the backplane.
Loopback	WDM-Side Loopback	Supported
Loopback	Channel Loopback	ODUk (k = 0, 1, flex) channel loopbacks
ESC	Supported

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
U210/U220	SFP+ -10G(with CDR)-1550nm-SMF-80km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -10G(with CDR)-1550nm-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -10G(with CDR)-1310nm-SMF-10km	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -10G(with CDR)-(1471nm to 1611nm)(CWDM)-SMF-70km-I Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-80km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -10G(with CDR)-(1529.55nm to 1560.61nm)(DWDM,100GHz,Tunable)-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -0.125G to 11.3G-1310nm-SMF-10km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -8.5G to 11.1G-(1552.93nm to 1560.2nm)(DWDM, 100GHz, Tunable)-SMF-40km	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -8.5G to 11.1G-(1544.92nm to 1552.12nm)(DWDM, 100GHz, Tunable)-SMF-40km	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -8.5G to 11.1G-(1537nm to 1544.13nm)(DWDM, 100GHz, Tunable)-SMF-40km	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
U210/U220	SFP+ -8.5G to 11.1G-(1529.16nm to 1536.22nm)(DWDM, 100GHz, Tunable)-SMF-40km	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
