Huawei OSN 9800 U64/U32/M24 24-ports 10GE Packet Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNV2E224 overview

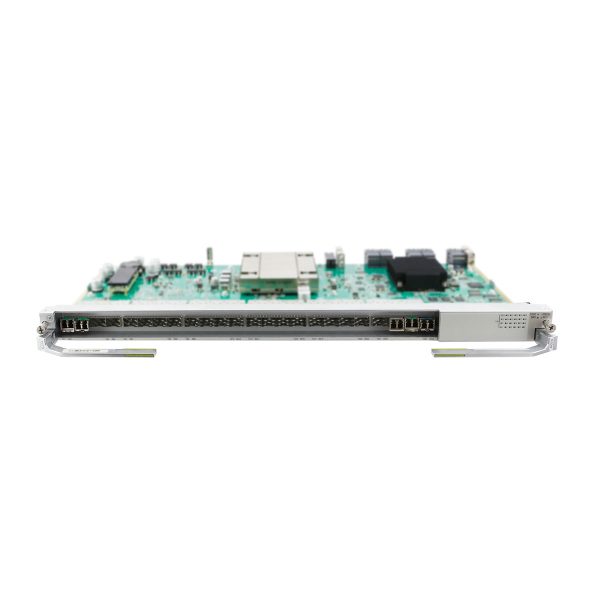

TNV2E224 24-ports 10GE Packet Service Processing Board

Applied to OSN 9800 U64, OSN 9800 U32, and OSN 9800 M24., it supports functions and features such as Layer 2 switching and Multiprotocol Label Switching (MPLS)

TNV2E224 board supports Inband DCN, LLDP function, and basic QinQ

TNV2E224 board supports Ethernet service OAM, Ethernet port OAM, MPLS-TP OAM, RMON

TNV2E224 board supports Synchronization of Physical-layer clock and IEEE 1588v2

TNV2E224 is a 24-ports 10GE Packet Service Processing Board, the V2E224 board receives and transmits FE/GE/10GE services, processes packet services, and transmits packets to the cross-connect board for centralized cross-connections.

Item	TNV2E224
Basic function	Transmits and receives the combination of 24 x GE/FE/10GE optical services or the combination of 2 x GE/FE electrical services, and processes packet services.
Backplane bandwidth	Supports 100 Gbit/s in the 1:1 cross-connect mode of an M24 subrack. Supports 200 Gbit/s in the 1:3 cross-connect mode of an M24 subrack. Supports 200 Gbit/s in a U64/U32 subrack. NOTE: The hybrid access of client-side services is supported, and the total capacity does not exceed the maximum backplane bandwidth.
Port rate	10GE LAN: Ethernet service at a rate of 10.31 Gbit/s. GE: Ethernet service at a rate of 1.25 Gbit/s. FE: Ethernet service at a rate of 125 Mbit/s.
Working mode of interface	GE optical port: 1000M Full-Duplex, Auto–Negotiation FE optical port: 100M Full-Duplex GE electrical port: 10M Full-Duplex, 100M Full-Duplex, 1000M Full-Duplex, Auto-Negotiation 10GE LAN optical port: 10GE Full-Duplex LAN NOTE: The FE electrical signals are accessed through the GE electrical port in 100M full-duplex mode. The E224 board supports a maximum of two GE/FE electrical ports.
TAG attribute	Supports the following TAG attributes: tag aware, access, and hybrid.
QinQ	Supports basic QinQ.
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port	The MFL value ranges from 960 bytes to 9600 bytes. Supports a jumbo frame containing a maximum of 9600 bytes.
Service type	Native E-Line services Native E-LAN services E-Line services carried by PWs (VPWS services) E-LAN services carried by PWs (VPLS services)
Service bearing medium	PW, QinQ
Native E-Line service type	Point-to-point transparently transmitted E-Line services VLAN-based E-Line services (supporting VLAN tag switching) QinQ-based E-Line services
Native E-LAN service type	E-LAN services based on Tag-Transparent (802.1d bridge) E-LAN services based on C-Aware (802.1q bridge)
PW-carried E-Line service (VPWS) type	Port-based transparently transmitted E-Line services VLAN-based E-Line services (supporting the adding, deleting, and switching of VLAN tags)
PW-carried E-LAN service (VPLS) type	VPLS services based on Tag-Transparent VPLS services based on C-Aware VPLS services based on S-Aware
MS-PW	Supported
Diffserv	Supported, compliant with RFC 2474 and RFC 2475.
Traffic classification	Supported simple traffic classification. Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing	Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping	Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance	WRED, tail dropping
Congestion management	Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS	Supported
LPT	Supported
ERPS	ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG	Intra-board and inter-board LAG, compliant with IEEE 802.1ax.
MC-LAG	Supported, compliant with IEEE 802.1ax.
MC-PW APS	1:1 protection compliant with ITU-T G.8131.
PW APS	1:1 protection compliant with ITU-T G.8131.
PW FPS	1:1 protection compliant with ITU-T G.8131.
Tunnel APS	1:1 protections compliant with ITU-T G.8131.
MRPS	Not supported
Packet service protection against multiple fiber cuts	Not supported
LLDP	Supported
Ethernet service OAM	Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/ITU-T G.8013 and ITU-T Y.1730
Ethernet port OAM	Supported, compliant with IEEE 802.3ah NOTE: Compliant with ITU-T Y.1731(ETH LM/DM), ITU-T G.8013 and ITU-T Y.1730.
MPLS OAM	Not supported
MPLS-TP OAM	Supported, compliant with ITU-T G.8013/Y.1731, ITU-T G.8113.1.
RMON	Supported
Port mirroring	Not supported
Physical clock	Synchronous Ethernet processing supported; synchronous Ethernet transparent transmission not supported
IEEE 1588v2	Supported NOTE: The port equipped with an electrical module does not support the function.
ITU-T G.8275.1	Supported NOTE: The port equipped with an electrical module does not support the function.
Inband DCN	Supported
Loopback	MAC Inloop MAC Outloop
