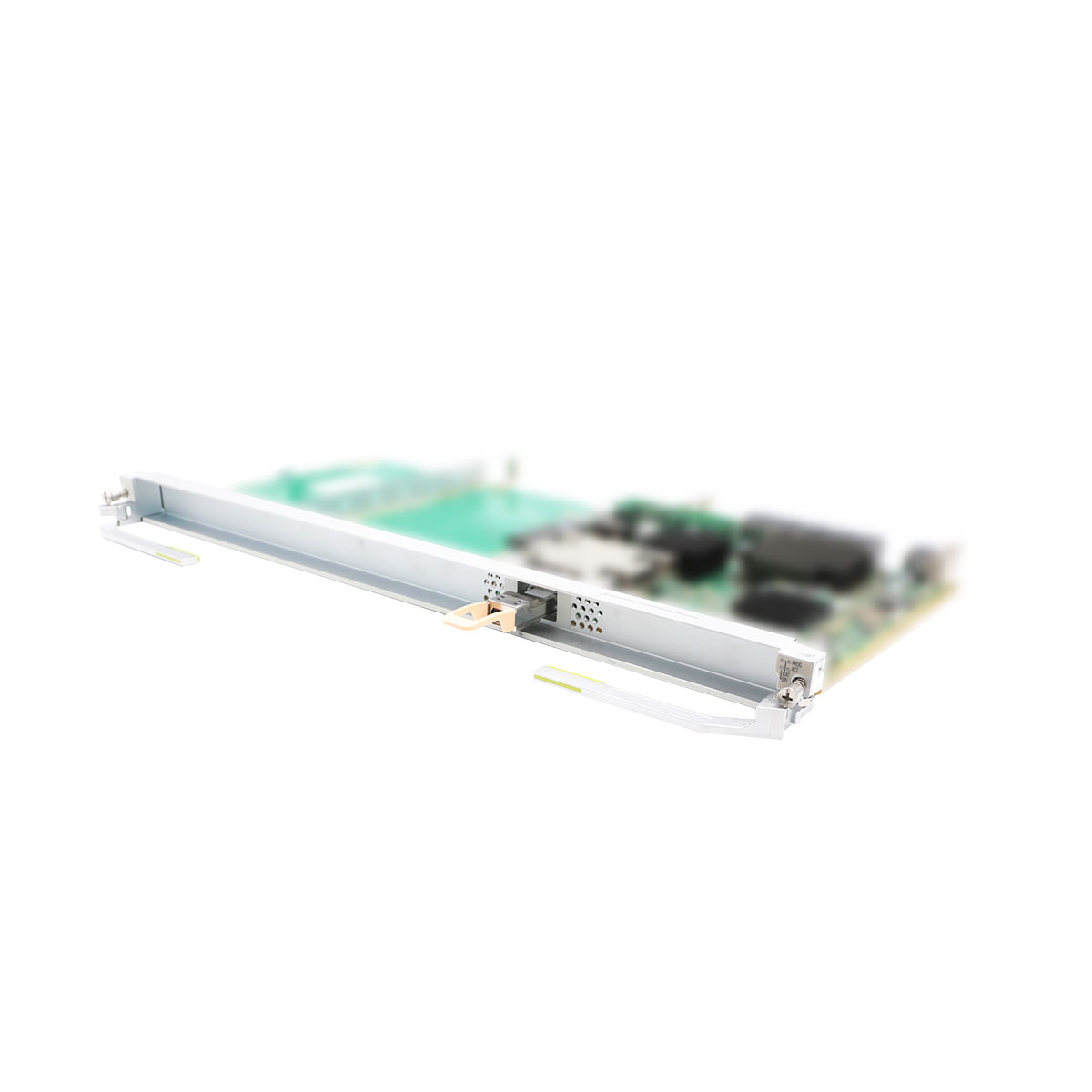

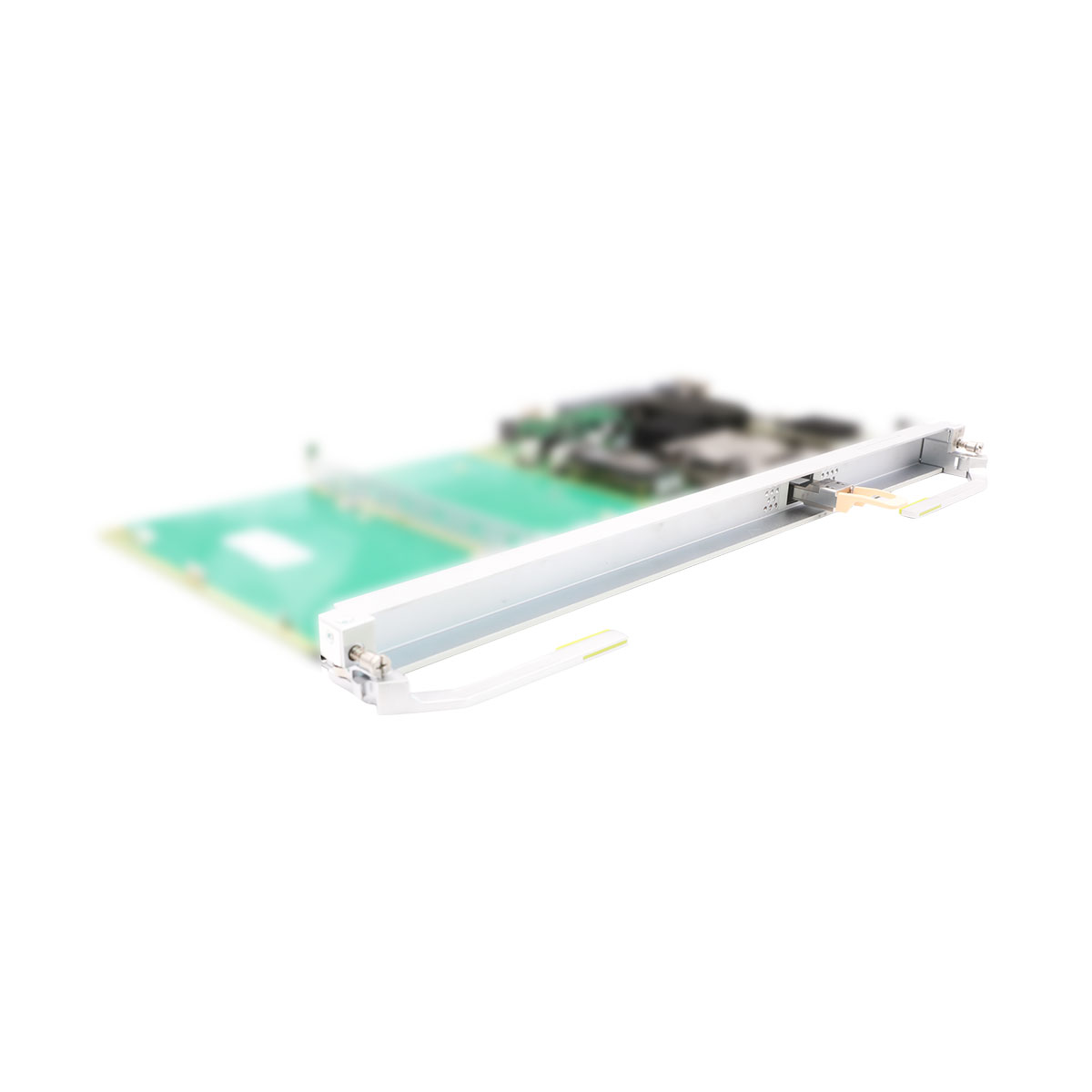

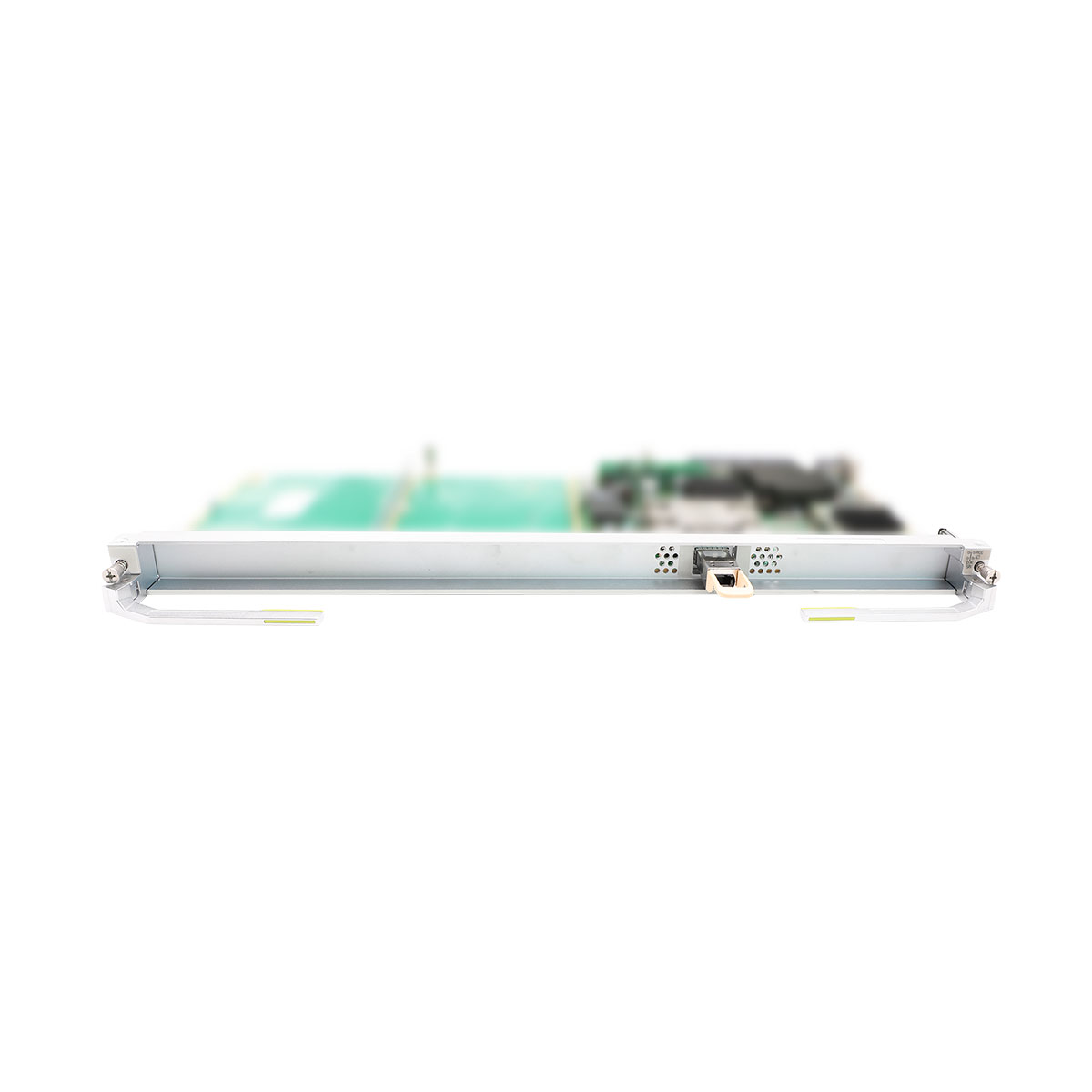

Huawei OptiX OSN 9800 TNV2T601 1*400GE Tributary Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNV2T601 overview

Huawei OptiX OSN 9800 TNV2T601 1*400GE Tributary Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

TNV2T601 also comes with TNV1T601 board version.

Power consumption (W): 128-136

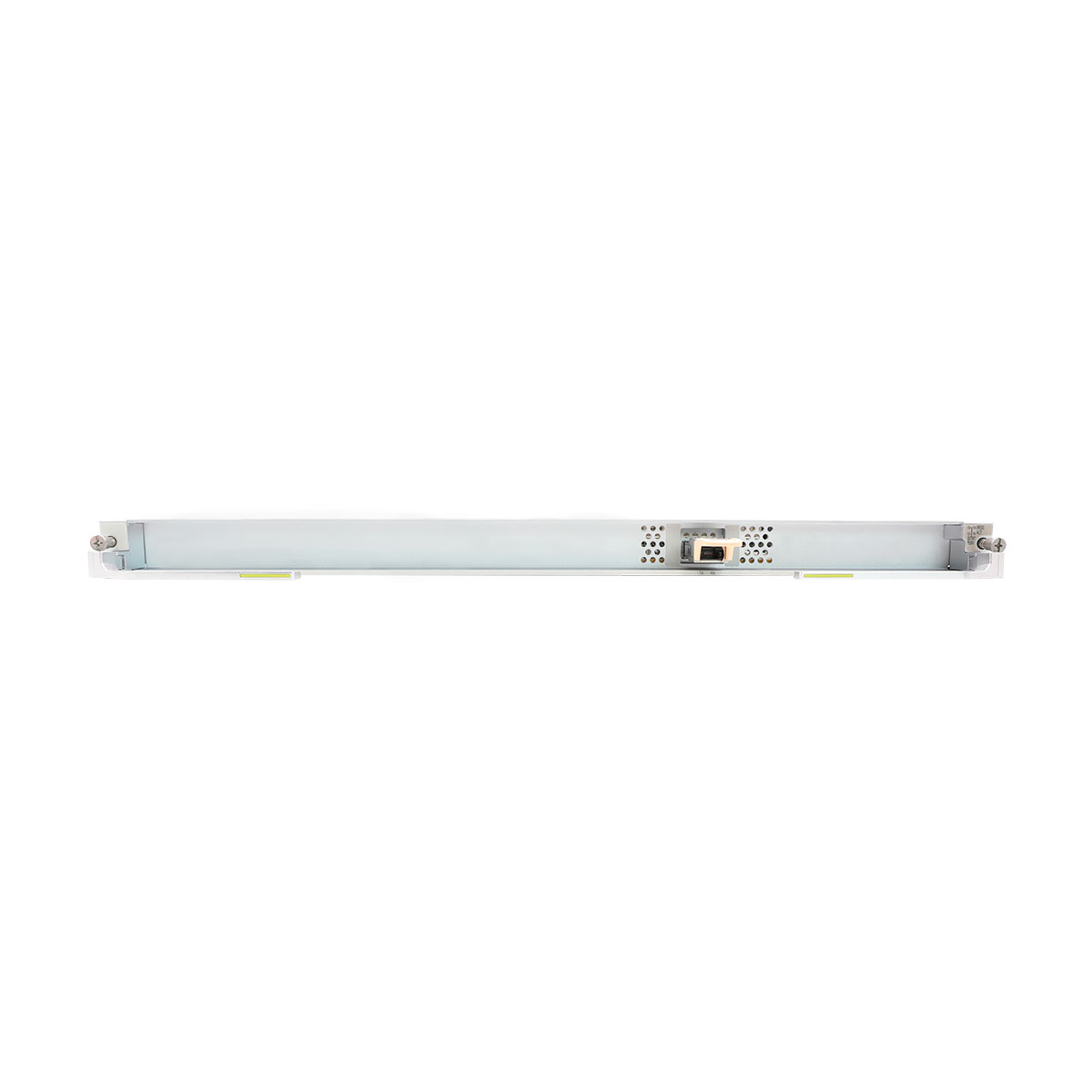

Front panel of the TNV2T601 board

Valid slots for the TNV2T601 board in a U64/U32/U16 subrack

Product	Valid Slots
OptiX OSN 9800 U32 Standard subrack	IU1 to IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1 to IU32
OptiX OSN 9800 U64 Standard subrack	IU1 to IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1 to IU64
OptiX OSN 9800 U16 subrack	IU1 to IU14

Valid slots for the TNV2T601 board in an M24 subrack

Product	Valid Slots
OptiX OSN 9800 M24 subrack	(IU1, IU13), (IU2, IU14), …… , (IU11, IU23), (IU12, IU24)

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
TNV2T601	QSFP-DD,850nm,400GE,-4dBm,3dBm,-7dBm,MPO16,MMF,0.1km	400GE	Pluggable Optical Module	Client-Side
TNV2T601	QSFP-DD LR8,8*50Gb/s PAM4(1310nm Band),425Gb/s,-2.8dbm,5.3dbmm,-9.1dbm,LC straight,SMF,10km	400GE	Pluggable Optical Module	Client-Side

Item	TNV2T601
Basic functions	Supports the following service conversions:
	1 x 400GE (Bit transparent Mapping) <-> 4 x ODUflex
Service encryption	Supports setting the encryption function by port.
Client-side service type	400GE: Ethernet service at a rate of 425 Gbit/s
Cross-connect capabilities	Supports backplane cross-connections of four ODUflex signals from/to the cross-connect board.
OTN functions	Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
	supports PM overhead processing.
ESC function	Not supported.
FEC coding	RSFEC
PRBS test function	Supported the PRBS function in the backplane direction.
LPT function	Not supported.
Alarms and performance events monitoring	Monitors BIP8 bytes to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Provides remote monitoring (RMON) of the Ethernet service.
ALS function	Supported.
Test frame	Supported.
Latency measurement	Supports the latency measurement of the PM section in the backplane direction (upstream direction).
IEEE 1588v2	Not supported.
ITU-T G.8275.1	Not supported.
ITU-T G.8273.2	Not supported.
Physical clock	Supports synchronous Ethernet transparent transmission and does not support synchronous Ethernet processing.
Electrical-layer ASON	Supported.
Protection scheme	Supports ODUk SNCP.
LLDP	Supported.
Loopback	Client side	Inloop	Supported
		Outloop
	Channel loopback	Inloop	Supported
		Outloop

Item	TNV2T601
Basic functions	Supports the following service conversions:
	1 x 400GE (Bit transparent Mapping) <-> 4 x ODUflex
Service encryption	Supports setting the encryption function by port.
Client-side service type	400GE: Ethernet service at a rate of 425 Gbit/s
Cross-connect capabilities	Supports backplane cross-connections of four ODUflex signals from/to the cross-connect board.
OTN functions	Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
	supports PM overhead processing.
ESC function	Not supported.
FEC coding	RSFEC
PRBS test function	Supported the PRBS function in the backplane direction.
LPT function	Not supported.
Alarms and performance events monitoring	Monitors BIP8 bytes to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Provides remote monitoring (RMON) of the Ethernet service.
ALS function	Supported.
Test frame	Supported.
Latency measurement	Supports the latency measurement of the PM section in the backplane direction (upstream direction).
IEEE 1588v2	Not supported.
ITU-T G.8275.1	Not supported.
ITU-T G.8273.2	Not supported.
Physical clock	Supports synchronous Ethernet transparent transmission and does not support synchronous Ethernet processing.
Electrical-layer ASON	Supported.
Protection scheme	Supports ODUk SNCP.
LLDP	Supported.
Loopback	Client side	Inloop	Supported
		Outloop
	Channel loopback	Inloop	Supported
		Outloop

Brand	Huawei
Lead Time	In Stock
Ship From	Shenzhen Warehouse
