Huawei OptiX OSN 9800 TNV1T502 2*200 Gbit/s Tributary Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNV1T502 overview

TNV1T502 2*200 Gbit/s Tributary Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/U16/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

Power Consumption (W): 180-191

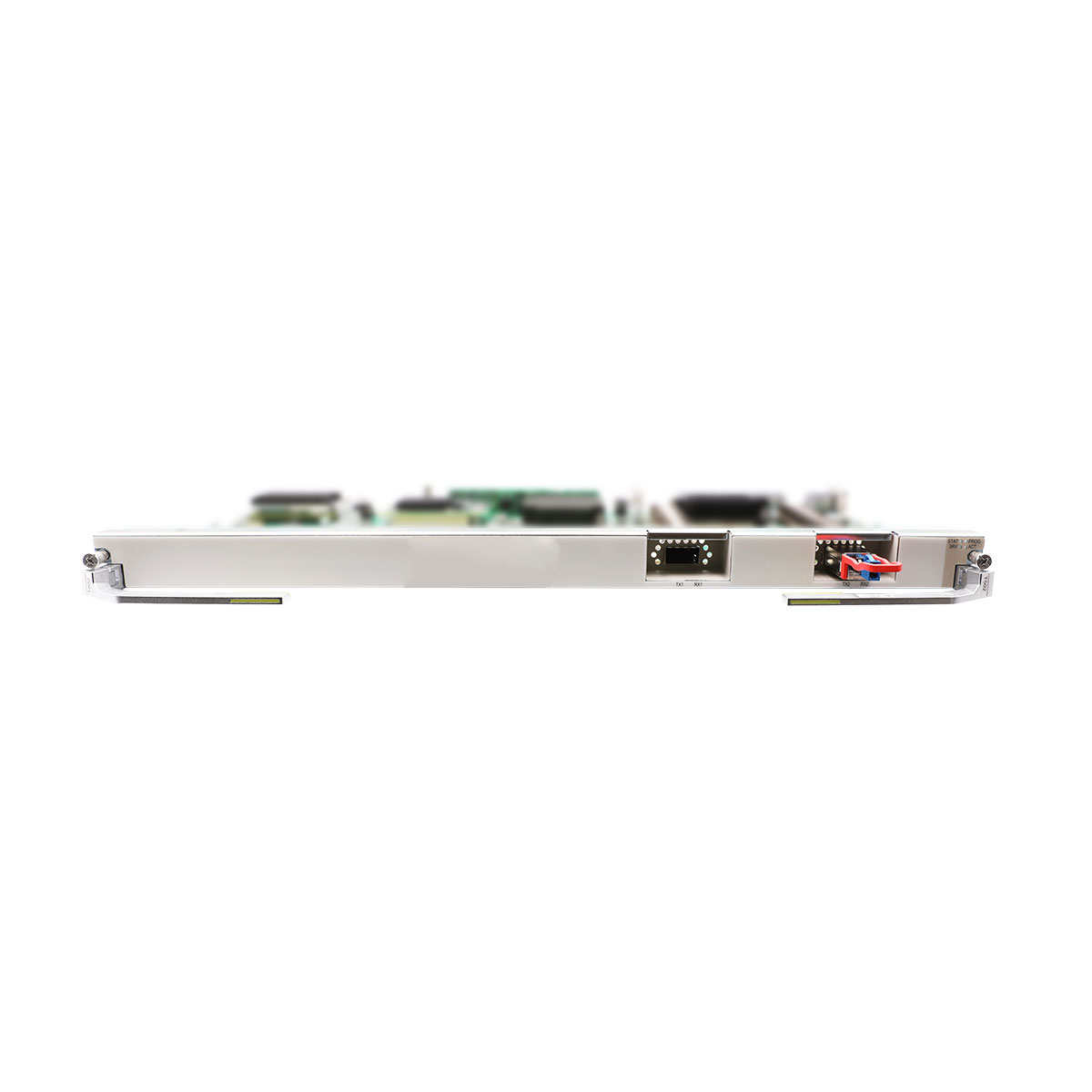

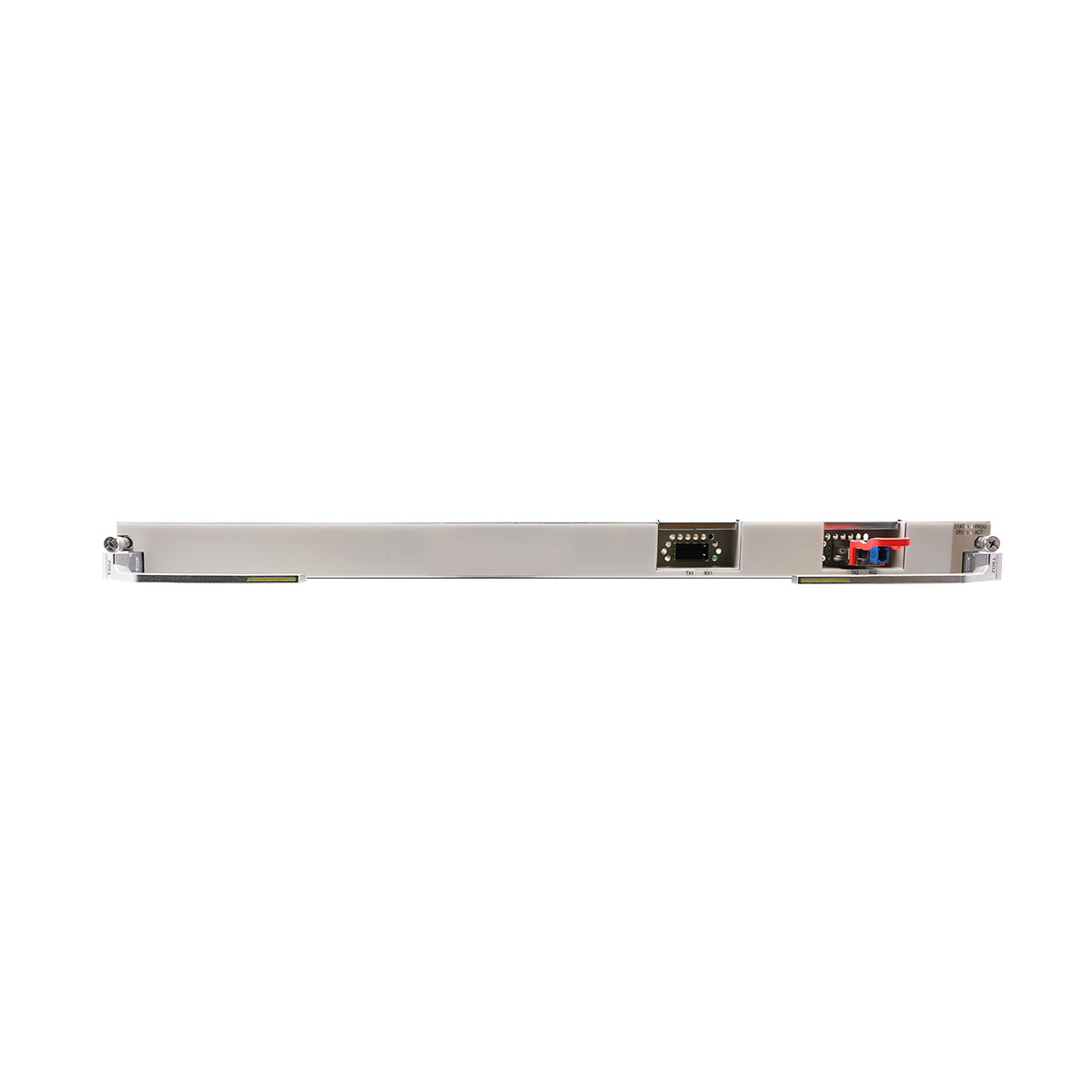

Front panel of the TNV1T502 board
Front panel of the TNV1T502 board
Valid slots for the TNV1T502 board in a U64/U32/U16 subrack
Product Valid Slots
OptiX OSN 9800 U32 Standard subrack IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack IU1-IU32
OptiX OSN 9800 U64 Standard subrack IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack IU1-IU64
OptiX OSN 9800 U16 subrack IU1-IU14



Valid slots for the TNV1T502 board in an M24 subrack
Product Valid Slots
OptiX OSN 9800 M24 subrack (IU1, IU13), (IU2, IU14), …… , (IU11, IU23), (IU12, IU24)

Specifications for Optical Modules
Board Optical Modules Service type Optical Module Type Position
TNV1T502 QSFP-DD,4*50Gb/s PAM4(1310nm band),200Gb/s,-1.7dBm,-7.7dBm,LC,SMF,10km 200GE, FlexE(200G) Pluggable Optical Module Client-Side
TNV1T502 QSFP28-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km 100GE, OTU4, FlexE(100G) Pluggable Optical Module Client-Side/Line-Side
TNV1T502 QSFP28-100G(4x25G)-850nm(SR4)-MPO-MMF-0.1km 100GE, FlexE(100G) Pluggable Optical Module Client-Side
TNV1T502 QSFP28-103.1G/111.8G(4x25G/4x28G,Dualrate)-1310nm(ER4 Lite)-SMF-30km 100GE, OTU4, FlexE(100G) Pluggable Optical Module Client-Side/Line-Side
TNV1T502 QSFP28-100G(4x25G)-1271 to 1331nm(CLR4)-SMF-2km 100GE, FlexE(100G) Pluggable Optical Module Client-Side
TNV1T502 QSFP28-100G(4x25G)-1310nm(ER4)-SMF-40km 100GE, FlexE(100G) Pluggable Optical Module Client-Side
TNV1T502 QSFP+ -40G(4x10G)-1310nm(PSM4)-MPO-SMF-10km 40GE Pluggable Optical Module Client-Side
TNV1T502 QSFP+ -40G(4x10G)-850nm(SR4)-MPO-MMF-0.3km 40GE Pluggable Optical Module Client-Side
TNV1T502 QSFP+ -40G(4x10G)-1271nm to 1331nm(CWDM,LR4)-SMF-10km 40GE Pluggable Optical Module Client-Side
TNV1T502 QSFP28,50G,1311nm,two-fiber bidirectional,10km,PAM4 50GE Pluggable Optical Module Client-Side
Functions and features of the TNV1T502 board
Item TNV1T502
Basic functions Supports the following service conversions:
2 x 100GE (Bit transparent Mapping/MAC transparent Mapping) <->2 x ODU4
2 x 100GE (MAC transparent Mapping) <->2 x ODUflex
2 x OTU4<->2 x ODU4
2 x 50GE (Bit transparent Mapping/MAC transparent Mapping) <->2 x ODUflex
2 x 40GE (TTT+GMP) <->2 x ODU3
2 x 200GE (Bit transparent Mapping/MAC transparent Mapping)<->4 x ODUflex
2 x FlexE Unaware (50G) (BMP) <->2 x ODUFlex
2 x FlexE Unaware (100G) (GMP) <->2 x ODU4
2 x FlexE Aware (200G) (BGMP) <->4 x ODUFlex
FlexE group mode Unaware: FlexE 50G /FlexE 100G
Aware: FlexE 200G
Service encryption Supports setting the encryption function by port.
Client-side service type 200GE: Ethernet service at a rate of 206.25 Gbit/s
100GE: Ethernet service at a rate of 103.125 Gbit/s
OTU4: OTN service at a rate of 111.81 Gbit/s
50GE: Ethernet service at a rate of 51.5625 Gbit/s
40GE: Ethernet service at a rate of 41.25 Gbit/s
FlexE: flexible Ethernet service
FlexE Unaware (50G) service at a rate of 51.5625 Gbit/s
FlexE Unaware (100G) service at a rate of 103.125 Gbit/s
FlexE Aware (200G) service at a rate of 206.25 Gbit/s
Cross-connect capabilities Supports backplane cross-connections of two ODU3/two ODU4/four ODUflex signals from/to the cross-connect board.
OTN functions Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
ODUflex layer: supports PM overhead processing.
ODU3 layer: supports PM overhead processing.
ODU4 layer:
When the client-side service type is 100GE, supports PM overhead processing.
When the client-side service type is OTU4, supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OTU4 layer: supports SM overhead processing.
ESC function Supported when the client-side service type is OTU4.
PRBS test function Supported
LPT function Not supported
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU4.
When the client-side service type is FlexE, 100GE, 200GE or 50GE, only RS_FEC coding is supported.
Alarms and performance events monitoring Monitors BIP8 bytes (Bursty mode) to help locate line failures.
Monitors OTN alarms and performance events.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Provides remote monitoring (RMON) of the Ethernet service.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
LLDP function When the client-side service type is ethernet service, the board supports the LLDP function.
Test frame When the client-side service type is 200GE/100GE/50GE/40GE, the board supports test frame.
Latency measurement When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2 The board supports IEEE 1588v2 only when 100GE/50GE/200GE services are received on the client side, and the port service mapping mode is MAC transparent Mapping.
ITU-T G.8275.1 The board supports ITU-T G.8275.1 only when 100GE/50GE/200GE services are received on the client side, and the port service mapping mode is MAC transparent Mapping.
ITU-T G.8273.2 The board supports ITU-T G.8273.2 only when it is installed in an OptiX OSN 9800 M24, subrack, 100GE/50GE/200GE services are received on the client side, and the port service mapping mode is MAC transparent Mapping.
Physical clock When the client-side service type is 100GE/50GE/200GE the board supports physical clock.
Bit transparent Mapping: Supports synchronous Ethernet transparent transmission
Mac transparent Mapping: Supports synchronous Ethernet processing
When 40GE (TTT+GMP) services are received on the client side, synchronous Ethernet transparent transmission is supported.
Electrical-layer ASON Supported
Protection scheme Supports ODUk SNCP (k= 3, 4, flex).
Supports client 1+1 protection.
Supports tributary SNCP protection.
Client side Supports FlexE group inloop.
Loopback Supports FlexE group outloop.
Supports Inloop
Supports Outloop
Supports ODUk Inloop
Supports ODUk Outloop
OTN/Liquid OTN functions and features of the TNV1T502 board (line mode)
Item TNV1T502
Basic function 160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4
(1 to 2k) x OSUflex <->160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4
Cross-connect capabilities Implements service grooming when working with cross-connect boards.
2000 x OSUflex/160 x ODU0/80 x ODU1/20 x ODU2/20 x ODU2e/4 x ODU3/2 x ODU4/160 x ODUflex
OTN functions Supports OTU4 interfaces on the WDM side.
Uses the frame formats and overhead processing methods defined in ITU-T G.709.
ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OSUflex layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OTU4 layer: Supports SM overhead processing.
FEC coding Supports FEC encoding.
PRBS test function Supports the PRBS function on the WDM side.
Alarm and performance event monitoring Monitors BIP8 bytes (Bursty mode) to help locate line failures.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Monitors OTN alarms and performance events.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction).
When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels.
The board supports latency measurement at the OSUflex layer.
Test frame Not supported
Physical clock Supported
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Electrical-layer ASON Supported
Optical-layer ASON Not supported
Protection schemes Supports ODUk SNCP.
Supports OSUflex SNCP.
Supports tributary SNCP protection.
Loopback Supports WDM-Side Loopback
Supports OSUflex Channel Loopback
Supports Channel Loopback: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
ESC Supported
SDH functions and features of the TNV1T502 board
Item TNV1T502
Basic function A maximum of 2 x 40 Gbit/s SDH services are supported.
8 x STM-64<->8 x ODU2<->2x ODU4<->2 x OTU4
32 x STM-16<->32 x ODU1<->2 x ODU4<->2 x OTU4
Overhead processing Processes the section overheads of STM-16/STM-64 signals.
Supports the transparent transmission and termination of path overheads.
Supports the setting and query of the J0, J1, and C2 bytes.
Supports ECC communication.
Supports transparent transmission of DCC channels.
Protection schemes Supports the SNCP.
Supports 1+1 single-ended linear MSP.
Supports ring MSP.
Alarm and performance event monitoring Monitors B1 bytes to help locate faults.
Monitors B2 bytes to help locate faults.
Service processing Supports the VC-12/VC-3, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services.
Loopback Supports VC loopbacks.
Supports Virtual Port loopbacks.
SDH clock Supported
Outband DCN Supported
SDH ASON Not supported

Additional information

Brand

Huawei
Lead Time

In Stock
Ship From

Shenzhen Warehouse
Functions and features of the TNV1T502 board
Item TNV1T502
Basic functions Supports the following service conversions:
2 x 100GE (Bit transparent Mapping/MAC transparent Mapping) <->2 x ODU4
2 x 100GE (MAC transparent Mapping) <->2 x ODUflex
2 x OTU4<->2 x ODU4
2 x 50GE (Bit transparent Mapping/MAC transparent Mapping) <->2 x ODUflex
2 x 40GE (TTT+GMP) <->2 x ODU3
2 x 200GE (Bit transparent Mapping/MAC transparent Mapping)<->4 x ODUflex
2 x FlexE Unaware (50G) (BMP) <->2 x ODUFlex
2 x FlexE Unaware (100G) (GMP) <->2 x ODU4
2 x FlexE Aware (200G) (BGMP) <->4 x ODUFlex
FlexE group mode Unaware: FlexE 50G /FlexE 100G
Aware: FlexE 200G
Service encryption Supports setting the encryption function by port.
Client-side service type 200GE: Ethernet service at a rate of 206.25 Gbit/s
100GE: Ethernet service at a rate of 103.125 Gbit/s
OTU4: OTN service at a rate of 111.81 Gbit/s
50GE: Ethernet service at a rate of 51.5625 Gbit/s
40GE: Ethernet service at a rate of 41.25 Gbit/s
FlexE: flexible Ethernet service
FlexE Unaware (50G) service at a rate of 51.5625 Gbit/s
FlexE Unaware (100G) service at a rate of 103.125 Gbit/s
FlexE Aware (200G) service at a rate of 206.25 Gbit/s
Cross-connect capabilities Supports backplane cross-connections of two ODU3/two ODU4/four ODUflex signals from/to the cross-connect board.
OTN functions Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
ODUflex layer: supports PM overhead processing.
ODU3 layer: supports PM overhead processing.
ODU4 layer:
When the client-side service type is 100GE, supports PM overhead processing.
When the client-side service type is OTU4, supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OTU4 layer: supports SM overhead processing.
ESC function Supported when the client-side service type is OTU4.
PRBS test function Supported
LPT function Not supported
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU4.
When the client-side service type is FlexE, 100GE, 200GE or 50GE, only RS_FEC coding is supported.
Alarms and performance events monitoring Monitors BIP8 bytes (Bursty mode) to help locate line failures.
Monitors OTN alarms and performance events.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Provides remote monitoring (RMON) of the Ethernet service.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
LLDP function When the client-side service type is ethernet service, the board supports the LLDP function.
Test frame When the client-side service type is 200GE/100GE/50GE/40GE, the board supports test frame.
Latency measurement When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2 The board supports IEEE 1588v2 only when 100GE/50GE/200GE services are received on the client side, and the port service mapping mode is MAC transparent Mapping.
ITU-T G.8275.1 The board supports ITU-T G.8275.1 only when 100GE/50GE/200GE services are received on the client side, and the port service mapping mode is MAC transparent Mapping.
ITU-T G.8273.2 The board supports ITU-T G.8273.2 only when it is installed in an OptiX OSN 9800 M24, subrack, 100GE/50GE/200GE services are received on the client side, and the port service mapping mode is MAC transparent Mapping.
Physical clock When the client-side service type is 100GE/50GE/200GE the board supports physical clock.
Bit transparent Mapping: Supports synchronous Ethernet transparent transmission
Mac transparent Mapping: Supports synchronous Ethernet processing
When 40GE (TTT+GMP) services are received on the client side, synchronous Ethernet transparent transmission is supported.
Electrical-layer ASON Supported
Protection scheme Supports ODUk SNCP (k= 3, 4, flex).
Supports client 1+1 protection.
Supports tributary SNCP protection.
Client side Supports FlexE group inloop.
Loopback Supports FlexE group outloop.
Supports Inloop
Supports Outloop
Supports ODUk Inloop
Supports ODUk Outloop
OTN/Liquid OTN functions and features of the TNV1T502 board (line mode)
Item TNV1T502
Basic function 160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4
(1 to 2k) x OSUflex <->160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4
Cross-connect capabilities Implements service grooming when working with cross-connect boards.
2000 x OSUflex/160 x ODU0/80 x ODU1/20 x ODU2/20 x ODU2e/4 x ODU3/2 x ODU4/160 x ODUflex
OTN functions Supports OTU4 interfaces on the WDM side.
Uses the frame formats and overhead processing methods defined in ITU-T G.709.
ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OSUflex layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OTU4 layer: Supports SM overhead processing.
FEC coding Supports FEC encoding.
PRBS test function Supports the PRBS function on the WDM side.
Alarm and performance event monitoring Monitors BIP8 bytes (Bursty mode) to help locate line failures.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Monitors OTN alarms and performance events.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction).
When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels.
The board supports latency measurement at the OSUflex layer.
Test frame Not supported
Physical clock Supported
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Electrical-layer ASON Supported
Optical-layer ASON Not supported
Protection schemes Supports ODUk SNCP.
Supports OSUflex SNCP.
Supports tributary SNCP protection.
Loopback Supports WDM-Side Loopback
Supports OSUflex Channel Loopback
Supports Channel Loopback: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
ESC Supported

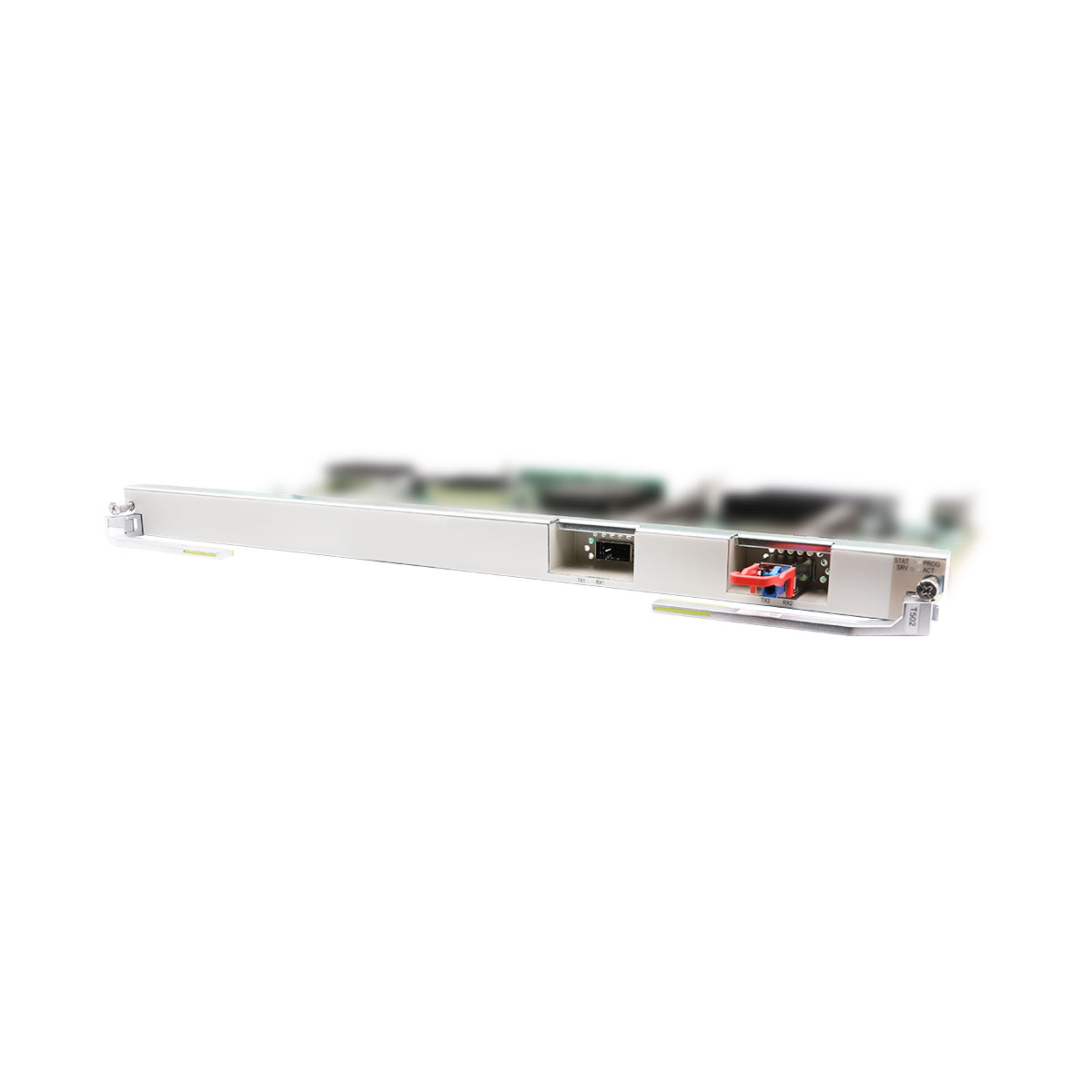

SDH functions and features of the TNV1T502 board
Item TNV1T502
Basic function A maximum of 2 x 40 Gbit/s SDH services are supported.
8 x STM-64<->8 x ODU2<->2x ODU4<->2 x OTU4
32 x STM-16<->32 x ODU1<->2 x ODU4<->2 x OTU4
Overhead processing Processes the section overheads of STM-16/STM-64 signals.
Supports the transparent transmission and termination of path overheads.
Supports the setting and query of the J0, J1, and C2 bytes.
Supports ECC communication.
Supports transparent transmission of DCC channels.
Protection schemes Supports the SNCP.
Supports 1+1 single-ended linear MSP.
Supports ring MSP.
Alarm and performance event monitoring Monitors B1 bytes to help locate faults.
Monitors B2 bytes to help locate faults.
Service processing Supports the VC-12/VC-3, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services.
Loopback Supports VC loopbacks.
Supports Virtual Port loopbacks.
SDH clock Supported
Outband DCN Supported
SDH ASON Not supported

Reviews

There are no reviews yet.

Be the first to review “TNV1T502”

Your email address will not be published. Required fields are marked *

Related products

TNV3T210-2
Quick view
Categories: ,

TNV3T210

R.F.Q
SKU2012843
TNS2N501-1
Quick view
Categories:

TNS2N501

R.F.Q
(1)
SKU2012868
TNV5U220-1
Quick view
Categories: ,

TNV5U220

R.F.Q
SKU2012910
TNV8T404-1TNV8T404-4
Quick view
Categories: ,

TNV8T404

R.F.Q
SKU2012908
TNS7N402-1TNS7N402-2
Quick view
Categories:

TNS7N402

R.F.Q
SKU2012864
TNS7N404C06-1
Quick view
Categories:

TNS7N404C06

R.F.Q
(1)
SKU2012153
Main Menu
Back to Top

Search For Products

Popular
Product has been added to your cart
