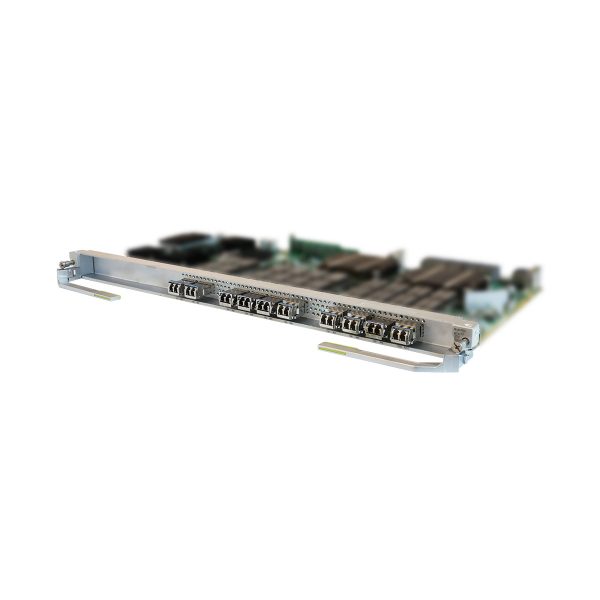

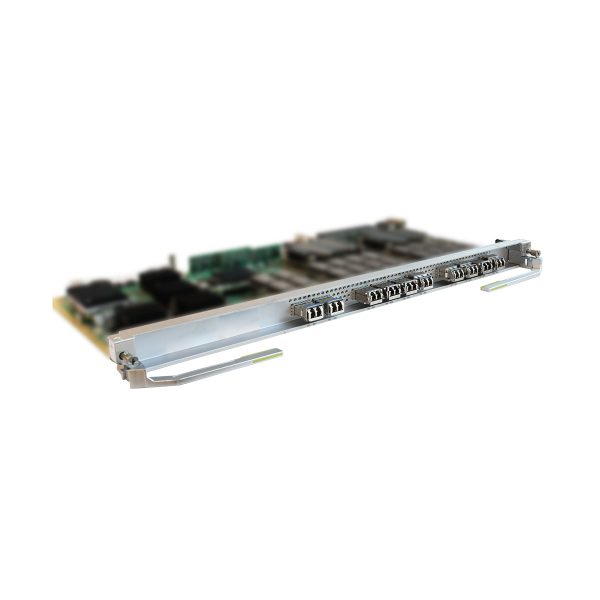

Huawei OptiX OSN 9800 TNV1T410 10*100G Tributary Service Processing Board(QSFP28)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNV1T410 overview

Huawei OptiX OSN 9800 TNV1T410 10*100G Tributary Service Processing Board(QSFP28) applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

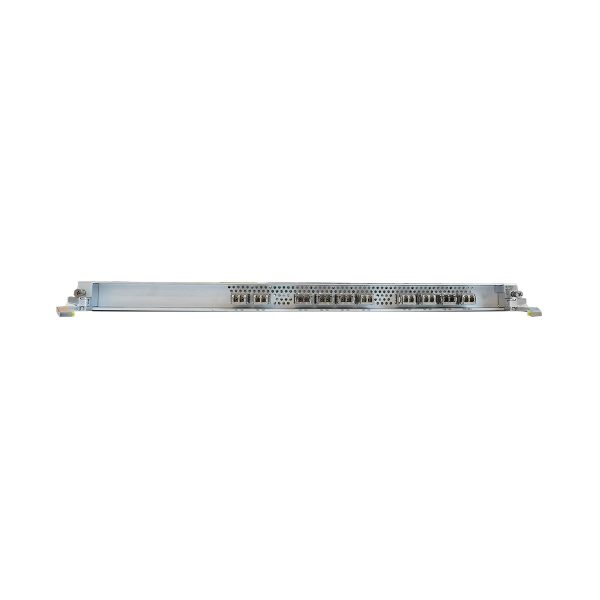

Front panel of the TNV1T410 board
Front panel of the TNV1T410 board
Valid slots for the TNV1T410 board in a U64/U32/U16 subrack
Product Valid Slots
OptiX OSN 9800 U32 Enhanced subrack IU1-IU32
OptiX OSN 9800 U64 Enhanced subrack IU1-IU64



Valid slots for the TNV1T410 board in an M24 subrack
Product Valid Slots
OptiX OSN 9800 M24 subrack (IU1, IU13), (IU2, IU14), …… , (IU11, IU23), (IU12, IU24)

Specifications for Optical Modules
Board Optical Modules Service type Optical Module Type Position
TNV1T410 QSFP28-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km 100GE, OTU4 Pluggable Optical Module Client-Side
TNV1T410 QSFP28-100G(4x25G)-850nm(SR4)-MPO-MMF-0.1km 100GE Pluggable Optical Module Client-Side
TNV1T410 QSFP28-100G(4x25G)-1271 to 1331nm(CLR4)-SMF-2km 100GE Pluggable Optical Module Client-Side
TNV1T410 QSFP28-100G(4x25G)-1310nm(ER4)-SMF-40km 100GE Pluggable Optical Module Client-Side
TNV1T410 QSFP+ -40G(4x10G)-850nm(SR4)-MPO-MMF-0.3km 40GE Pluggable Optical Module Client-Side
TNV1T410 QSFP+ -40G(4x10G)-1271nm to 1331nm(CWDM,LR4)-SMF-10km 40GE Pluggable Optical Module Client-Side
Functions and features of the TNV1T410 (when ports are used as tributary ports)
Item TNV1T410
Basic functions Each port supports the following service conversions:
1 x 100GE (Bit transparent Mapping/MAC transparent Mapping) <-> 1 x ODU4
1 x 100GE (MAC transparent Mapping) <-> 1 x ODUflex
1 x 40GE (TTT+GMP)<-> 1 x ODU3
1 x OTU4 <-> 1 x ODU4
Power Consumption (W) 182-193
Bidirectional service encryption When the client-side service type is 40GE/100GE, the board supports bidirectional service encryption.
Client-side service type 100GE: Ethernet service at a rate of 103.125 Gbit/s
40GE: Ethernet service at a rate of 40 Gbit/s
OTU4: OTN service at a rate of 111.81 Gbit/s
Cross-connect capabilities Supports backplane cross-connections of ten ODU4/ODU3/ODUflex signal from/to the cross-connect board.
OTN functions Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
ODUflex layer: supports PM overhead processing.
ODU3 layer: supports PM overhead processing.
ODU4 layer:
When the client-side service type is 100GE, supports PM overhead processing.
When the client-side service type is OTU4, supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OTU4 layer: supports SM overhead processing.
ESC function Supported when the client-side service type is OTU4.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) when the client-side service type is OTU4.
When the client-side service type is 100GE, only RS_FEC coding is supported.
PRBS test function Supported.
LPT function Not supported.
LLDP function When the client-side service type is 40GE/100GE, the board supports LLDP.
Alarms and performance events monitoring Monitors BIP8 bytes to help locate line failures.
Monitors OTN alarms and performance events.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Provides remote monitoring (RMON) of the Ethernet service.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame When the client-side service type is 40GE/100GE, the board supports test frame.
Latency measurement When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the tributary board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2 When the client-side service type is 100GE(MAC transparent Mapping), the board supports IEEE 1588v2.
ITU-T G.8275.1 When the client-side service type is 100GE(MAC transparent Mapping), the board supports ITU-T G.8275.1.
ITU-T G.8273.2 Supports G.8273.2 only in the M24 subrack.
Physical clock When the client-side service type is 40GE/100GE, the board supports physical clock.
Bit transparent Mapping: Supports synchronous Ethernet transparent transmission
Mac transparent Mapping: Supports synchronous Ethernet processing
Electrical-layer ASON Supported.
Protection scheme Supports ODUk SNCP (k=4, 3, flex).
Supports client 1+1 protection.
Supports tributary SNCP protection.
Loopback Client side Inloop Supported
Outloop
ODUk Inloop Supported
ODUk Outloop

Additional information

Brand

Huawei
Lead Time

In Stock
Ship From

Shenzhen Warehouse
Functions and features of the TNV1T410 (when ports are used as tributary ports)
Item TNV1T410
Basic functions Each port supports the following service conversions:
1 x 100GE (Bit transparent Mapping/MAC transparent Mapping) <-> 1 x ODU4
1 x 100GE (MAC transparent Mapping) <-> 1 x ODUflex
1 x 40GE (TTT+GMP)<-> 1 x ODU3
1 x OTU4 <-> 1 x ODU4
Power Consumption (W) 182-193
Bidirectional service encryption When the client-side service type is 40GE/100GE, the board supports bidirectional service encryption.
Client-side service type 100GE: Ethernet service at a rate of 103.125 Gbit/s
40GE: Ethernet service at a rate of 40 Gbit/s
OTU4: OTN service at a rate of 111.81 Gbit/s
Cross-connect capabilities Supports backplane cross-connections of ten ODU4/ODU3/ODUflex signal from/to the cross-connect board.
OTN functions Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
ODUflex layer: supports PM overhead processing.
ODU3 layer: supports PM overhead processing.
ODU4 layer:
When the client-side service type is 100GE, supports PM overhead processing.
When the client-side service type is OTU4, supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OTU4 layer: supports SM overhead processing.
ESC function Supported when the client-side service type is OTU4.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) when the client-side service type is OTU4.
When the client-side service type is 100GE, only RS_FEC coding is supported.
PRBS test function Supported.
LPT function Not supported.
LLDP function When the client-side service type is 40GE/100GE, the board supports LLDP.
Alarms and performance events monitoring Monitors BIP8 bytes to help locate line failures.
Monitors OTN alarms and performance events.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Provides remote monitoring (RMON) of the Ethernet service.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame When the client-side service type is 40GE/100GE, the board supports test frame.
Latency measurement When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the tributary board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2 When the client-side service type is 100GE(MAC transparent Mapping), the board supports IEEE 1588v2.
ITU-T G.8275.1 When the client-side service type is 100GE(MAC transparent Mapping), the board supports ITU-T G.8275.1.
ITU-T G.8273.2 Supports G.8273.2 only in the M24 subrack.
Physical clock When the client-side service type is 40GE/100GE, the board supports physical clock.
Bit transparent Mapping: Supports synchronous Ethernet transparent transmission
Mac transparent Mapping: Supports synchronous Ethernet processing
Electrical-layer ASON Supported.
Protection scheme Supports ODUk SNCP (k=4, 3, flex).
Supports client 1+1 protection.
Supports tributary SNCP protection.
Loopback Client side Inloop Supported
Outloop
ODUk Inloop Supported
ODUk Outloop
