TNV1T402E overview

TNV1T402E 2 x 100GE Ethernet aggregation board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNV1T402E board has two variants: TNV1T402EQ01 and TNV1T402EQ06. The two variants are interchangeable.

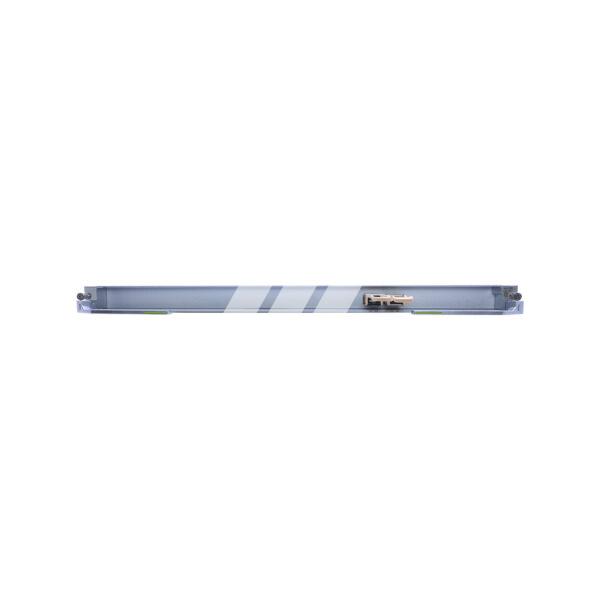

Front panel of the TNV1T402E board

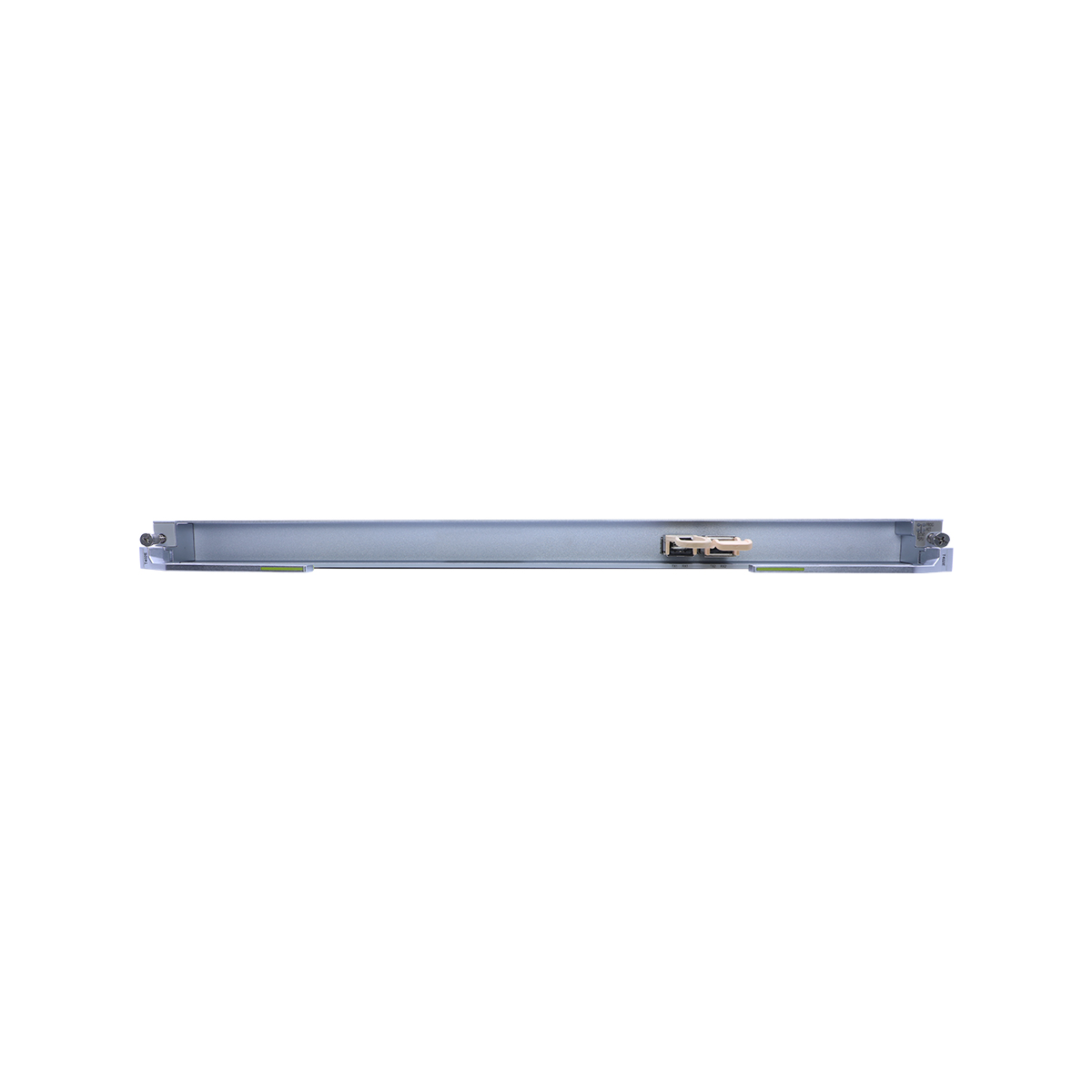

Front panel of the TNV1T402E board

Valid slots for the TNV1T402E board in a U64/U32/M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M24	2	(IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24)	IU1 to IU12
OptiX OSN 9800 U32 Enhanced	1	IU1 to IU32	IU1 to IU32
OptiX OSN 9800 U32 Standard	1	IU1 to IU32	IU1 to IU32
OptiX OSN 9800 U64 Enhanced	1	IU1 to IU64	IU1 to IU64
OptiX OSN 9800 U64 Standard	1	IU1 to IU64	IU1 to IU64

Item	TNV1T402E
Basic function	The ports used as Data Port, supports the following service conversions: 100GE<->Packet<->ODU0/ODU1/ODU2(e)/ODU3/ODU4/ODUflex/OSUflex NOTE: The Packet services on the virtual ports (VP) port of the L2 module are mapped to the ODU1/ODU2/ODU2e/ODU3/ODU4/ODUflex in GFP-F mode. The Packet services on the VP ports of the L2 module can be mapped to ODU0 in GFP-F/GFP-T mode. When the mapping mode is GFP-T, a maximum of 80 ODU0 channels are supported.
Service processing capability	The maximum service processing capability of the board is 200 Gbit/s. If the total bandwidth of received services is greater than 200 Gbit/s, packets will be lost.
Port rate	100GE: Ethernet service at a rate of 103.125 Gbit/s.
Port working mode	100GE optical port: 100G Full-Duplex
OTN overhead	OSUflex/ODUflex/ODU0/ODU1/ODU2/ODU3/ODU4 layer: supports PM overhead processing.
OSU	Supported NOTE: The OSU function requires a license.
QinQ	Supports basic QinQ.
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port	The MFL value ranges from 960 bytes to 9600 bytes. Supports a jumbo frame containing a maximum of 9600 bytes.
Service bearing medium	Port, QinQ
Native E-Line service type	Point-to-point transparently transmitted E-Line services VLAN-based E-Line services (supporting VLAN tag switching) QinQ-based E-Line services NOTE: Inter-board E-Line services are not supported.
Native E-LAN service type	E-LAN services based on Tag-Transparent (802.1d bridge) E-LAN services based on C-Aware (802.1q bridge) E-LAN services based on S-Aware
Diffserv	Supported, compliant with RFC 2474 and RFC 2475.
Traffic classification	Supported simple traffic classification. Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing	Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping	Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance	WRED, tail dropping
Congestion management	Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS	Supported NOTE: Support only V-UNI Egress and QinQ policies.
LPT	Supports packet LPT
Client 1+1 protection	Not Supported
ODUk SNCP	Supported
OSUflex SNCP	Supported NOTE: The board supports a maximum of 400 OSUflex SNCP protection groups.
Tributary SNCP	Supported NOTE: Supports tributary SNCP SNC/I protection. The inter-board LAG must work with the tributary SNCP SNC/I protection. Tributary SNCP SNC/I protection switching can be triggered only when the board is not powered on or offline after it is removed or reset (cold).
Electrical-layer ASON	Supported
ERPS	ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG	Supports intra-board and inter-board LAG of Ethernet ports, and intra-board LAG of VP ports, compliant with IEEE 802.1ax.
MC-LAG	Supported NOTE: MC-LAG can only work with MC-SNCP for cross-node protection. MC-SNCP is implemented by boards that support the OTN line mode and EoO boards. For details, see the MC-LAG+MC-SNCP feature.
IGMP Snooping	Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
L1 service encryption	Not supported
LLDP	When the interface type is 100GE: Supported When the interface type is Vp: Not Supported
Ethernet service OAM	Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/ITU-T G.8013 and ITU-T Y.1730
Ethernet port OAM	Supported
RMON	Supported
Physical clock	Synchronous Ethernet processing supported. Synchronous Ethernet transparent transmission not supported.
IEEE 1588v2	Supported NOTE: The port equipped with an electrical module does not support the function. The function is not supported when the interface type is Vp.
ITU-T G.8275.1	Supported NOTE: The port equipped with an electrical module does not support the function. The function is not supported when the interface type is Vp.
ITU-T G.8273.2	Supported
High-precision clock synchronization	Supported NOTE: This function is not supported when the board uses the QSFP28,1310,100GE,-3.1dBm,4dBm,-4.5dBm,LC,SMF,2km,PAM4 module. The high-precision clock synchronization function can be implemented only after the corresponding license is obtained. The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function.For details, see Clock Synchronization Feature Guide. The port equipped with an electrical module does not support the function. The function is not supported when the interface type is Vp.
PRBS	Supported the PRBS function in the backplane direction.
Latency measurement	Supported NOTE: In the OSU application scenario: Unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported. The board supports a maximum of 15 latency measurement channels at the same time.
Inband DCN	Supported
Channel loopback	The OSUflex channel loopback is supported. NOTE: The board supports a maximum of eight OSUflex channel loopbacks.
Port loopback	Supports ODUk inloops and ODUk outloops on the client side. Supports OSUflex inloops and OSUflex outloops on the client side. NOTE: The board supports ODUk inloop and ODUk outloop only when bidirectional cross-connections are configured. When the service type is set to None, ODUk Outloop is not supported. The board supports a maximum of eight OSUflex loopback.
MAC layer loopback	Supported
PHY layer loopback	Not supported
Alarm and performance event monitoring	Monitors bit interleaved parity 8 (BIP8) bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, operating temperature, and optical power of a laser.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	2.90 kg 6.39 lb.

Item	TNV1T402E
Basic function	The ports used as Data Port, supports the following service conversions: 100GE<->Packet<->ODU0/ODU1/ODU2(e)/ODU3/ODU4/ODUflex/OSUflex NOTE: The Packet services on the virtual ports (VP) port of the L2 module are mapped to the ODU1/ODU2/ODU2e/ODU3/ODU4/ODUflex in GFP-F mode. The Packet services on the VP ports of the L2 module can be mapped to ODU0 in GFP-F/GFP-T mode. When the mapping mode is GFP-T, a maximum of 80 ODU0 channels are supported.
Service processing capability	The maximum service processing capability of the board is 200 Gbit/s. If the total bandwidth of received services is greater than 200 Gbit/s, packets will be lost.
Port rate	100GE: Ethernet service at a rate of 103.125 Gbit/s.
Port working mode	100GE optical port: 100G Full-Duplex
OTN overhead	OSUflex/ODUflex/ODU0/ODU1/ODU2/ODU3/ODU4 layer: supports PM overhead processing.
OSU	Supported NOTE: The OSU function requires a license.
QinQ	Supports basic QinQ.
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port	The MFL value ranges from 960 bytes to 9600 bytes. Supports a jumbo frame containing a maximum of 9600 bytes.
Service bearing medium	Port, QinQ
Native E-Line service type	Point-to-point transparently transmitted E-Line services VLAN-based E-Line services (supporting VLAN tag switching) QinQ-based E-Line services NOTE: Inter-board E-Line services are not supported.
Native E-LAN service type	E-LAN services based on Tag-Transparent (802.1d bridge) E-LAN services based on C-Aware (802.1q bridge) E-LAN services based on S-Aware
Diffserv	Supported, compliant with RFC 2474 and RFC 2475.
Traffic classification	Supported simple traffic classification. Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing	Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping	Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance	WRED, tail dropping
Congestion management	Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS	Supported NOTE: Support only V-UNI Egress and QinQ policies.
LPT	Supports packet LPT
Client 1+1 protection	Not Supported
ODUk SNCP	Supported
OSUflex SNCP	Supported NOTE: The board supports a maximum of 400 OSUflex SNCP protection groups.
Tributary SNCP	Supported NOTE: Supports tributary SNCP SNC/I protection. The inter-board LAG must work with the tributary SNCP SNC/I protection. Tributary SNCP SNC/I protection switching can be triggered only when the board is not powered on or offline after it is removed or reset (cold).
Electrical-layer ASON	Supported
ERPS	ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG	Supports intra-board and inter-board LAG of Ethernet ports, and intra-board LAG of VP ports, compliant with IEEE 802.1ax.
MC-LAG	Supported NOTE: MC-LAG can only work with MC-SNCP for cross-node protection. MC-SNCP is implemented by boards that support the OTN line mode and EoO boards. For details, see the MC-LAG+MC-SNCP feature.
IGMP Snooping	Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
L1 service encryption	Not supported
LLDP	When the interface type is 100GE: Supported When the interface type is Vp: Not Supported
Ethernet service OAM	Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/ITU-T G.8013 and ITU-T Y.1730
Ethernet port OAM	Supported
RMON	Supported
Physical clock	Synchronous Ethernet processing supported. Synchronous Ethernet transparent transmission not supported.
IEEE 1588v2	Supported NOTE: The port equipped with an electrical module does not support the function. The function is not supported when the interface type is Vp.
ITU-T G.8275.1	Supported NOTE: The port equipped with an electrical module does not support the function. The function is not supported when the interface type is Vp.
ITU-T G.8273.2	Supported
High-precision clock synchronization	Supported NOTE: This function is not supported when the board uses the QSFP28,1310,100GE,-3.1dBm,4dBm,-4.5dBm,LC,SMF,2km,PAM4 module. The high-precision clock synchronization function can be implemented only after the corresponding license is obtained. The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function.For details, see Clock Synchronization Feature Guide. The port equipped with an electrical module does not support the function. The function is not supported when the interface type is Vp.
PRBS	Supported the PRBS function in the backplane direction.
Latency measurement	Supported NOTE: In the OSU application scenario: Unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported. The board supports a maximum of 15 latency measurement channels at the same time.
Inband DCN	Supported
Channel loopback	The OSUflex channel loopback is supported. NOTE: The board supports a maximum of eight OSUflex channel loopbacks.
Port loopback	Supports ODUk inloops and ODUk outloops on the client side. Supports OSUflex inloops and OSUflex outloops on the client side. NOTE: The board supports ODUk inloop and ODUk outloop only when bidirectional cross-connections are configured. When the service type is set to None, ODUk Outloop is not supported. The board supports a maximum of eight OSUflex loopback.
MAC layer loopback	Supported
PHY layer loopback	Not supported
Alarm and performance event monitoring	Monitors bit interleaved parity 8 (BIP8) bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, operating temperature, and optical power of a laser.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	2.90 kg 6.39 lb.
