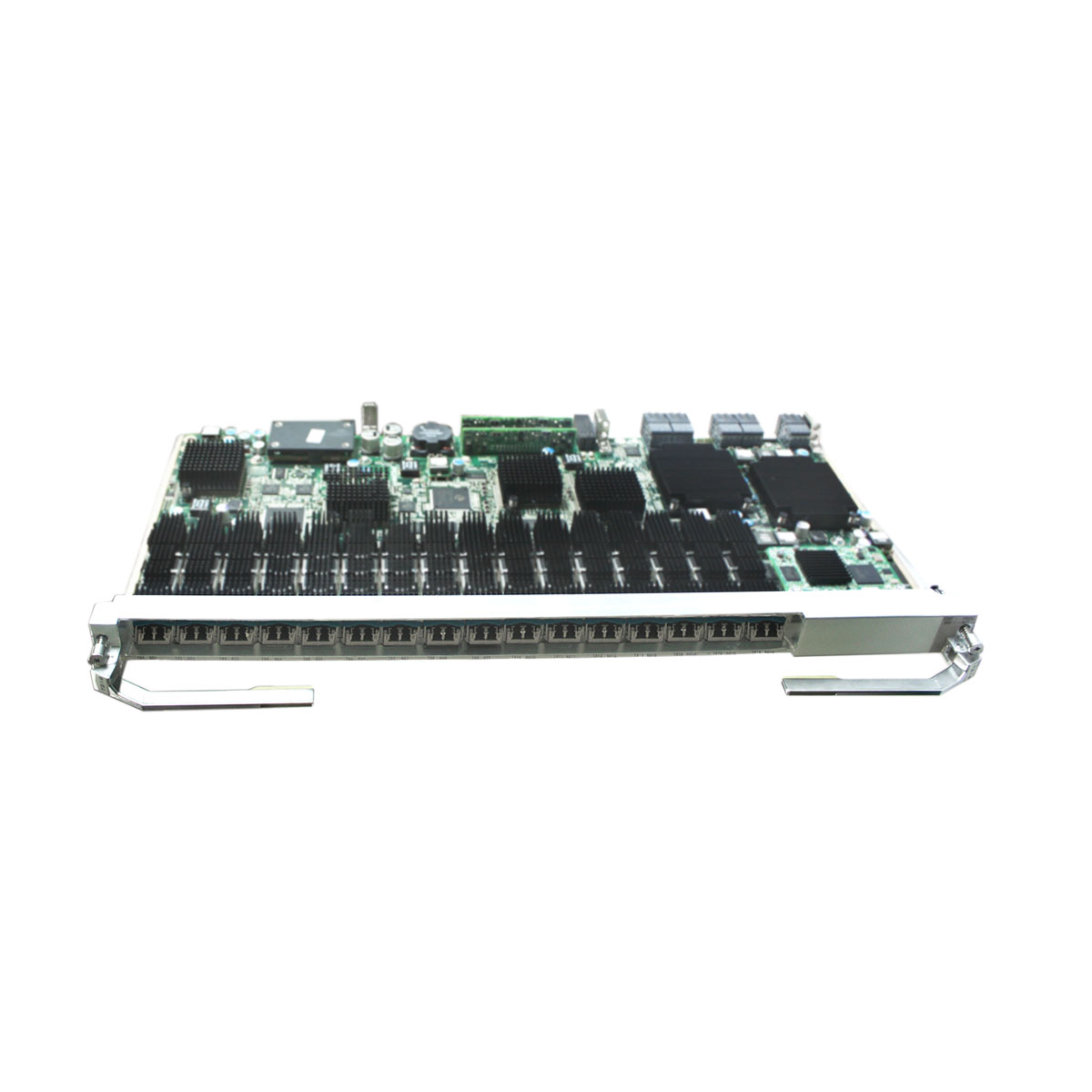

Huawei OptiX OSN 9800 TNV1T216 16*10 Gbit/s Tributary Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNV1T216 overview

TNV1T216 16*10 Gbit/s Tributary Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/U16

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

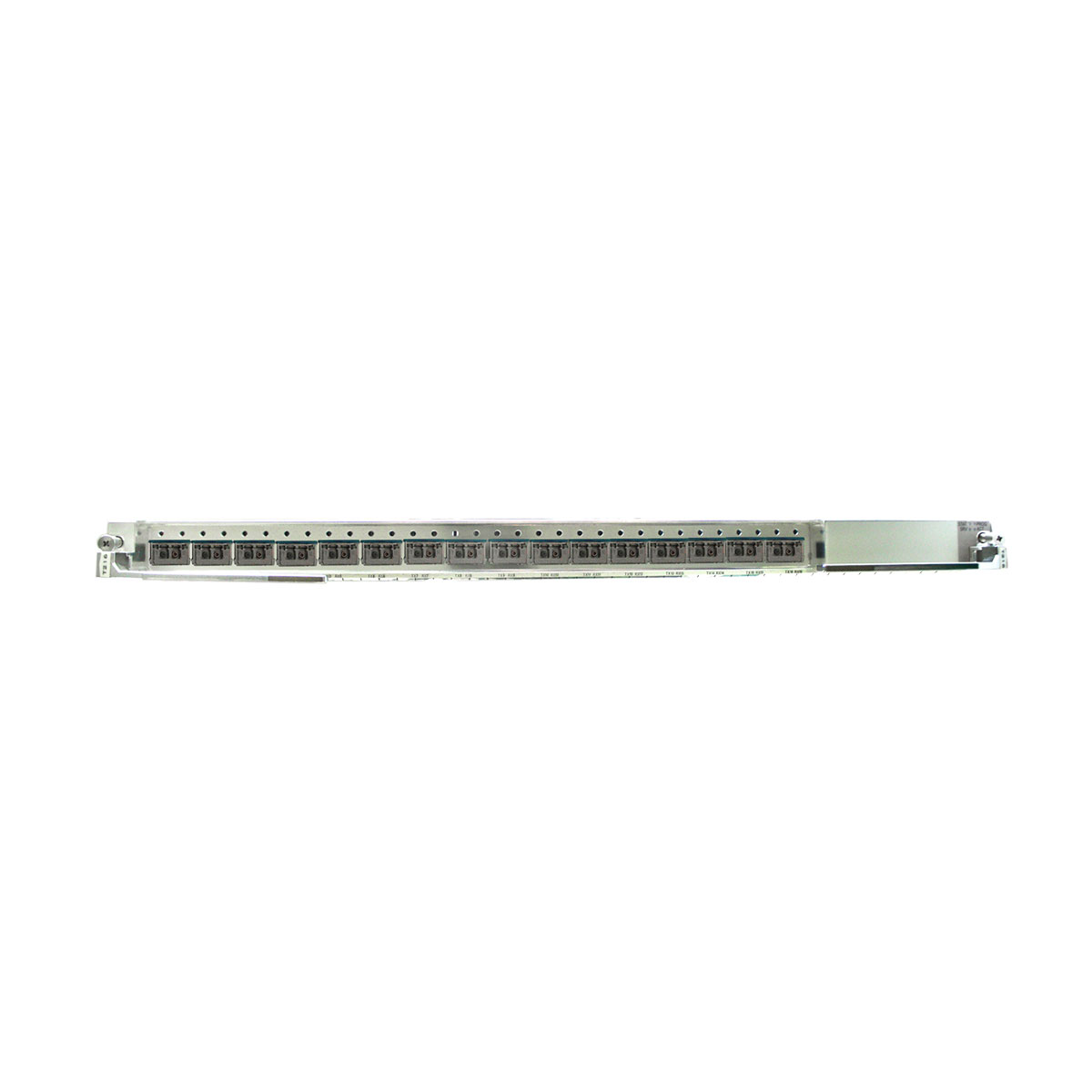

Front panel of the TNV1T216 board

Front panel of TNV6T216

Valid slots for the TNV1T216 board

Products	Valid slots
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U16 subrack	IU1-IU14

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
TNV6T216	XFP-10G-1310nm-SMF-10km	OC-192, STM-64, 10GE WAN, 10GE LAN, FC1200, OTU2/OTU2e	Pluggable Optical Module	Client-Side
TNV6T216	XFP-10G-1550nm-SMF-40km Specifications	OC-192, STM-64, 10GE WAN, 10GE LAN, FC1200, OTU2/OTU2e	Pluggable Optical Module	Client-Side
TNV6T216	XFP-10G-1550nm-SMF-80km Specifications	OC-192, STM-64, 10GE WAN, 10GE LAN, FC1200, OTU2/OTU2e	Pluggable Optical Module	Client-Side
TNV6T216	XFP-10G-850nm-MMF-0.3km Specifications	10GE LAN, FC1200	Pluggable Optical Module	Client-Side
TNV6T216	XFP-8.5G/10G-1310nm-10km-SM Specifications	FC800, FICON8G	Pluggable Optical Module	Client-Side

Item	TNV1T216
Basic function	Supports the following service conversions:
	16x10GE LAN/10GE WAN/STM-64/OC-192/OTU2/FC800/FICON8G<->16xODU2
	16x10GE LAN/OTU2e/FC1200<->16xODU2e
	16xFC800/FICON8G<->16xODUflex
Client-side service type	STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s
	10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
	10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
	OTU2: OTN service at a rate of 10.71 Gbit/s
	OTU2e: OTN service at a rate of 11.1 Gbit/s
	FC800: SAN service at a rate of 8.5 Gbit/s
	FICON8G: SAN service at a rate of 8.5 Gbit/s
	FC1200: SAN service at a rate of 10.51 Gbit/s
Cross-connect capabilities	Supports backplane cross-connections of 16 ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
OTN function	Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
	ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
	ODUflex layer: supports PM overhead processing.
	OTU2 layer: supports SM overhead processing.
ESC function	Supported when the client-side service type is OTU2 or OTU2e.
PRBS test function	Supported.
LPT function	Supported only when the client-side service type is 10GE LAN.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU2 or OTU2e.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors B1 bytes to help locate faults.
	Monitors OTN alarms and performance events.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
Test frame	Supported
Electrical-layer ASON	Supported
Latency measurement	When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2	The T216 board supports the TC, TC+OC, BC, and OC modes when the client-side service type is 10GE LAN and the Port Mapping is MAC transparent Mapping (10.7 G).
Physical clock	10GE LAN, Bit transparent Mapping (11.1 G)		10GE LAN, MAC transparent Mapping (10.7 G)
	Supports synchronous Ethernet transparent transmission		Supports synchronous Ethernet processing
Protection scheme	Supports ODUk SNCP (k=2, 2e, flex).
	Supports client 1+1 protection.
	Supports tributary SNCP protection.
Ethernet service mapping mode	Supports Bit transparent Mapping (11.1G) and MAC transparent mapping (10.7G) when the client-side service type is 10GE LAN.
Port MTU	The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Loopback	Client side	Inloop	Supported
		Outloop	Supported
		ODUk Inloop	Supported
		ODUk Outloop	Supported
Dimensions of the front panel (H x W x D)	477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
Weight	3.5 kg (7.7 lb.)
Power Consumption (W)	161.6-177.7

Item	TNV1T216
Basic function	Supports the following service conversions:
	16x10GE LAN/10GE WAN/STM-64/OC-192/OTU2/FC800/FICON8G<->16xODU2
	16x10GE LAN/OTU2e/FC1200<->16xODU2e
	16xFC800/FICON8G<->16xODUflex
Client-side service type	STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s
	10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
	10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
	OTU2: OTN service at a rate of 10.71 Gbit/s
	OTU2e: OTN service at a rate of 11.1 Gbit/s
	FC800: SAN service at a rate of 8.5 Gbit/s
	FICON8G: SAN service at a rate of 8.5 Gbit/s
	FC1200: SAN service at a rate of 10.51 Gbit/s
Cross-connect capabilities	Supports backplane cross-connections of 16 ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
OTN function	Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
	ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
	ODUflex layer: supports PM overhead processing.
	OTU2 layer: supports SM overhead processing.
ESC function	Supported when the client-side service type is OTU2 or OTU2e.
PRBS test function	Supported.
LPT function	Supported only when the client-side service type is 10GE LAN.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU2 or OTU2e.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors B1 bytes to help locate faults.
	Monitors OTN alarms and performance events.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
Test frame	Supported
Electrical-layer ASON	Supported
Latency measurement	When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2	The T216 board supports the TC, TC+OC, BC, and OC modes when the client-side service type is 10GE LAN and the Port Mapping is MAC transparent Mapping (10.7 G).
Physical clock	10GE LAN, Bit transparent Mapping (11.1 G)		10GE LAN, MAC transparent Mapping (10.7 G)
	Supports synchronous Ethernet transparent transmission		Supports synchronous Ethernet processing
Protection scheme	Supports ODUk SNCP (k=2, 2e, flex).
	Supports client 1+1 protection.
	Supports tributary SNCP protection.
Ethernet service mapping mode	Supports Bit transparent Mapping (11.1G) and MAC transparent mapping (10.7G) when the client-side service type is 10GE LAN.
Port MTU	The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Loopback	Client side	Inloop	Supported
		Outloop	Supported
		ODUk Inloop	Supported
		ODUk Outloop	Supported
Dimensions of the front panel (H x W x D)	477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
Weight	3.5 kg (7.7 lb.)
Power Consumption (W)	161.6-177.7

Brand	Huawei
Lead Time	In Stock
Ship From	Shenzhen Warehouse
