Huawei OptiX OSN 9800 board TNU5U501 1*200G/100G Programmable Hybrid Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNU5U501 overview

TNU5U501 supports Huawei OptiX OSN 9800 board 1*200G/100G Programmable Hybrid Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/U16/M24.

The TNU5U501 board is a hybrid line board and supports a mixture of OTN, SDH, and packet services.

The TNU5U501 board processes and converts the received service signals into one OTU4/OTUC2 signal, which are carried over ITU-T G.694.1-compliant DWDM wavelengths.

The TNU5U501 board uses coherent receiving technologies and applies to coherent systems.

An optional version of the TNU5U501 is TNU6U501.

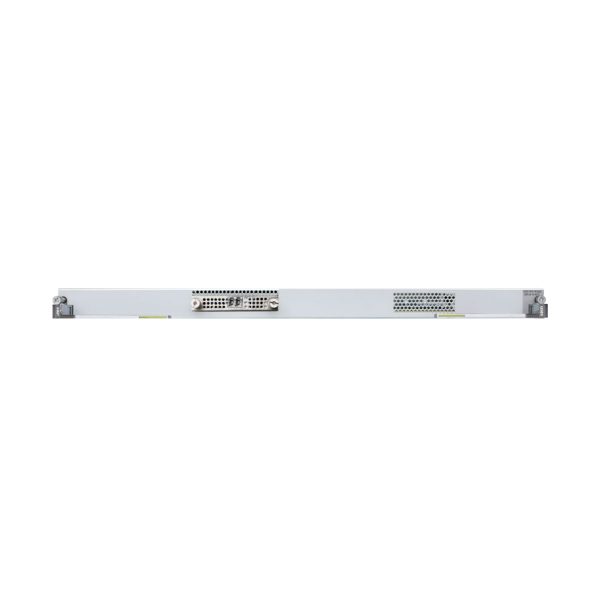

Appearance of the TNU5U501

Valid slots for the TNU5U501 board in a U64/U32 subrack

Product	Valid Slots
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1-IU32
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1-IU64

Valid slots for the TNU5U501 board in an M24 subrack

Product	Valid Slots
OptiX OSN 9800 M24 subrack	(IU1, IU13), (IU2, IU14), …… , (IU11, IU23), (IU12, IU24) NOTE: The slot ID displayed on the NMS is the ID of the lower one of the two slots occupied by the U501 board in a subrack. For example, when the U501 board occupies slots IU1 and IU13 in a subrack, the slot ID displayed on the NMS is IU1. In the 1:3 mode, service boards cannot be installed in slots (IU6, IU18) and (IU7, IU19).

Item	TNU5U501
OTN functions	Port in 100G mode: Supports the OTU4 interface on the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. Port in 200G mode: Supports the OTUC2 interface on the WDM side. OTUC2 layer: supports SM overhead processing. ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
PRBS test function	Supports the PRBS function on the WDM side.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Regeneration board	Supported
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels. The board supports PM and TCM latency measurement at the ODUCn layer. NOTE: When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
Test frame	Not supported
Physical clock	Supported
IEEE 1588v2	Supported
ITU-T G.8275.1	Supported
ITU-T G.8273.2	Only the TNU5U501 board of an 9800 M24 subrack supports ITU-T G.8273.2.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Typical channel spacing	200G ePDM-e16QAM: 50GHz Flex/62.5GHz Flex/75GHz Flex Others modulation format: 50GHz Fix
Protection schemes	Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP or DCP board). NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. ODUk SNCP protection and tributary SNCP are not supported when packet services are cross-connected from the backplane.
Loopback	WDM-Side Loopback	Supported
Loopback	Channel Loopback	Port in 100G mode: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks Port in 200G mode: ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks.
ESC	Supported

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
U501	CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP Specifications	OTU4	Pluggable Optical Module	WDM-Side
U501	CFP- 200G-(1529.17nm to 1567.1nm)(DWDM,Tunable,T15)-SMF Specifications NOTE: The rate and modulation format can be set to 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
U501	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHC, T22)-200G CFP Specifications NOTE: The rate and modulation format supported by the U501 board are as follows: 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
U501	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, high optical power, T23)-200G CFP NOTE: The rate and modulation format supported by the U501 board are as follows: 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
U501	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, T23)-200G CFP Specifications NOTE: The rate and modulation format supported by the U501 board are as follows: 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
U501	Extended C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(SDFEC2, LHB, T2U)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
U501	Super C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(SDFEC2, LHD, F23)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
U501	Super C band-Tunable wavelength-ePDM-200G 16QAM/100G QPSK/etc.(SDFEC/SDFEC2, Metro, F15)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
U501	Extended C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(Configurable rate and modulation format, Coherent, LHD, A23)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
U501	Super C band-Tunable wavelength-200G e16QAM/100G QPSK/etc.(LHD, High optical power, T23)-CFP-PIN NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
