TNU6U502 overview

TNU6U502 2*200G/100G Programmable Hybrid Line Service Processing Board (CFP, OTN & SDH & Packet) applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNU6U502 board has only one variant: TNU6U502C01.

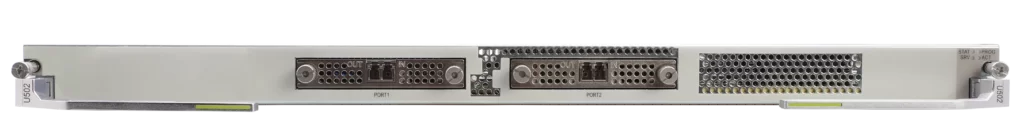

Front panel of the TNU6U502 board

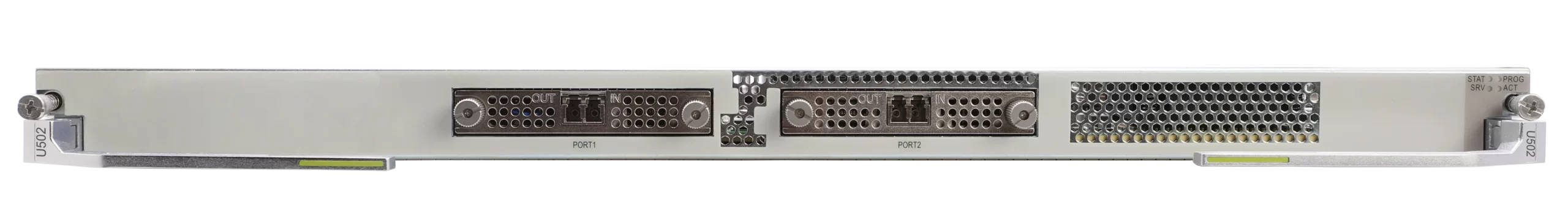

Front panel of the TNU6U502 board

Valid slots for the TNU6U502 board in a U64/U32/M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M24	2	(IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24)	IU1 to IU5, IU8 to IU12
OptiX OSN 9800 U32 Enhanced	1	IU1 to IU32	IU1 to IU32
OptiX OSN 9800 U64 Enhanced	1	IU1 to IU64	IU1 to IU64

Item	TNU6U502
Functions and Features of the TNU6U502 Board (OTN Line)
Basic function	Implements mutual conversion between OTN signals and two OTU4/OTUC2 signals.
Backplane capacity	The maximum capacity is 400 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	200G 16QAM, 200G 16QAM-H: Supports SDFEC encoding. Other modulation formats: Supports SDFEC2 encoding.
Line modulation format	100G line mode: 100G QPSK 100G QPSK wDCM 200G line mode: 200G 16QAM 200G 16QAM-H 200G e16QAM
Typical channel spacing	200G e16QAM: 50GHz+n6.25GHz(n=0,1,2...) Others modulation format: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	100G line mode: WDM-side OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads. 200G line mode: WDM-side OTUC2 layer: supports SM overhead processing. ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP	Supported NOTE: ODUk SNCP protection and tributary SNCP are not supported when SDH services or packet services are cross-connected from the backplane.
Tributary SNCP	Supported NOTE: Tributary SNCP are not supported when SDH services or packet services are cross-connected from the backplane.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label	When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS	Not supported
Physical clock	Supported NOTE: When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2	Supported
ITU-T G.8275.1	Supported
ITU-T G.8273.2	Supported NOTE: The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels. The board supports PM and TCM latency measurement at the ODUCn layer. NOTE: When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
Channel loopback	100G line mode: ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks 200G line mode: ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring. Supports the monitoring of OTN alarms and performance events.
Functions and Features of the TNU6U502 Board (SDH)
Basic function	Implements mutual conversion between SDH signals and two OTU4/OTUC2 signals.
Backplane capacity	The total backplane bandwidth is 80 Gbit/s.
Service processing	VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing	Processes the section overheads of STM-16/STM-64 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports transparent transmission of DCC channels.
SDH SNCP	Supported
Linear MSP	Supported
Ring MSP	Supports two-fiber bidirectional ring MSP
SDH ASON	Supported
Physical clock	Supports SDH clock synchronization.
Outband DCN	Supported
Channel loopback	Supports VC channel loopbacks.
Port loopback	Supports Virtual Port loopbacks.
2M ASON	Supported NOTE: Only supported when the 9800 M24 is used.
Alarm and performance event monitoring	Monitors B1 bytes to help locate faults. Monitors B2 bytes to help locate faults.
Functions and Features of the TNU6U502 Board (Packet)
Basic function	Provides two line ports to convert packet signals and ODUk signals from the backplane. For details about service access capabilities, see Application.
Service processing capability	100G mode: The maximum service processing capability of the board is 200 Gbit/s. If the total bandwidth of received services is greater than 200 Gbit/s, packets will be lost. 200G mode: The maximum service processing capability of the board is 400 Gbit/s. If the total bandwidth of received services is greater than 400 Gbit/s, packets will be lost.
TAG attribute	Supports the following TAG attributes: tag aware, access, and hybrid.
QinQ	Supports basic QinQ.
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
Maximum frame length for a port	9600 bytes.
Service type	Native E-Line services Native E-LAN services E-Line services carried by PWs (VPWS services) E-LAN services carried by PWs (VPLS services)
Service bearing medium	PW, QinQ
Native E-Line service type	Point-to-point transparently transmitted E-Line services VLAN-based E-Line services (supporting VLAN tag switching) QinQ-based E-Line services
Native E-LAN service type	E-LAN services based on Tag-Transparent (802.1d bridge) E-LAN services based on C-Aware (802.1q bridge)
PW-carried E-Line service (VPWS) type	Port-based transparently transmitted E-Line services VLAN-based E-Line services (supporting the adding, deleting, and switching of VLAN tags)
PW-carried E-LAN service (VPLS) type	VPLS services based on Tag-Transparent VPLS services based on C-Aware VPLS services based on S-Aware
MS-PW	Supported
Diffserv	Supported, compliant with RFC 2474 and RFC 2475.
Traffic classification	Supported simple traffic classification. Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing	Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping	Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance	WRED, tail dropping
Congestion management	Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS	Supported
ERPS	ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG	Intra-board and inter-board LAG, compliant with IEEE 802.1ax.
MC-LAG	Supported, compliant with IEEE 802.1ax.
MC-PW APS	1:1 protection compliant with ITU-T G.8131.
PW APS	1:1 protection compliant with ITU-T G.8131.
PW FPS	1:1 protection compliant with ITU-T G.8131.
Tunnel APS	1:1 protections compliant with ITU-T G.8131.
MRPS	Not supported
Packet service protection against multiple fiber cuts	Not supported
IGMP Snooping	Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP	Not supported
Ethernet service OAM	Supports Ethernet service OAM that complies with IEEE 802.1ag NOTE: Compliant with ITU-T Y.1731(ETH LM/DM), ITU-T G.8013 and ITU-T Y.1730.
Ethernet port OAM	Not supported
MPLS OAM	Not supported
MPLS-TP OAM	Supported, compliant with ITU-T G.8013/Y.1731, ITU-T G.8113.1.
RMON	Supported
Port flow control	Not supported
Port mirroring	Not supported
Inband DCN	Supported
Functions and Features of the TNU6U502 Board (Regeneration)
Basic function	Electrically regenerates optical signals at an electrical REG station.
Regeneration mode	Unidirectional regeneration
Regeneration rate	OTU4 OTUC2
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	200G 16QAM, 200G 16QAM-H: Supports SDFEC encoding. Other modulation formats: Supports SDFEC2 encoding.
Line modulation format	100G line mode: 100G QPSK 100G QPSK wDCM 200G line mode: 200G 16QAM 200G 16QAM-H 200G e16QAM
Typical channel spacing	200G e16QAM: 50GHz+n6.25GHz(n=0,1,2...) Others modulation format: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead	100G line mode: WDM-side OTU4 layer: supports SM overhead processing. ODU4 layer: supports PM and TCM overhead processing. ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads. 200G line mode: WDM-side OTUC2 layer: supports SM overhead processing. ODUC2 layer: supports PM and TCM overhead processing. ODUC2 layer: supports non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON	Not supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz. For the WDM-side A23 optical module, the receive and transmit wavelengths must be the same. A23 module does not support wavelength change by configuring regeneration boards.
ALS	Not supported
Outband DCN	Supports ESC communication.
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring. Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	3.95 kg 8.71 lb.

Item	TNU6U502
Functions and Features of the TNU6U502 Board (OTN Line)
Basic function	Implements mutual conversion between OTN signals and two OTU4/OTUC2 signals.
Backplane capacity	The maximum capacity is 400 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	200G 16QAM, 200G 16QAM-H: Supports SDFEC encoding. Other modulation formats: Supports SDFEC2 encoding.
Line modulation format	100G line mode: 100G QPSK 100G QPSK wDCM 200G line mode: 200G 16QAM 200G 16QAM-H 200G e16QAM
Typical channel spacing	200G e16QAM: 50GHz+n6.25GHz(n=0,1,2...) Others modulation format: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	100G line mode: WDM-side OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads. 200G line mode: WDM-side OTUC2 layer: supports SM overhead processing. ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP	Supported NOTE: ODUk SNCP protection and tributary SNCP are not supported when SDH services or packet services are cross-connected from the backplane.
Tributary SNCP	Supported NOTE: Tributary SNCP are not supported when SDH services or packet services are cross-connected from the backplane.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label	When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS	Not supported
Physical clock	Supported NOTE: When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2	Supported
ITU-T G.8275.1	Supported
ITU-T G.8273.2	Supported NOTE: The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels. The board supports PM and TCM latency measurement at the ODUCn layer. NOTE: When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
Channel loopback	100G line mode: ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks 200G line mode: ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring. Supports the monitoring of OTN alarms and performance events.
Functions and Features of the TNU6U502 Board (SDH)
Basic function	Implements mutual conversion between SDH signals and two OTU4/OTUC2 signals.
Backplane capacity	The total backplane bandwidth is 80 Gbit/s.
Service processing	VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing	Processes the section overheads of STM-16/STM-64 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports transparent transmission of DCC channels.
SDH SNCP	Supported
Linear MSP	Supported
Ring MSP	Supports two-fiber bidirectional ring MSP
SDH ASON	Supported
Physical clock	Supports SDH clock synchronization.
Outband DCN	Supported
Channel loopback	Supports VC channel loopbacks.
Port loopback	Supports Virtual Port loopbacks.
2M ASON	Supported NOTE: Only supported when the 9800 M24 is used.
Alarm and performance event monitoring	Monitors B1 bytes to help locate faults. Monitors B2 bytes to help locate faults.
Functions and Features of the TNU6U502 Board (Packet)
Basic function	Provides two line ports to convert packet signals and ODUk signals from the backplane. For details about service access capabilities, see Application.
Service processing capability	100G mode: The maximum service processing capability of the board is 200 Gbit/s. If the total bandwidth of received services is greater than 200 Gbit/s, packets will be lost. 200G mode: The maximum service processing capability of the board is 400 Gbit/s. If the total bandwidth of received services is greater than 400 Gbit/s, packets will be lost.
TAG attribute	Supports the following TAG attributes: tag aware, access, and hybrid.
QinQ	Supports basic QinQ.
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
Maximum frame length for a port	9600 bytes.
Service type	Native E-Line services Native E-LAN services E-Line services carried by PWs (VPWS services) E-LAN services carried by PWs (VPLS services)
Service bearing medium	PW, QinQ
Native E-Line service type	Point-to-point transparently transmitted E-Line services VLAN-based E-Line services (supporting VLAN tag switching) QinQ-based E-Line services
Native E-LAN service type	E-LAN services based on Tag-Transparent (802.1d bridge) E-LAN services based on C-Aware (802.1q bridge)
PW-carried E-Line service (VPWS) type	Port-based transparently transmitted E-Line services VLAN-based E-Line services (supporting the adding, deleting, and switching of VLAN tags)
PW-carried E-LAN service (VPLS) type	VPLS services based on Tag-Transparent VPLS services based on C-Aware VPLS services based on S-Aware
MS-PW	Supported
Diffserv	Supported, compliant with RFC 2474 and RFC 2475.
Traffic classification	Supported simple traffic classification. Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing	Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping	Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance	WRED, tail dropping
Congestion management	Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS	Supported
ERPS	ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG	Intra-board and inter-board LAG, compliant with IEEE 802.1ax.
MC-LAG	Supported, compliant with IEEE 802.1ax.
MC-PW APS	1:1 protection compliant with ITU-T G.8131.
PW APS	1:1 protection compliant with ITU-T G.8131.
PW FPS	1:1 protection compliant with ITU-T G.8131.
Tunnel APS	1:1 protections compliant with ITU-T G.8131.
MRPS	Not supported
Packet service protection against multiple fiber cuts	Not supported
IGMP Snooping	Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP	Not supported
Ethernet service OAM	Supports Ethernet service OAM that complies with IEEE 802.1ag NOTE: Compliant with ITU-T Y.1731(ETH LM/DM), ITU-T G.8013 and ITU-T Y.1730.
Ethernet port OAM	Not supported
MPLS OAM	Not supported
MPLS-TP OAM	Supported, compliant with ITU-T G.8013/Y.1731, ITU-T G.8113.1.
RMON	Supported
Port flow control	Not supported
Port mirroring	Not supported
Inband DCN	Supported
Functions and Features of the TNU6U502 Board (Regeneration)
Basic function	Electrically regenerates optical signals at an electrical REG station.
Regeneration mode	Unidirectional regeneration
Regeneration rate	OTU4 OTUC2
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	200G 16QAM, 200G 16QAM-H: Supports SDFEC encoding. Other modulation formats: Supports SDFEC2 encoding.
Line modulation format	100G line mode: 100G QPSK 100G QPSK wDCM 200G line mode: 200G 16QAM 200G 16QAM-H 200G e16QAM
Typical channel spacing	200G e16QAM: 50GHz+n6.25GHz(n=0,1,2...) Others modulation format: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead	100G line mode: WDM-side OTU4 layer: supports SM overhead processing. ODU4 layer: supports PM and TCM overhead processing. ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads. 200G line mode: WDM-side OTUC2 layer: supports SM overhead processing. ODUC2 layer: supports PM and TCM overhead processing. ODUC2 layer: supports non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON	Not supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz. For the WDM-side A23 optical module, the receive and transmit wavelengths must be the same. A23 module does not support wavelength change by configuring regeneration boards.
ALS	Not supported
Outband DCN	Supports ESC communication.
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring. Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	3.95 kg 8.71 lb.

Huawei Datacenter Switch

ZTE Switch

Cisco Switch

Aruba Switch

H3C Switch

Juniper Swtich

ZTE GPON

FiberHome GPON

Alcatel & Lucent GPON

Huawei Transport Network

OSN 9800 Series

OSN 8800 Series

Selected models

OSN 8800 Series

Up to 6.4 Tbit/s cross-connect capacity

Huawei Router

NE8000 Series

ZTE Router

Juniper Router

Selected models

H3C Router

NE 8000 Series

Designed for the cloud era

ME60 Series

Full service, large capacity, high reliability

Huawei Optical Transceiver

Huawei Embeded Power

ZTE telecom Power

Energy Storage

Emerson Vertiv Power

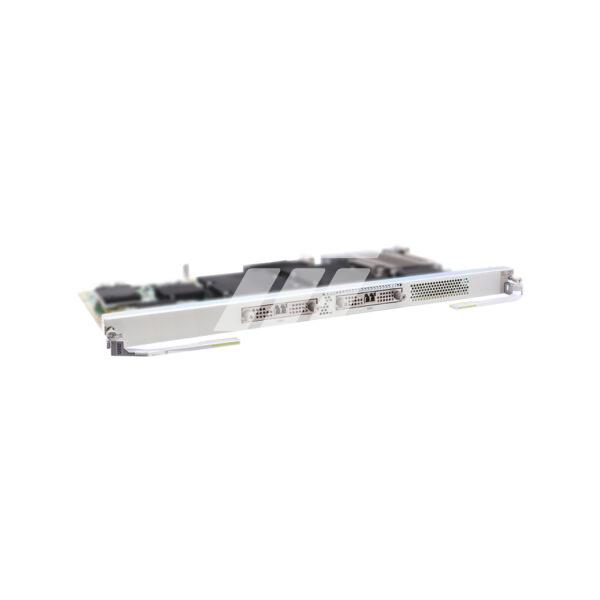

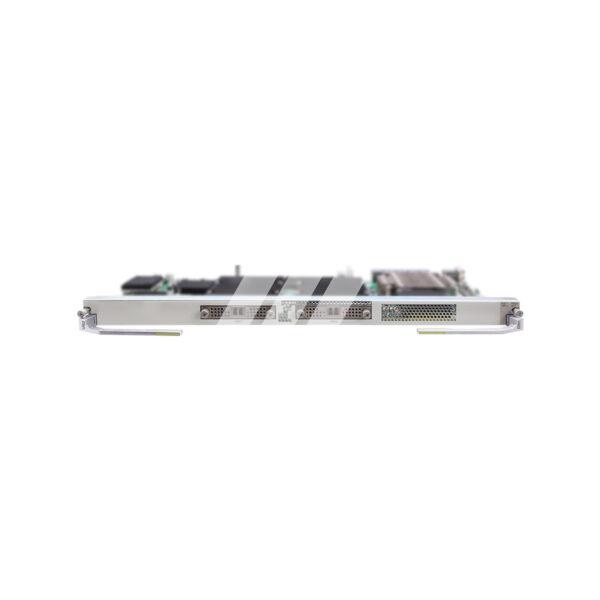

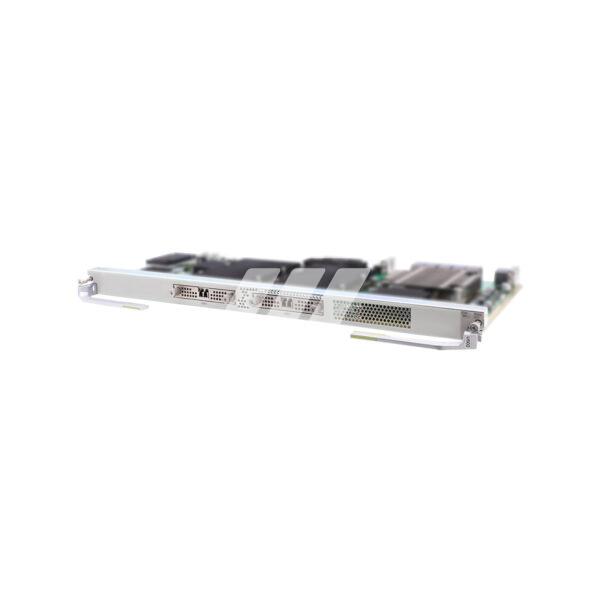

TNU6U502

Description

Additional information

Reviews

Related products

Main Menu

Huawei Datacenter Switch

ZTE Switch

Cisco Switch

Aruba Switch

H3C Switch

Juniper Swtich

ZTE GPON

FiberHome GPON

Alcatel & Lucent GPON

Huawei Transport Network

OSN 9800 Series

OSN 8800 Series

Selected models

OSN 8800 Series

Up to 6.4 Tbit/s cross-connect capacity

Huawei Router

NE8000 Series

ZTE Router

Juniper Router

Selected models

H3C Router

NE 8000 Series

Designed for the cloud era

ME60 Series

Full service, large capacity, high reliability

Huawei Optical Transceiver

Huawei Embeded Power

ZTE telecom Power

Energy Storage

Emerson Vertiv Power

Search For Products

Popular

Up to 6.4 Tbit/s
cross-connect capacity

Full service, large capacity,
high reliability

Up to 6.4 Tbit/s
cross-connect capacity

Full service, large capacity,
high reliability
