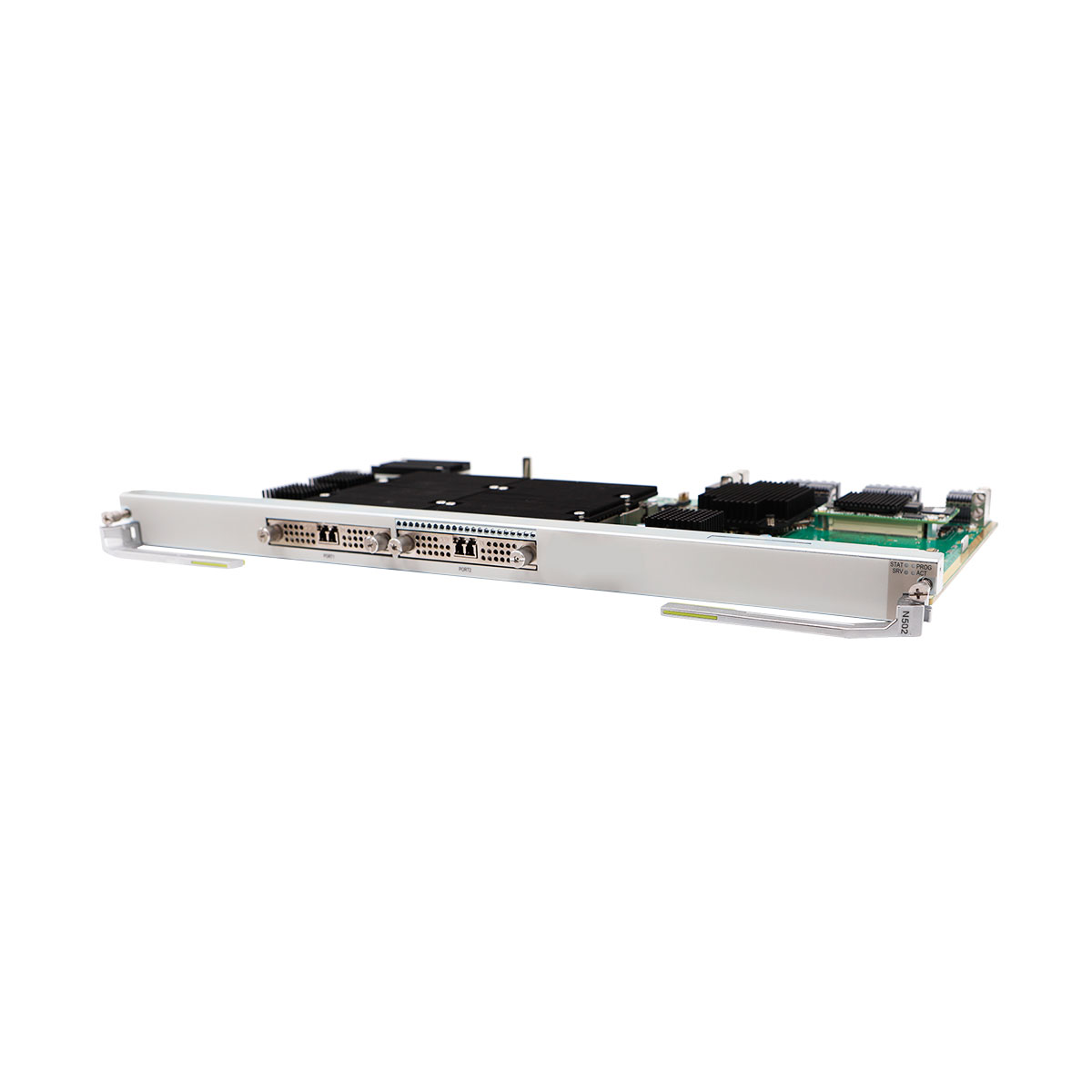

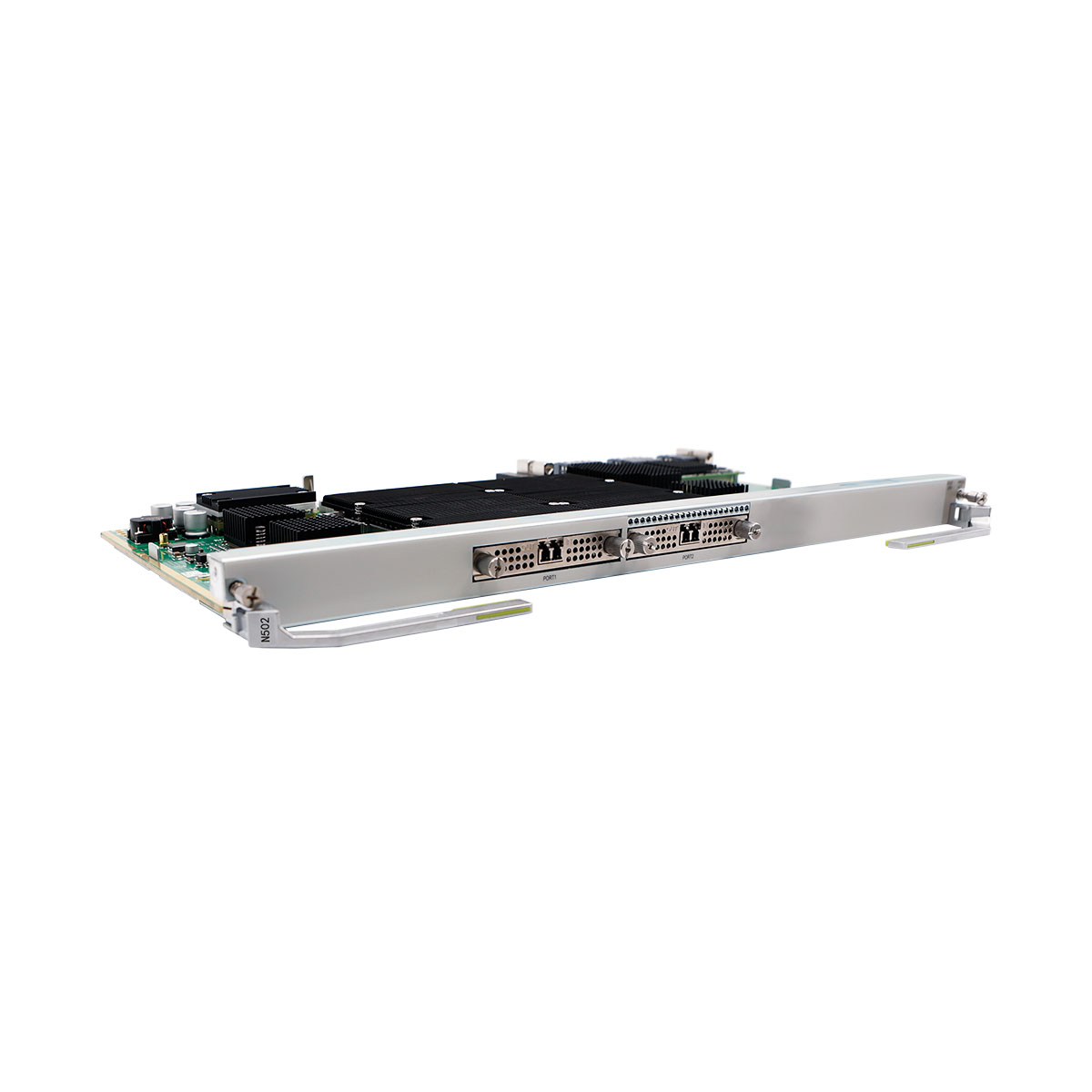

Huawei OptiX OSN 9800 TNU6N502 2*200G/2*100G Programmable Line Service Processing Board (CFP)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNU6N502 overview

TNU6N502 2*200G/2*100G Programmable Line Service Processing Board (CFP) applied to Huawei OptiX OSN 9800 U64/U32/U16/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

Power consumption

Board	Typical Power Consumption (W)	Maximum Power Consumption^a (W)
TNU6N502	164	177

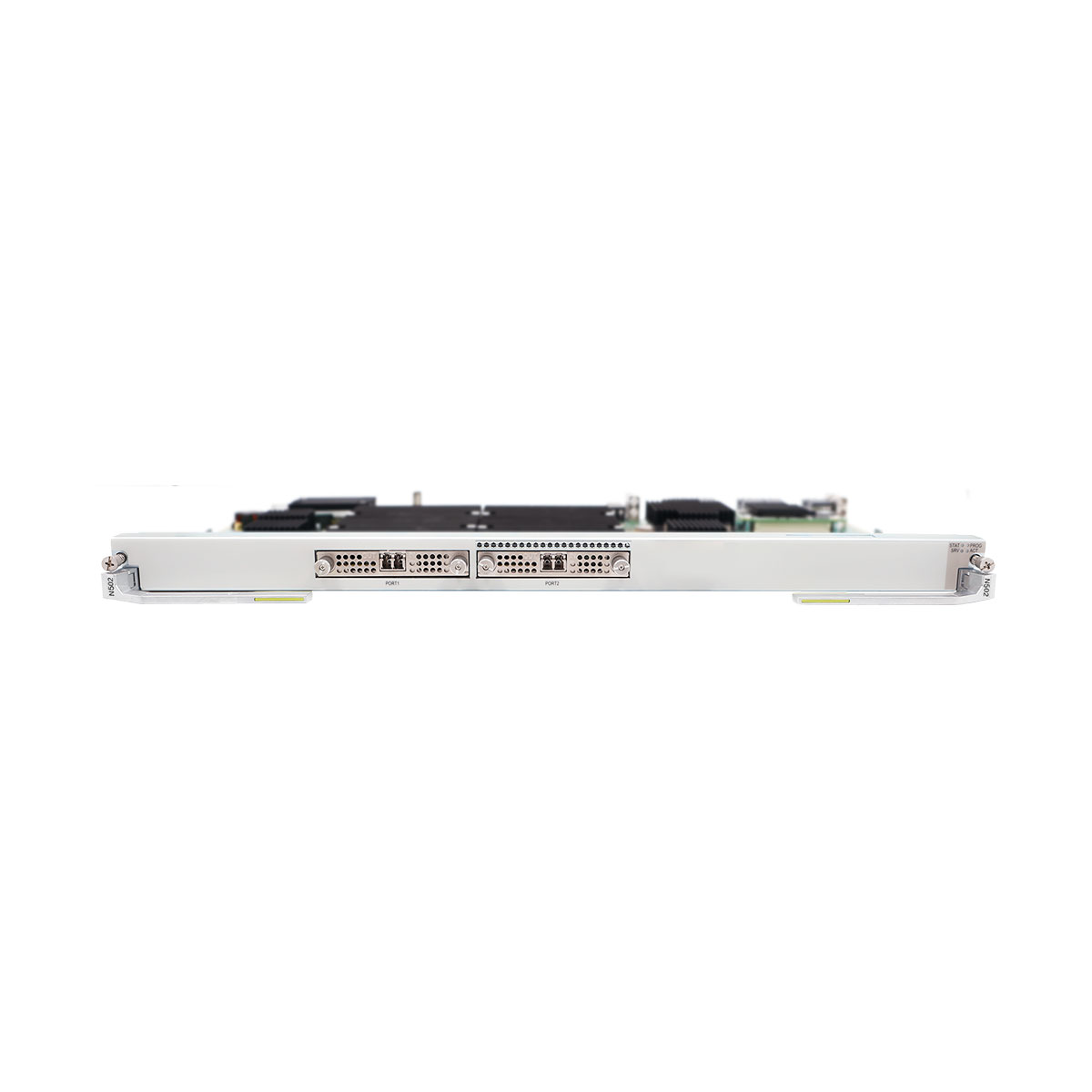

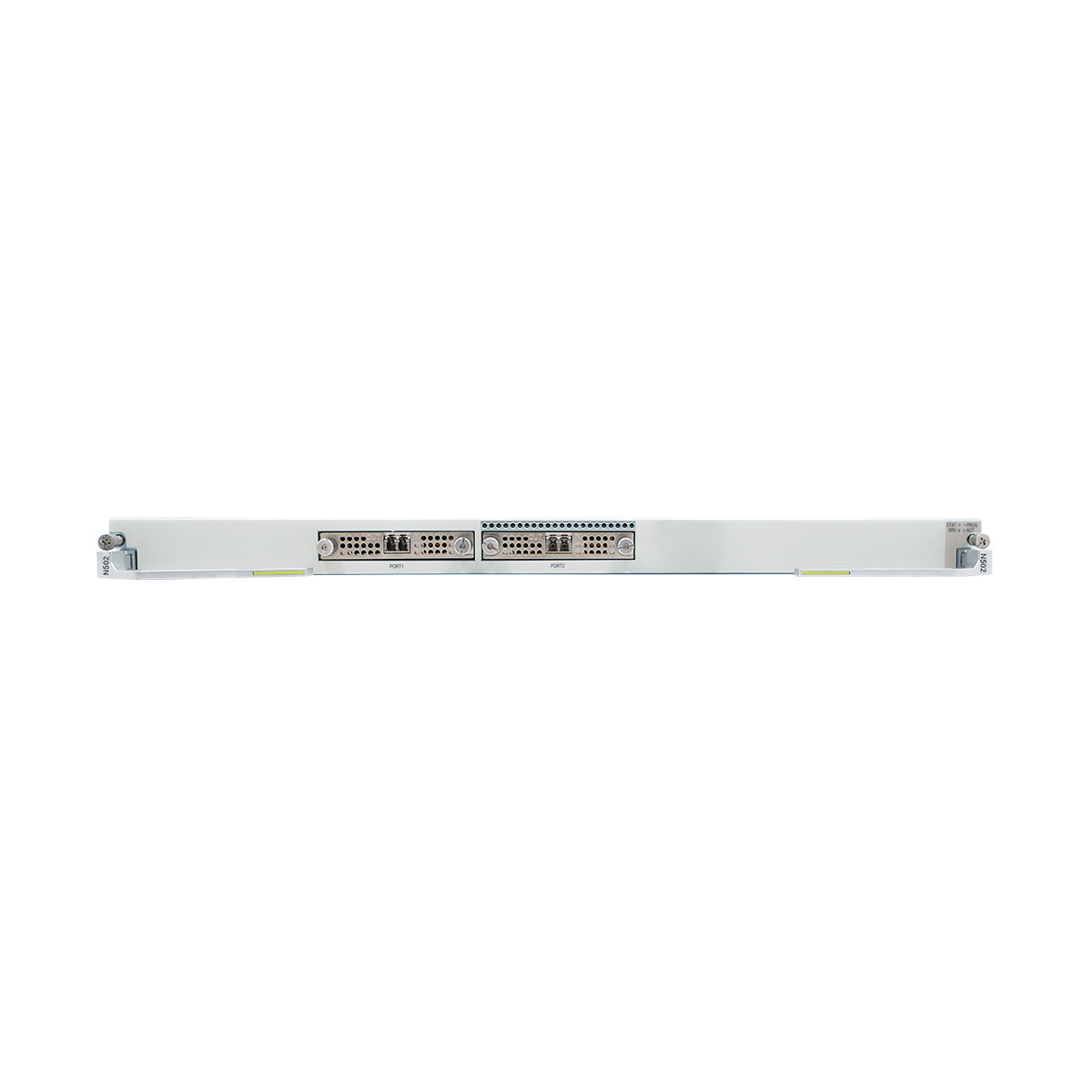

Front panel of the TNU6N502 board

Valid slots for the TNU6N502 board in a U64/U32/U16 subrack

Product	Valid Slots
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1-IU64
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1-IU32
OptiX OSN 9800 U16 subrack	IU1-IU14

Valid slots for the TNU6N502 board in an M24 subrack

Product	Valid Slots
OptiX OSN 9800 M24 subrack	(IU1, IU13), (IU2, IU14), …, (IU11, IU23), (IU12, IU24)

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
TNU6N502	CFP- 200G-(1529.17nm to 1567.1nm)(DWDM,Tunable,T15)-SMF Specifications	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNU6N502	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, high optical power, T23)-200G CFP	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNU6N502	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, T23)-200G CFP Specifications	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNU6N502	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHC, T22)-200G CFP Specifications	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNU6N502	Extended C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(SDFEC2, LHB, T2U)-CFP	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNU6N502	Super C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(SDFEC2, LHD, F23)-CFP	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNU6N502	Super C band-Tunable wavelength-ePDM-200G 16QAM/100G QPSK/etc.(SDFEC/SDFEC2, Metro, F15)-CFP	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNU6N502	Extended C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(Configurable rate and modulation format, Coherent, LHD, A23)-CFP	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNU6N502	Super C band-Tunable wavelength-200G e16QAM/100G QPSK/etc.(LHD, High optical power, T23)-CFP-PIN	OTU4, OTUC2	Pluggable Optical Module	WDM-Side

Function differences between port modes

Function and Feature		Working Mode of the Port
Function and Feature		100G Mode	200G Mode	400G Mode
Supported port		Port 1, port 2	Port 1, port 2	Port 1. And port 2 must be set to NONE Mode.
Carrier technology		Single-carrier technology	Single-carrier technology	The board in 400G mode uses the dual-carrier technology and transmits or receives signals at port 1 and port 2.
Basic function	Line mode	Supports the following service conversions: 80 x ODU0/ 40 x ODU1/ 10 x ODU2/ 10 x ODU2e/ 2 x ODU3/ 1 x ODU4/ 80 x ODUflex <-> 1 x ODU4 <-> 1 x OTU4.	Supports the following service conversions: 160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex <-> 2 x ODU4 <-> 1 x ODUC2 <-> 1 x OTUC2.	Supports the following service conversions: 320 x ODU0/ 160 x ODU1/ 40 x ODU2/ 40 x ODU2e/ 8 x ODU3/ 4 x ODU4/ 320 x ODUflex <-> 4 x ODU4 <-> 1 x ODUC4 <-> 1xOTUC4
Basic function	Relay mode	Electrically regenerates OTU4 signals at an electrical REG station. Supported service rate: OTU4, at a rate of 111.81 Gbit/s	Electrically regenerates OTUC2 signals at an electrical REG station. Supported service rate: OTUC2, at a rate of 224.61 Gbit/s	Electrically regenerates one OTUC4 signal at an electrical REG station. Supported service rate: OTUC4, at a rate of 449.22 Gbit/s
FEC		SDFEC2	200G ePDM-16QAM:SDFEC 200G ePDM-16QAM-H:SDFEC 200G ePDM-e16QAM:SDFEC2	400G ePDM-16QAM(Dual_Ports): SDFEC 400G ePDM-16QAM-H(Dual_Ports): SDFEC 400G ePDM-e16QAM(Dual_Ports): SDFEC2
Line modulation format		100G ePDM-QPSK wDCM 100G ePDM-QPSK	200G ePDM-16QAM 200G ePDM-16QAM-H 200G ePDM-e16QAM	400G ePDM-16QAM(Dual_Ports) 400G ePDM-16QAM-H(Dual_Ports) 400G ePDM-e16QAM(Dual_Ports)

OTN functions and features of the board (line mode)

Item	TNU6N502
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board聽supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
PRBS test function	Supports the PRBS function on the WDM side.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty聽mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Regeneration board	Supported
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction).
Test frame	Not supported
Physical clock	Supported
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Typical channel spacing	200G ePDM-e16QAM:50GHz Flex/ 62.5GHz Flex/75GHz Flex
	Others modulation format: 50GHz Fix.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported
Protection schemes	Supports ODUk SNCP.
	Supports tributary SNCP protection.
	Supports intra-board 1+1 protection (when working with the QCP or OLP or DCP board).
Loopback	WDM-Side Loopback	Supported
	Channel Loopback	Port in 100G mode: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
		Port in 200G mode or 400G mode: ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks.
ESC	Supported

Functions and features of the board (relay mode)

Item	TNU6N502
Basic function	The N502 board applies to electrical regeneration sites to provide the electrical regeneration function for optical signals using port 1 and port 2.
Supported service rate	OTU4: OTN service at a rate of 111.81 Gbit/s
	OTUC2: OTN service at a rate of 224.61 Gbit/s
	OTUC4: OTN service at a rate of 449.22 Gbit/s
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board聽supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function	Supported
PRBS function	Not supported
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty聽mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Test frame	Not supported
Physical clock	Not supported
IEEE 1588v2	Not supported
Optical-layer ASON	Supported
Protection scheme	Not supported
Loopback	Not supported
