Huawei OptiX OSN 9800 TNU6N402 2*100 Gbit/s Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNU6N402 overview

TNU6N402 2*100 Gbit/s Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/U16/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

TNU6N402 also comes with TNU5N402, TNU1N402P, TNU2N402P board version.

Power consumption (W): 148-165

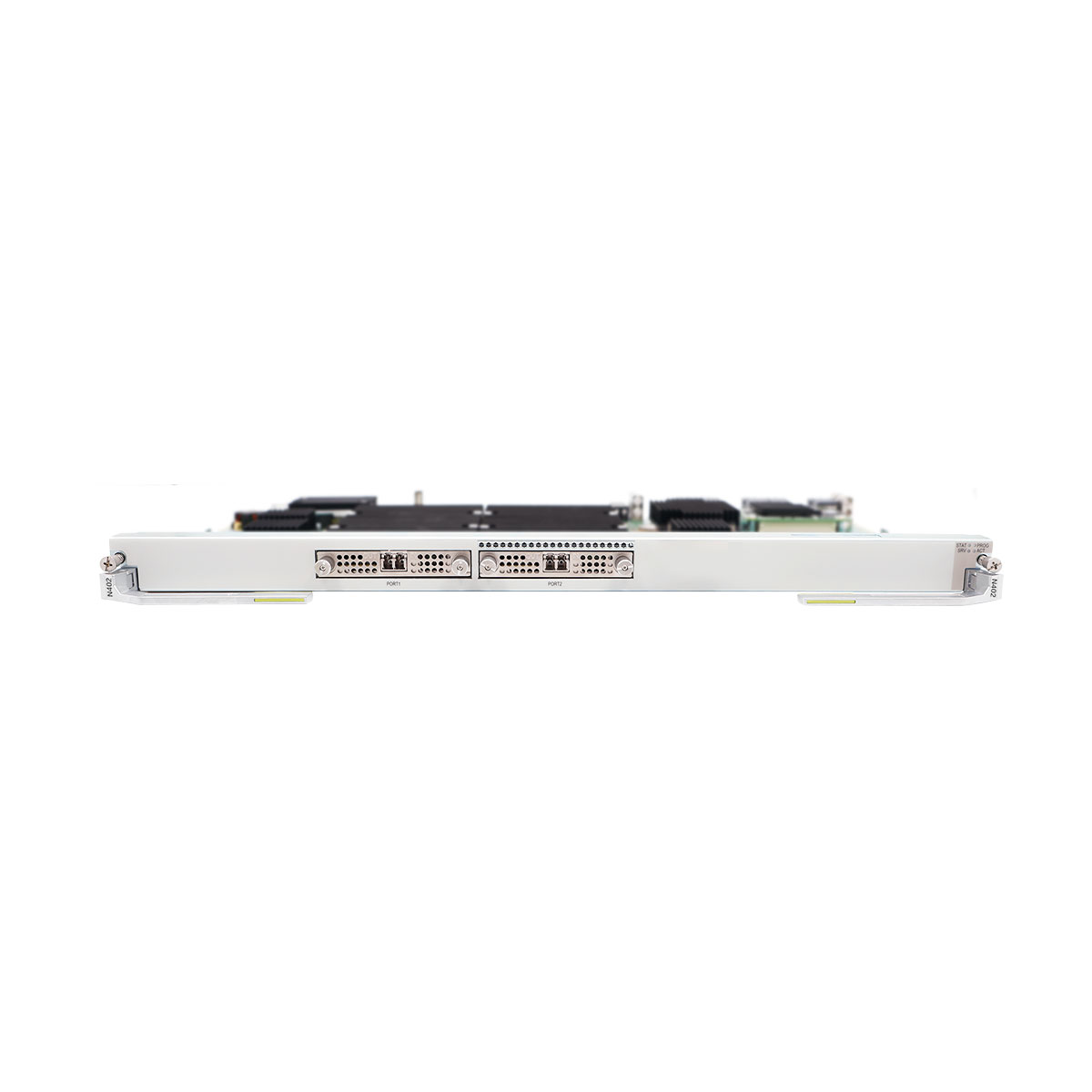

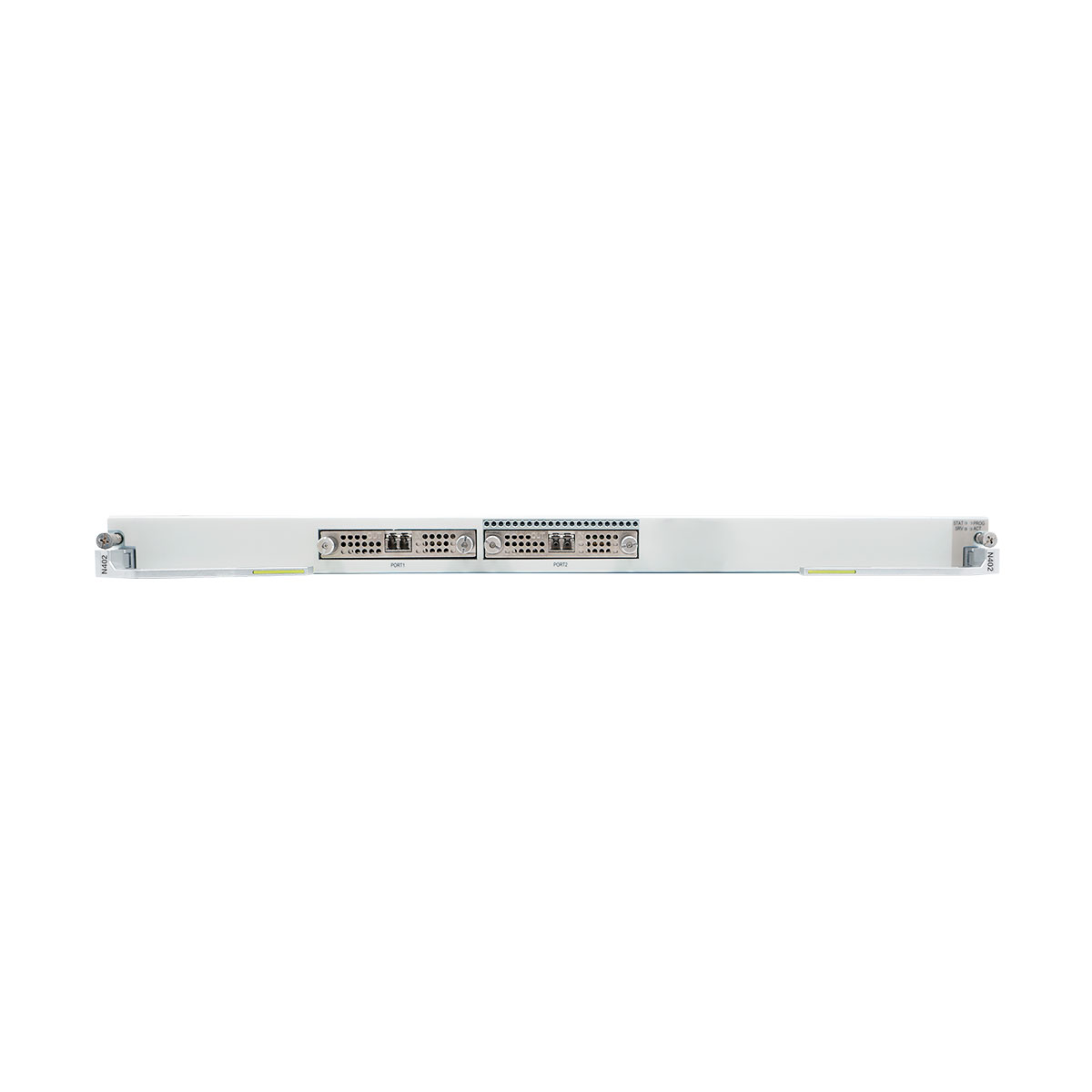

Front panel of the TNU6N402 board

Valid slots for the TNU6N402 board in a U64/U32/U16 subrack

Product	Valid Slots
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1-IU64
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1-IU32
OptiX OSN 9800 U16 subrack	IU1-IU14

Valid slots for the TNU6N402 board in an M24 subrack

Product	Valid Slots
OptiX OSN 9800 M24 subrack	(IU1, IU13), (IU2, IU14), …, (IU11, IU23), (IU12, IU24)

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
TNU6N402	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH+, T50)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, T51)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, high optical power, T51)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	55000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH, T52)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, LH, T53)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, T61)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, high optical power, T61)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	16000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, Metro+, T63)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	55000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH, High optical power, T52)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	40000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, LH, High optical power, T53)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	16000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK wDCM(SDFEC2, Metro+, High optical power, T63)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	100000ps/nm-Super C band-Tunable wavelength-ePDM-100G QPSK (SDFEC2, SLH, F51)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK(SDFEC2, SLH, A51)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK wDCM(SDFEC2, LH, A62)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU6N402	100000ps/nm-Super C band-Tunable wavelength-100G QPSK(SDFEC2, SLH, T51)-CFP-PIN	OTU4	Pluggable Optical Module	WDM-Side

Functions and features of the TNU6N402 board (line mode)

Item	TNU6N402
Basic function	Supports the following service conversions:
	160xODU0/80xODU1/20xODU2/20xODU2e/4xODU3/2xODU4/160xODUflex<->2xOTU4
	Each port on the board supports a mix of ODU0, ODU1, ODU3, ODU2, ODU2e, and ODUflex signals.
Cross-connect capabilities	Supports backplane cross-connections of 160 ODU0, 80 ODU1, 20 ODU2, 20 ODU2e, 4 ODU3, 2 ODU4, or 160 ODUflex signals from/to the cross-connect board.
OTN functions	Supports OTU4 on the WDM side.
	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
	OTU4 layer: supports SM overhead processing.
	ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function	Supported
PRBS function	Supports the PRBS function on the WDM side.
FEC coding	SDFEC2
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Regeneration board	Supported
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Supported
Electrical-layer ASON	Supported
Optical-layer ASON	Supported
Protection scheme	Supports ODUk SNCP.
	Supports tributary SNCP protection.
	Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Loopback	WDM Side Loopback	ODU3 Channel Loopback	ODU2 Channel Loopback	ODU1 Channel Loopback	ODU0 Channel Loopback	ODUflex Channel Loopback
	Supported	Supported	Supported	Supported	Supported	Supported

Functions and features of the TNU6N402 board (relay mode)

Item	TNU6N402
Basic function	Electrically regenerates optical signals at an electrical REG station.
Supported service rate	OTU4: OTN service at a rate of 111.81 Gbit/s
OTN functions	Supports OTU4 on the WDM side.
	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
	OTU4 layer: supports SM overhead processing.
	ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board聽supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function	Supported
PRBS function	Not supported
FEC coding	SDFEC2
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty聽mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Not supported
Electrical-layer ASON	Not supported
Optical-layer ASON	Supported
Protection scheme	Not supported
Loopback	Not supported

Brand	Huawei
Lead Time	In Stock
Ship From	Shenzhen Warehouse

Functions and features of the TNU6N402 board (line mode)

Item	TNU6N402
Basic function	Supports the following service conversions:
	160xODU0/80xODU1/20xODU2/20xODU2e/4xODU3/2xODU4/160xODUflex<->2xOTU4
	Each port on the board supports a mix of ODU0, ODU1, ODU3, ODU2, ODU2e, and ODUflex signals.
Cross-connect capabilities	Supports backplane cross-connections of 160 ODU0, 80 ODU1, 20 ODU2, 20 ODU2e, 4 ODU3, 2 ODU4, or 160 ODUflex signals from/to the cross-connect board.
OTN functions	Supports OTU4 on the WDM side.
	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
	OTU4 layer: supports SM overhead processing.
	ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function	Supported
PRBS function	Supports the PRBS function on the WDM side.
FEC coding	SDFEC2
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Regeneration board	Supported
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Supported
Electrical-layer ASON	Supported
Optical-layer ASON	Supported
Protection scheme	Supports ODUk SNCP.
	Supports tributary SNCP protection.
	Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Loopback	WDM Side Loopback	ODU3 Channel Loopback	ODU2 Channel Loopback	ODU1 Channel Loopback	ODU0 Channel Loopback	ODUflex Channel Loopback
	Supported	Supported	Supported	Supported	Supported	Supported

Functions and features of the TNU6N402 board (relay mode)

Item	TNU6N402
Basic function	Electrically regenerates optical signals at an electrical REG station.
Supported service rate	OTU4: OTN service at a rate of 111.81 Gbit/s
OTN functions	Supports OTU4 on the WDM side.
	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
	OTU4 layer: supports SM overhead processing.
	ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board聽supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function	Supported
PRBS function	Not supported
FEC coding	SDFEC2
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty聽mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Not supported
Electrical-layer ASON	Not supported
Optical-layer ASON	Supported
Protection scheme	Not supported
Loopback	Not supported
