Huawei OptiX OSN 9800 board TNU5U401 1*100Gbit/s Universal Line Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNU5U401 overview

TNU5U401 supports 1*100Gbit/s Universal Line Service Processing Board applied to Huawei OptiX OSN 9800.

TNU5U401 board is a hybrid line board and supports a mixture of OTN, SDH, and packet services.

The TNU5U401 board processes and converts the received service signals into one OTU4 signal, which are carried over ITU-T G.694.1-compliant DWDM wavelengths.

The TNU5U401 board uses coherent receiving technologies and applies to coherent systems.

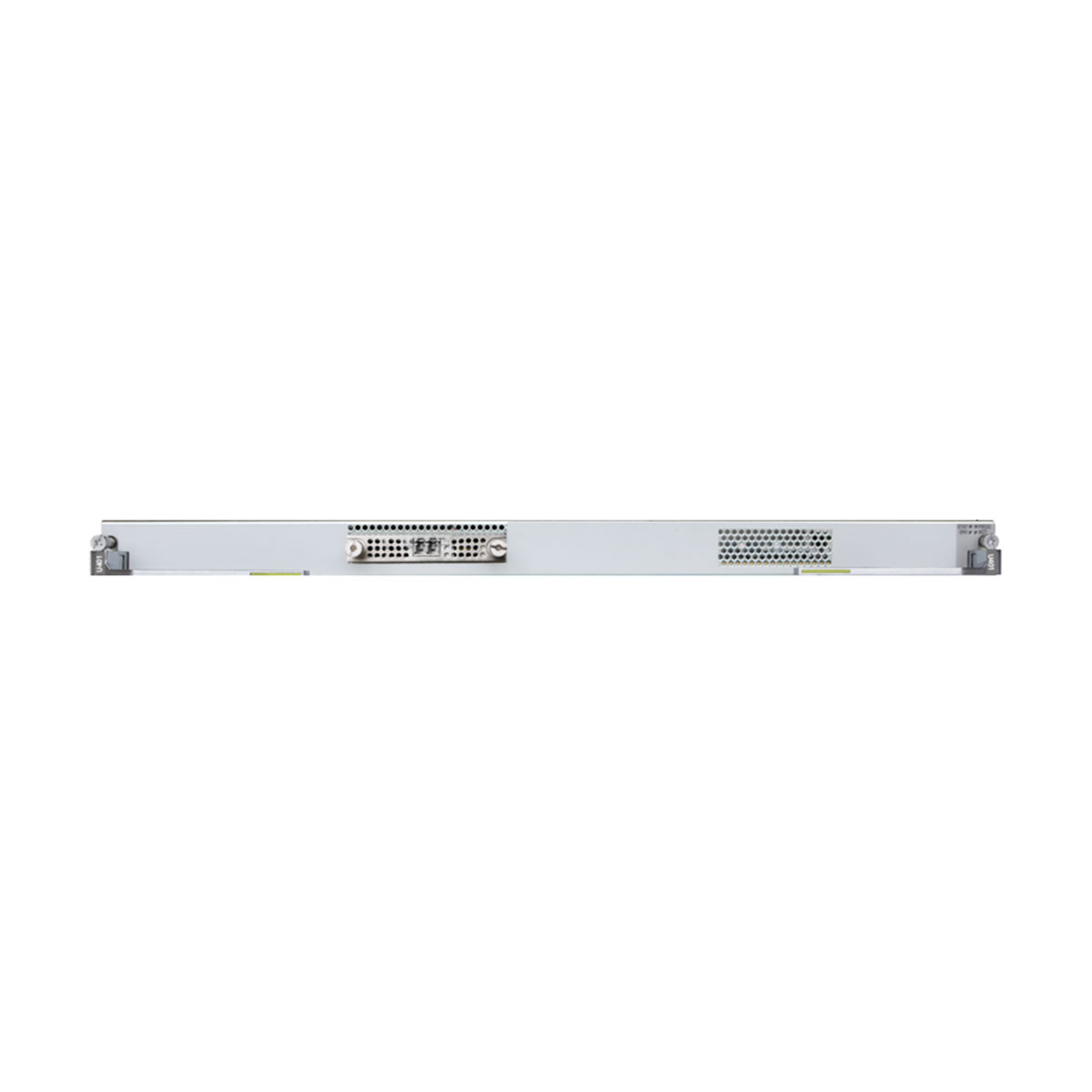

Appearance of the TNU5U401

Appearance of the TNU5U401

Valid slots for the TNU5U401 board in a U64/U32 subrack
Product Valid Slots
OptiX OSN 9800 U32 Standard subrack IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack IU1-IU32
OptiX OSN 9800 U64 Standard subrack IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack IU1-IU64
Valid slots for the TNU5U401 board in an M24 subrack
Product Valid Slots
OptiX OSN 9800 M24 subrack (IU1, IU13), (IU2, IU14), …… , (IU11, IU23), (IU12, IU24)

NOTE:

The slot ID displayed on the NMS is the ID of the lower one of the two slots occupied by the U401 board in a subrack. For example, when the U401 board occupies slots IU1 and IU13 in a subrack, the slot ID displayed on the NMS is IU1.

In the 1:3 mode, service boards cannot be installed in slots (IU6, IU18) and (IU7, IU19).
Item TNU5U401
OTN functions
  • Supports the OTU4 interface on the WDM side.
  • Supports the OTN frame format and overhead processing defined in ITU-T G.709.
  • OTU4 layer: supports SM overhead processing.
  • ODUk (k = 0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
PRBS test function Supports the PRBS function on the WDM side.
FEC coding
  • Gray light optical module: Supports FEC encoding.
  • Other modules: Supports SDFEC2 and HFEC PLUS encoding.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Regeneration board The WDM-side signals from an U401 board can be regenerated by another U401, N402, LTX board of the same type.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels. When VPs are configured and lower-order ODUk cross-connections are created, the U401 board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
Test frame Not supported
Physical clock Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)
IEEE 1588v2 Supported
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Only the U401 board of an OptiX OSN 9800 M24 subrack supports ITU-T G.8273.2.
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:

Only ASON without optical parameters is supported in high SOP mode.
Protection schemes
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
  • Supports intra-board 1+1 protection (when working with the OLP or DCP board).
NOTE:
When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. ODUk SNCP protection and tributary SNCP are not supported when packet services are cross-connected from the backplane.
Loopback WDM-Side Loopback Supported
Channel Loopback ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
ESC Supported
Specifications for Optical Modules
Board Optical Modules Service type Optical Module Type Position
U401 CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP Specifications OTU4 Pluggable Optical Module WDM-Side
U401 40000 ps/nm-Extended C band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH+, T5U)-CFP-PIN OTU4 Pluggable Optical Module WDM-Side
U401 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T65)-SMF OTU4 Pluggable Optical Module WDM-Side
U401 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T62)-SMF Specifications OTU4 Pluggable Optical Module WDM-Side
U401 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, TxA)-SMF Specifications
NOTE:
  • Configurable FEC types: SDFEC2, HFEC PLUS.
  • In a coherent network, the recommended modulation format for the TxA module is QPSK.
  • In a wDCM network, the modulation format can only be QPSK wDCM for the TxA module.
  • The QPSK and QPSK wDCM modulation formats cannot interconnect with each other.
 OTU4 Pluggable Optical Module WDM-Side
U401 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, T51)-100G CFP OTU4 Pluggable Optical Module WDM-Side
U401 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, T61)-100G CFP OTU4 Pluggable Optical Module WDM-Side
U401 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH+, T50)-100G CFP Specifications OTU4 Pluggable Optical Module WDM-Side
U401 16000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, Metro+, T63)-100G CFP OTU4 Pluggable Optical Module WDM-Side
U401 55000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH, T52)-100G CFP OTU4 Pluggable Optical Module WDM-Side
U401 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, LH, T53)-100G CFP OTU4 Pluggable Optical Module WDM-Side
U401 55000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH, High optical power, T52)-CFP OTU4 Pluggable Optical Module WDM-Side
U401 40000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, LH, High optical power, T53)-CFP OTU4 Pluggable Optical Module WDM-Side
U401 16000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK wDCM(SDFEC2, Metro+, High optical power, T63)-CFP OTU4 Pluggable Optical Module WDM-Side
U401 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, high optical power, T51)-100G CFP Specifications OTU4 Pluggable Optical Module WDM-Side
U401 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, high optical power, T61)-100G CFP Specifications OTU4 Pluggable Optical Module WDM-Side
U401 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, high optical power, T65)-SMF Specifications OTU4 Pluggable Optical Module WDM-Side
U401 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable,high optical power, T69)-SMF Specifications OTU4 Pluggable Optical Module WDM-Side
U401 100000ps/nm-Super C band-Tunable wavelength-ePDM-100G QPSK (SDFEC2, SLH, F51)-CFP OTU4 Pluggable Optical Module WDM-Side
U401 100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK(SDFEC2, SLH, A51)-CFP OTU4 Pluggable Optical Module WDM-Side
U401 100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK wDCM(SDFEC2, LH, A62)-CFP OTU4 Pluggable Optical Module WDM-Side
U401 100000ps/nm-Super C band-Tunable wavelength-100G QPSK(SDFEC2, SLH, T51)-CFP-PIN OTU4 Pluggable Optical Module WDM-Side
