Description

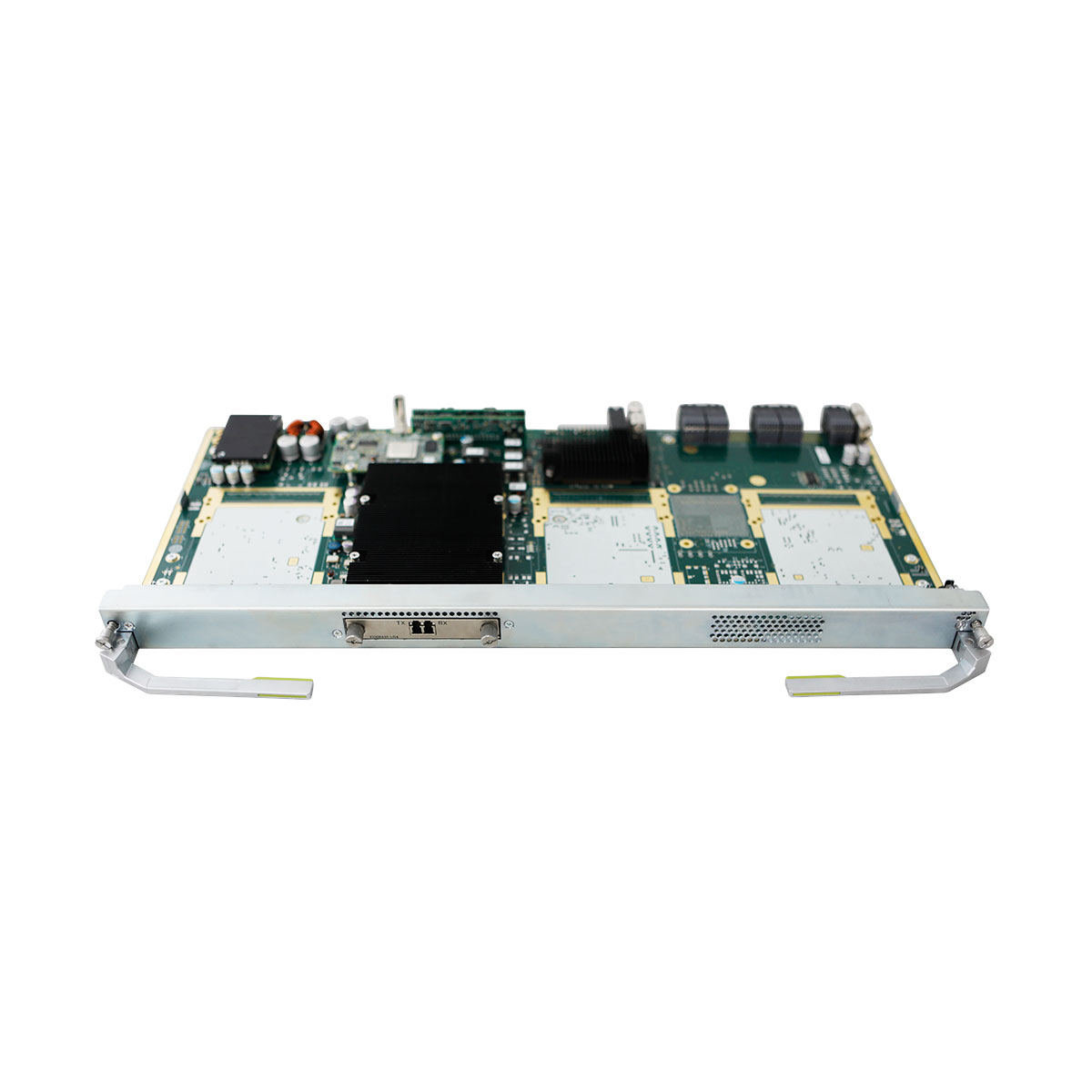

TNU5N401 overview

Huawei OptiX OSN 9800 TNU5N401 1*100 Gbit/s Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/U16/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

TNU5N401 also comes with TNU2N401P board version.

Power consumption (W): 100-108

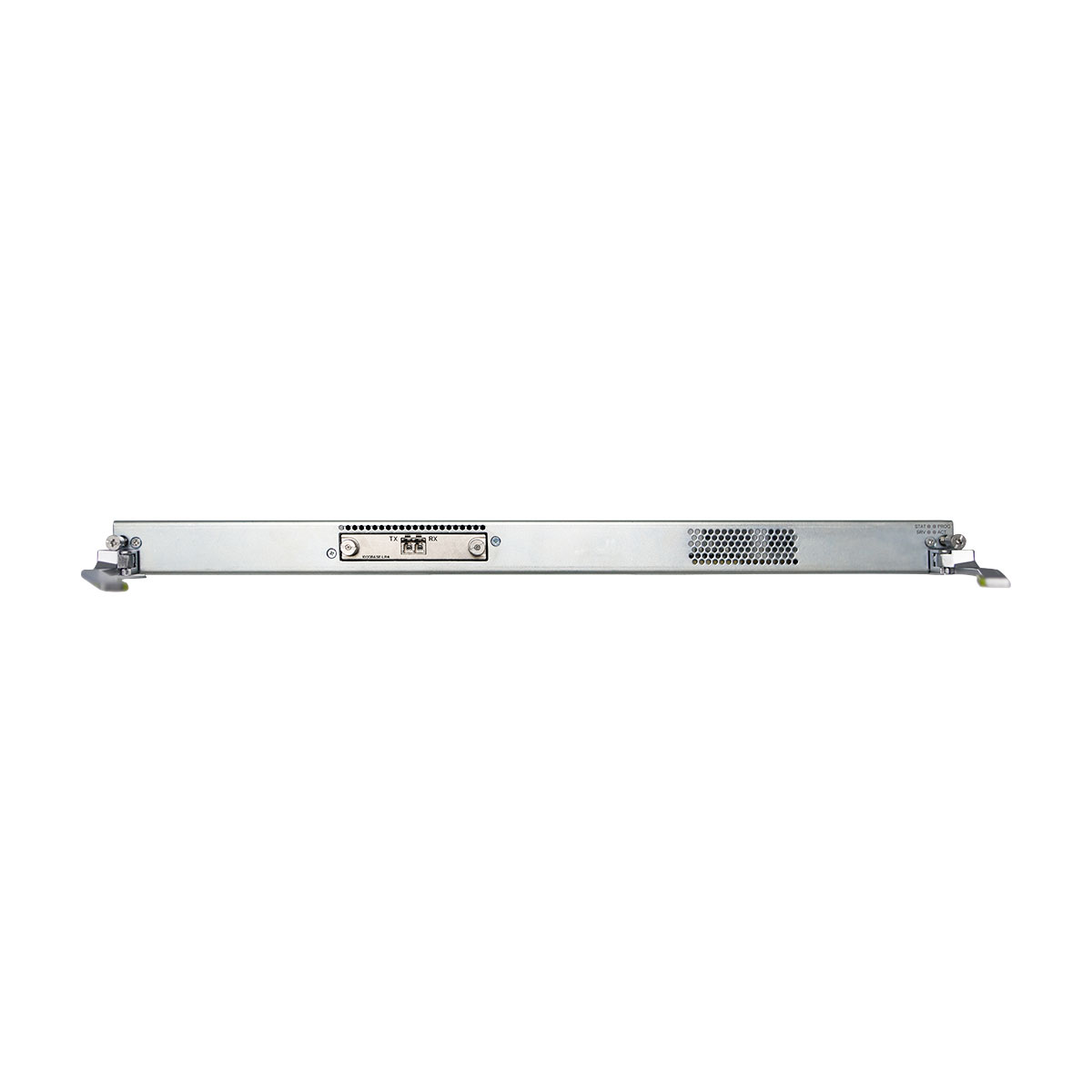

Front panel of the TNU5N401 board

Valid slots for the TNU5N401 board in a U64/U32/U16 subrack

Product	Valid Slots
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1-IU64
OptiX OSN 9800 U16 subrack	IU1-IU14
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1-IU32

Valid slots for the TNV5N220 board in an M24 subrack

Product	Valid Slots
OptiX OSN 9800 M24 subrack	(IU1, IU13), (IU2, IU14), …, (IU11, IU23), (IU12, IU24)

Specifications for Optical Modules

Board	Optical Module	Service Type	Optical Module Type	Position
TNU5N401	CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	40000 ps/nm-Extended C band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH+, T5U)-CFP-PIN	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T65)-SMF	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T62)-SMF Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, TxA)-SMF Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, T51)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, T61)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, high optical power, T65)-SMF Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable,high optical power, T69)-SMF Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, high optical power, T51)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, high optical power, T61)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH+, T50)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	55000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH, T52)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, LH, T53)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	16000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, Metro+, T63)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	55000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH, High optical power, T52)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	40000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, LH, High optical power, T53)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	16000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK wDCM(SDFEC2, Metro+, High optical power, T63)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	100000ps/nm-Super C band-Tunable wavelength-ePDM-100G QPSK (SDFEC2, SLH, F51)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK(SDFEC2, SLH, A51)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK wDCM(SDFEC2, LH, A62)-CFP	OTU4	Pluggable Optical Module	WDM-Side
TNU5N401	100000ps/nm-Super C band-Tunable wavelength-100G QPSK(SDFEC2, SLH, T51)-CFP-PIN	OTU4	Pluggable Optical Module	WDM-Side

Functions and features of the TNU5N401 board (line mode)

Item	TNU5N401
Basic function	Supports the following service conversions:
	80 x ODU0/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4/80 x ODUflex <-> 1 x OTU4
	The board supports a mix of ODU0, ODU1, ODU2, ODU2e, ODU3, and ODUflex signals.
Cross-connect capabilities	Supports backplane cross-connections of 80 ODU0, 40 ODU1, 10 ODU2, 10 ODU2e, 2 ODU3, 1 ODU4, or 80 ODUflex signals from/to the cross-connect board.
OTN functions	Supports OTU4 interface the WDM side.
	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
	OTU4 layer: supports SM overhead processing.
	ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
	The TNU5N401 board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function	Supported
PRBS function	Supports the PRBS function on the WDM side.
FEC coding	TNV1N401T01: HFEC
	TNV1N401C01: FEC
	TNU1N401: SDFEC
	TNU2N401/TNU3N401: SDFEC2
	TNV2N401: HFEC
	TNU5N401:
	CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP modules: FEC
	Other modules: SDFEC2 and HFEC PLUS
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Regeneration board	The WDM-side signals of an N401 board can be regenerated using the N401, N402, LTX, or NS4 board of the same type. For example,
	The type of the TNV1N401T01 board is T01, and the WDM-side signals of the TNV1N401T01 board can be regenerated using the N401, N402, LTX, or NS4 board of the T01 type, such as TNV1N401T01, TNV2N401T01, TNV2N402T01, TN11LTXT01, TN12LTXT01, TN54NS4T01, TN57NS4T01.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	TNU3N401/TNU5N401: Supported
	TNU2N401: Supported by some board types. For details about the supported board types, please email to supportmaster@huawei.com.
	Other N401 boards: Not supported
Electrical-layer ASON	Supported
Optical-layer ASON	Supported
Protection scheme	Supports ODUk SNCP.
	Supports tributary SNCP protection.
	Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Loopback	WDM Side Loopback	ODU3 Channel Loopback	ODU2 Channel Loopback	ODU1 Channel Loopback	ODU0 Channel Loopback	ODUflex Channel Loopback
	Supported	Supported	Supported	Supported	Supported	Supported

Functions and features of the TNU5N401 board (relay mode)

Item	TNU5N401
Basic function	Electrically regenerates optical signals at an electrical REG station.
Supported service rate	OTU4: OTN service at a rate of 111.81 Gbit/s
OTN function	Supports OTU4 interface the WDM side.
	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
	OTU4 layer: supports SM overhead processing.
	ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
	The TNU5N401 board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function	Supported
PRBS function	Not supported
FEC coding	TNV1N401: HFEC
	TNU1N401: SDFEC
	TNU2N401/TNU3N401: SDFEC2
	TNV2N401: HFEC
	TNU5N401:
	Colored-light Optical modules: SDFEC2 and HFEC PLUS
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Not supported
Electrical-layer ASON	Not supported
Optical-layer ASON	Supported
Protection scheme	Not supported
Loopback	Not supported

Functions and features of the TNU5N401 board (line mode)

Item	TNU5N401
Basic function	Supports the following service conversions:
	80 x ODU0/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4/80 x ODUflex <-> 1 x OTU4
	The board supports a mix of ODU0, ODU1, ODU2, ODU2e, ODU3, and ODUflex signals.
Cross-connect capabilities	Supports backplane cross-connections of 80 ODU0, 40 ODU1, 10 ODU2, 10 ODU2e, 2 ODU3, 1 ODU4, or 80 ODUflex signals from/to the cross-connect board.
OTN functions	Supports OTU4 interface the WDM side.
	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
	OTU4 layer: supports SM overhead processing.
	ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
	The TNU5N401 board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function	Supported
PRBS function	Supports the PRBS function on the WDM side.
FEC coding	TNV1N401T01: HFEC
	TNV1N401C01: FEC
	TNU1N401: SDFEC
	TNU2N401/TNU3N401: SDFEC2
	TNV2N401: HFEC
	TNU5N401:
	CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP modules: FEC
	Other modules: SDFEC2 and HFEC PLUS
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Regeneration board	The WDM-side signals of an N401 board can be regenerated using the N401, N402, LTX, or NS4 board of the same type. For example,
	The type of the TNV1N401T01 board is T01, and the WDM-side signals of the TNV1N401T01 board can be regenerated using the N401, N402, LTX, or NS4 board of the T01 type, such as TNV1N401T01, TNV2N401T01, TNV2N402T01, TN11LTXT01, TN12LTXT01, TN54NS4T01, TN57NS4T01.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	TNU3N401/TNU5N401: Supported
	TNU2N401: Supported by some board types. For details about the supported board types, please email to supportmaster@huawei.com.
	Other N401 boards: Not supported
Electrical-layer ASON	Supported
Optical-layer ASON	Supported
Protection scheme	Supports ODUk SNCP.
	Supports tributary SNCP protection.
	Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Loopback	WDM Side Loopback	ODU3 Channel Loopback	ODU2 Channel Loopback	ODU1 Channel Loopback	ODU0 Channel Loopback	ODUflex Channel Loopback
	Supported	Supported	Supported	Supported	Supported	Supported

Functions and features of the TNU5N401 board (relay mode)

Item	TNU5N401
Basic function	Electrically regenerates optical signals at an electrical REG station.
Supported service rate	OTU4: OTN service at a rate of 111.81 Gbit/s
OTN function	Supports OTU4 interface the WDM side.
	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
	OTU4 layer: supports SM overhead processing.
	ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
	The TNU5N401 board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function	Supported
PRBS function	Not supported
FEC coding	TNV1N401: HFEC
	TNU1N401: SDFEC
	TNU2N401/TNU3N401: SDFEC2
	TNV2N401: HFEC
	TNU5N401:
	Colored-light Optical modules: SDFEC2 and HFEC PLUS
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Not supported
Electrical-layer ASON	Not supported
Optical-layer ASON	Supported
Protection scheme	Not supported
Loopback	Not supported
