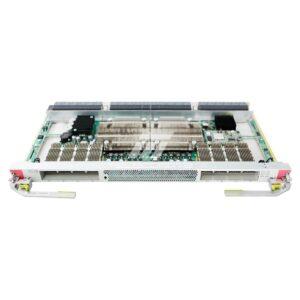

Huawei OptiX OSN 9800 TNU3UCXCS Universal Cluster Cross Connect Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNU3UCXCS overview

TNU3UCXCS Universal Cluster Cross Connect Board applied to Huawei OptiX OSN 9800 U32/U64.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNU3UCXCS board has two variants: TNU3UCXCS and TNU3UCXCS06. The two variants are interchangeable.

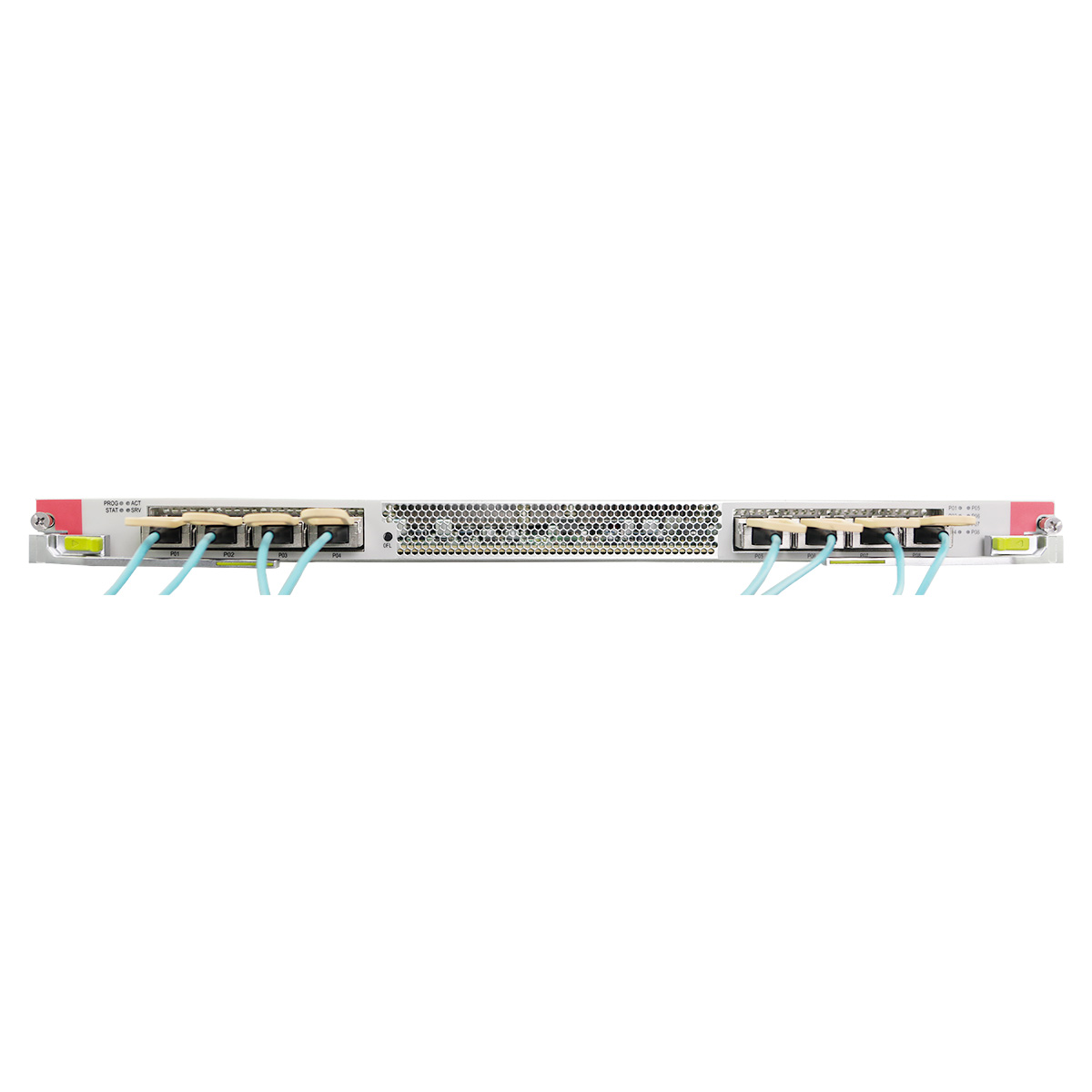

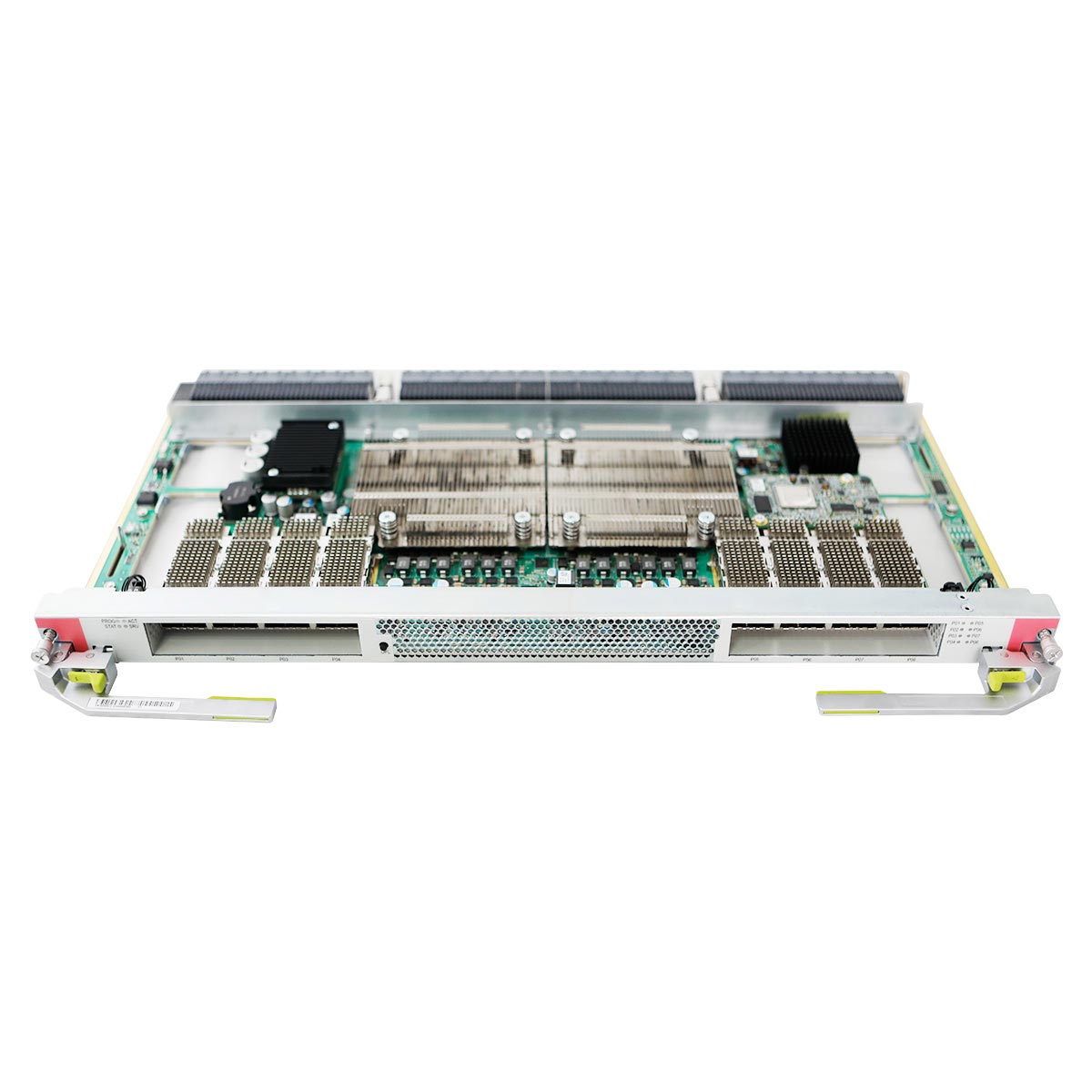

Front panel of the TNU3UCXCS board

Front panel of the TNU3UCXCS board

Valid slots for the TNU3UCXCS board in a U32/U64 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 U32 Enhanced	1	IU71 to IU77	IU71 to IU77
OptiX OSN 9800 U32 Standard	1	IU71 to IU77	IU71 to IU77
OptiX OSN 9800 U64 Enhanced	1	IU71 to IU77, IU79 to IU85	IU71 to IU77, IU79 to IU85
OptiX OSN 9800 U64 Standard	1	IU71 to IU77, IU79 to IU85	IU71 to IU77, IU79 to IU85

Item	TNU3UCXCS
Basic function	UCXCS board is a cross-connect board. The UCXCS board grooms and protects ODUk (k = 0, 1, 2, 2e, 3, 4, or flex), Packet, VC-4 and OSUflex signals within a subrack.
Cross-connect Capacity	U64 Standard subrack Cross-connects a maximum of 25.6 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. Performs packet switching of a maximum of 25.6 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 10.24 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 25.6 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. U64 Enhanced subrack Cross-connects a maximum of 64 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 1 Tbit/s. Performs packet switching of a maximum of 25.6 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 10.24 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 64 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 1 Tbit/s. U32 Standard subrack Cross-connects a maximum of 12.8 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. Performs packet switching of a maximum of 12.8 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 5.12 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 12.8 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. U32 Enhanced subrack 2:2 mode: Cross-connects a maximum of 12.8 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. Performs packet switching of a maximum of 12.8 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 5.12 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 12.8 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. 2:5 mode: Cross-connects a maximum of 32 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 1 Tbit/s. Performs packet switching of a maximum of 6.4 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 5.12 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 32 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 1 Tbit/s.
OTN cluster	Supported NOTE: The board supports an OTN cluster only when the U32 enhanced subrack or U64 enhanced subrack works in 2:5 cross-connect mode. In addition, it supports only a back-to-back cluster.
Electrical-layer ASON	Supported
SDH ASON	Supported
Backup mode	U64 Standard and U64 Enhanced subrack: The fourteen cross-connect boards form a cross-connect resource pool for service grooming. U32 Standard subrack: The seven cross-connect boards form a cross-connect resource pool for service grooming. U32 Enhanced subrack: 2:2 mode: The four cross-connect boards form a cross-connect resource pool for service grooming. 2:5 mode: The seven cross-connect boards form a cross-connect resource pool for service grooming. When two UCXCS boards are faulty, the system can still function properly. If more than two UCXCS boards become faulty, the system will fail.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	3.44 kg 7.58 lb.

Item	TNU3UCXCS
Basic function	UCXCS board is a cross-connect board. The UCXCS board grooms and protects ODUk (k = 0, 1, 2, 2e, 3, 4, or flex), Packet, VC-4 and OSUflex signals within a subrack.
Cross-connect Capacity	U64 Standard subrack Cross-connects a maximum of 25.6 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. Performs packet switching of a maximum of 25.6 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 10.24 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 25.6 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. U64 Enhanced subrack Cross-connects a maximum of 64 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 1 Tbit/s. Performs packet switching of a maximum of 25.6 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 10.24 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 64 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 1 Tbit/s. U32 Standard subrack Cross-connects a maximum of 12.8 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. Performs packet switching of a maximum of 12.8 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 5.12 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 12.8 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. U32 Enhanced subrack 2:2 mode: Cross-connects a maximum of 12.8 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. Performs packet switching of a maximum of 12.8 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 5.12 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 12.8 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. 2:5 mode: Cross-connects a maximum of 32 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 1 Tbit/s. Performs packet switching of a maximum of 6.4 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 5.12 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 32 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 1 Tbit/s.
OTN cluster	Supported NOTE: The board supports an OTN cluster only when the U32 enhanced subrack or U64 enhanced subrack works in 2:5 cross-connect mode. In addition, it supports only a back-to-back cluster.
Electrical-layer ASON	Supported
SDH ASON	Supported
Backup mode	U64 Standard and U64 Enhanced subrack: The fourteen cross-connect boards form a cross-connect resource pool for service grooming. U32 Standard subrack: The seven cross-connect boards form a cross-connect resource pool for service grooming. U32 Enhanced subrack: 2:2 mode: The four cross-connect boards form a cross-connect resource pool for service grooming. 2:5 mode: The seven cross-connect boards form a cross-connect resource pool for service grooming. When two UCXCS boards are faulty, the system can still function properly. If more than two UCXCS boards become faulty, the system will fail.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	3.44 kg 7.58 lb.
