Huawei OptiX OSN 9800 TNU3N602S33 2*100G/200G/400G or 1*100G high performance Programmable Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNU3N602S33 overview

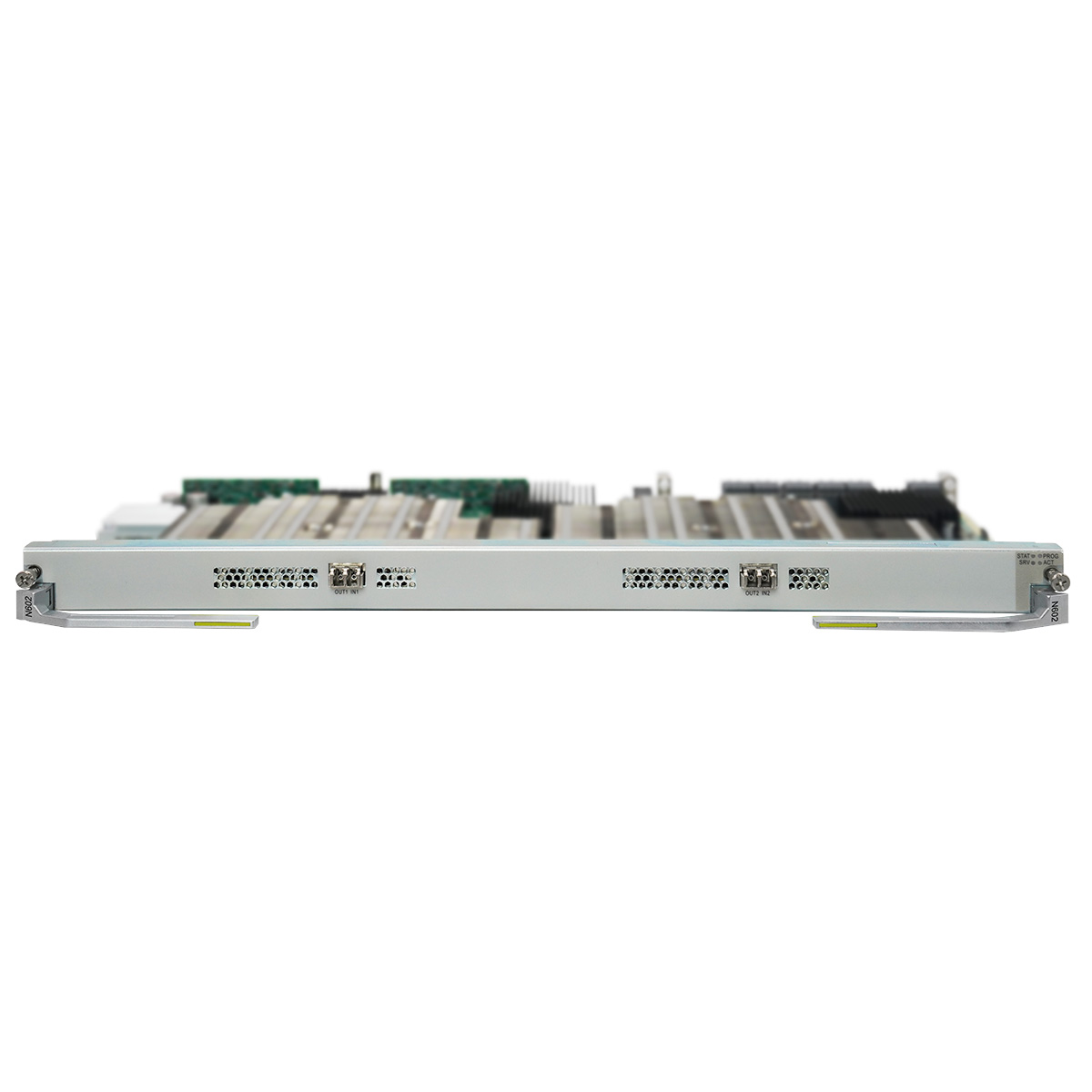

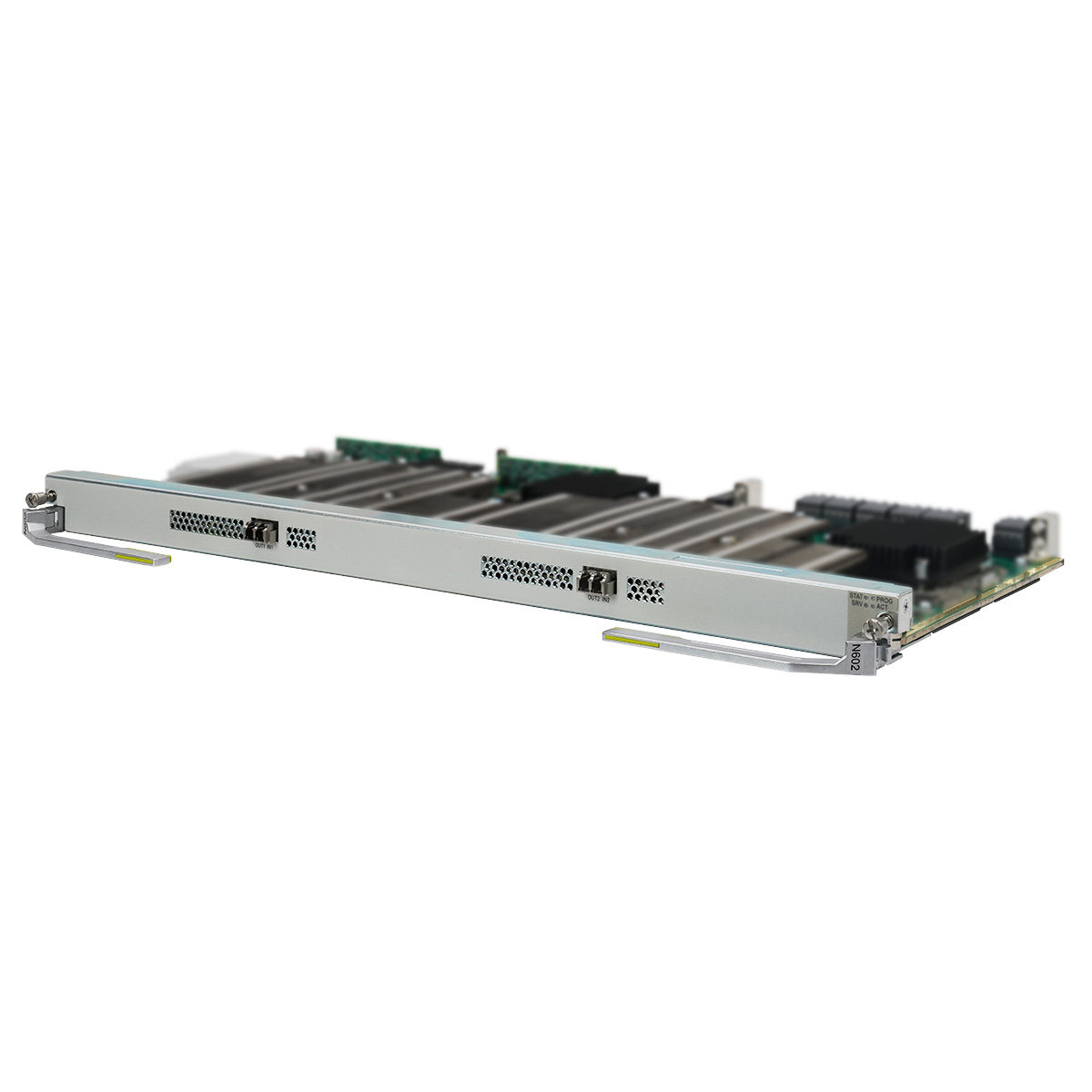

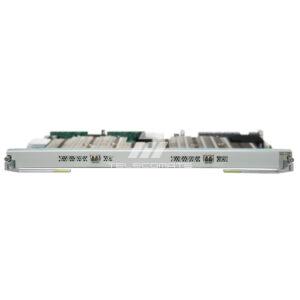

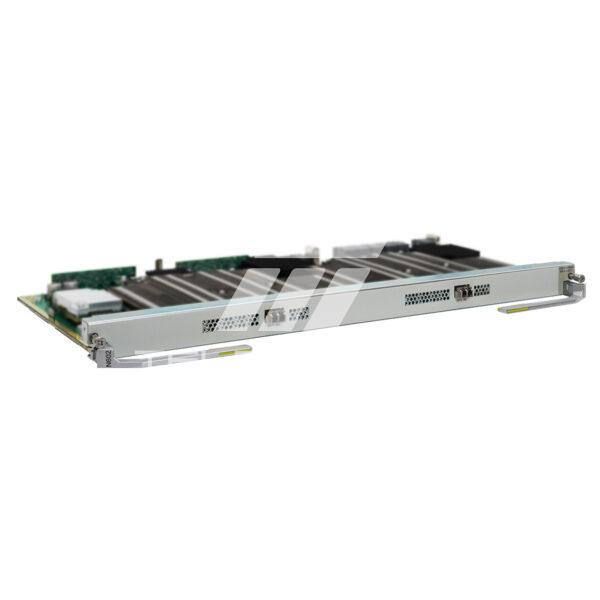

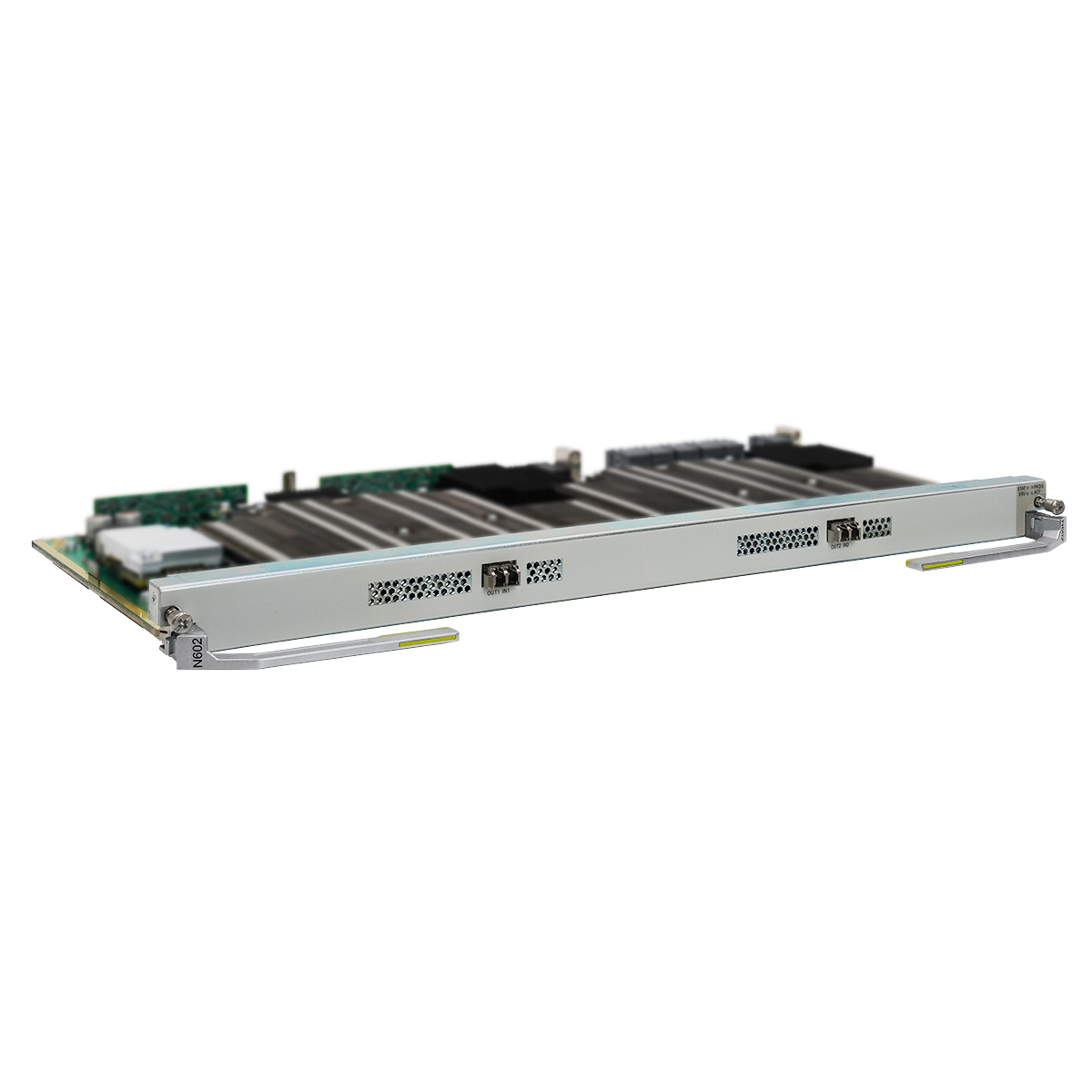

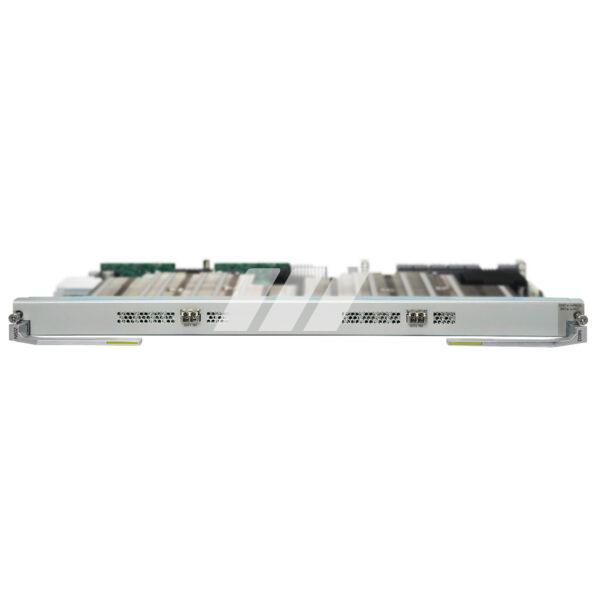

TNU3N602S33 2*100G/200G/400G or 1*100G high performance Programmable Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNU3N602 board has only one variant: TNU3N602S33.

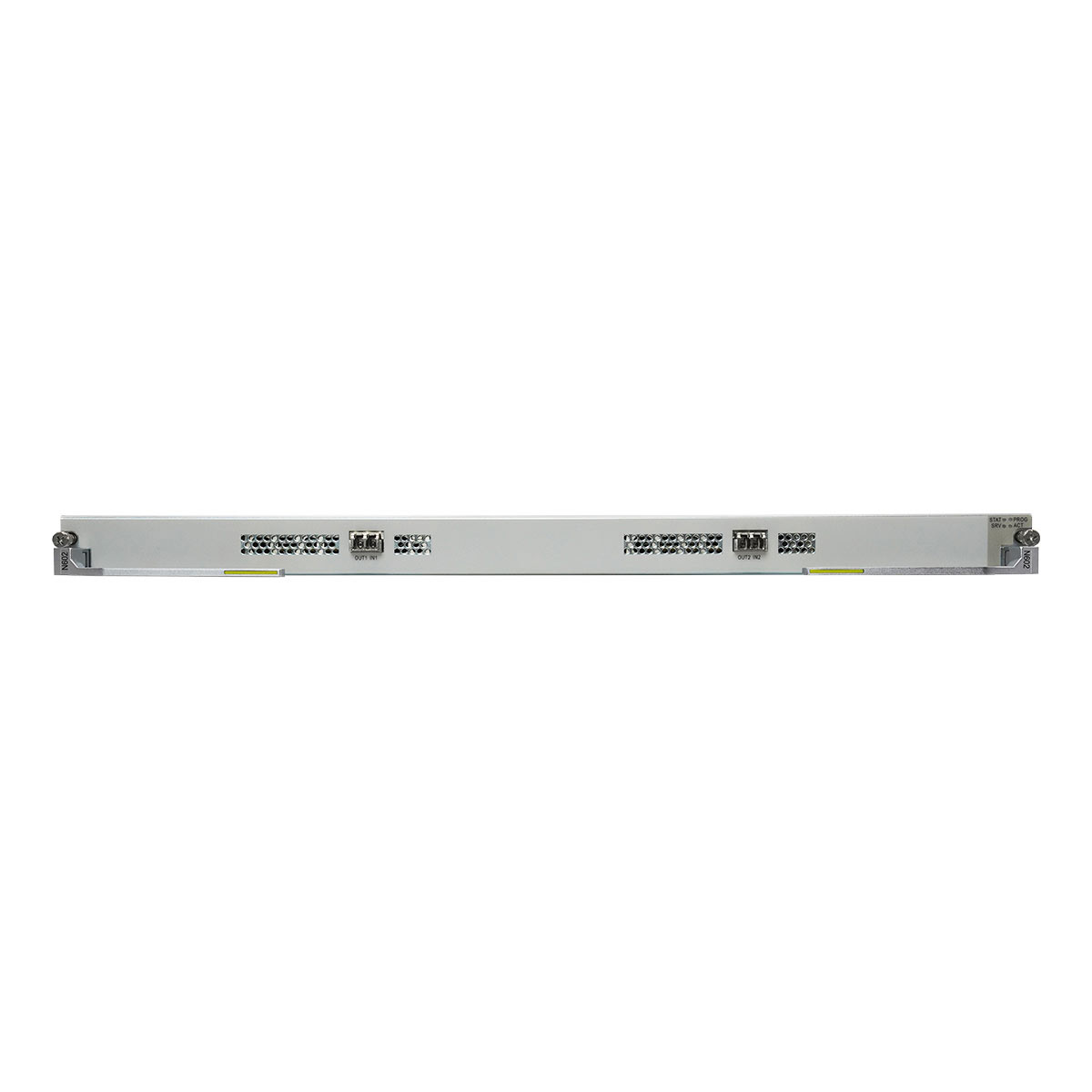

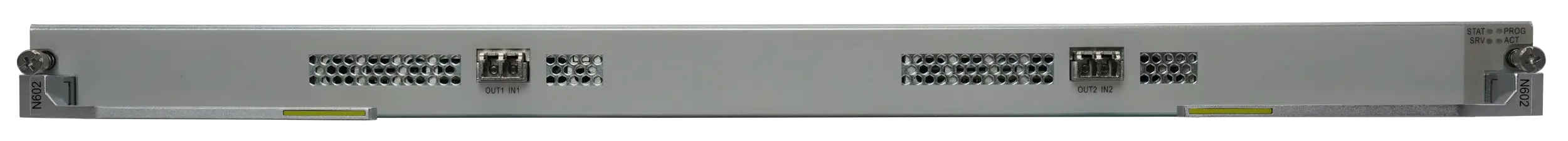

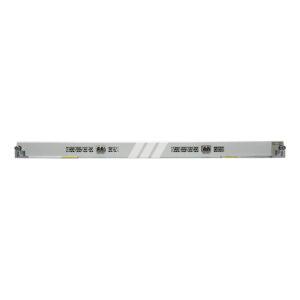

Front panel of the TNU3N602S33 board

Front panel of the TNU3N602S33 board

Valid slots for the TNU3N602S33 board in a U64/U32/M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M24	2	(IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24)	IU1 to IU12
OptiX OSN 9800 U32 Enhanced	1	IU1 to IU32	IU1 to IU32
OptiX OSN 9800 U64 Enhanced	1	IU1 to IU64	IU1 to IU64

Item	TNU3N602S33
Backplane capacity	The maximum capacity is 800 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding	SDFEC2
Line modulation format	400G 16QAM 200G e16QAM-H 200G e16QAM 100G QPSK 100G GS-QPSK 100G GS-BPSK(Dual_Ports) NOTE: Because the TNU3N602S33 board has been optimized based on the nonlinearity of submarine cable links, its 100G QPSK (SDFEC2) and 200G e16QAM (SDFEC2) optical line modulation formats cannot be interconnected with the 100G QPSK (SDFEC2) and 200G e16QAM (SDFEC2) optical line modulation formats of terrestrial cable boards.
Typical channel spacing	100G_GS-BPSK(Dual_Ports): 2(50GHzn)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 100G QPSK: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 100G GS-QPSK: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 200G e16QAM-H: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 200G e16QAM: 50GHz+n6.25GHz(n=0,1,2...) 400G 16QAM: 75GHz+n*6.25GHz(n=0,1,2...)
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTUC4/OTUC2/OTU4layer: supports SM overhead processing. ODUC4/ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards. 100G_GS-BPSK(Dual_Ports): Do not support intra-board 1+1 protection.
ODUk SNCP	Supported
Tributary SNCP	Supported
Electrical-layer ASON	Supported
Optical-layer ASON	Not supported
Physical clock	Supported NOTE: When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2	Not supported
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction).When higher-order ODU4 cross-connections are created on the board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback	100G line mode:ODUk (k=0, 1, 2, 3, flex) channel loopbacks 200G line mode:ODUk (k=0, 1, 2, 3, 4, flex) channel loopbacks 400G line mode:ODUk (k=0, 1, 2, 3, 4, flex) channel loopbacks
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Functions and Features of the TNU3N602S33 Board (Regeneration)
Basic function	Electrically regenerates optical signals at an electrical REG station.
Regeneration mode	Unidirectional regeneration
Regeneration mode	Unidirectional regeneration
Regeneration rate	OTU4 OTUC4 OTUC2
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding	SDFEC2
Line modulation format	400G 16QAM 200G e16QAM-H 200G e16QAM 100G QPSK 100G GS-QPSK 100G GS-BPSK(Dual_Ports) NOTE: Because the TNU3N602S33 board has been optimized based on the nonlinearity of submarine cable links, its 100G QPSK (SDFEC2) and 200G e16QAM (SDFEC2) optical line modulation formats cannot be interconnected with the 100G QPSK (SDFEC2) and 200G e16QAM (SDFEC2) optical line modulation formats of terrestrial cable boards.
Typical channel spacing	100G_GS-BPSK(Dual_Ports): 2(50GHzn)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 100G QPSK: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 100G GS-QPSK: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 200G e16QAM-H: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 200G e16QAM: 50GHz+n6.25GHz(n=0,1,2...) 400G 16QAM: 75GHz+n*6.25GHz(n=0,1,2...)
OTN overhead	WDM-side OTUC4/OTUC2/OTU4 layer: supports SM overhead processing. ODUC4/ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON	Not supported
Optical-layer ASON	Not supported
ALS	Supported
Outband DCN	Supports ESC communication.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	5.10 kg 11.24 lb.

Brand
Condition
Lead Time
Ship From
Warranty

Item	TNU3N602S33
Backplane capacity	The maximum capacity is 800 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding	SDFEC2
Line modulation format	400G 16QAM 200G e16QAM-H 200G e16QAM 100G QPSK 100G GS-QPSK 100G GS-BPSK(Dual_Ports) NOTE: Because the TNU3N602S33 board has been optimized based on the nonlinearity of submarine cable links, its 100G QPSK (SDFEC2) and 200G e16QAM (SDFEC2) optical line modulation formats cannot be interconnected with the 100G QPSK (SDFEC2) and 200G e16QAM (SDFEC2) optical line modulation formats of terrestrial cable boards.
Typical channel spacing	100G_GS-BPSK(Dual_Ports): 2(50GHzn)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 100G QPSK: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 100G GS-QPSK: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 200G e16QAM-H: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 200G e16QAM: 50GHz+n6.25GHz(n=0,1,2...) 400G 16QAM: 75GHz+n*6.25GHz(n=0,1,2...)
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTUC4/OTUC2/OTU4layer: supports SM overhead processing. ODUC4/ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards. 100G_GS-BPSK(Dual_Ports): Do not support intra-board 1+1 protection.
ODUk SNCP	Supported
Tributary SNCP	Supported
Electrical-layer ASON	Supported
Optical-layer ASON	Not supported
Physical clock	Supported NOTE: When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2	Not supported
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction).When higher-order ODU4 cross-connections are created on the board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback	100G line mode:ODUk (k=0, 1, 2, 3, flex) channel loopbacks 200G line mode:ODUk (k=0, 1, 2, 3, 4, flex) channel loopbacks 400G line mode:ODUk (k=0, 1, 2, 3, 4, flex) channel loopbacks
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Functions and Features of the TNU3N602S33 Board (Regeneration)
Basic function	Electrically regenerates optical signals at an electrical REG station.
Regeneration mode	Unidirectional regeneration
Regeneration mode	Unidirectional regeneration
Regeneration rate	OTU4 OTUC4 OTUC2
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding	SDFEC2
Line modulation format	400G 16QAM 200G e16QAM-H 200G e16QAM 100G QPSK 100G GS-QPSK 100G GS-BPSK(Dual_Ports) NOTE: Because the TNU3N602S33 board has been optimized based on the nonlinearity of submarine cable links, its 100G QPSK (SDFEC2) and 200G e16QAM (SDFEC2) optical line modulation formats cannot be interconnected with the 100G QPSK (SDFEC2) and 200G e16QAM (SDFEC2) optical line modulation formats of terrestrial cable boards.
Typical channel spacing	100G_GS-BPSK(Dual_Ports): 2(50GHzn)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 100G QPSK: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 100G GS-QPSK: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 200G e16QAM-H: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 200G e16QAM: 50GHz+n6.25GHz(n=0,1,2...) 400G 16QAM: 75GHz+n*6.25GHz(n=0,1,2...)
OTN overhead	WDM-side OTUC4/OTUC2/OTU4 layer: supports SM overhead processing. ODUC4/ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON	Not supported
Optical-layer ASON	Not supported
ALS	Supported
Outband DCN	Supports ESC communication.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	5.10 kg 11.24 lb.
