Huawei OptiX OSN 9800 TNU2CTU System Control and Communication Board With Clock Processing Function

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNU2CTU overview

TNU2CTU System Control and Communication Board With Clock Processing Function, extended to 800G applied to Huawei OptiX OSN 9800 U64/U32.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

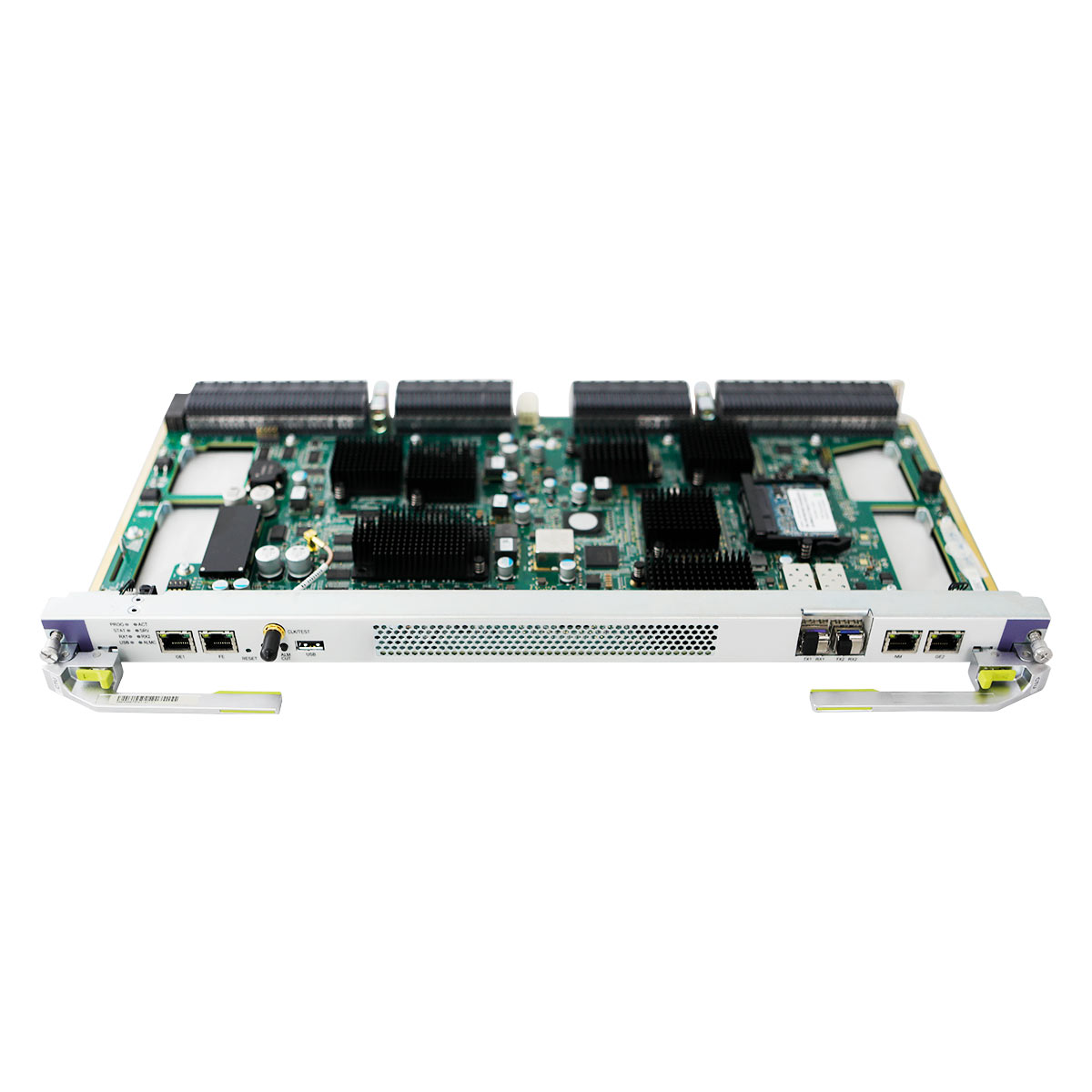

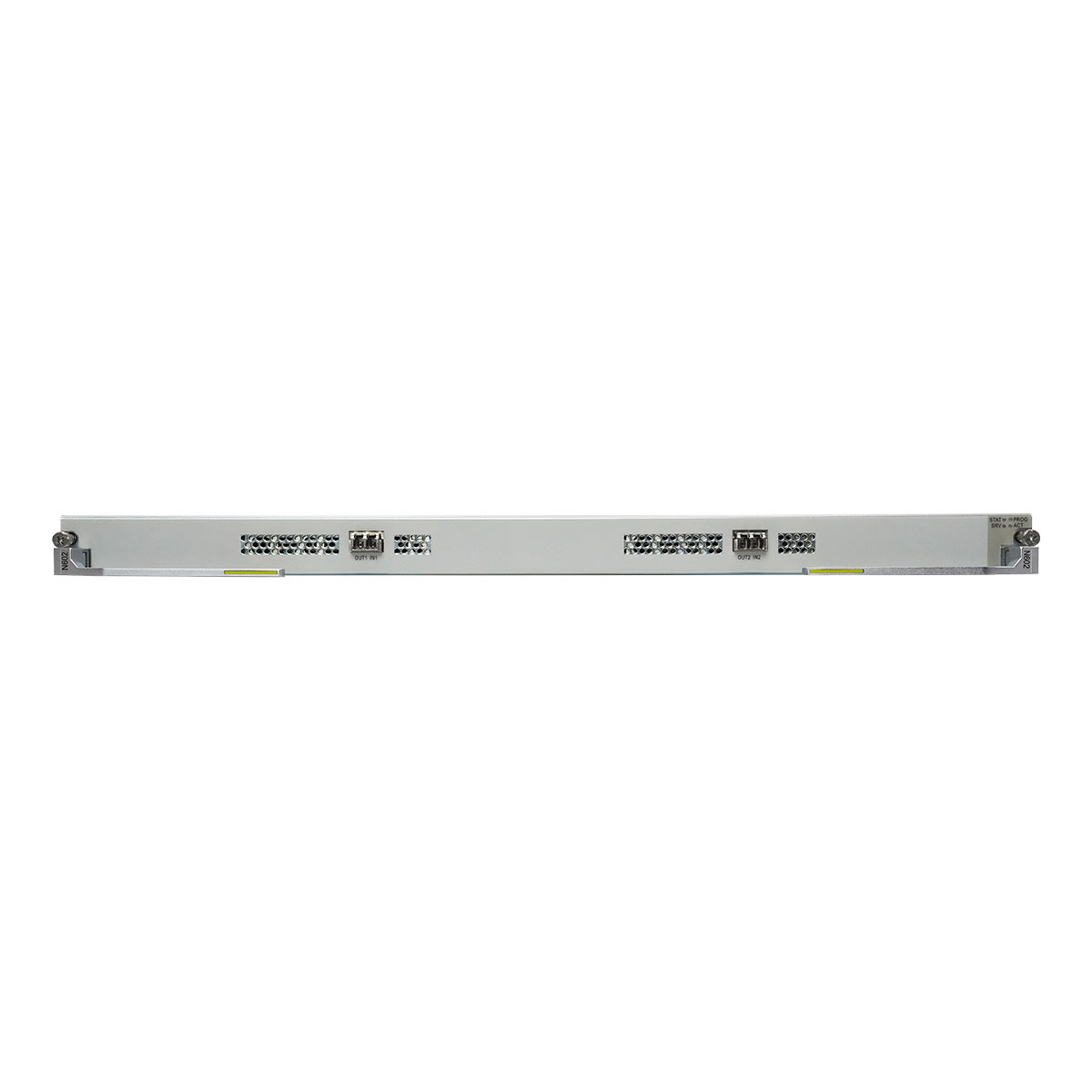

Front panel of the TNU2CTU board

Front panel of the TNU2CTU board

Valid slots for the TNU2CTU board in a U64/U32 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 U32 Enhanced	1	IU70, IU78	IU70, IU78
OptiX OSN 9800 U32 Standard	1	IU70, IU78	IU70, IU78
OptiX OSN 9800 U64 Enhanced	1	IU70, IU78	IU70, IU78
OptiX OSN 9800 U64 Standard	1	IU70, IU78	IU70, IU78

Item	TNU2CTU
Basic function	Grooms services, manages configurations, and reports alarms in a subrack. Backs up NE Data. When the data of an NE changes, the system control and communication unit immediately saves changed data to a storage medium to ensure that the NE data still exists after the NE undergoes a cold reset or power failure. This feature improves NE reliability. Implements communication between NEs through IP over DCC.
OTN cluster	Supported
Electrical-layer ASON	Supported
Master-Slave subrack	Supports subrack cascading.
DCC	NEs can be interconnected through the DCC.
Backup mode	Supports 1+1 hot backup. When the active board is faulty, services are automatically switched to the standby board. NOTE: After active/standby switching is completed, NE data must be manually uploaded.
Functions and Features of the TNU2CTU Board (Clock Unit)
Basic function	The board provides system clock signals and frame header signals for each service board.
Physical clock	Supported
IEEE 1588v2	Back-to-back cluster: supported 2+N cluster: not supported Non-cluster: supported
ITU-T G.8275.1	Back-to-back cluster: supported 2+N cluster: not supported Non-cluster: supported
ITU-T G.8273.2	Not supported
High-precision clock synchronization	Not Supported
External clock port	Supported
External time port	Back-to-back cluster: supported 2+N cluster: not supported Non-cluster: supported
Backup mode	Supports 1+1 hot backup.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	2.60 kg 5.73 lb.

Item	TNU2CTU
Basic function	Grooms services, manages configurations, and reports alarms in a subrack. Backs up NE Data. When the data of an NE changes, the system control and communication unit immediately saves changed data to a storage medium to ensure that the NE data still exists after the NE undergoes a cold reset or power failure. This feature improves NE reliability. Implements communication between NEs through IP over DCC.
OTN cluster	Supported
Electrical-layer ASON	Supported
Master-Slave subrack	Supports subrack cascading.
DCC	NEs can be interconnected through the DCC.
Backup mode	Supports 1+1 hot backup. When the active board is faulty, services are automatically switched to the standby board. NOTE: After active/standby switching is completed, NE data must be manually uploaded.
Functions and Features of the TNU2CTU Board (Clock Unit)
Basic function	The board provides system clock signals and frame header signals for each service board.
Physical clock	Supported
IEEE 1588v2	Back-to-back cluster: supported 2+N cluster: not supported Non-cluster: supported
ITU-T G.8275.1	Back-to-back cluster: supported 2+N cluster: not supported Non-cluster: supported
ITU-T G.8273.2	Not supported
High-precision clock synchronization	Not Supported
External clock port	Supported
External time port	Back-to-back cluster: supported 2+N cluster: not supported Non-cluster: supported
Backup mode	Supports 1+1 hot backup.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	2.60 kg 5.73 lb.
