Categories:OSN 9800 U Series

TNS7N402

0 Reviews Write a review

SKU2012864

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei OptiX OSN 9800 board TNS7N402 2*100Gbit/s Universal Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNS7N402 overview

TNS7N402 supports 2*100Gbit/s Universal Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/U16.

The TNS7N402 board is a hybrid line board and supports a mixture of OTN, SDH services.

The TNS7N402 board processes and converts the received service signals into two OTU4 signals. The OTU4 signals are carried over ITU-T G.694.1-compliant DWDM wavelengths.

The TNS7N402 board uses coherent receiving technologies and applies to coherent systems.

The optional versions of TNS7N402 are TNS4N402, TNS2N402, TNS8N402, TNS9N402.

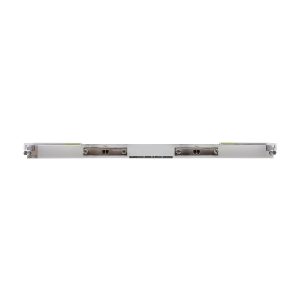

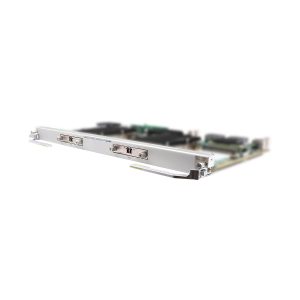

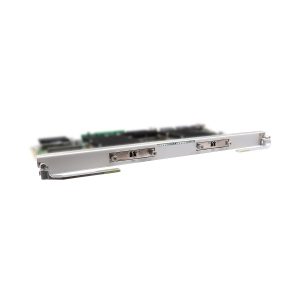

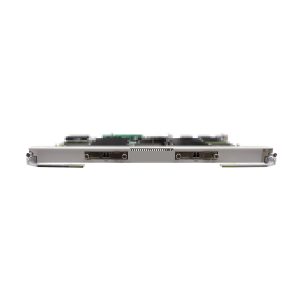

Appearance of the TNS7N402

Valid slots for the TNS7N402


Product	Valid Slots
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1-IU32
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1-IU64
OptiX OSN 9800 U16 Subrack	IU1-IU14

Item	TNS7N402
OTN functions	Supports the OTU4 interface on the WDM side. Supports the OTN frame format and overhead processing defined in ITU-T G.709. OTU4 layer: supports SM overhead processing. ODUk (k = 0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
PRBS test function	Supports the PRBS function on the WDM side.
FEC coding	Supports SDFEC2 encoding NOTE: Boards that use different FEC modes cannot interconnect with each other.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Test frame	Not supported
Physical clock	Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode.
Protection schemes	Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP or DCP board). NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Loopback	WDM-Side Loopback	Supported
Loopback	Channel Loopback	ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
ESC	Supported

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
N402/N404	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH+, T50)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, T51)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, high optical power, T51)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	55000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH, T52)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, LH, T53)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, T61)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, high optical power, T61)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	16000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, Metro+, T63)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	55000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH, High optical power, T52)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	40000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, LH, High optical power, T53)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	16000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK wDCM(SDFEC2, Metro+, High optical power, T63)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Super C band-Tunable wavelength-ePDM-100G QPSK (SDFEC2, SLH, F51)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK(SDFEC2, SLH, A51)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK wDCM(SDFEC2, LH, A62)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Super C band-Tunable wavelength-100G QPSK(SDFEC2, SLH, T51)-CFP-PIN	OTU4	Pluggable Optical Module	WDM-Side

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	TNS7N402
OTN functions	Supports the OTU4 interface on the WDM side. Supports the OTN frame format and overhead processing defined in ITU-T G.709. OTU4 layer: supports SM overhead processing. ODUk (k = 0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
PRBS test function	Supports the PRBS function on the WDM side.
FEC coding	Supports SDFEC2 encoding NOTE: Boards that use different FEC modes cannot interconnect with each other.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Test frame	Not supported
Physical clock	Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode.
Protection schemes	Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP or DCP board). NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Loopback	WDM-Side Loopback	Supported
Loopback	Channel Loopback	ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
ESC	Supported

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
N402/N404	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH+, T50)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, T51)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, high optical power, T51)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	55000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH, T52)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, LH, T53)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, T61)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, high optical power, T61)-100G CFP Specifications	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	16000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, Metro+, T63)-100G CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	55000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH, High optical power, T52)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	40000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, LH, High optical power, T53)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	16000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK wDCM(SDFEC2, Metro+, High optical power, T63)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Super C band-Tunable wavelength-ePDM-100G QPSK (SDFEC2, SLH, F51)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK(SDFEC2, SLH, A51)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK wDCM(SDFEC2, LH, A62)-CFP	OTU4	Pluggable Optical Module	WDM-Side
N402/N404	100000ps/nm-Super C band-Tunable wavelength-100G QPSK(SDFEC2, SLH, T51)-CFP-PIN	OTU4	Pluggable Optical Module	WDM-Side
