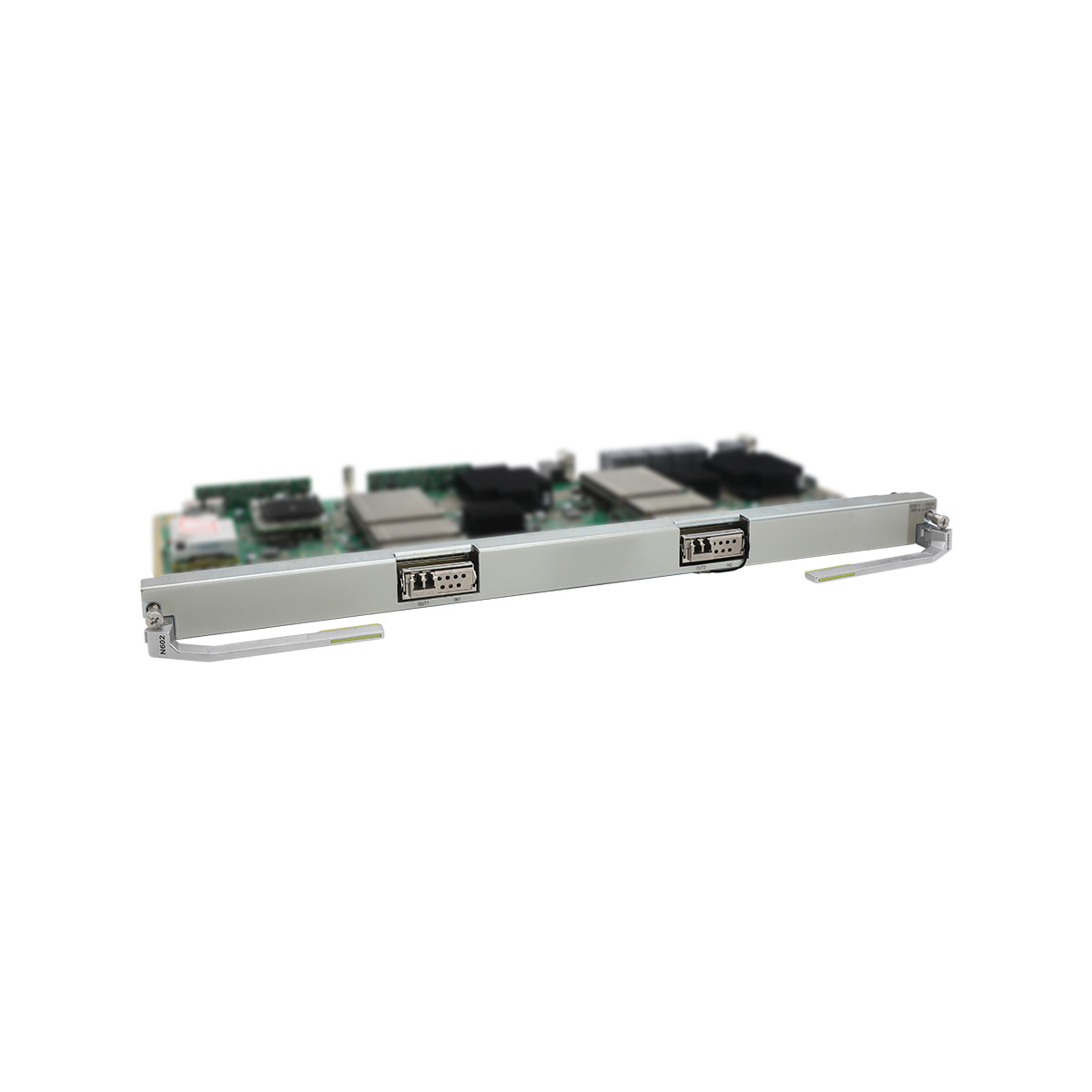

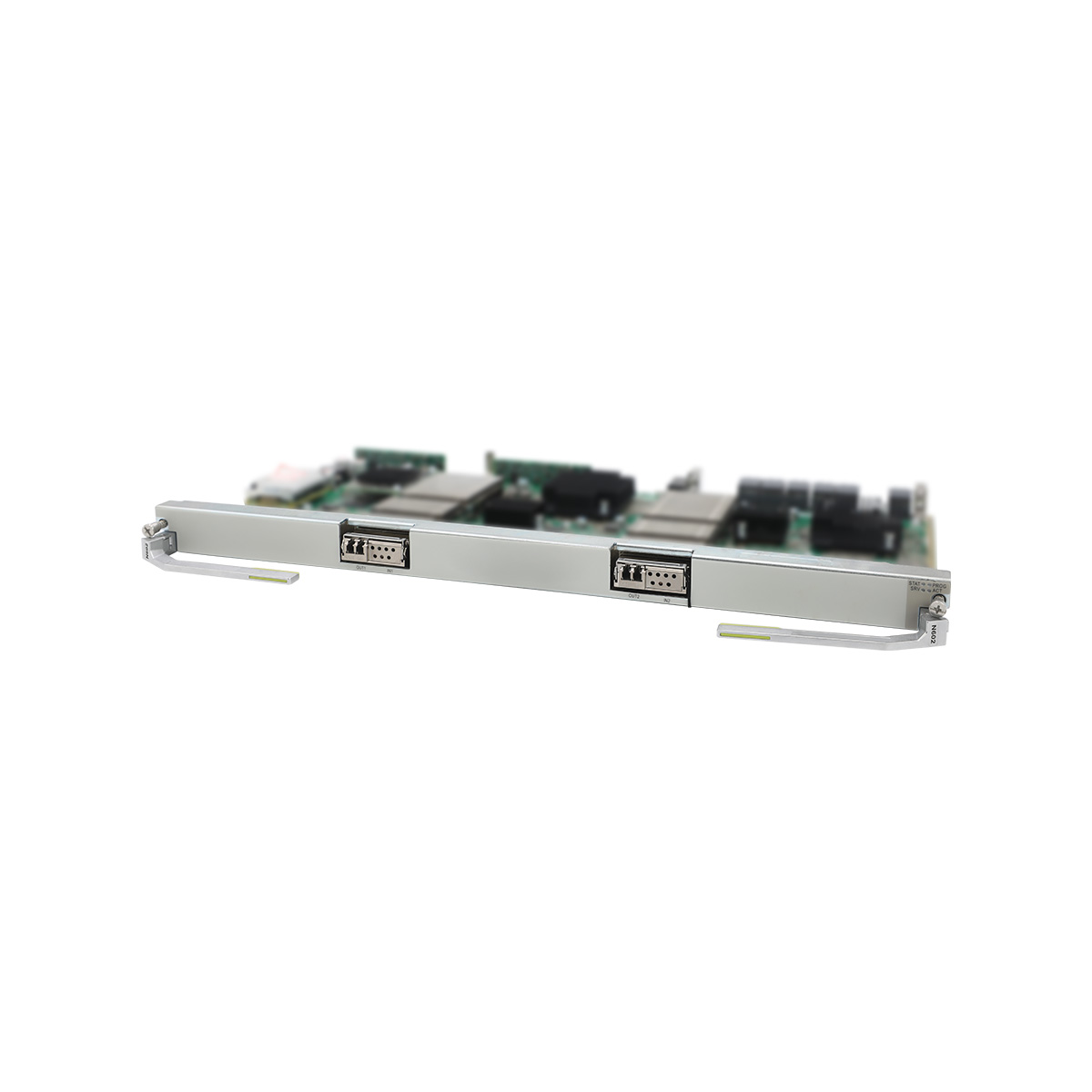

Huawei OptiX OSN 9800 TNS2N602 2*400G/200G Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNS2N602 overview

TNS2N602 10 Gbit/s tributary service processing board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNS2N602 board has only one variant: TNS2N602C21.

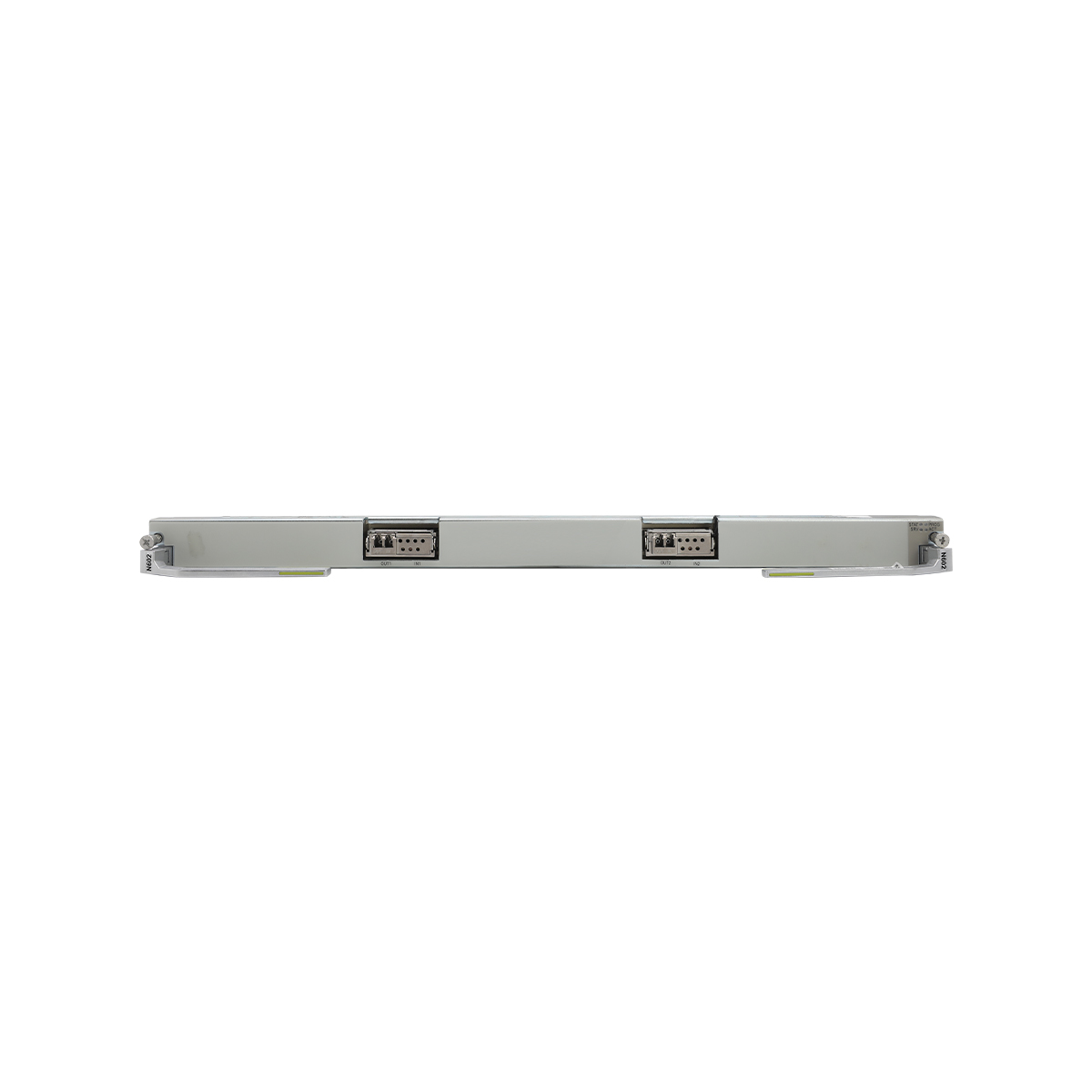

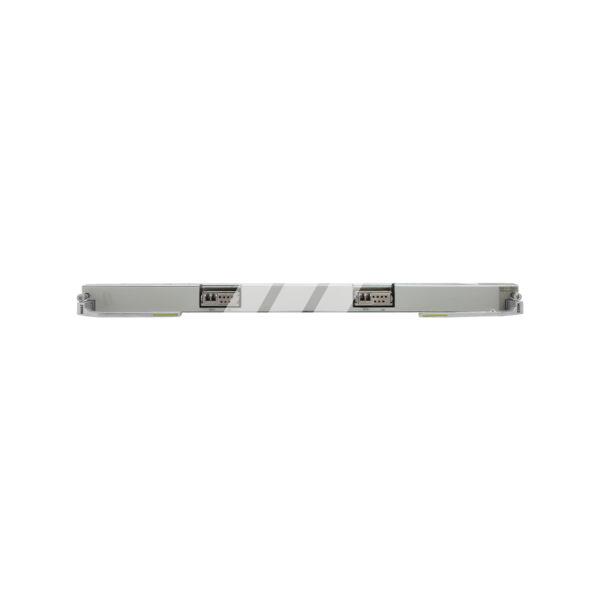

Front panel of the TNS2N602 board

Front panel of the TNS2N602 board

Valid slots for the TNS2N602 board in a U64/U32/M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M24	2	(IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24)	IU1 to IU12
OptiX OSN 9800 U32 Enhanced	1	IU1 to IU32	IU1 to IU32
OptiX OSN 9800 U64 Enhanced	1	IU1 to IU64	IU1 to IU64

Item	TNS2N602
Basic function	Implements mutual conversion between OTN signals and two OTUC4/OTUC2 signals.
Backplane capacity	The total backplane bandwidth is 800 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	400G m16QAM/400G s16QAM/400G 16QAM/200G QPSK: SDFEC4 200G e16QAM: SDFEC2 200G 16QAM/200G 16QAM-H: SDFEC
Line modulation format	400G m16QAM 400G s16QAM 400G 16QAM 200G QPSK 200G 16QAM 200G 16QAM-H 200G e16QAM
Typical channel spacing	400G s16QAM: 100 GHz + n x 6.25 GHz (n = 0, 1, 2...) 400G m16QAM/400G 16QAM/200G QPSK: 75 GHz + n x 6.25 GHz (n = 0, 1, 2...) 200G 16QAM/200G 16QAM-H: 50 GHz x n (n = 1, 2...) (Only the standard center frequency of 50 GHz is supported.) 200G e16QAM: 50 GHz + n x 6.25 GHz (n = 0, 1, 2...) NOTE: Due to large filter penalties, 400G s16QAM cannot work with the optical-layer boards with a 100 GHz channel spacing, such as TNG2D60 and TNG2M60.
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTUC4/OTUC2 layer: supports SM overhead processing. ODUC4/ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) Layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
OSU	NA
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP	Supported NOTE: When the cross-connect granularity is ODUflex, the board does not support ODUk SNCP protection.
OSUflex SNCP	Not supported
Tributary SNCP	Supported
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS	Not supported
Physical clock	Supported NOTE: When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2	Not supported
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	Delay measurement in the WDM-side optical port direction (upstream direction) is supported. Supports TCM delay measurement for higher-order ODU2(e)/ODU3/ODUflex/ODU4 channels when creating higher-order cross-connections. When lower order ODUk cross-connections are created, PM/TCM of higher order channels and TCM delay measurement of lower order ODUk channels are supported. Supports PM and TCM delay measurement at the ODUCn layer.
Channel loopback	Supports ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel inloops and outloops.
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring. Supports the monitoring of OTN alarms and performance events.
Functions and Features of the TNS2N602 Board (SDH)
Basic function	Provides two line ports for conversion between SDH signals and ODUk signals on the backplane.
Backplane capacity	The total backplane bandwidth is 80 Gbit/s.
Service processing	VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing	Processes the section overheads of STM-16/STM-64 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports transparent transmission of DCC channels.
SDH SNCP	Supported
Linear MSP	Supported
Ring MSP	Supports two-fiber bidirectional ring MSP
SDH ASON	Supported
Physical clock	Supports SDH clock synchronization.
Outband DCN	Supported
Channel loopback	Supports VC-4 channel loopbacks.
Port loopback	Supports VP inloops and outloops. Supports optical port inloops and outloops.
2M ASON	Supported NOTE: Only supported when the 9800 M24 is used.
Alarm and performance event monitoring	Monitors B1 bytes to help locate faults. Monitors B2 bytes to help locate faults.
Functions and Features of the TNS2N602 Board (Regeneration)
Basic function	Electrically regenerates optical signals at an electrical REG station.
Regeneration mode	Unidirectional regeneration
Regeneration rate	OTUC4 OTUC2
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	400G m16QAM/400G s16QAM/400G 16QAM/200G QPSK: SDFEC4 200G e16QAM: SDFEC2 200G 16QAM/200G 16QAM-H: SDFEC
Line modulation format	400G m16QAM 400G s16QAM 400G 16QAM 200G QPSK 200G 16QAM 200G 16QAM-H 200G e16QAM
Typical channel spacing	400G s16QAM: 100GHz+n6.25GHz(n=0,1,2...) 400G m16QAM/400G 16QAM/200G QPSK: 75GHz+n6.25GHz(n=0,1,2...) 200G 16QAM/200G 16QAM-H: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 200G e16QAM: 50GHz+n6.25GHz(n=0,1,2...) NOTE: Due to high filtering penalty, 400G s16QAM cannot be used with 100G optical-layer boards with fixed channel spacing, such as TNG2D60 and TNG2M60.
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTUC4/OTUC2 layer: supports SM overhead processing.
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS	Supported
Clock	In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN	Supports ESC communication.
Test frame	Not supported
PRBS	Not supported
Port loopback	Not supported
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring. Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	3.10 kg 6.83 lb.

Item	TNS2N602
Basic function	Implements mutual conversion between OTN signals and two OTUC4/OTUC2 signals.
Backplane capacity	The total backplane bandwidth is 800 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	400G m16QAM/400G s16QAM/400G 16QAM/200G QPSK: SDFEC4 200G e16QAM: SDFEC2 200G 16QAM/200G 16QAM-H: SDFEC
Line modulation format	400G m16QAM 400G s16QAM 400G 16QAM 200G QPSK 200G 16QAM 200G 16QAM-H 200G e16QAM
Typical channel spacing	400G s16QAM: 100 GHz + n x 6.25 GHz (n = 0, 1, 2...) 400G m16QAM/400G 16QAM/200G QPSK: 75 GHz + n x 6.25 GHz (n = 0, 1, 2...) 200G 16QAM/200G 16QAM-H: 50 GHz x n (n = 1, 2...) (Only the standard center frequency of 50 GHz is supported.) 200G e16QAM: 50 GHz + n x 6.25 GHz (n = 0, 1, 2...) NOTE: Due to large filter penalties, 400G s16QAM cannot work with the optical-layer boards with a 100 GHz channel spacing, such as TNG2D60 and TNG2M60.
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTUC4/OTUC2 layer: supports SM overhead processing. ODUC4/ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) Layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
OSU	NA
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP	Supported NOTE: When the cross-connect granularity is ODUflex, the board does not support ODUk SNCP protection.
OSUflex SNCP	Not supported
Tributary SNCP	Supported
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS	Not supported
Physical clock	Supported NOTE: When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2	Not supported
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	Delay measurement in the WDM-side optical port direction (upstream direction) is supported. Supports TCM delay measurement for higher-order ODU2(e)/ODU3/ODUflex/ODU4 channels when creating higher-order cross-connections. When lower order ODUk cross-connections are created, PM/TCM of higher order channels and TCM delay measurement of lower order ODUk channels are supported. Supports PM and TCM delay measurement at the ODUCn layer.
Channel loopback	Supports ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel inloops and outloops.
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring. Supports the monitoring of OTN alarms and performance events.
Functions and Features of the TNS2N602 Board (SDH)
Basic function	Provides two line ports for conversion between SDH signals and ODUk signals on the backplane.
Backplane capacity	The total backplane bandwidth is 80 Gbit/s.
Service processing	VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing	Processes the section overheads of STM-16/STM-64 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports transparent transmission of DCC channels.
SDH SNCP	Supported
Linear MSP	Supported
Ring MSP	Supports two-fiber bidirectional ring MSP
SDH ASON	Supported
Physical clock	Supports SDH clock synchronization.
Outband DCN	Supported
Channel loopback	Supports VC-4 channel loopbacks.
Port loopback	Supports VP inloops and outloops. Supports optical port inloops and outloops.
2M ASON	Supported NOTE: Only supported when the 9800 M24 is used.
Alarm and performance event monitoring	Monitors B1 bytes to help locate faults. Monitors B2 bytes to help locate faults.
Functions and Features of the TNS2N602 Board (Regeneration)
Basic function	Electrically regenerates optical signals at an electrical REG station.
Regeneration mode	Unidirectional regeneration
Regeneration rate	OTUC4 OTUC2
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	400G m16QAM/400G s16QAM/400G 16QAM/200G QPSK: SDFEC4 200G e16QAM: SDFEC2 200G 16QAM/200G 16QAM-H: SDFEC
Line modulation format	400G m16QAM 400G s16QAM 400G 16QAM 200G QPSK 200G 16QAM 200G 16QAM-H 200G e16QAM
Typical channel spacing	400G s16QAM: 100GHz+n6.25GHz(n=0,1,2...) 400G m16QAM/400G 16QAM/200G QPSK: 75GHz+n6.25GHz(n=0,1,2...) 200G 16QAM/200G 16QAM-H: 50GHzn(n=1,2...)(Only the standard center frequency of 50 GHz is supported.) 200G e16QAM: 50GHz+n6.25GHz(n=0,1,2...) NOTE: Due to high filtering penalty, 400G s16QAM cannot be used with 100G optical-layer boards with fixed channel spacing, such as TNG2D60 and TNG2M60.
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTUC4/OTUC2 layer: supports SM overhead processing.
Optical-layer ASON	Supported NOTE: Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS	Supported
Clock	In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN	Supports ESC communication.
Test frame	Not supported
PRBS	Not supported
Port loopback	Not supported
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring. Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)	477.30 × 30.50 × 220.00 (mm) 18.81 × 1.20 × 8.67 (in.)
Weight	3.10 kg 6.83 lb.
