Categories:OSN 9800 U Series

TNS2N504

0 Reviews Write a review

SKU2012945

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

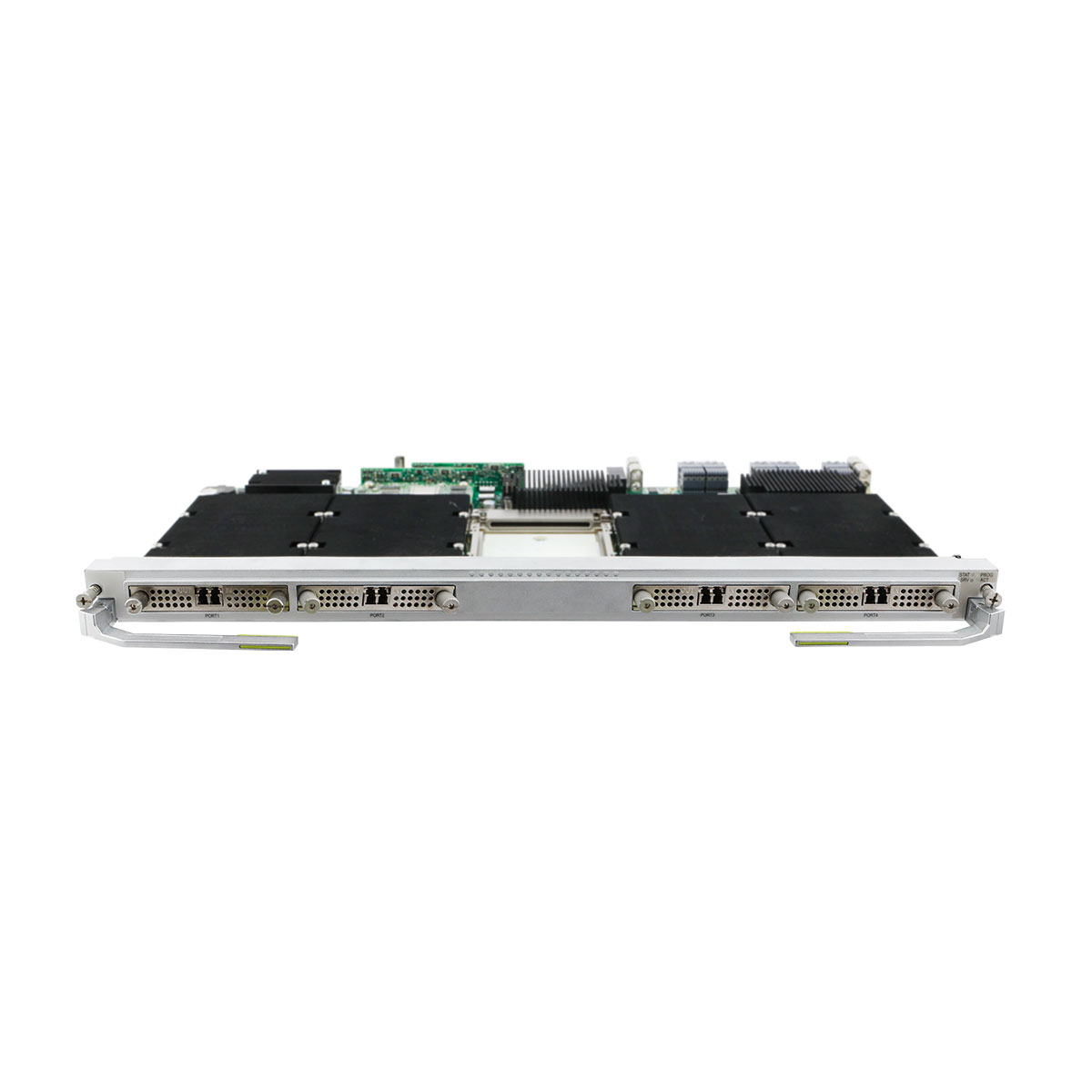

Huawei OptiX OSN 9800 TNS2N504 4*port 100/200/400G Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNS2N504 overview

TNS2N504 4*port 100/200/400G Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/U64/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

Power consumption

Board	Typical Power Consumption (W)	Maximum Power Consumption^a (W)
TNS2N504	208	220

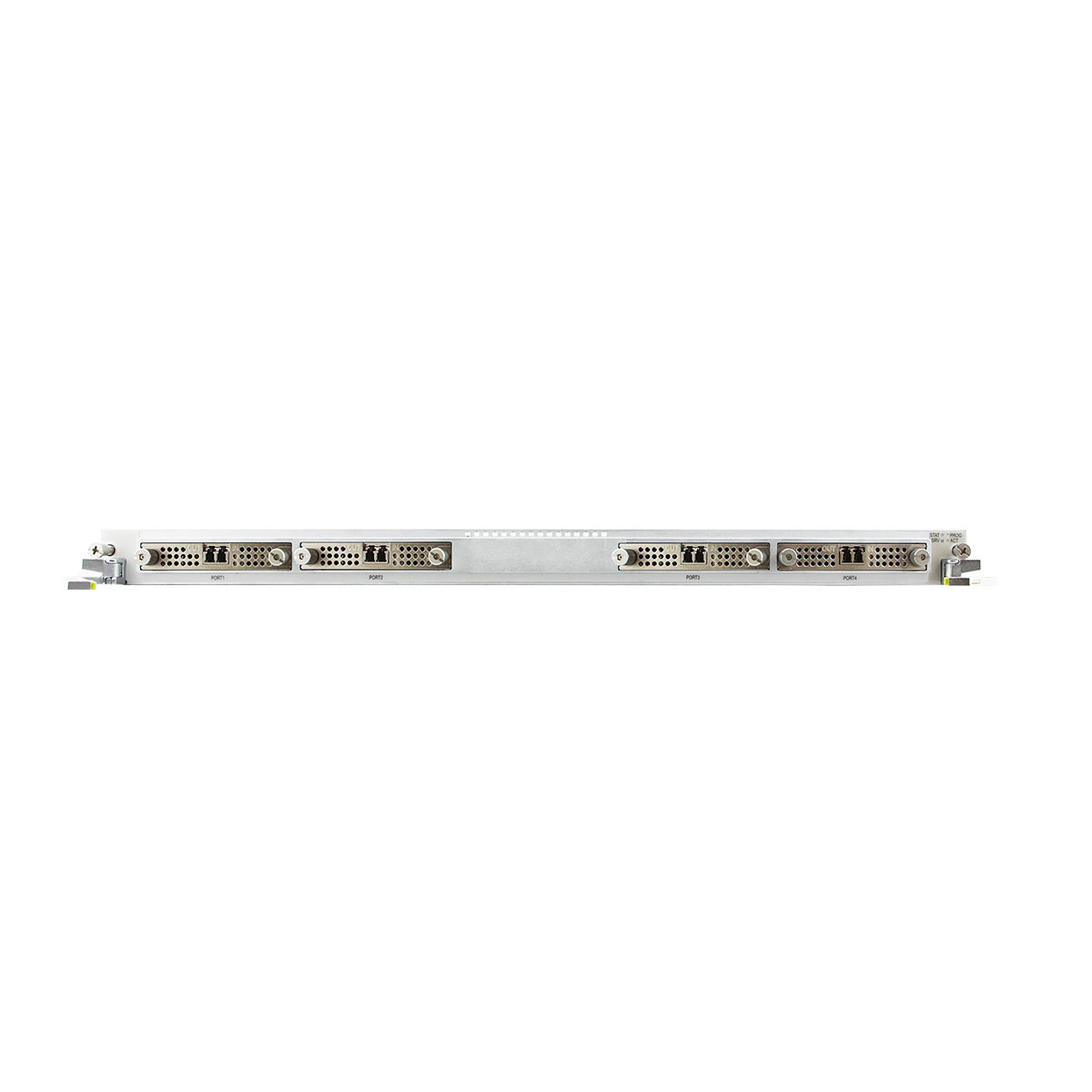

Front panel of the TNS2N504 board

Valid slots for the TNS2N504 board in a U64/U32/U16 subrack

Product	Valid Slots
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1-IU64
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1-IU32

Valid slots for the TNS2N504 board in an M24 subrack

Product	Valid Slots
OptiX OSN 9800 M24 subrack	(IU1, IU13), (IU2, IU14), …, (IU11, IU23), (IU12, IU24)

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
TNS2N504	CFP- 200G-(1529.17nm to 1567.1nm)(DWDM,Tunable,T15)-SMF Specifications	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNS2N504	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, high optical power, T23)-200G CFP	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNS2N504	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, T23)-200G CFP Specifications	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNS2N504	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHC, T22)-200G CFP Specifications	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNS2N504	Extended C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(SDFEC2, LHB, T2U)-CFP	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNS2N504	Super C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(SDFEC2, LHD, F23)-CFP	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNS2N504	Super C band-Tunable wavelength-ePDM-200G 16QAM/100G QPSK/etc.(SDFEC/SDFEC2, Metro, F15)-CFP	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNS2N504	Extended C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(Configurable rate and modulation format, Coherent, LHD, A23)-CFP	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
TNS2N504	Super C band-Tunable wavelength-200G e16QAM/100G QPSK/etc.(LHD, High optical power, T23)-CFP-PIN	OTU4, OTUC2	Pluggable Optical Module	WDM-Side

Function differences between port modes

Function and Feature		Working Mode of the Port
Function and Feature		100G mode	200G mode	400G mode
Supported port		Port 1, port 2	Port 1, port 2	Port 1. And port 2 must be set to NONE Mode.
Carrier technology		Single-carrier technology	Single-carrier technology	The board in 400G mode uses the dual-carrier technology and transmits or receives signals at port 1 and port 2.
Basic function	Line mode (OTN/Liquid OTN)	Supports the following service conversions:	Supports the following service conversions:	Supports the following service conversions:
		160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4	320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex <->4 x ODU4<->2 x ODUC2<-> 2 x OTUC2	320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->1 x ODUC4<->1xOTUC4
		(1 to 2k) x OSUflex <->160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4	(1 to 2k) x OSUflex<->320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->2 x ODUC2<-> 2 x OTUC2	(1 to 2k) x OSUflex<->320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->1 x ODUC4<->1xOTUC4
	Line mode (SDH)	8 x STM-64<->8 x ODU2<->2 x ODU4<->2 x OTU4	8 x STM-64<->8 x ODU2<->4 x ODU4<->2 x ODUC2<->2 x OTUC2	8 x STM-64<->8 x ODU2<->4 x ODU4<->1 x ODUC4<->1 x OTUC4
	Line mode (SDH)	32 x STM-16<->32 x ODU1<->2 x ODU4<->2 x OTU4	32 x STM-16<->32 x ODU1<->4 x ODU4<->2 x ODUC2<->2 x OTUC2	32 x STM-16<->32 x ODU1<->4 x ODU4<->1 x ODUC4<->1 x OTUC4
	Relay mode	Electrically regenerates OTU4 signals at an electrical REG station.	Electrically regenerates OTUC2 signals at an electrical REG station.	Electrically regenerates one OTUC4 signal at an electrical REG station.
	Relay mode	Supported service rate: OTU4, at a rate of 111.81 Gbit/s	Supported service rate: OTUC2, at a rate of 224.61 Gbit/s	Supported service rate: OTUC4, at a rate of 422.9 Gbit/s
FEC		SDFEC2	200G ePDM-16QAM:SDFEC	400G ePDM-16QAM(Dual_Ports): SDFEC
			200G ePDM-16QAM-H:SDFEC	400G ePDM-16QAM-H(Dual_Ports): SDFEC
			200G ePDM-e16QAM:SDFEC2	400G ePDM-e16QAM(Dual_Ports): SDFEC2
Line modulation format		100G ePDM-QPSK wDCM	200G ePDM-16QAM	400G ePDM-16QAM(Dual_Ports)
		100G ePDM-QPSK	200G ePDM-16QAM-H	400G ePDM-16QAM-H(Dual_Ports)
		200G ePDM-e16QAM	400G ePDM-e16QAM(Dual_Ports)

OTN/Liquid OTN functions and features of the board (line mode)

Function and Feature	Description
Basic function	160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4
	(1 to 2k) x OSUflex <->160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4
	320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex <->4 x ODU4<->2 x ODUC2<-> 2 x OTUC2
	(1 to 2k) x OSUflex<->320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->2 x ODUC2<-> 2 x OTUC2
	320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->1 x ODUC4<->1xOTUC4
	(1 to 2k) x OSUflex<->320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->1 x ODUC4<->1xOTUC4
Cross-connect capabilities	Implements service grooming when working with cross-connect boards.
	2000 x OSUflex/320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex
OTN functions	Supports OTU4, OTUC2, and OTUC4 interfaces on the WDM side.
	Uses the frame formats and overhead processing methods defined in ITU-T G.709.
	ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
	OSUflex layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
	ODUC2, or ODUC4 layer: Supports the PM and TCM functions.
	OTU4, OTUC2, or OTUC4 layer: Supports SM overhead processing.
WDM specification	Supports DWDM specifications.
Tunable wavelength function	supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
Liquid OTN	Supported
PRBS test function	Supports the PRBS function on the WDM side.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty聽mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction).
	When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels.
	The board supports PM and TCM latency measurement at the ODUCn layer.
	The board supports PM latency measurement at the OSUflex layer.
Test frame	Not supported
Physical clock	Supported
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Typical channel spacing	200G ePDM-e16QAM:50GHz Flex/ 62.5GHz Flex/75GHz Flex
	Others modulation format: 50GHz Fix.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported
Protection schemes	Supports ODUk SNCP.
	Supports OSUflex SNCP.
	Supports tributary SNCP protection.
	Supports intra-board 1+1 protection (when working with the QCP or OLP or DCP board).
Loopback	Supports WDM-Side Loopback
	Supports OSUflex Channel Loopback
	Supports ODUk Channel Loopback
	Port in 100G mode: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
	Port in 200G mode or 400G mode: ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks.
ESC	Supported

SDH functions and features of the TNS2N504 board

Function and feature	Description
Overhead processing	Processes the section overheads of STM-16/STM-64 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports transparent transmission of DCC channels.
Protection schemes	Supports the SNCP. Supports 1+1 single-ended linear MSP. Supports ring MSP.
Alarm and performance event monitoring	Monitors B1 bytes to help locate faults. Monitors B2 bytes to help locate faults.
Service processing	Supports the VC-12/VC-3, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services.
Loopback	Supports VC loopbacks. Supports Virtual Port loopbacks.
SDH clock	Supported
Outband DCN	supported
SDH ASON	Not supported

Brand	Huawei
Lead Time	In Stock
Ship From	Shenzhen Warehouse

Function differences between port modes

Function and Feature		Working Mode of the Port
Function and Feature		100G mode	200G mode	400G mode
Supported port		Port 1, port 2	Port 1, port 2	Port 1. And port 2 must be set to NONE Mode.
Carrier technology		Single-carrier technology	Single-carrier technology	The board in 400G mode uses the dual-carrier technology and transmits or receives signals at port 1 and port 2.
Basic function	Line mode (OTN/Liquid OTN)	Supports the following service conversions:	Supports the following service conversions:	Supports the following service conversions:
		160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4	320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex <->4 x ODU4<->2 x ODUC2<-> 2 x OTUC2	320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->1 x ODUC4<->1xOTUC4
		(1 to 2k) x OSUflex <->160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4	(1 to 2k) x OSUflex<->320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->2 x ODUC2<-> 2 x OTUC2	(1 to 2k) x OSUflex<->320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->1 x ODUC4<->1xOTUC4
	Line mode (SDH)	8 x STM-64<->8 x ODU2<->2 x ODU4<->2 x OTU4	8 x STM-64<->8 x ODU2<->4 x ODU4<->2 x ODUC2<->2 x OTUC2	8 x STM-64<->8 x ODU2<->4 x ODU4<->1 x ODUC4<->1 x OTUC4
	Line mode (SDH)	32 x STM-16<->32 x ODU1<->2 x ODU4<->2 x OTU4	32 x STM-16<->32 x ODU1<->4 x ODU4<->2 x ODUC2<->2 x OTUC2	32 x STM-16<->32 x ODU1<->4 x ODU4<->1 x ODUC4<->1 x OTUC4
	Relay mode	Electrically regenerates OTU4 signals at an electrical REG station.	Electrically regenerates OTUC2 signals at an electrical REG station.	Electrically regenerates one OTUC4 signal at an electrical REG station.
	Relay mode	Supported service rate: OTU4, at a rate of 111.81 Gbit/s	Supported service rate: OTUC2, at a rate of 224.61 Gbit/s	Supported service rate: OTUC4, at a rate of 422.9 Gbit/s
FEC		SDFEC2	200G ePDM-16QAM:SDFEC	400G ePDM-16QAM(Dual_Ports): SDFEC
			200G ePDM-16QAM-H:SDFEC	400G ePDM-16QAM-H(Dual_Ports): SDFEC
			200G ePDM-e16QAM:SDFEC2	400G ePDM-e16QAM(Dual_Ports): SDFEC2
Line modulation format		100G ePDM-QPSK wDCM	200G ePDM-16QAM	400G ePDM-16QAM(Dual_Ports)
		100G ePDM-QPSK	200G ePDM-16QAM-H	400G ePDM-16QAM-H(Dual_Ports)
		200G ePDM-e16QAM	400G ePDM-e16QAM(Dual_Ports)

OTN/Liquid OTN functions and features of the board (line mode)

Function and Feature	Description
Basic function	160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4
	(1 to 2k) x OSUflex <->160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4
	320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex <->4 x ODU4<->2 x ODUC2<-> 2 x OTUC2
	(1 to 2k) x OSUflex<->320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->2 x ODUC2<-> 2 x OTUC2
	320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->1 x ODUC4<->1xOTUC4
	(1 to 2k) x OSUflex<->320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x ODU4<->1 x ODUC4<->1xOTUC4
Cross-connect capabilities	Implements service grooming when working with cross-connect boards.
	2000 x OSUflex/320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex
OTN functions	Supports OTU4, OTUC2, and OTUC4 interfaces on the WDM side.
	Uses the frame formats and overhead processing methods defined in ITU-T G.709.
	ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
	OSUflex layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
	ODUC2, or ODUC4 layer: Supports the PM and TCM functions.
	OTU4, OTUC2, or OTUC4 layer: Supports SM overhead processing.
WDM specification	Supports DWDM specifications.
Tunable wavelength function	supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
Liquid OTN	Supported
PRBS test function	Supports the PRBS function on the WDM side.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty聽mode) to help locate line failures.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Monitors OTN alarms and performance events.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction).
	When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels.
	The board supports PM and TCM latency measurement at the ODUCn layer.
	The board supports PM latency measurement at the OSUflex layer.
Test frame	Not supported
Physical clock	Supported
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Typical channel spacing	200G ePDM-e16QAM:50GHz Flex/ 62.5GHz Flex/75GHz Flex
	Others modulation format: 50GHz Fix.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported
Protection schemes	Supports ODUk SNCP.
	Supports OSUflex SNCP.
	Supports tributary SNCP protection.
	Supports intra-board 1+1 protection (when working with the QCP or OLP or DCP board).
Loopback	Supports WDM-Side Loopback
	Supports OSUflex Channel Loopback
	Supports ODUk Channel Loopback
	Port in 100G mode: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
	Port in 200G mode or 400G mode: ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks.
ESC	Supported

SDH functions and features of the TNS2N504 board

Function and feature	Description
Overhead processing	Processes the section overheads of STM-16/STM-64 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports transparent transmission of DCC channels.
Protection schemes	Supports the SNCP. Supports 1+1 single-ended linear MSP. Supports ring MSP.
Alarm and performance event monitoring	Monitors B1 bytes to help locate faults. Monitors B2 bytes to help locate faults.
Service processing	Supports the VC-12/VC-3, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services.
Loopback	Supports VC loopbacks. Supports Virtual Port loopbacks.
SDH clock	Supported
Outband DCN	supported
SDH ASON	Not supported
