Huawei OptiX OSN 9800 board TNS2N501 1*200G/100G Programmable Hybrid Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNS2N501 overview

TNS2N501 supports 1*200G/100G Programmable Hybrid Line Service Processing Board applied to Huawei OptiX OSN 9800.

The TNS2N501 board is a hybrid line board and supports a mixture of OTN and SDH services.

The TNS2N501 board processes and converts the received service signals into one OTU4/OTUC2 signal. The OTU4/OTUC2 or OTUC4 signals are carried over ITU-T G.694.1-compliant DWDM wavelengths.

The TNS2N501 board uses coherent receiving technologies and applies to coherent systems.

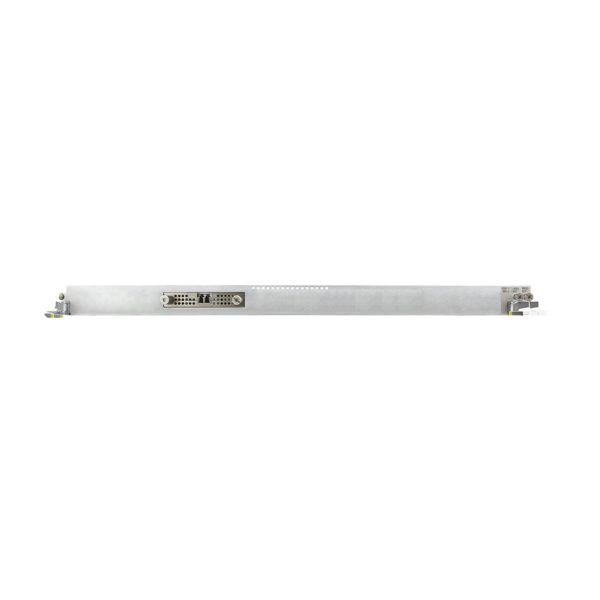

Appearance of the TNS2N501

Valid slots for the TNS2N501 board in a U64/U32/U16 subrack


Product	Valid Slots
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1-IU32
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1-IU64
OptiX OSN 9800 U16 subrack	IU1-IU14

Item	TNS2N501
OTN functions	Port in 100G mode: Supports the OTU4 interface on the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. Port in 200G mode: Supports the OTUC2 interface on the WDM side. OTUC2 layer: supports SM overhead processing. ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. Port in 400G mode Supports the OTUC4 interface on the WDM side. OTUC4 layer: supports SM overhead processing. ODUC4 layer: supports PM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. NOTE: Only the N502 board supports the 400G mode.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
PRBS test function	Supports the PRBS function on the WDM side.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Regeneration board	Supported
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels. The board supports PM and TCM latency measurement at the ODUCn layer. NOTE: When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
Test frame	Not supported
Physical clock	Supported
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Typical channel spacing	200G ePDM-e16QAM: 50 GHz Flex/62.5 GHz Flex/75 GHz Flex Other modulation format: 50 GHz Fixed.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Protection schemes	Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP or DCP board). NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. Port in 400G mode: Do not support intra-board 1+1 protection.
Loopback	WDM-Side Loopback	Supported
Loopback	Channel loopback	Port in 100G mode: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks Port in 200G mode or 400G mode: ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks.
ESC	Supported

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
N501/N502	CFP- 200G-(1529.17nm to 1567.1nm)(DWDM,Tunable,T15)-SMF Specifications NOTE: The rate and modulation format can be set to 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHC, T22)-200G CFP Specifications NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, high optical power, T23)-200G CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, T23)-200G CFP Specifications NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	Extended C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(SDFEC2, LHB, T2U)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	Super C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(SDFEC2, LHD, F23)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	Super C band-Tunable wavelength-ePDM-200G 16QAM/100G QPSK/etc.(SDFEC/SDFEC2, Metro, F15)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	Extended C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(Configurable rate and modulation format, Coherent, LHD, A23)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	Super C band-Tunable wavelength-200G e16QAM/100G QPSK/etc.(LHD, High optical power, T23)-CFP-PIN NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side

Item	TNS2N501
OTN functions	Port in 100G mode: Supports the OTU4 interface on the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. Port in 200G mode: Supports the OTUC2 interface on the WDM side. OTUC2 layer: supports SM overhead processing. ODUC2 layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. Port in 400G mode Supports the OTUC4 interface on the WDM side. OTUC4 layer: supports SM overhead processing. ODUC4 layer: supports PM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. NOTE: Only the N502 board supports the 400G mode.
WDM specification	Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function	The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
PRBS test function	Supports the PRBS function on the WDM side.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Regeneration board	Supported
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels. The board supports PM and TCM latency measurement at the ODUCn layer. NOTE: When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
Test frame	Not supported
Physical clock	Supported
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Typical channel spacing	200G ePDM-e16QAM: 50 GHz Flex/62.5 GHz Flex/75 GHz Flex Other modulation format: 50 GHz Fixed.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Protection schemes	Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP or DCP board). NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. Port in 400G mode: Do not support intra-board 1+1 protection.
Loopback	WDM-Side Loopback	Supported
Loopback	Channel loopback	Port in 100G mode: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks Port in 200G mode or 400G mode: ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks.
ESC	Supported

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
N501/N502	CFP- 200G-(1529.17nm to 1567.1nm)(DWDM,Tunable,T15)-SMF Specifications NOTE: The rate and modulation format can be set to 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHC, T22)-200G CFP Specifications NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, high optical power, T23)-200G CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, T23)-200G CFP Specifications NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	Extended C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(SDFEC2, LHB, T2U)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	Super C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(SDFEC2, LHD, F23)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	Super C band-Tunable wavelength-ePDM-200G 16QAM/100G QPSK/etc.(SDFEC/SDFEC2, Metro, F15)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	Extended C band-Tunable wavelength-ePDM-200G e16QAM/100G QPSK/etc.(Configurable rate and modulation format, Coherent, LHD, A23)-CFP NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side
N501/N502	Super C band-Tunable wavelength-200G e16QAM/100G QPSK/etc.(LHD, High optical power, T23)-CFP-PIN NOTE: The rate and modulation format can be set to 200G ePDM-e16QAM (SDFEC2), 200G ePDM-16QAM-H (SDFEC), 200G ePDM-16QAM (SDFEC), 100G ePDM-QPSK (wDCM, SDFEC2), or 100G ePDM-QPSK (SDFEC2).	OTU4, OTUC2	Pluggable Optical Module	WDM-Side

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
