Huawei OptiX OSN 9800 board TNS2N220 20*10 Gbit/s Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNS2N220 overview

TNS2N220 supports 20*10 Gbit/s Line Service Processing Board applied to Huawei OptiX OSN U64/9800 U32/9800 U16/9800 M24.

The TNS2N220 board is a universal line board and supports a mix of OTN, Liquid OTN and SDH services.

It can also receive and transmit only one of the two services. The board processes and converts the received service signals into twenty OTU1/OTU2/OTU2e signals, which are carried over ten DWDM wavelengths.

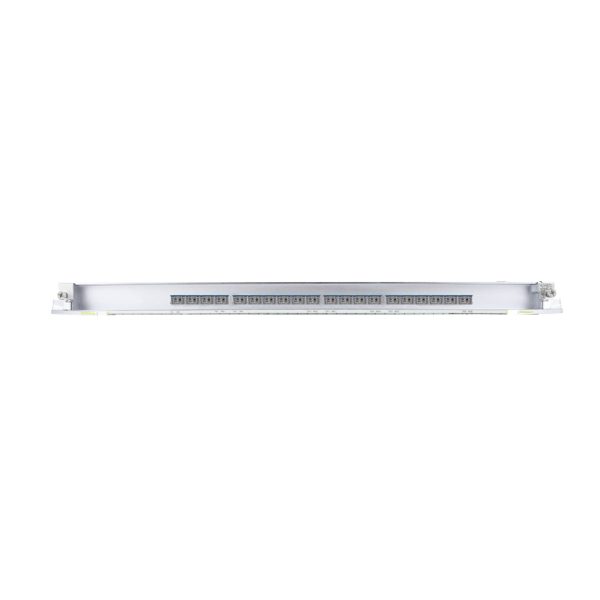

Appearance of the TNS2N220

Valid slots for the TNS2N220 board in a U64/U32/U16 subrack

Product	Valid Slots
OptiX OSN 9800 U32 Standard subrack	IU1 to IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1 to IU32
OptiX OSN 9800 U64 Standard subrack	IU1 to IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1 to IU64
OptiX OSN 9800 U16 subrack	IU1 to IU14

Item	TNS2N220
Basic functions	160 x ODU0/160 x ODUflex/80 x ODU1/20 x ODU2<->20 x OTU2; 20 x ODU2e<->20 x OTU2e; (1 to 2k) x OSUflex <->20 x ODU2<->20 x OTU2; (1 to 2k) x OSUflex <->20 x ODU2e<->20 x OTU2e; 40 x ODU0/20 x ODU1<->20 x OTU1 (1 to 2k) x OSUflex <->20 x ODU1<->20 x OTU1 Each port on the board supports a mix of OSUflex, ODU0, ODU1, and ODUflex signals.
Cross-connect capabilities	Supports a maximum of 2k OSUflex signals, 160 ODU0 signals, 80 ODU1 signals, 160 ODUflex signals, or 20 ODU2/ODU2e signals and cooperates with cross-connect boards to implement service grooming. The board supports the Liquid OTN application only when working with the TNU2CTU/TNU4CTU/TNU5CTU/TNG1CXP/TNG3CXP/TNG4CXP board. For the N220 board, each of the IN1/OUT1–IN10/OUT10 and IN11/OUT11–IN20/OUT20 port groups supports a maximum of 1000 OSUflex channels.
OTN functions	Supports OTU1/OTU2/OTU2e on the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU1/OTU2 layer: supports SM overhead processing. OSUflex layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. ODUk (k=0, 1, 2, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
Liquid OTN	Supported
ESC function	Supported
PRBS test function	Supports the PRBS function on the WDM side.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order cross-connections are created on the line board, TCM section latency measurement is supported for higher-order channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order channels, and TCM section latency measurement is supported for lower-order ODUk channels. The board supports PM latency measurement at the OSUflex layer. NOTE: In the Liquid OTN application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side. Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side. NOTE: Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Supported
Optical-layer ASON	Supported
Electrical-layer ASON	Supported NOTE: In Liquid OTN application scenarios, electrical-layer ASON is not supported.
Protection scheme	Supports OSUflex SNCP. Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board). NOTE: When the cross-connect granularity is ODUflex/OSUflex, the board does not support tributary SNCP protection.
Loopback	Supports WDM Side Loopback Supports ODU1 Channel Loopback Supports ODU0 Channel Loopback Supports ODUflex Channel Loopback Supports OSUflex Channel Loopback NOTE: The board supports a maximum of eight OSUflex channel loopbacks.

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
N220	SFP+ -10G(with CDR)-1550nm-SMF-80km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G(with CDR)-1550nm-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G(with CDR)-1310nm-SMF-10km	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-80km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G(with CDR)-(1529.55nm to 1560.61nm)(DWDM,100GHz,Tunable)-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-1310nm-SMF-40km Specifications	OTU1	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-120km Specifications	OTU1	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-80km Specifications	OTU1	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-1310nm-SMF-2km Specifications	OTU1	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-1310nm-SMF-15km Specifications	OTU1	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-1550nm-SMF-80km Specifications	OTU1	Pluggable Optical Module	WDM-Side

Item	TNS2N220
Basic functions	160 x ODU0/160 x ODUflex/80 x ODU1/20 x ODU2<->20 x OTU2; 20 x ODU2e<->20 x OTU2e; (1 to 2k) x OSUflex <->20 x ODU2<->20 x OTU2; (1 to 2k) x OSUflex <->20 x ODU2e<->20 x OTU2e; 40 x ODU0/20 x ODU1<->20 x OTU1 (1 to 2k) x OSUflex <->20 x ODU1<->20 x OTU1 Each port on the board supports a mix of OSUflex, ODU0, ODU1, and ODUflex signals.
Cross-connect capabilities	Supports a maximum of 2k OSUflex signals, 160 ODU0 signals, 80 ODU1 signals, 160 ODUflex signals, or 20 ODU2/ODU2e signals and cooperates with cross-connect boards to implement service grooming. The board supports the Liquid OTN application only when working with the TNU2CTU/TNU4CTU/TNU5CTU/TNG1CXP/TNG3CXP/TNG4CXP board. For the N220 board, each of the IN1/OUT1–IN10/OUT10 and IN11/OUT11–IN20/OUT20 port groups supports a maximum of 1000 OSUflex channels.
OTN functions	Supports OTU1/OTU2/OTU2e on the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU1/OTU2 layer: supports SM overhead processing. OSUflex layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. ODUk (k=0, 1, 2, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification	Supports DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
Liquid OTN	Supported
ESC function	Supported
PRBS test function	Supports the PRBS function on the WDM side.
Latency measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order cross-connections are created on the line board, TCM section latency measurement is supported for higher-order channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order channels, and TCM section latency measurement is supported for lower-order ODUk channels. The board supports PM latency measurement at the OSUflex layer. NOTE: In the Liquid OTN application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side. Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side. NOTE: Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Test frame	Not supported
IEEE 1588v2	Not supported
Physical clock	Supported
Optical-layer ASON	Supported
Electrical-layer ASON	Supported NOTE: In Liquid OTN application scenarios, electrical-layer ASON is not supported.
Protection scheme	Supports OSUflex SNCP. Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board). NOTE: When the cross-connect granularity is ODUflex/OSUflex, the board does not support tributary SNCP protection.
Loopback	Supports WDM Side Loopback Supports ODU1 Channel Loopback Supports ODU0 Channel Loopback Supports ODUflex Channel Loopback Supports OSUflex Channel Loopback NOTE: The board supports a maximum of eight OSUflex channel loopbacks.

Specifications for Optical Modules

Board	Optical Modules	Service type	Optical Module Type	Position
N220	SFP+ -10G(with CDR)-1550nm-SMF-80km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G(with CDR)-1550nm-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G(with CDR)-1310nm-SMF-10km	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-80km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	SFP+ -10G(with CDR)-(1529.55nm to 1560.61nm)(DWDM,100GHz,Tunable)-SMF-40km Specifications	OTU2, OTU2e	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-1310nm-SMF-40km Specifications	OTU1	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-120km Specifications	OTU1	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-80km Specifications	OTU1	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-1310nm-SMF-2km Specifications	OTU1	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-1310nm-SMF-15km Specifications	OTU1	Pluggable Optical Module	WDM-Side
N220	eSFP-2.5G-1550nm-SMF-80km Specifications	OTU1	Pluggable Optical Module	WDM-Side

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
