Huawei OptiX OSN 9800 TNG6WDAP OA Base Board With C Band Pluggable Port And L Band Pluggable Port,With FAST ADD/Drop Control

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG6WDAP overview

TNG6WDAP OA Base Board With C Band Pluggable Port And L Band Pluggable Port,With FAST ADD/Drop Control applied to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

The TNG6WDAP board has only one variant: TNG6WDAP01.

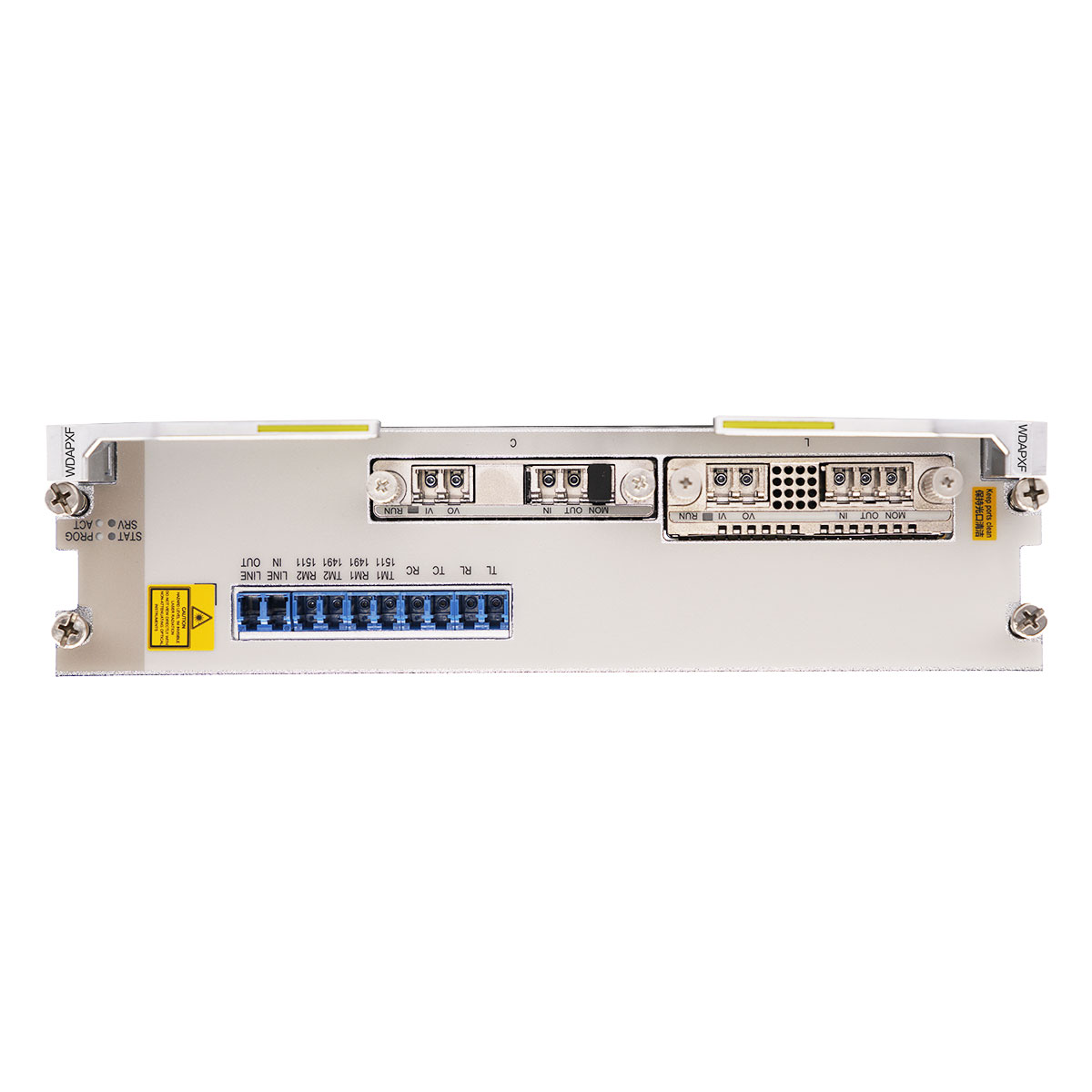

Front panel of the TNG6WDAP board

Front panel of the TNG6WDAP board

Valid slots for the TNG6WDAP board in a M05/M12/M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M05	1	IU1, IU2, IU3, IU4, IU5	IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12	1	IU1 to IU13	IU1 to IU13
OptiX OSN 9800 M24	1	IU1 to IU24	IU1 to IU24

Item	TNG6WDAP
Basic function	Amplifies optical signals over Super C-band wavelengths within the range from 1524.3 nm to 1572.5 nm. Amplifies optical signals over Super L-band wavelengths within the range from 1575.16nm to 1626.45 nm. Supports service transmission with varying fiber spans without using electrical regeneration.
WDM specification	Supports the DWDM specifications.
Pluggable amplifier optical module	Supports C120 wavelengths optical amplifier modules: TNG2OACU23U/TNG2OACU27U/TNG2OACU34U/TNG2OBCU22S Supports L120 wavelengths optical amplifier modules: TNG2OALU20S/TNG2OALU24S/TNG2OALU31S NOTE: The TNG2OBCU22S module is supported only in wavelength adding/dropping scenarios.
Working mode	Supports the gain locking, power locking and APC modes. In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default. The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present. Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Gain adjustment	TNG2OACU23U: Continually adjusts the gain from 18 dB to 23 dB based on the input signal power. TNG2OACU27U: Continually adjusts the gain from 21 dB to 27 dB based on the input signal power. TNG2OACU34U: Continually adjusts the gain from 25 dB to 34 dB based on the input signal power. TNG2OBCU22S: Continually adjusts the gain from 19 dB to 22 dB based on the input signal power. TNG2OALU20S: Continually adjusts the gain from 15 dB to 20 dB based on the input signal power. TNG2OALU24S: Continually adjusts the gain from 18 dB to 24 dB based on the input signal power. TNG2OALU31S: Continually adjusts the gain from 22 dB to 31 dB based on the input signal power.
Transient control	The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Online optical performance monitoring	Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Optical Doctor	Supported
Optical-layer ASON	C+L Ready supports optical-layer ASON, and C+L band does not support optical-layer ASON. Before the evolution from C+L Ready to C+L band, you must disable ASON. NOTE: C+L Ready networking scenario is as follows: Only the Super C band optical layer is deployed, and C+L-band WXFIU, C+L-band WSS, and C+L-band EDFA (only C-OA modules installed) boards are configured. The L-band optical layer is not deployed, and no DL, L-OA, or L-OPM module is configured.
Alarm and performance event monitoring	Detects and reports optical power levels. Monitors the temperature of the pump laser. Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.
Dimensions (H x W x D)	237.10 × 30.50 × 220.00 (mm) 9.34 × 1.20 × 8.67 (in.)
Weight	2.20 kg 4.85 lb.

Item	TNG6WDAP
Basic function	Amplifies optical signals over Super C-band wavelengths within the range from 1524.3 nm to 1572.5 nm. Amplifies optical signals over Super L-band wavelengths within the range from 1575.16nm to 1626.45 nm. Supports service transmission with varying fiber spans without using electrical regeneration.
WDM specification	Supports the DWDM specifications.
Pluggable amplifier optical module	Supports C120 wavelengths optical amplifier modules: TNG2OACU23U/TNG2OACU27U/TNG2OACU34U/TNG2OBCU22S Supports L120 wavelengths optical amplifier modules: TNG2OALU20S/TNG2OALU24S/TNG2OALU31S NOTE: The TNG2OBCU22S module is supported only in wavelength adding/dropping scenarios.
Working mode	Supports the gain locking, power locking and APC modes. In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default. The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present. Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Gain adjustment	TNG2OACU23U: Continually adjusts the gain from 18 dB to 23 dB based on the input signal power. TNG2OACU27U: Continually adjusts the gain from 21 dB to 27 dB based on the input signal power. TNG2OACU34U: Continually adjusts the gain from 25 dB to 34 dB based on the input signal power. TNG2OBCU22S: Continually adjusts the gain from 19 dB to 22 dB based on the input signal power. TNG2OALU20S: Continually adjusts the gain from 15 dB to 20 dB based on the input signal power. TNG2OALU24S: Continually adjusts the gain from 18 dB to 24 dB based on the input signal power. TNG2OALU31S: Continually adjusts the gain from 22 dB to 31 dB based on the input signal power.
Transient control	The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Online optical performance monitoring	Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Optical Doctor	Supported
Optical-layer ASON	C+L Ready supports optical-layer ASON, and C+L band does not support optical-layer ASON. Before the evolution from C+L Ready to C+L band, you must disable ASON. NOTE: C+L Ready networking scenario is as follows: Only the Super C band optical layer is deployed, and C+L-band WXFIU, C+L-band WSS, and C+L-band EDFA (only C-OA modules installed) boards are configured. The L-band optical layer is not deployed, and no DL, L-OA, or L-OPM module is configured.
Alarm and performance event monitoring	Detects and reports optical power levels. Monitors the temperature of the pump laser. Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.
Dimensions (H x W x D)	237.10 × 30.50 × 220.00 (mm) 9.34 × 1.20 × 8.67 (in.)
Weight	2.20 kg 4.85 lb.
