Categories:OSN9800 Series, OSN 9800 M Series

TNG6ADC0824

0 Reviews Write a review

SKU2016961

AvailabilityIn Stock

WarrantyUp to 36 months

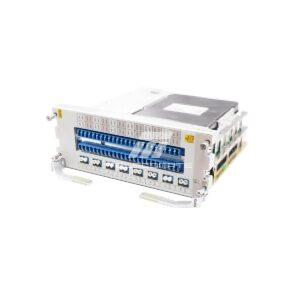

Huawei OptiX OSN 9800 TNG6ADC0824 Add and drop unit with contentionless function (Super C-band)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

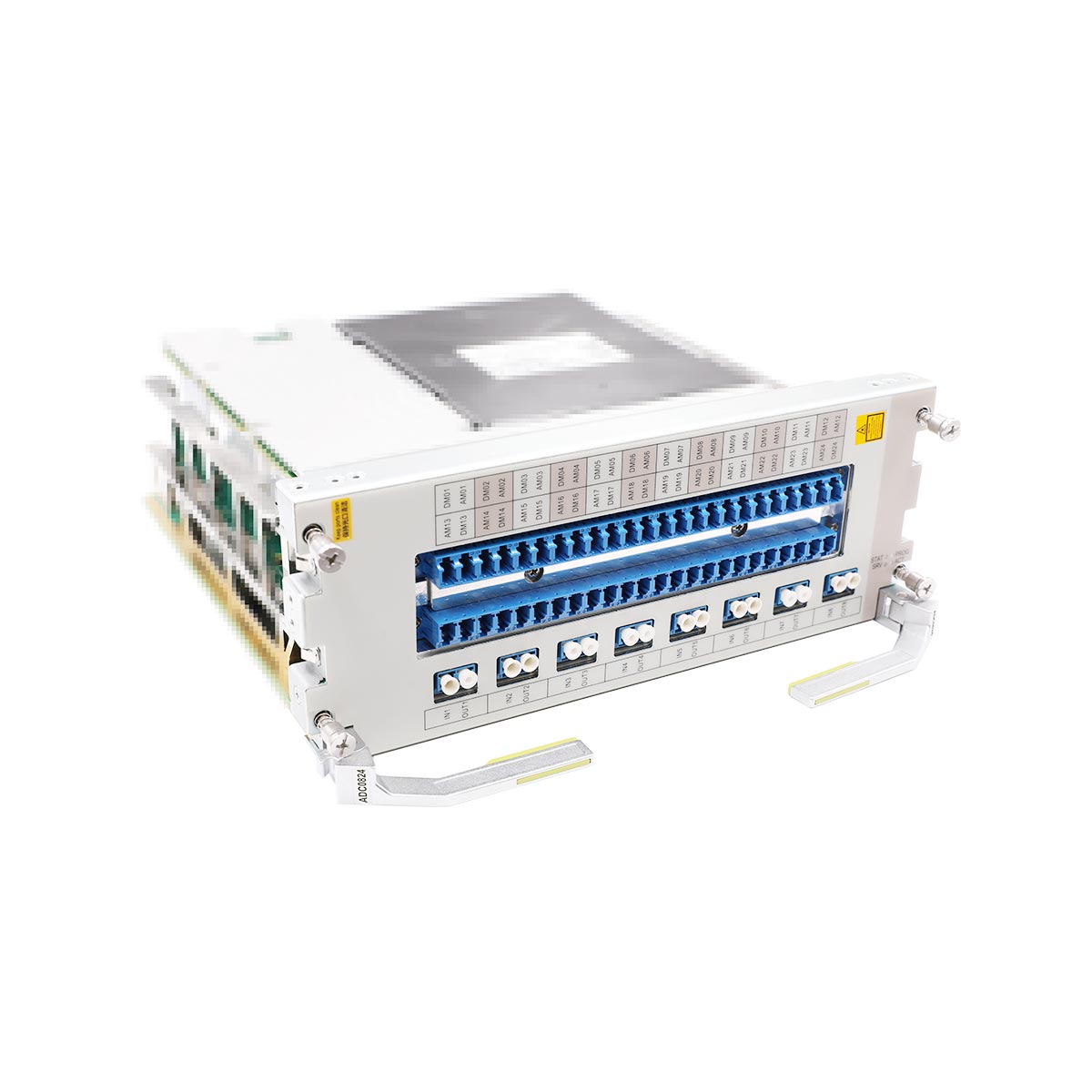

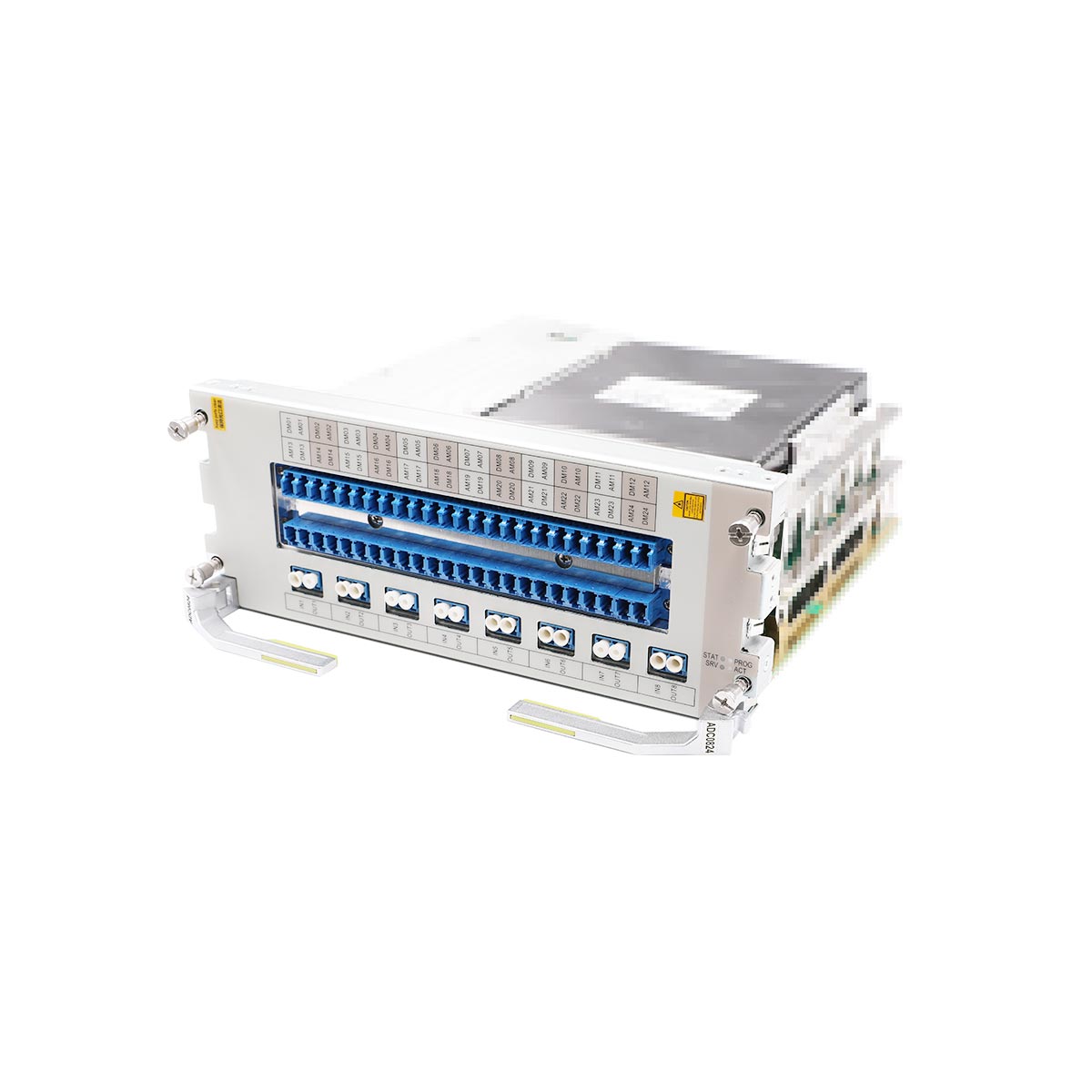

TNG6ADC0824 overview

TNG6ADC0824 Add and drop unit with contentionless function (Super C-band) applied to Huawei OptiX OSN 9800 M24/M12/M05.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG6ADC0824 board has only one variant: TNG6ADC0824A01.

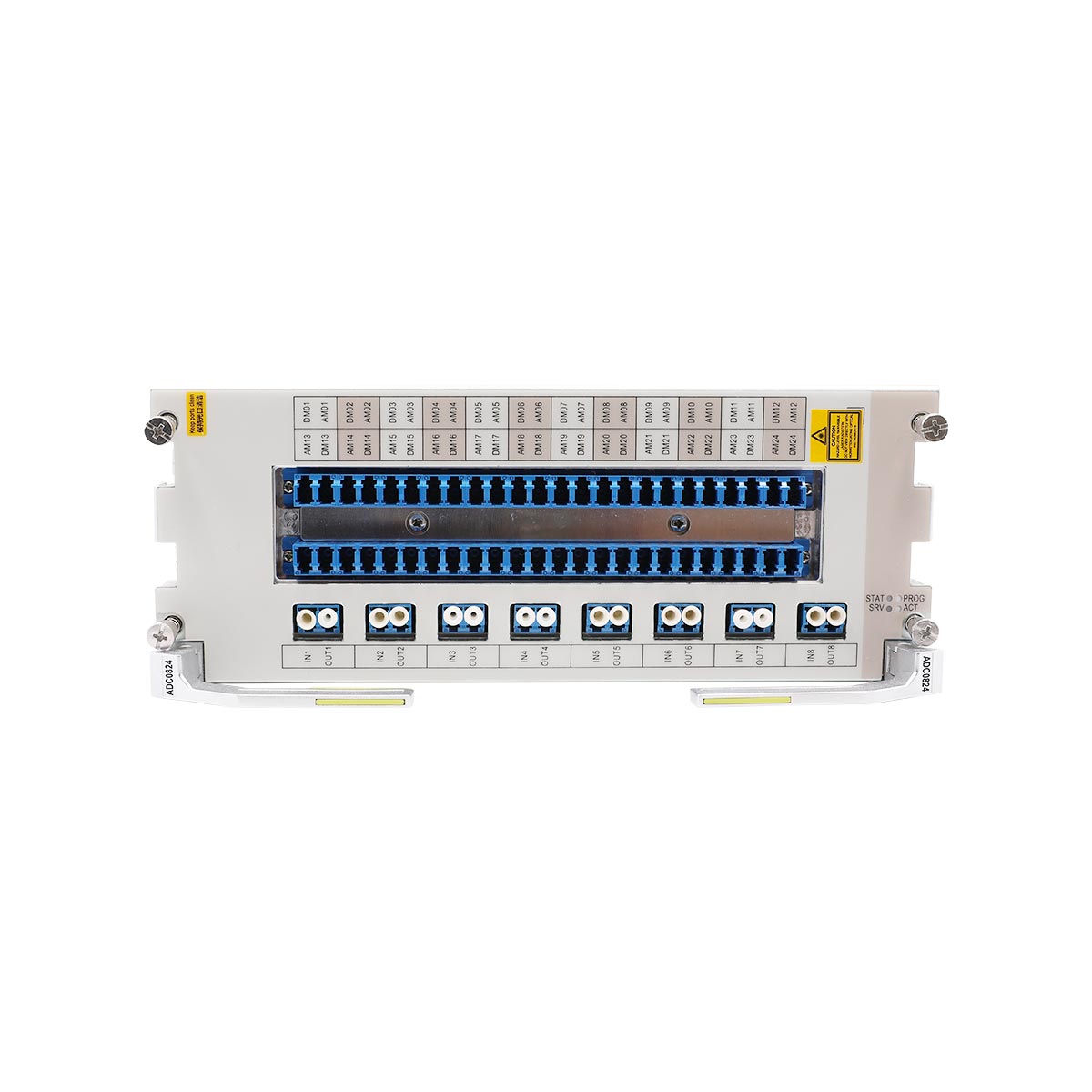

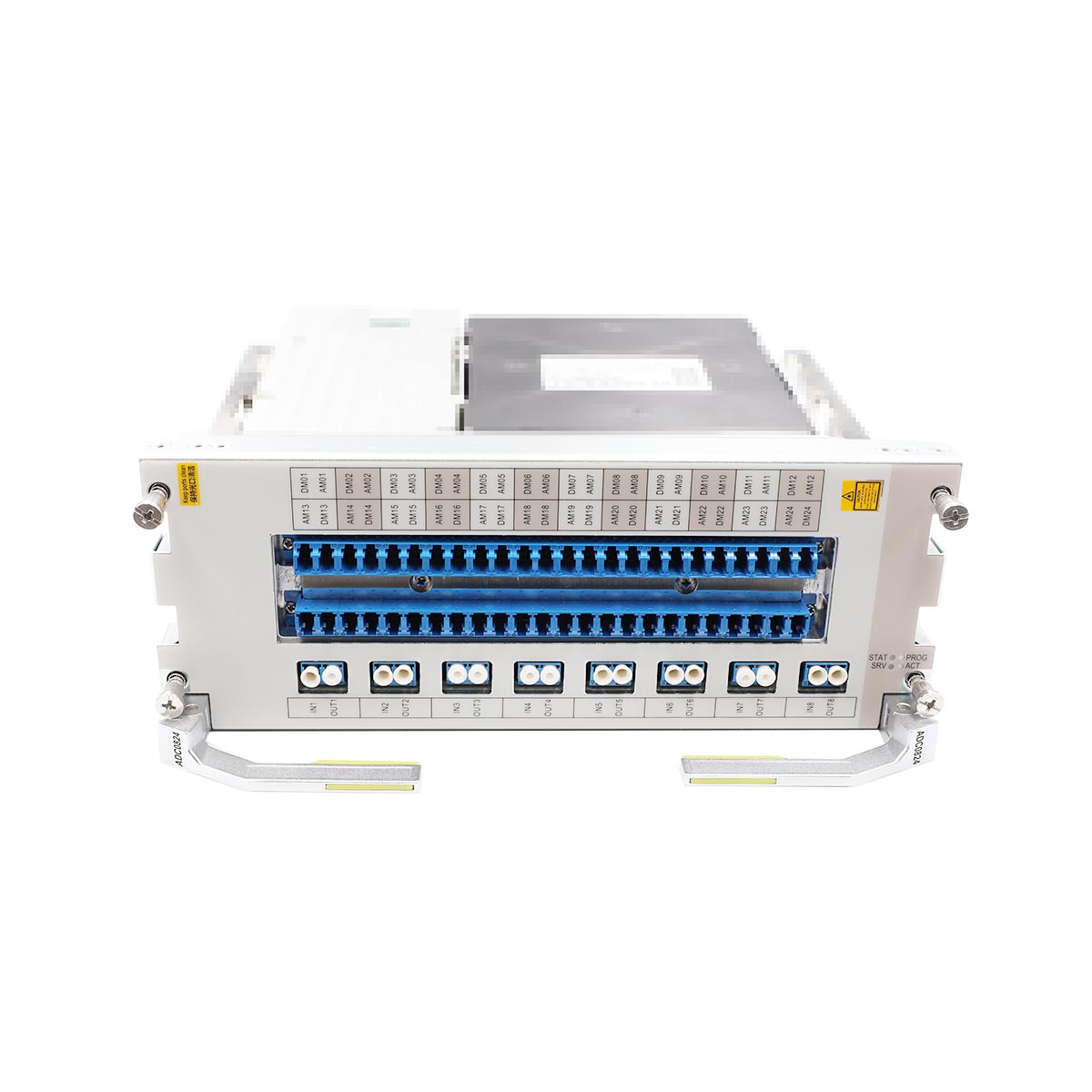

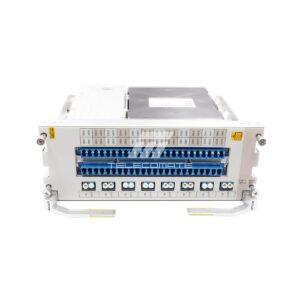

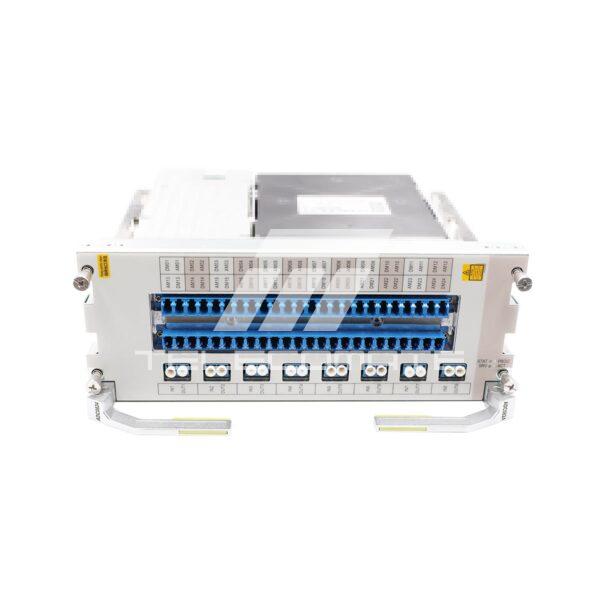

Front panel of the TNG6ADC0824 board

Front panel of the TNG6ADC0824 board

Valid slots for the TNG6ADC0824 board in a M24/M12/M05 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M05	3	(IU1, IU2, IU3)	IU1
		(IU2, IU3, IU4)	IU2
		(IU3, IU4, IU5)	IU3
OptiX OSN 9800 M12	3	(IU1, IU2, IU3)	IU1
		(IU2, IU3, IU4)	IU2
		(IU3, IU4, IU5)	IU3
		(IU4, IU5, IU6)	IU4
		(IU5, IU6, IU7)	IU5
		(IU6, IU7, IU8)	IU6
		(IU7, IU8, IU9)	IU7
		(IU8, IU9, IU10)	IU8
		(IU9, IU10, IU11)	IU9
		(IU10, IU11, IU12)	IU10
		(IU11, IU12, IU13)	IU11
OptiX OSN 9800 M24	3	(IU1, IU2, IU3)	IU1
		(IU2, IU3, IU4)	IU2
		(IU3, IU4, IU5)	IU3
		(IU4, IU5, IU6)	IU4
		(IU7, IU8, IU9)	IU7
		(IU8, IU9, IU10)	IU8
		(IU9, IU10, IU11)	IU9
		(IU10, IU11, IU12)	IU10

Item	TNG6ADC0824
Basic function	Implements optical-layer service grooming for multiple wavelengths, and supports contentionless transmission. Wavelength adding: Adds 24 any coherent wavelength signals to any optical port among AM01 to AM24 and outputs them from any optical port among OUT1 to OUT8. The wavelength services that are added from the same AM optical port can be transmitted to only one OUT optical port, and services of the same wavelength cannot be added to the same OUT optical port. Wavelength dropping: Receives at most 24 coherent wavelength signals from eight line-side optical ports and grooms the received signals to any DM optical port for wavelength dropping. The optical signals of the same wavelength can be dropped from different DM optical ports, but one DM optical port can receive services of only one IN optical port.
WDM specification	Supports DWDM specifications.
Spectrum application	Supports Super C band. Supports flexible grid wavelength signals. The channel spacing is n x slice. (The minimum slice is 6.25 GHz. The value of n ranges from 6 to 64. That is, each channel is adjustable within the range of 37.5 GHz to 400 GHz.)
Online optical performance monitoring	Not supported
Optical-layer ASON	Supported
Digital optical label	The board can work with the OTU board that supports the digital optical label function to detect digital optical label overheads and optical power: Supports detecting digital optical label overheads on ports AM1 to AM24. After the Optical Doctor management system license and the OD function are configured, the board provides route visualization and trail verification functions. Supports detecting digital optical label optical power and provides the single-wavelength optical power detection function on ports AM1 to AM24. After the Optical Doctor management system license and the OD function are configured, the board supports OSNR detection.</li>
Optical power adjustment	Not supported
Loopback	Supports optical-layer loopbacks.
Alarm and performance event monitoring	Detects the optical power and reports the alarms and performance events for the board.
Dimensions (H x W x D)	237.10 × 91.50 × 220.00 (mm) 9.34 × 3.61 × 8.67 (in.)
Weight	5.20 kg 11.46 lb.

Item	TNG6ADC0824
Basic function	Implements optical-layer service grooming for multiple wavelengths, and supports contentionless transmission. Wavelength adding: Adds 24 any coherent wavelength signals to any optical port among AM01 to AM24 and outputs them from any optical port among OUT1 to OUT8. The wavelength services that are added from the same AM optical port can be transmitted to only one OUT optical port, and services of the same wavelength cannot be added to the same OUT optical port. Wavelength dropping: Receives at most 24 coherent wavelength signals from eight line-side optical ports and grooms the received signals to any DM optical port for wavelength dropping. The optical signals of the same wavelength can be dropped from different DM optical ports, but one DM optical port can receive services of only one IN optical port.
WDM specification	Supports DWDM specifications.
Spectrum application	Supports Super C band. Supports flexible grid wavelength signals. The channel spacing is n x slice. (The minimum slice is 6.25 GHz. The value of n ranges from 6 to 64. That is, each channel is adjustable within the range of 37.5 GHz to 400 GHz.)
Online optical performance monitoring	Not supported
Optical-layer ASON	Supported
Digital optical label	The board can work with the OTU board that supports the digital optical label function to detect digital optical label overheads and optical power: Supports detecting digital optical label overheads on ports AM1 to AM24. After the Optical Doctor management system license and the OD function are configured, the board provides route visualization and trail verification functions. Supports detecting digital optical label optical power and provides the single-wavelength optical power detection function on ports AM1 to AM24. After the Optical Doctor management system license and the OD function are configured, the board supports OSNR detection.</li>
Optical power adjustment	Not supported
Loopback	Supports optical-layer loopbacks.
Alarm and performance event monitoring	Detects the optical power and reports the alarms and performance events for the board.
Dimensions (H x W x D)	237.10 × 91.50 × 220.00 (mm) 9.34 × 3.61 × 8.67 (in.)
Weight	5.20 kg 11.46 lb.
