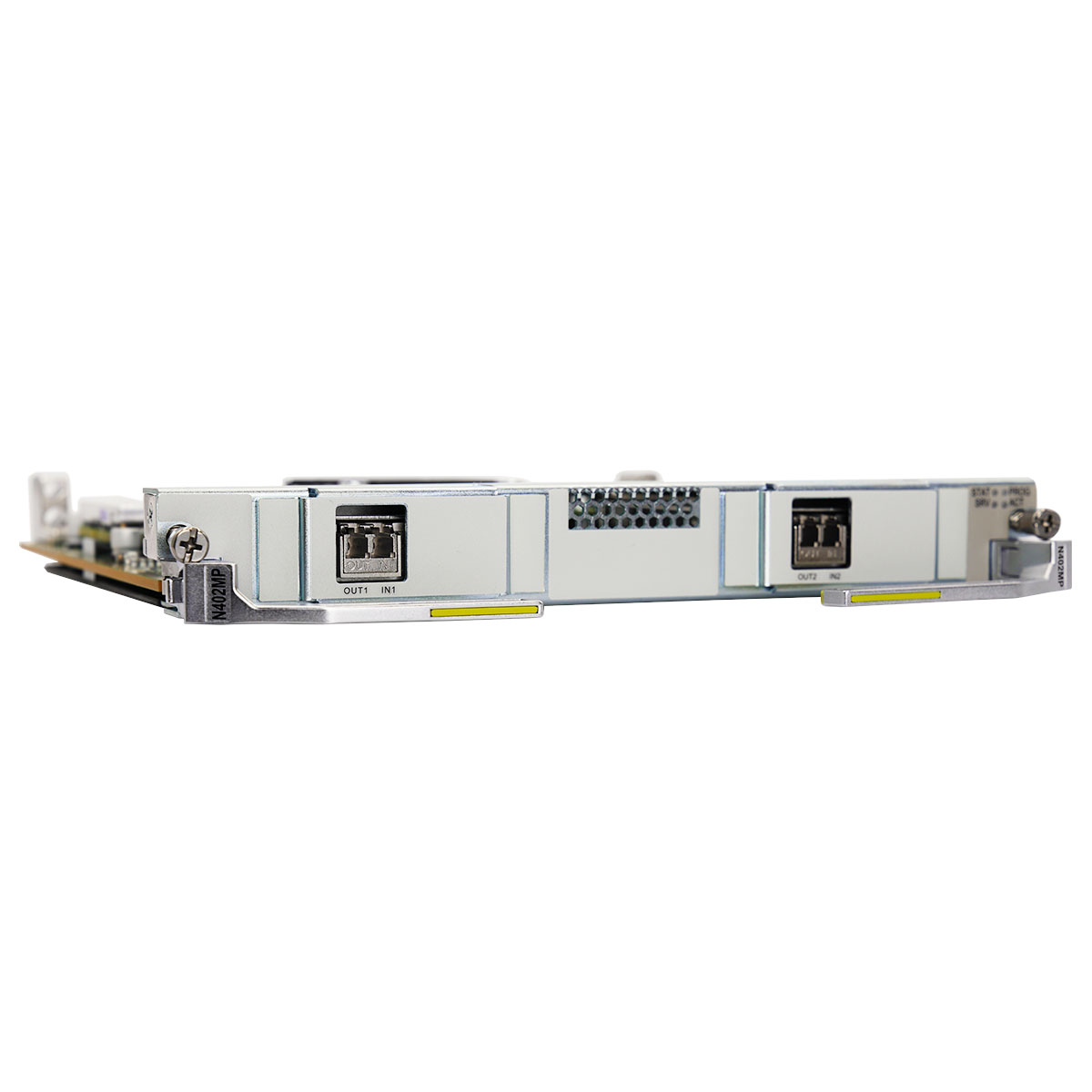

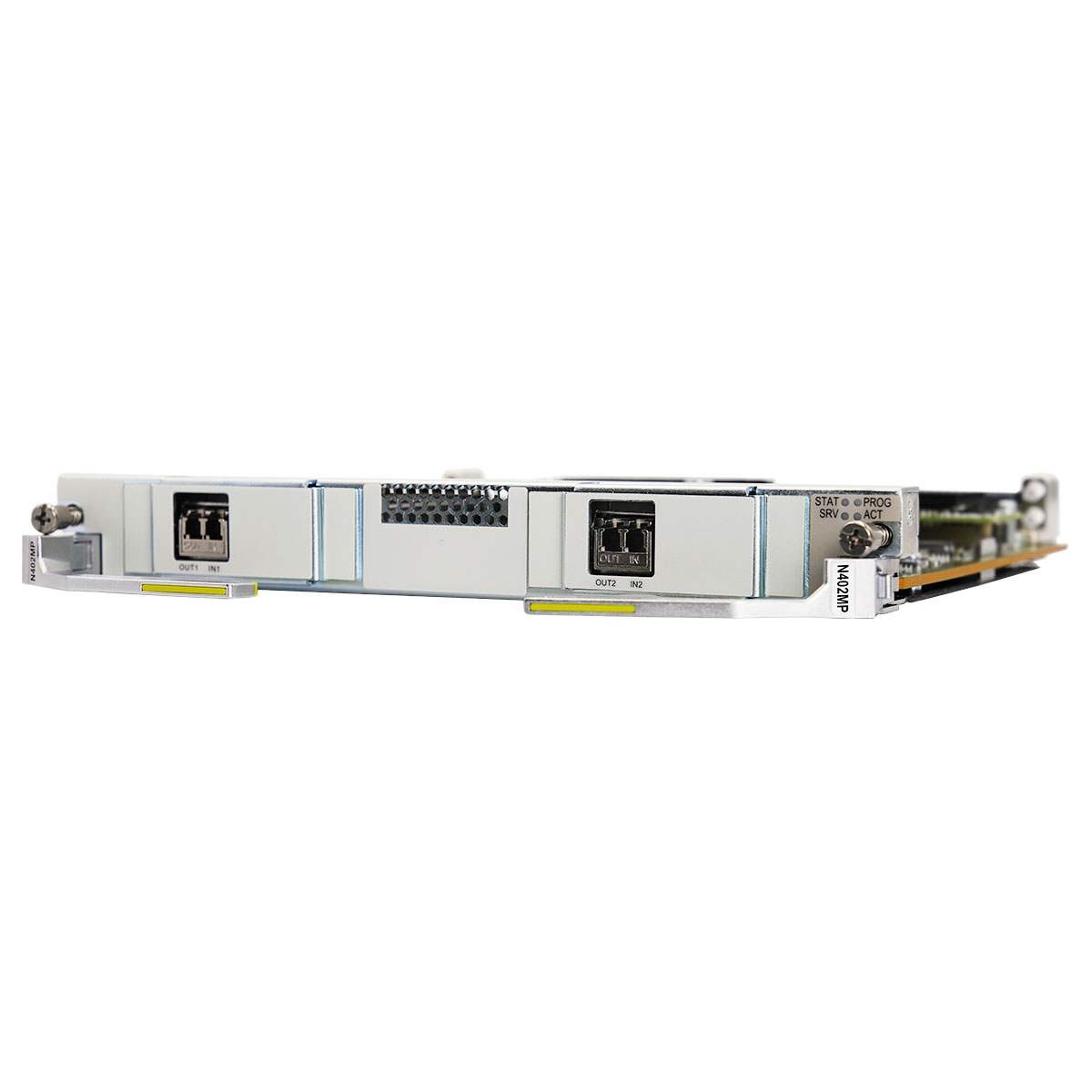

Huawei OptiX OSN 9800 TNG3N402MP 2*100G Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG3N402MP overview

TNG3N402MP 2*100G Line Service Processing Board applied to Huawei OptiX OSN 9800 M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG3N402MP board has only one variant: TNG3N402MP01.

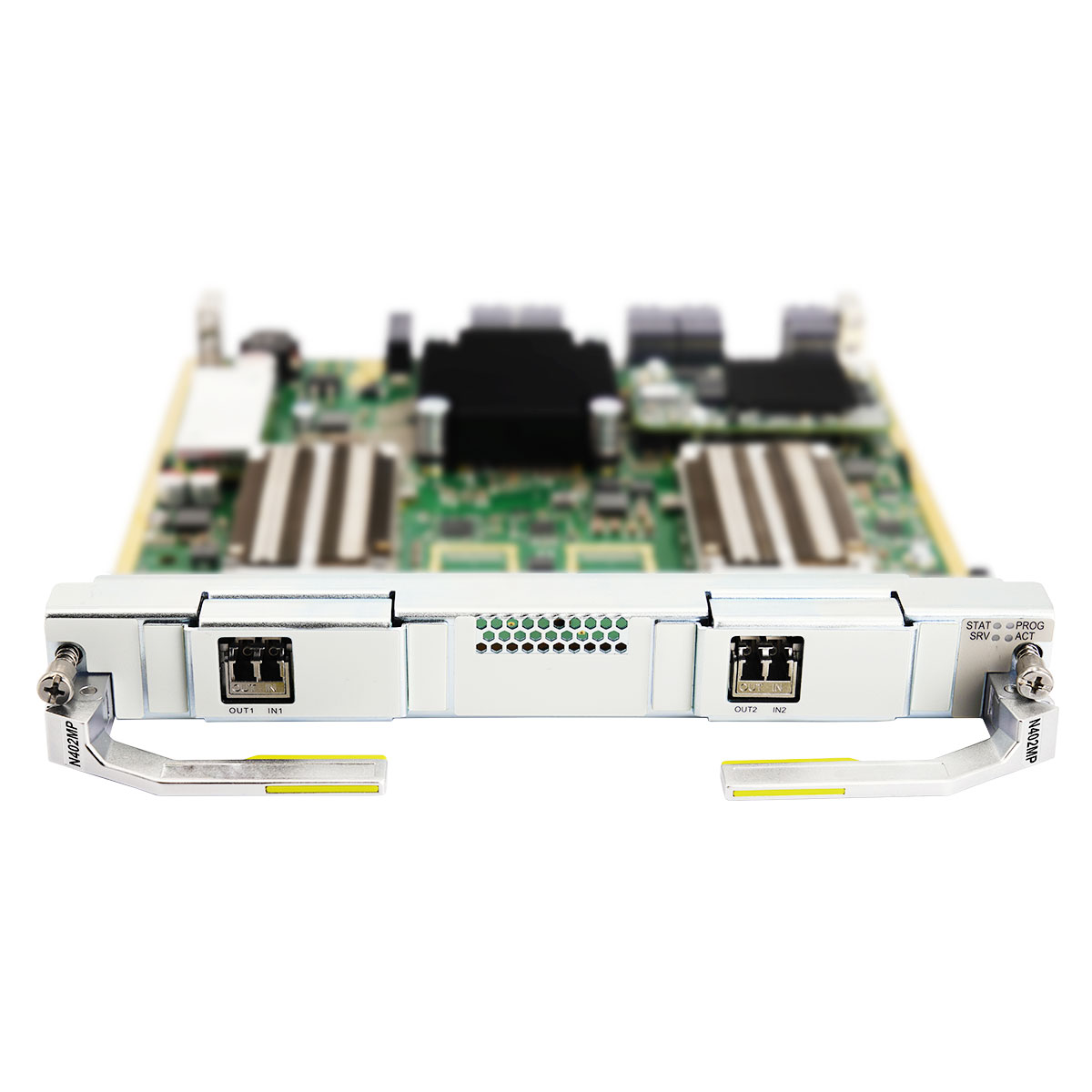

Front panel of the TNG3N402MP board

Front panel of the TNG3N402MP board

Valid slots for the TNG3N402MP board in a M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M24	1	IU1 to IU24	IU1 to IU24

Item	TNG3N402MP
Functions and Features of the TNG3N402MP Board (OTN Line)
Basic function	Provides two line ports to convert a maximum of 160 channels of ODU0, 80 channels of ODU1, 20 channels of ODU2(e), 4 channels of ODU3, 2 channels of ODU4, 160 channels of ODUflex or 2000 channels of OSUflex signals to 2 channel of OTU4. For details about the service mapping path, see Application.
Backplane capacity	The maximum capacity is 200 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	SDFEC2
Line modulation format	100G mDQPSK
Typical channel spacing	50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads. OSUflex layer: supports PM and TCM overhead processing. OSUflex layer: supports non-intrusive monitoring of PM and TCM overheads.
OSU	Supported NOTE: The OSU function requires a license.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP	Supported
OSUflex SNCP	Supported NOTE: When working with a TNG1CXP board, the TNG3N402MP board supports a maximum of 1024 OSUflex SNCP protection groups. When working with a TNG3CXP/TNG4CXP board, the TNG3N402MP board supports a maximum of 2000 OSUflex SNCP protection groups.
Tributary SNCP	Supported
Electrical-layer ASON	Supported
Optical-layer ASON	Not Supported
Digital optical label	When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock	Supported NOTE: When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	Supports latency measurement in the WDM-side optical port direction (upstream direction). When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement. When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement. Supports PM and TCM latency measurement at the OSUflex layer. NOTE: In the OSU application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Channel loopback	OSUflex channel loopbacks ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks NOTE: The board supports a maximum of eight OSUflex channel loopbacks.
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Functions and Features of the TNG3N402MP Board (SDH)
Basic function	Provides two line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
Backplane capacity	The total backplane bandwidth is 40 Gbit/s.
Service processing	VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing	Processes the section overheads of STM-16/STM-64 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports transparent transmission of DCC channels.
SDH SNCP	Supported
Linear MSP	Supported
Ring MSP	Supports two-fiber bidirectional ring MSP
SDH ASON	Supported
ALS	Not supported
Physical clock	Supports SDH clock synchronization.
Outband DCN	Supported
Channel loopback	Supports VC channel loopbacks.
Port loopback	Supports Virtual Port loopbacks.
2M ASON	Supported
Alarm and performance event monitoring	Monitors B1 bytes to help locate faults. Monitors B2 bytes to help locate faults.
Dimensions (H x W x D)	237.10 × 30.50 × 220.00 (mm) 9.34 × 1.20 × 8.67 (in.)
Weight	1.75 kg 3.86 lb.

Item	TNG3N402MP
Functions and Features of the TNG3N402MP Board (OTN Line)
Basic function	Provides two line ports to convert a maximum of 160 channels of ODU0, 80 channels of ODU1, 20 channels of ODU2(e), 4 channels of ODU3, 2 channels of ODU4, 160 channels of ODUflex or 2000 channels of OSUflex signals to 2 channel of OTU4. For details about the service mapping path, see Application.
Backplane capacity	The maximum capacity is 200 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	SDFEC2
Line modulation format	100G mDQPSK
Typical channel spacing	50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads. OSUflex layer: supports PM and TCM overhead processing. OSUflex layer: supports non-intrusive monitoring of PM and TCM overheads.
OSU	Supported NOTE: The OSU function requires a license.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP	Supported
OSUflex SNCP	Supported NOTE: When working with a TNG1CXP board, the TNG3N402MP board supports a maximum of 1024 OSUflex SNCP protection groups. When working with a TNG3CXP/TNG4CXP board, the TNG3N402MP board supports a maximum of 2000 OSUflex SNCP protection groups.
Tributary SNCP	Supported
Electrical-layer ASON	Supported
Optical-layer ASON	Not Supported
Digital optical label	When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock	Supported NOTE: When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	Supports latency measurement in the WDM-side optical port direction (upstream direction). When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement. When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement. Supports PM and TCM latency measurement at the OSUflex layer. NOTE: In the OSU application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Channel loopback	OSUflex channel loopbacks ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks NOTE: The board supports a maximum of eight OSUflex channel loopbacks.
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Functions and Features of the TNG3N402MP Board (SDH)
Basic function	Provides two line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
Backplane capacity	The total backplane bandwidth is 40 Gbit/s.
Service processing	VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing	Processes the section overheads of STM-16/STM-64 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports transparent transmission of DCC channels.
SDH SNCP	Supported
Linear MSP	Supported
Ring MSP	Supports two-fiber bidirectional ring MSP
SDH ASON	Supported
ALS	Not supported
Physical clock	Supports SDH clock synchronization.
Outband DCN	Supported
Channel loopback	Supports VC channel loopbacks.
Port loopback	Supports Virtual Port loopbacks.
2M ASON	Supported
Alarm and performance event monitoring	Monitors B1 bytes to help locate faults. Monitors B2 bytes to help locate faults.
Dimensions (H x W x D)	237.10 × 30.50 × 220.00 (mm) 9.34 × 1.20 × 8.67 (in.)
Weight	1.75 kg 3.86 lb.
