Huawei OptiX OSN 9800 TNG2WRPC Super C-band and L-band Raman amplifier

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG2WRPC overview

TNG2WRPC Super C-band and L-band Raman amplifier to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

The TNG2WRPC board has only one variant: TNG2WRPC01.

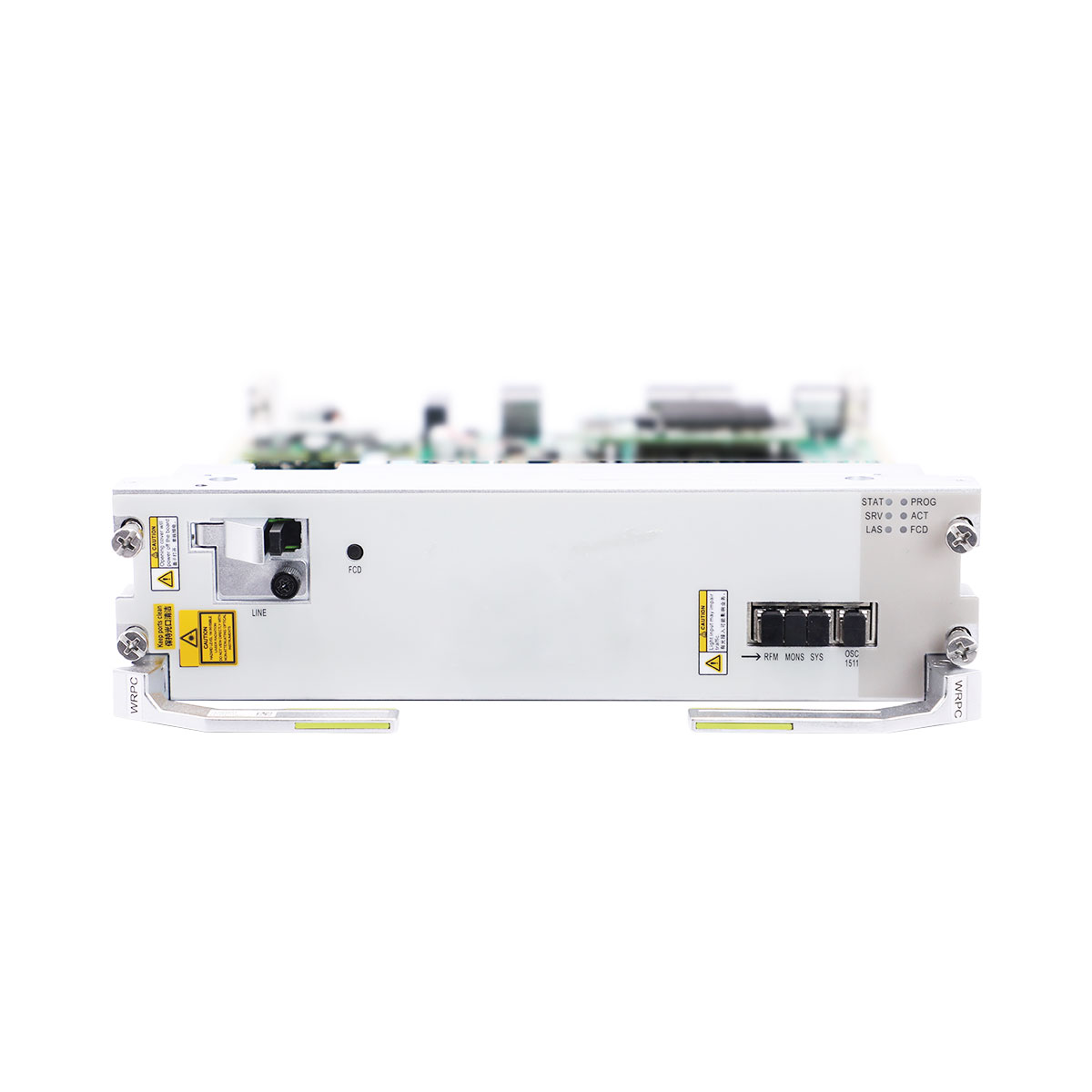

Front panel of the TNG2WRPC board

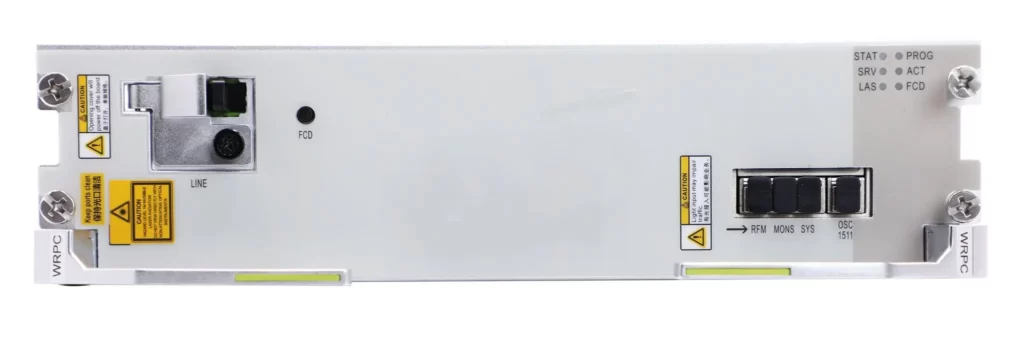

Front panel of the TNG2WRPC board

Valid slots for the TNG2WRPC board in a M05/M12/M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M05	2	(IU1, IU2)	IU2
		(IU2, IU3)	IU3
		(IU3, IU4)	IU4
		(IU4, IU5)	IU5
OptiX OSN 9800 M12	2	(IU1, IU2)	IU2
		(IU2, IU3)	IU3
		(IU3, IU4)	IU4
		(IU4, IU5)	IU5
		(IU5, IU6)	IU6
		(IU6, IU7)	IU7
		(IU7, IU8)	IU8
		(IU8, IU9)	IU9
		(IU9, IU10)	IU10
		(IU10, IU11)	IU11
		(IU11, IU12)	IU12
		(IU12, IU13)	IU13
OptiX OSN 9800 M24	2	(IU1, IU2)	IU2
		(IU2, IU3)	IU3
		(IU3, IU4)	IU4
		(IU4, IU5)	IU5
		(IU5, IU6)	IU6
		(IU7, IU8)	IU8
		(IU8, IU9)	IU9
		(IU9, IU10)	IU10
		(IU10, IU11)	IU11
		(IU11, IU12)	IU12
		(IU13, IU14)	IU14
		(IU14, IU15)	IU15
		(IU15, IU16)	IU16
		(IU16, IU17)	IU17
		(IU17, IU18)	IU18
		(IU19, IU20)	IU20
		(IU20, IU21)	IU21
		(IU21, IU22)	IU22
		(IU22, IU23)	IU23
		(IU23, IU24)	IU24

Item	TNG2WRPC
Basic function	Supports backward Raman pump control. Integrates with a backward Raman optical amplifier unit to amplify Super C band and L band input optical signals. Generates multi-channel pump light of high power, providing energy for the amplification of signals in the fiber. Implements distributed online amplification of signals over long distance with wide bandwidth and low noise.
WDM specification	Supports the DWDM specifications.
Raman working mode	Supports the pump power locking mode, gain mode, and maximum gain mode. The gain locking mode applies to the multi-span or single-short-span scenarios that use G.652, G.653, G.654A, G.654B, or G.656 fibers. In this mode, the gain of the Raman optical module is tunable, and you can query the actual gain of the Raman optical module. The maximum gain mode applies to the ultra-long single-span scenarios that use G.652, G.653, G.654A, G.654B, or G.656 fibers. In this mode, the Raman optical module automatically adjusts its pump power to ensure that its gain reaches the maximum value. In addition, users can query the actual gain of the Raman optical module. The pump power locking mode applies to the scenarios in which the pump power of the Raman optical module needs to be adjusted manually (For example, the ROP scenario).
Safe turn-on of the Raman laser	When the Raman laser is turned on, the line fiber quality monitoring function is automatically enabled to detect fiber connections and therefore ensure that the laser is properly started, avoiding fiber burning due to inappropriate fiber connections. If turning on the Raman laser fails, the line fiber quality monitoring function can be used to further identify fault points.
Online optical performance monitoring	Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Line fiber quality monitoring	The line fiber quality monitoring function can be used on the NMS. Monitoring figures and data are displayed on the NMS.The Fiber Doctor Management System Software Fee License needs to be purchased for this function.
Optical Doctor	Supported
Optical-layer ASON	Not supported
Alarm and performance event monitoring	Detects and reports optical power levels. Monitors the temperature of the pump laser. Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.
Dimensions (H x W x D)	237.10 × 61.00 × 220.00 (mm) 9.34 × 2.40 × 8.67 (in.)
Weight	3.42 kg 7.54 lb.

Item	TNG2WRPC
Basic function	Supports backward Raman pump control. Integrates with a backward Raman optical amplifier unit to amplify Super C band and L band input optical signals. Generates multi-channel pump light of high power, providing energy for the amplification of signals in the fiber. Implements distributed online amplification of signals over long distance with wide bandwidth and low noise.
WDM specification	Supports the DWDM specifications.
Raman working mode	Supports the pump power locking mode, gain mode, and maximum gain mode. The gain locking mode applies to the multi-span or single-short-span scenarios that use G.652, G.653, G.654A, G.654B, or G.656 fibers. In this mode, the gain of the Raman optical module is tunable, and you can query the actual gain of the Raman optical module. The maximum gain mode applies to the ultra-long single-span scenarios that use G.652, G.653, G.654A, G.654B, or G.656 fibers. In this mode, the Raman optical module automatically adjusts its pump power to ensure that its gain reaches the maximum value. In addition, users can query the actual gain of the Raman optical module. The pump power locking mode applies to the scenarios in which the pump power of the Raman optical module needs to be adjusted manually (For example, the ROP scenario).
Safe turn-on of the Raman laser	When the Raman laser is turned on, the line fiber quality monitoring function is automatically enabled to detect fiber connections and therefore ensure that the laser is properly started, avoiding fiber burning due to inappropriate fiber connections. If turning on the Raman laser fails, the line fiber quality monitoring function can be used to further identify fault points.
Online optical performance monitoring	Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Line fiber quality monitoring	The line fiber quality monitoring function can be used on the NMS. Monitoring figures and data are displayed on the NMS.The Fiber Doctor Management System Software Fee License needs to be purchased for this function.
Optical Doctor	Supported
Optical-layer ASON	Not supported
Alarm and performance event monitoring	Detects and reports optical power levels. Monitors the temperature of the pump laser. Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.
Dimensions (H x W x D)	237.10 × 61.00 × 220.00 (mm) 9.34 × 2.40 × 8.67 (in.)
Weight	3.42 kg 7.54 lb.
