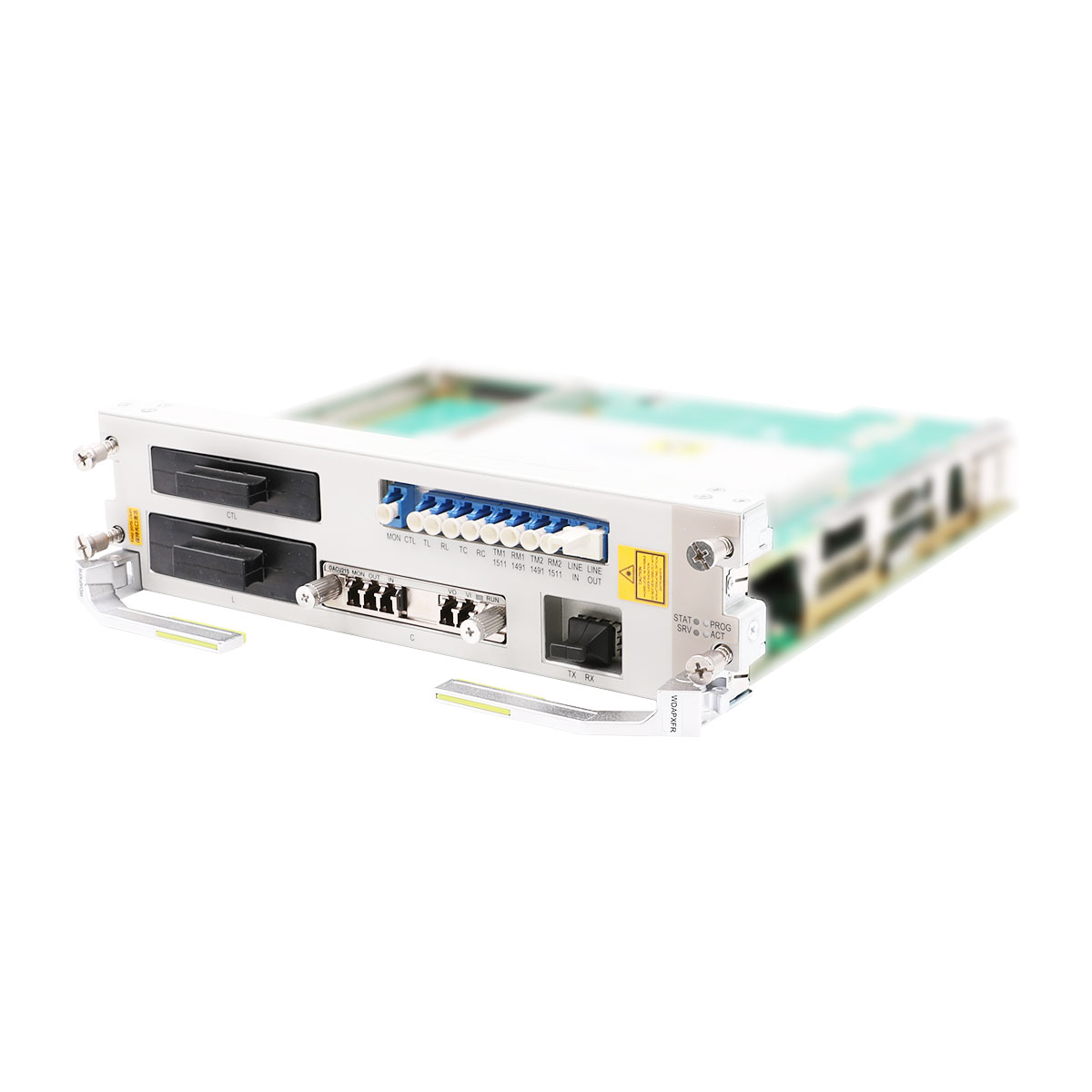

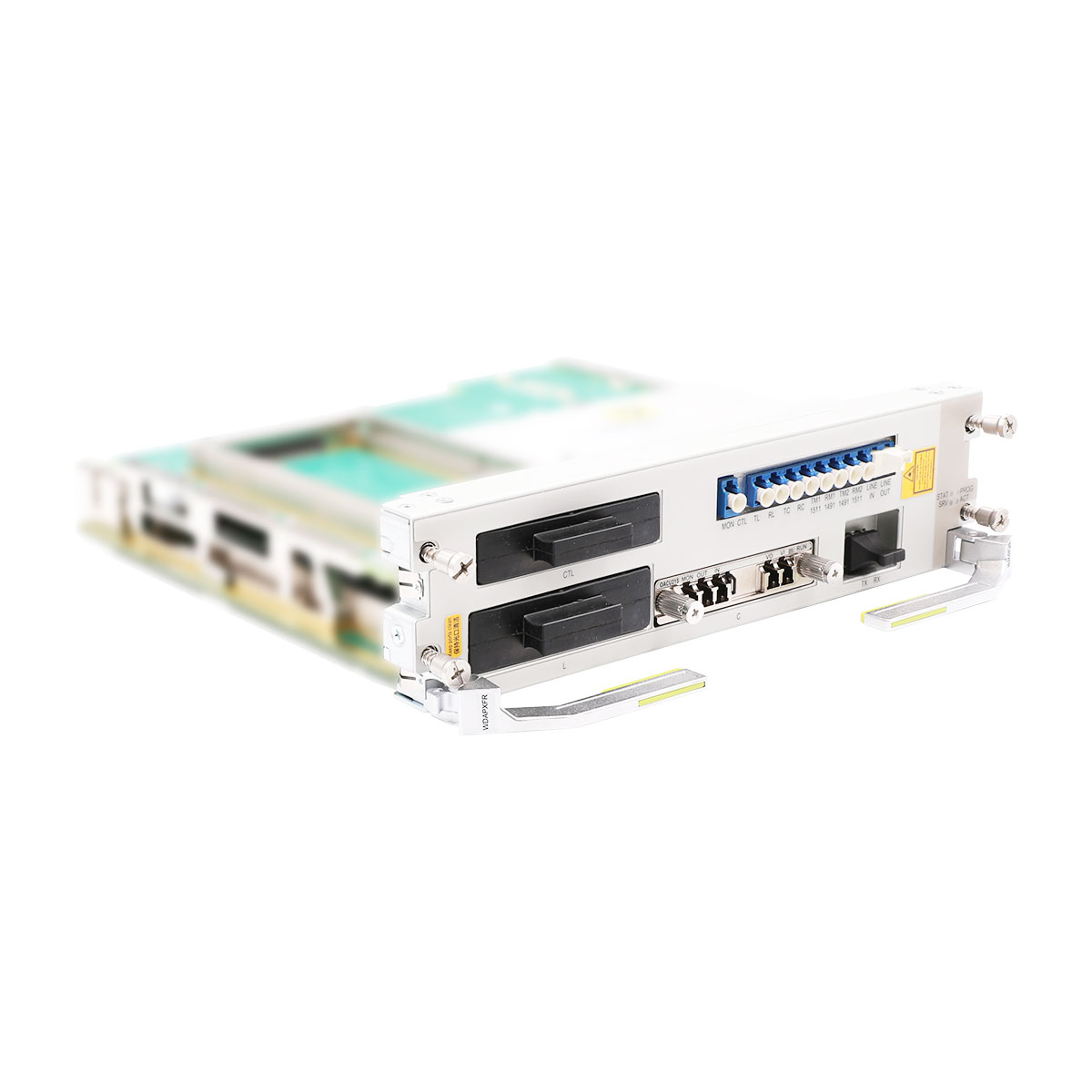

Huawei OptiX OSN 9800 TNG2WDAPXFR OA base board with C-band pluggable port and L-band pluggable port, with C and L band XFIU

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG2WDAPXFR overview

TNG2WDAPXFR OA base board with C-band pluggable port and L-band pluggable port, with C and L band XFIU to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

The TNG2WDAPXFR board has only one variant: TNG2WDAPXFR01.

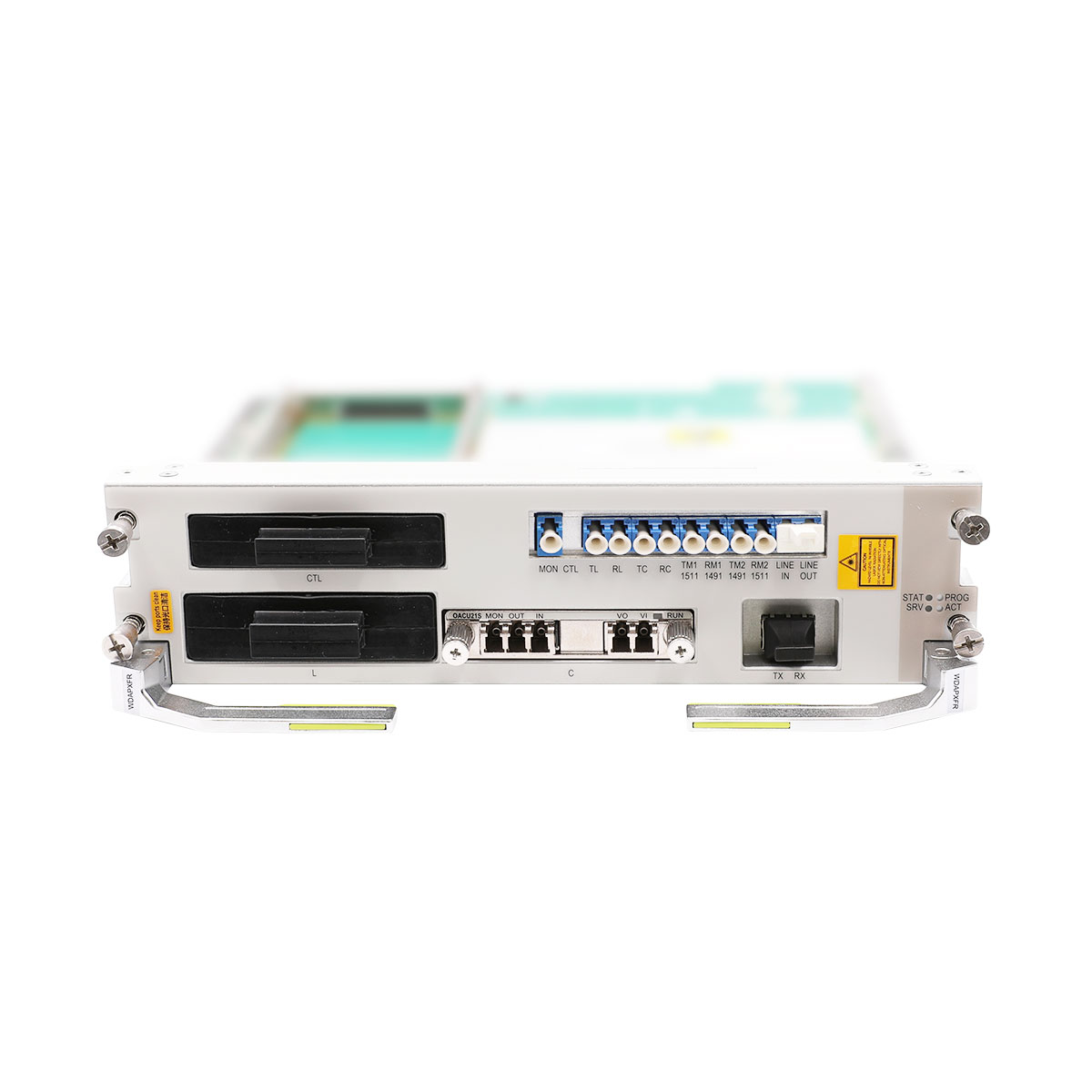

Front panel of the TNG2WDAPXFR board

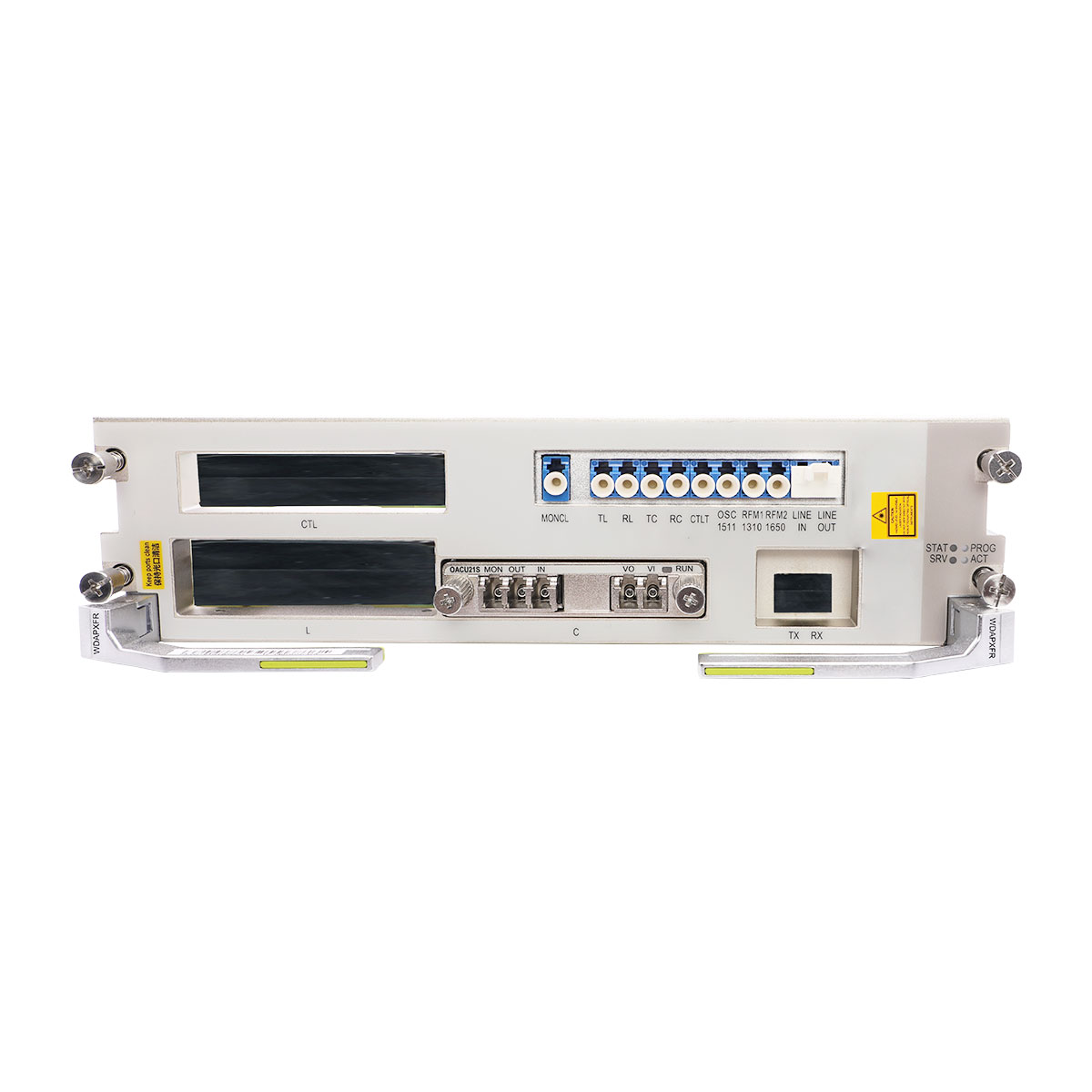

Front panel of the TNG2WDAPXFR board

Valid slots for the TNG2WDAPXFR board in a M05/M12/M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M05	2	(IU1, IU2)	IU1
		(IU2, IU3)	IU2
		(IU3, IU4)	IU3
		(IU4, IU5)	IU4
OptiX OSN 9800 M12	2	(IU1, IU2)	IU1
		(IU2, IU3)	IU2
		(IU3, IU4)	IU3
		(IU4, IU5)	IU4
		(IU5, IU6)	IU5
		(IU6, IU7)	IU6
		(IU7, IU8)	IU7
		(IU8, IU9)	IU8
		(IU9, IU10)	IU9
		(IU10, IU11)	IU10
		(IU11, IU12)	IU11
		(IU12, IU13)	IU12
OptiX OSN 9800 M24	2	(IU1, IU2)	IU1
		(IU2, IU3)	IU2
		(IU3, IU4)	IU3
		(IU4, IU5)	IU4
		(IU5, IU6)	IU5
		(IU7, IU8)	IU7
		(IU8, IU9)	IU8
		(IU9, IU10)	IU9
		(IU10, IU11)	IU10
		(IU11, IU12)	IU11
		(IU13, IU14)	IU13
		(IU14, IU15)	IU14
		(IU15, IU16)	IU15
		(IU16, IU17)	IU16
		(IU17, IU18)	IU17
		(IU19, IU20)	IU19
		(IU20, IU21)	IU20
		(IU21, IU22)	IU21
		(IU22, IU23)	IU22
		(IU23, IU24)	IU23

Item	TNG2WDAPXFR
Basic function	Amplifies the power of the received optical signals in the Super C band. Amplifies the power of the received optical signals in the L band. Supports service transmission with varying fiber spans without using electrical regeneration.
WDM specification	Supports the DWDM specifications.
Pluggable amplifier optical module	Supports C120 wavelengths optical amplifier modules: TNG1OACU21S/TNG1OACU25S/TNG1OACU32S TNG2OACU21S/TNG2OACU25S/TNG2OACU32S/TNG2OACU14S/TNG2OACU25H/TNG2OACU32H TNG2OACU23U/TNG2OACU27U/TNG2OACU34U Supports L-band wavelengths optical amplifier modules: TNG2OALU20S/TNG2OALU24S/TNG2OALU31S TNG3OAL24S/TNG3OAL31S
Working mode	Supports the gain locking, power locking and APC modes. In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default. The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present. Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Gain adjustment	TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input optical power. TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input optical power. TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input optical power. TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input optical power. TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power. TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power. TNG2OACU23U: Continually adjusts the gain from 18 dB to 23 dB based on the input signal power. TNG2OACU27U: Continually adjusts the gain from 21 dB to 27 dB based on the input signal power. TNG2OACU34U: Continually adjusts the gain from 25 dB to 34 dB based on the input signal power. TNG2OALU20S: Continually adjusts the gain from 15 dB to 20 dB based on the input signal power. TNG2OALU24S: Continually adjusts the gain from 18 dB to 24 dB based on the input signal power. TNG2OALU31S: Continually adjusts the gain from 22 dB to 31 dB based on the input signal power. TNG3OAL24S: Continually adjusts the gain from 18 dB to 24 dB based on the input signal power. TNG3OAL31S: Continually adjusts the gain from 22 dB to 31 dB based on the input signal power.
Transient control	The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Online optical performance monitoring	Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Optical Doctor	Supported
Optical-layer ASON	Supported NOTE: Optical-layer ASON is supported in two-fiber bidirectional single-OSC configuration scenario and single-fiber bidirectional dual-OSC configuration scenario. Optical-layer ASON is not supported in single-fiber bidirectional single-OSC configuration scenario. Optical-layer ASON is not supported in the C+L system scenario.
Alarm and performance event monitoring	Detects and reports optical power levels. Monitors the temperature of the pump laser. Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.
Functions and Features of the TNG2WDAPXFR Board (FIU)
Basic function	Multiplexes the OSC signal and main channel signal into the line path and performs the reverse process. In single-fiber bidirectional (single-OSC configuration) OSC scenario and single-fiber bidirectional (dual-OSC configuration) OSC scenario, neither commissioning nor delay compensation is required for IEEE 1588V2 clocks.
Functions and Features of the TNG2WDAPXFR Board (OSC)
Operating wavelength of the OSC	OSC: 1511nm
Dimensions (H x W x D)	237.10 × 61.00 × 220.00 (mm) 9.34 × 2.40 × 8.67 (in.)
Weight	3.10 kg 6.83 lb.

Item	TNG2WDAPXFR
Basic function	Amplifies the power of the received optical signals in the Super C band. Amplifies the power of the received optical signals in the L band. Supports service transmission with varying fiber spans without using electrical regeneration.
WDM specification	Supports the DWDM specifications.
Pluggable amplifier optical module	Supports C120 wavelengths optical amplifier modules: TNG1OACU21S/TNG1OACU25S/TNG1OACU32S TNG2OACU21S/TNG2OACU25S/TNG2OACU32S/TNG2OACU14S/TNG2OACU25H/TNG2OACU32H TNG2OACU23U/TNG2OACU27U/TNG2OACU34U Supports L-band wavelengths optical amplifier modules: TNG2OALU20S/TNG2OALU24S/TNG2OALU31S TNG3OAL24S/TNG3OAL31S
Working mode	Supports the gain locking, power locking and APC modes. In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default. The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present. Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Gain adjustment	TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input optical power. TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input optical power. TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input optical power. TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input optical power. TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power. TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power. TNG2OACU23U: Continually adjusts the gain from 18 dB to 23 dB based on the input signal power. TNG2OACU27U: Continually adjusts the gain from 21 dB to 27 dB based on the input signal power. TNG2OACU34U: Continually adjusts the gain from 25 dB to 34 dB based on the input signal power. TNG2OALU20S: Continually adjusts the gain from 15 dB to 20 dB based on the input signal power. TNG2OALU24S: Continually adjusts the gain from 18 dB to 24 dB based on the input signal power. TNG2OALU31S: Continually adjusts the gain from 22 dB to 31 dB based on the input signal power. TNG3OAL24S: Continually adjusts the gain from 18 dB to 24 dB based on the input signal power. TNG3OAL31S: Continually adjusts the gain from 22 dB to 31 dB based on the input signal power.
Transient control	The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Online optical performance monitoring	Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Optical Doctor	Supported
Optical-layer ASON	Supported NOTE: Optical-layer ASON is supported in two-fiber bidirectional single-OSC configuration scenario and single-fiber bidirectional dual-OSC configuration scenario. Optical-layer ASON is not supported in single-fiber bidirectional single-OSC configuration scenario. Optical-layer ASON is not supported in the C+L system scenario.
Alarm and performance event monitoring	Detects and reports optical power levels. Monitors the temperature of the pump laser. Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.
Functions and Features of the TNG2WDAPXFR Board (FIU)
Basic function	Multiplexes the OSC signal and main channel signal into the line path and performs the reverse process. In single-fiber bidirectional (single-OSC configuration) OSC scenario and single-fiber bidirectional (dual-OSC configuration) OSC scenario, neither commissioning nor delay compensation is required for IEEE 1588V2 clocks.
Functions and Features of the TNG2WDAPXFR Board (OSC)
Operating wavelength of the OSC	OSC: 1511nm
Dimensions (H x W x D)	237.10 × 61.00 × 220.00 (mm) 9.34 × 2.40 × 8.67 (in.)
Weight	3.10 kg 6.83 lb.
