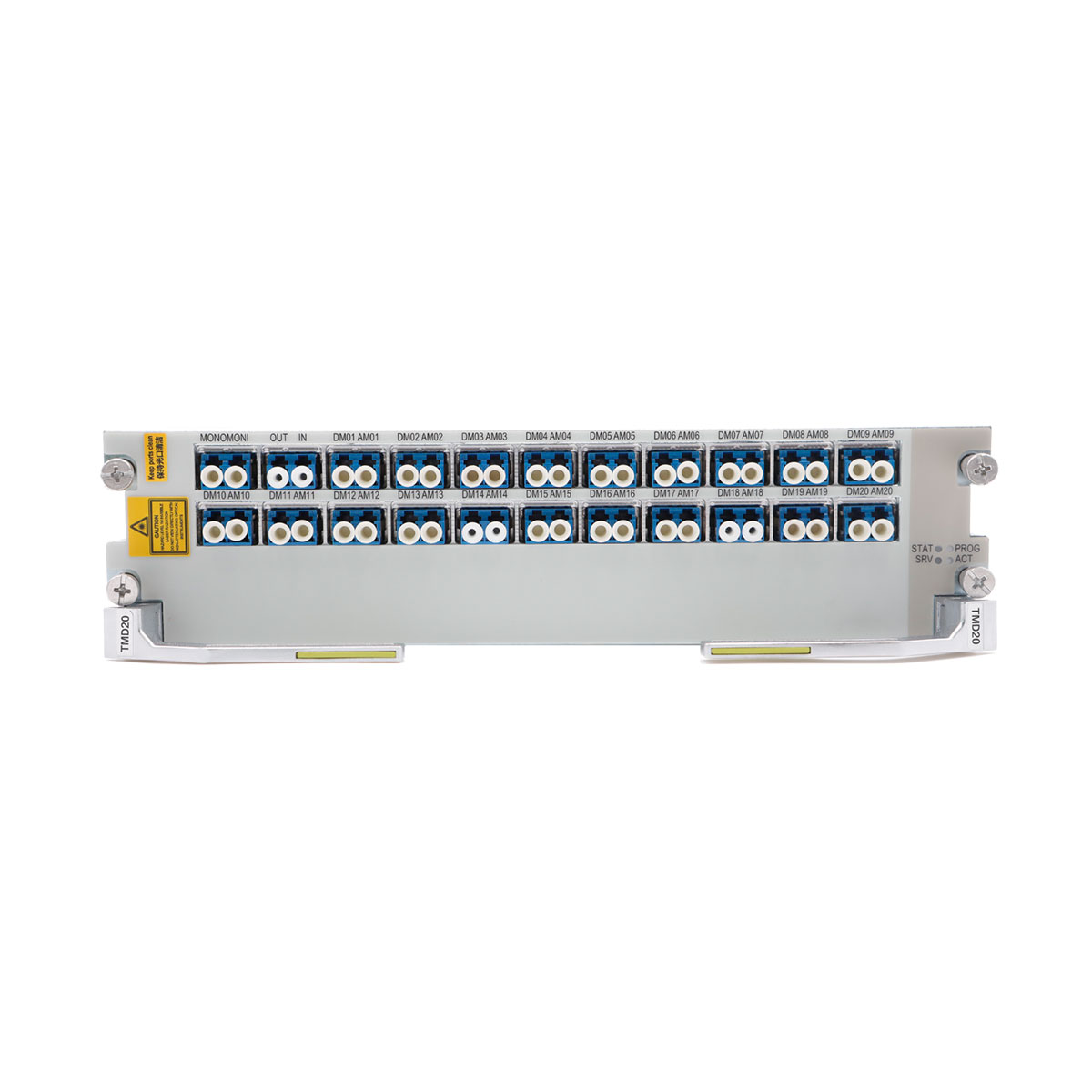

Huawei OSN 9800 Dual 20-Ports wavelength selective multiplexing and demultiplexing board
Dual 20-Ports wavelength selective multiplexing and demultiplexing board.
The TMD20 board is an optical multiplexer/demultiplexer board. It adds/drops 20 channels of optical signals over different wavelengths in colorless mode.
| Item | TNG2TMD20 |
|---|---|
| Basic function |
|
| WDM specification | Supports the DWDM specifications. |
| Spectrum application |
|
| Gain locking technology | Not supported |
| Online optical performance monitoring | Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
NOTE:
The online optical performance monitoring function can be used only for temporary optical performance monitoring when the MONI/MONO power meets the power detection range of the detection instrument or spectrum analysis board. For details about long-term monitoring, see the application scenarios of spectrum analysis boards.
|
| Optical-layer ASON | Supported |
| Optical power adjustment | Supports power adjustment for each wavelength. |
| Multiplexing of the main optical path and supervisory signals | Not supported |
| Loopback | Supports optical-layer loopbacks. |
| Alarm and performance event monitoring | Detects the optical power and reports the alarms and performance events for the board. |
| Brand | Huawei |
|---|---|
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | TNG2TMD20 |
|---|---|
| Basic function |
|
| WDM specification | Supports the DWDM specifications. |
| Spectrum application |
|
| Gain locking technology | Not supported |
| Online optical performance monitoring | Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
NOTE:
The online optical performance monitoring function can be used only for temporary optical performance monitoring when the MONI/MONO power meets the power detection range of the detection instrument or spectrum analysis board. For details about long-term monitoring, see the application scenarios of spectrum analysis boards.
|
| Optical-layer ASON | Supported |
| Optical power adjustment | Supports power adjustment for each wavelength. |
| Multiplexing of the main optical path and supervisory signals | Not supported |
| Loopback | Supports optical-layer loopbacks. |
| Alarm and performance event monitoring | Detects the optical power and reports the alarms and performance events for the board. |
