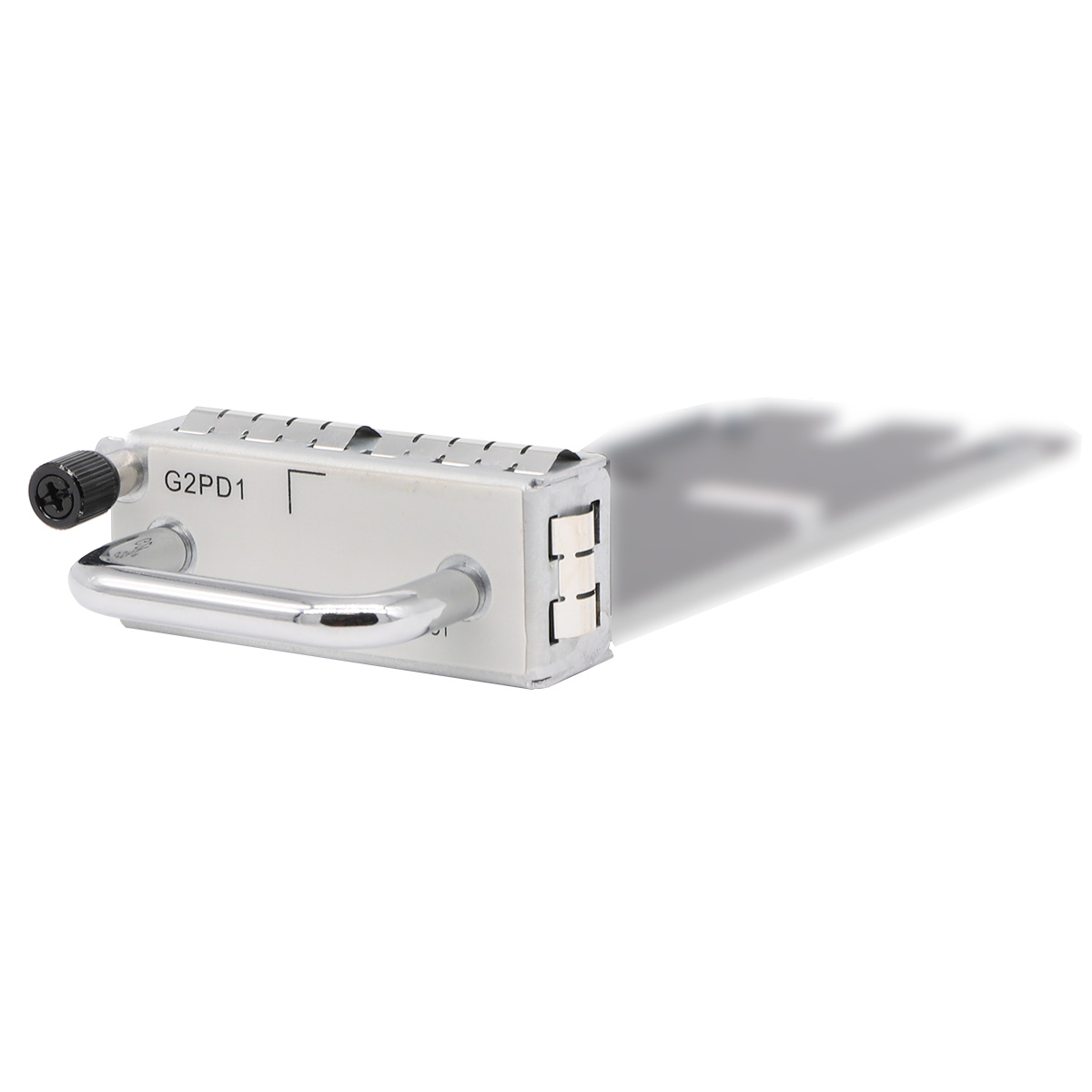

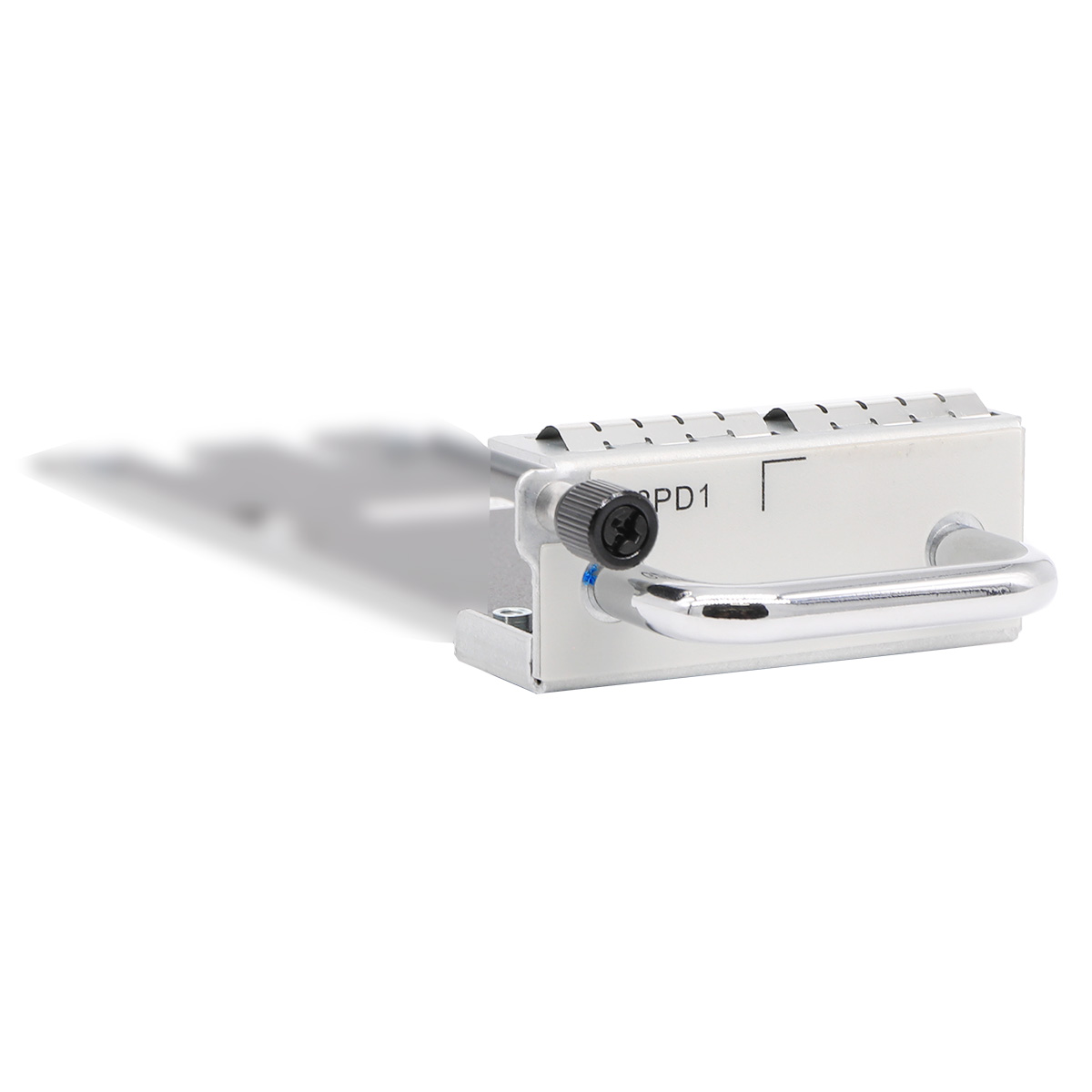

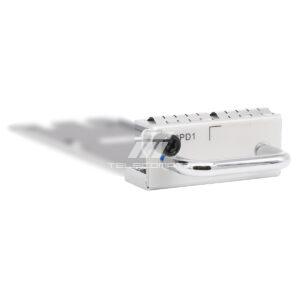

Huawei OptiX OSN 9800 TNG2PD1 32 x E1/T1 processing board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG2PD1 overview

TNG2PD1 32 x E1/T1 processing board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG2PD1 board has only one variant, that is TNG2PD1.

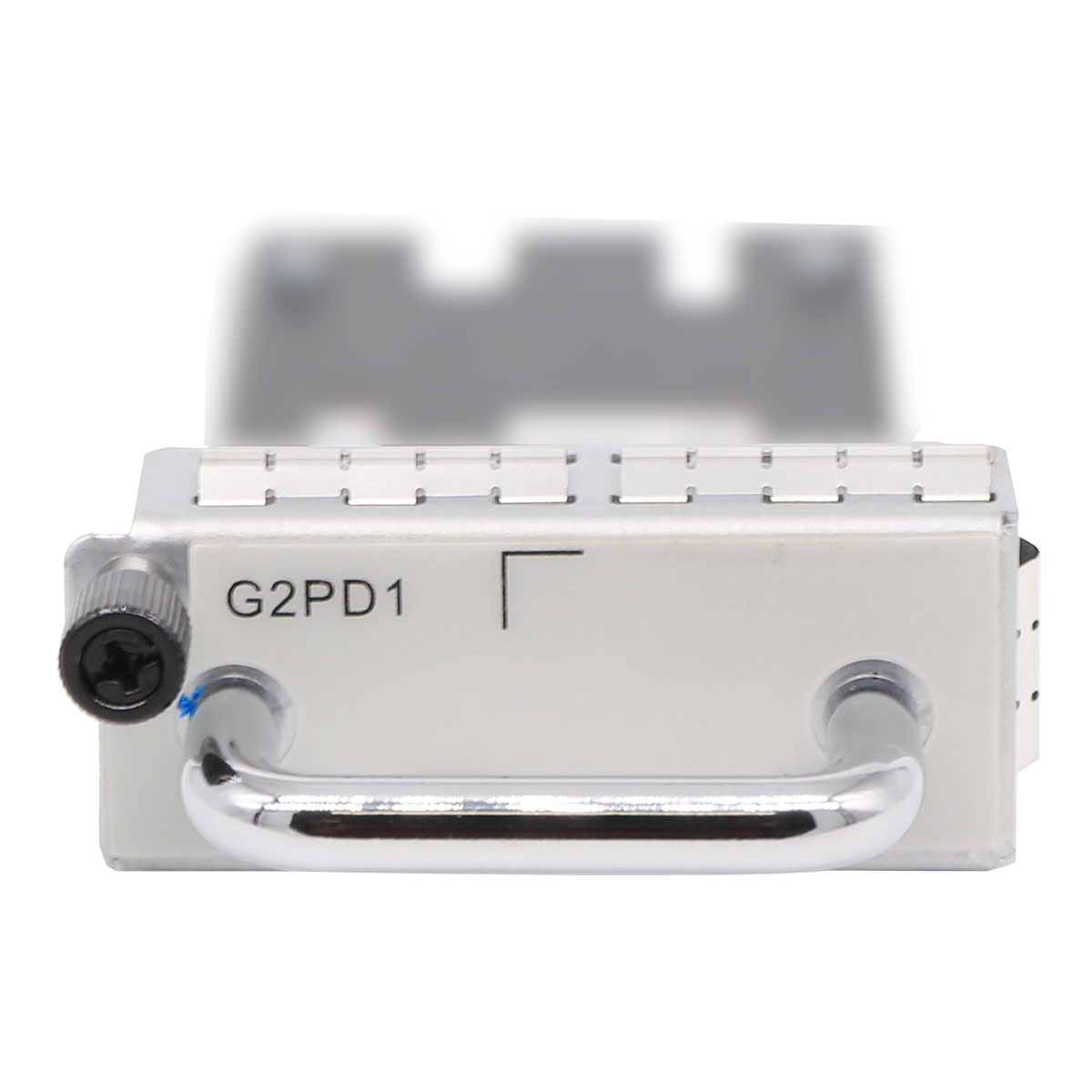

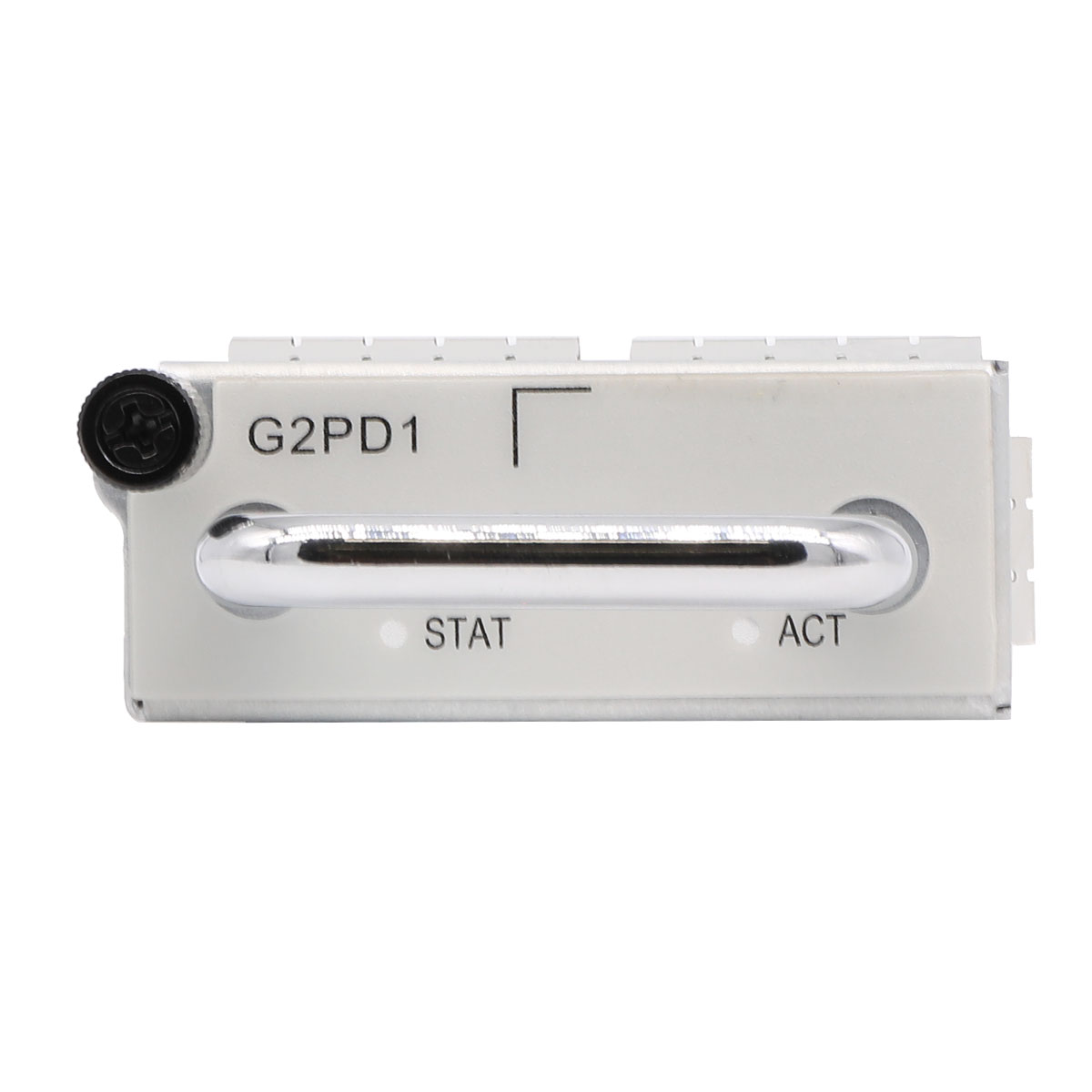

Front panel of the TNG2PD1 board

Front panel of the TNG2PD1 board

Valid slots for the TNG2PD1 board in a M24 subrack

Device	Logical slots for the PD1 (primary, secondary)	Slot Valid for the DMS/DMSE
OptiX OSN 9800 M24 subrack	142, 190	IU1
	153, 201	IU12
	154, 202	IU13
	159, 207	IU24

Item	TNG2PD1
Basic function	Working with the DMS, receives/transmits and processes 32 x E1/T1 electrical signals. Working with the OMS, receives/transmits and processes 8 x 2 Mbit/s optical signals. Working with the DMSE, receives/transmits and processes 32 x E1 electrical signals.
Overhead processing	Processes path overheads (such as J2 and V5 bytes) at the VC-12 level.
Port specifications	The front panel of the PD1 board has no port. It must work with the DMS/OMS interface board to process 32 x 75-ohm/120-ohm E1 or 32 x 100-ohm T1 and 8 x 2M optical signals.
Port specifications	Gray optical ports: I-64, I-64.1, S-64.2b, P1L1-2D2, S-1.1, L-1.1, L-1.2, S-4.1, L-4.1, and L-4.2. Colored optical ports: CWDM (STM-//, // km) and DWDM (STM-//, // km). Electrical ports: electrical module (STM-//).
TPS	Two PD1 boards provide TPS protection when working with a DMS/DMSE. Two PD1 boards provide OTPS protection when working with a OMS.
PRBS	Supported
Reset	Supports warm reset and cold reset, the warm reset does not affect services.
Manufacturer information querying	Supported
Hot swapping	Supported
Port loopback	Supports inloops and outloops at electrical ports
2M ASON	Supported
Tributary clock sources	Supports input of tributary clocks. Extracts clock signals from the first and seventeenth channels, the first and seventeenth channels correspond to the first and second channels on the NCE. Supports E1 retiming.
Alarm and performance event monitoring	Provides various alarms and performance events, facilitating equipment management and maintenance.
Dimensions (H x W x D)	60.00 × 24.00 × 184.90 (mm) 2.36 × 0.95 × 7.29 (in.)
Weight	0.20 kg 0.44 lb.

Item	TNG2PD1
Basic function	Working with the DMS, receives/transmits and processes 32 x E1/T1 electrical signals. Working with the OMS, receives/transmits and processes 8 x 2 Mbit/s optical signals. Working with the DMSE, receives/transmits and processes 32 x E1 electrical signals.
Overhead processing	Processes path overheads (such as J2 and V5 bytes) at the VC-12 level.
Port specifications	The front panel of the PD1 board has no port. It must work with the DMS/OMS interface board to process 32 x 75-ohm/120-ohm E1 or 32 x 100-ohm T1 and 8 x 2M optical signals.
Port specifications	Gray optical ports: I-64, I-64.1, S-64.2b, P1L1-2D2, S-1.1, L-1.1, L-1.2, S-4.1, L-4.1, and L-4.2. Colored optical ports: CWDM (STM-//, // km) and DWDM (STM-//, // km). Electrical ports: electrical module (STM-//).
TPS	Two PD1 boards provide TPS protection when working with a DMS/DMSE. Two PD1 boards provide OTPS protection when working with a OMS.
PRBS	Supported
Reset	Supports warm reset and cold reset, the warm reset does not affect services.
Manufacturer information querying	Supported
Hot swapping	Supported
Port loopback	Supports inloops and outloops at electrical ports
2M ASON	Supported
Tributary clock sources	Supports input of tributary clocks. Extracts clock signals from the first and seventeenth channels, the first and seventeenth channels correspond to the first and second channels on the NCE. Supports E1 retiming.
Alarm and performance event monitoring	Provides various alarms and performance events, facilitating equipment management and maintenance.
Dimensions (H x W x D)	60.00 × 24.00 × 184.90 (mm) 2.36 × 0.95 × 7.29 (in.)
Weight	0.20 kg 0.44 lb.
