Huawei OSN 9800 M05/M12/M24 Super C-band OA base board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG2DAP overview

TNG2DAP Super C-band OA base board.

Apply to OSN 9800 M05, OSN 9800 M12 and OSN 9800 M24, it supports gain adjustment, in-service monitoring of optical performance, gain locking, and transient state control.

TNG2DAP supports Alarms and performance events monitoring and Optical-layer ASON functions.

TNG2DAP supports Transient state control and Gain locking functions.

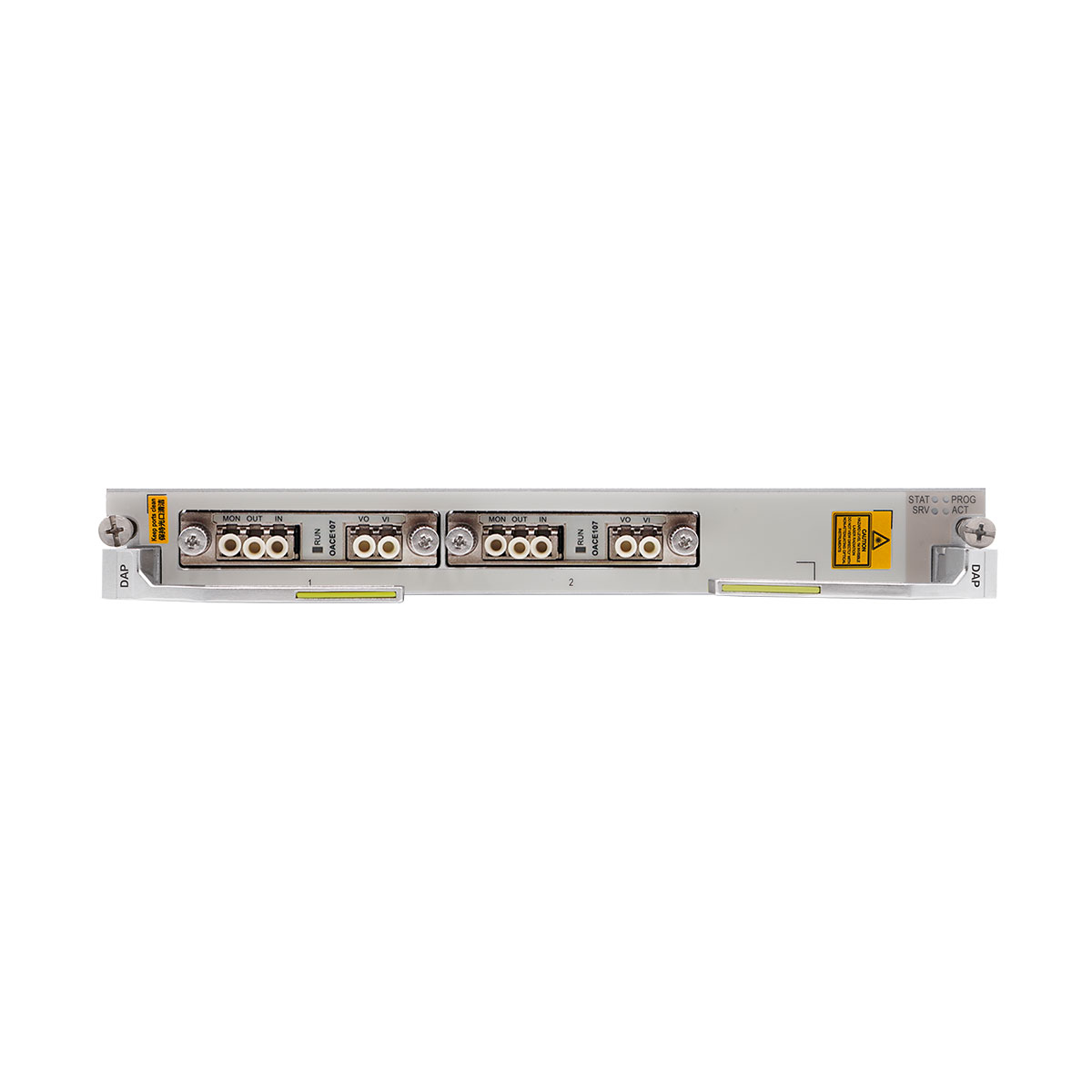

The TNG2DAP board is a dual-channel pluggable optical amplifier board that amplifies optical signals. The DAP board provides the optical amplification function. The DAP board supports gain adjustment, in-service monitoring of optical performance, gain locking, and transient state control.

Valid slots

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M05	1	IU1, IU2, IU3, IU4, IU5	IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12	1	IU1 to IU13	IU1 to IU13
OptiX OSN 9800 M24	1	IU1 to IU24	IU1 to IU24

Item	TNG2DAP
WDM specification	Supports the DWDM specifications.
Pluggable amplifier optical module	Supports 96 wavelengths optical amplifier modules: TN52OACE101/TN52OACE105/TN52OACE106/TN52OACE107/TN52OACE108 TNG3OACE101/TNG3OACE105/TNG3OACE106/TNG3OACE107/TNG3OACE108 TNG3OBCE106 Supports 120 wavelengths optical amplifier modules: TNG1OACU21S/TNG1OACU25S/TNG1OACU32S TNG2OACU21S/TNG2OACU25S/TNG2OACU32S/TNG2OACU14S/TNG2OACU25H/TNG2OACU32H TNG2OBCU22S Supports single-wavelength OA modules: TNG3PA30 (center wavelength: 1550.12 nm). Optical-layer features such as ALC, IPA, and OD are not supported. NOTE: The TNG3OBCE106 and TNG2OBCU22S modules cannot be installed in V100R21C10SPC300 and earlier versions.
Working mode	Supports the gain locking, power locking and APC modes. In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default. The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present. Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Basic EDFA function	Amplifies the power of the received optical signals in the super C-band. This board supports wavelengths within the range of 1524.3 nm to 1572.5 nm. Supports service transmission with varying fiber spans without using electrical regeneration.
Gain locking technology	The EDFA has the gain locking function. When this function is enabled, adding or dropping one or more channels or signal power fluctuation inside some channels does not affect the signal gain of other channels.
Gain adjustment	TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input signal power. TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input signal power. TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power. TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power. TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power. TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power. TN52OACE101/TNG3OACE101: Continually adjusts the gain from 20 dB to 31 dB based on the input signal power TN52OACE105/TNG3OACE105: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power TN52OACE106/TNG3OACE106: Continually adjusts the gain from 13 dB to 23 dB based on the input signal power. TN52OACE107/TNG3OACE107: Continually adjusts the gain from 17 dB to 25 dB based on the input signal power. TN52OACE108/TNG3OACE108: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power. TNG3PA30: The gain is 30dB and cannot be adjusted.
Gain adjustment	TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input signal power. TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input signal power. TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power. TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power. TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power. TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power. TN52OACE101/TNG3OACE101: Continually adjusts the gain from 20 dB to 31 dB based on the input signal power TN52OACE105/TNG3OACE105: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power TN52OACE106/TNG3OACE106: Continually adjusts the gain from 13 dB to 23 dB based on the input signal power. TN52OACE107/TNG3OACE107: Continually adjusts the gain from 17 dB to 25 dB based on the input signal power. TN52OACE108/TNG3OACE108: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power. TNG3PA30: The gain is 30dB and cannot be adjusted. TNG2OBCU22S: Continually adjusts the gain from 19 dB to 22 dB based on the input signal power. TNG3OBCE106: Continually adjusts the gain from 20 dB to 23 dB based on the input signal power.
Transient control	The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Automatic shutdown of output optical power	Not supported
Online optical performance monitoring	Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Line fiber quality monitoring	Not supported
Optical Doctor	Supported
Optical-layer ASON	Supported
Alarm and performance event monitoring	Detects and reports optical power levels. Monitors the temperature of the pump laser. Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	TNG2DAP
WDM specification	Supports the DWDM specifications.
Pluggable amplifier optical module	Supports 96 wavelengths optical amplifier modules: TN52OACE101/TN52OACE105/TN52OACE106/TN52OACE107/TN52OACE108 TNG3OACE101/TNG3OACE105/TNG3OACE106/TNG3OACE107/TNG3OACE108 TNG3OBCE106 Supports 120 wavelengths optical amplifier modules: TNG1OACU21S/TNG1OACU25S/TNG1OACU32S TNG2OACU21S/TNG2OACU25S/TNG2OACU32S/TNG2OACU14S/TNG2OACU25H/TNG2OACU32H TNG2OBCU22S Supports single-wavelength OA modules: TNG3PA30 (center wavelength: 1550.12 nm). Optical-layer features such as ALC, IPA, and OD are not supported. NOTE: The TNG3OBCE106 and TNG2OBCU22S modules cannot be installed in V100R21C10SPC300 and earlier versions.
Working mode	Supports the gain locking, power locking and APC modes. In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default. The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present. Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Basic EDFA function	Amplifies the power of the received optical signals in the super C-band. This board supports wavelengths within the range of 1524.3 nm to 1572.5 nm. Supports service transmission with varying fiber spans without using electrical regeneration.
Gain locking technology	The EDFA has the gain locking function. When this function is enabled, adding or dropping one or more channels or signal power fluctuation inside some channels does not affect the signal gain of other channels.
Gain adjustment	TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input signal power. TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input signal power. TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power. TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power. TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power. TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power. TN52OACE101/TNG3OACE101: Continually adjusts the gain from 20 dB to 31 dB based on the input signal power TN52OACE105/TNG3OACE105: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power TN52OACE106/TNG3OACE106: Continually adjusts the gain from 13 dB to 23 dB based on the input signal power. TN52OACE107/TNG3OACE107: Continually adjusts the gain from 17 dB to 25 dB based on the input signal power. TN52OACE108/TNG3OACE108: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power. TNG3PA30: The gain is 30dB and cannot be adjusted.
Gain adjustment	TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input signal power. TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input signal power. TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power. TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power. TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power. TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power. TN52OACE101/TNG3OACE101: Continually adjusts the gain from 20 dB to 31 dB based on the input signal power TN52OACE105/TNG3OACE105: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power TN52OACE106/TNG3OACE106: Continually adjusts the gain from 13 dB to 23 dB based on the input signal power. TN52OACE107/TNG3OACE107: Continually adjusts the gain from 17 dB to 25 dB based on the input signal power. TN52OACE108/TNG3OACE108: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power. TNG3PA30: The gain is 30dB and cannot be adjusted. TNG2OBCU22S: Continually adjusts the gain from 19 dB to 22 dB based on the input signal power. TNG3OBCE106: Continually adjusts the gain from 20 dB to 23 dB based on the input signal power.
Transient control	The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Automatic shutdown of output optical power	Not supported
Online optical performance monitoring	Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Line fiber quality monitoring	Not supported
Optical Doctor	Supported
Optical-layer ASON	Supported
Alarm and performance event monitoring	Detects and reports optical power levels. Monitors the temperature of the pump laser. Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.
