TNG1TPS

TNG1TPS overview

TNG1TPS Two TNG1PD1 boards and one TNG1DMS board work together to provide tributary protection switching (TPS) applied to Huawei OptiX OSN 9800 M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG1TPS board has only one variant, that is TNG1TPS.

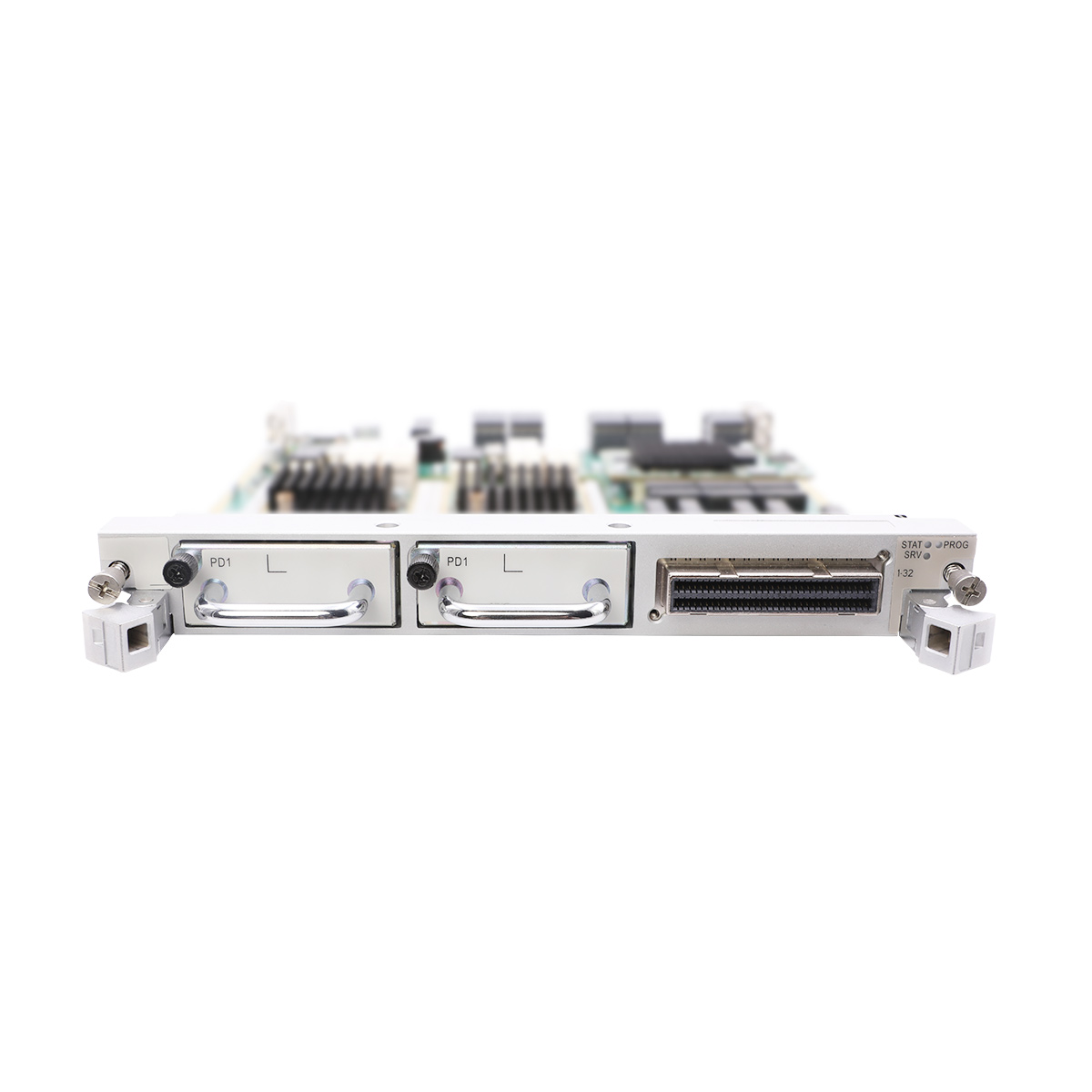

Front panel of the TNG1TPS board

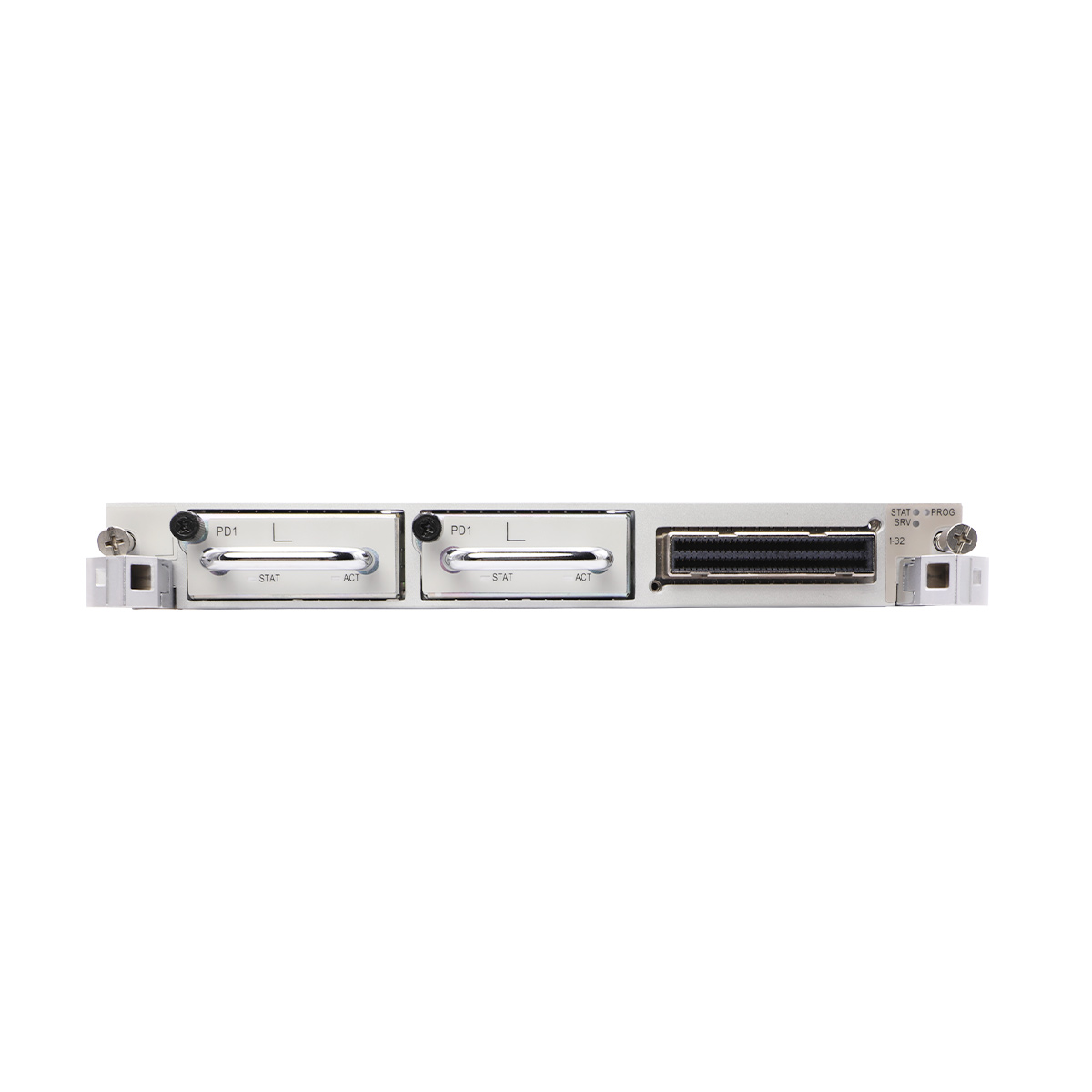

Front panel of the TNG1TPS board

Valid slots for the TNG1TPS board in a M24 subrack
