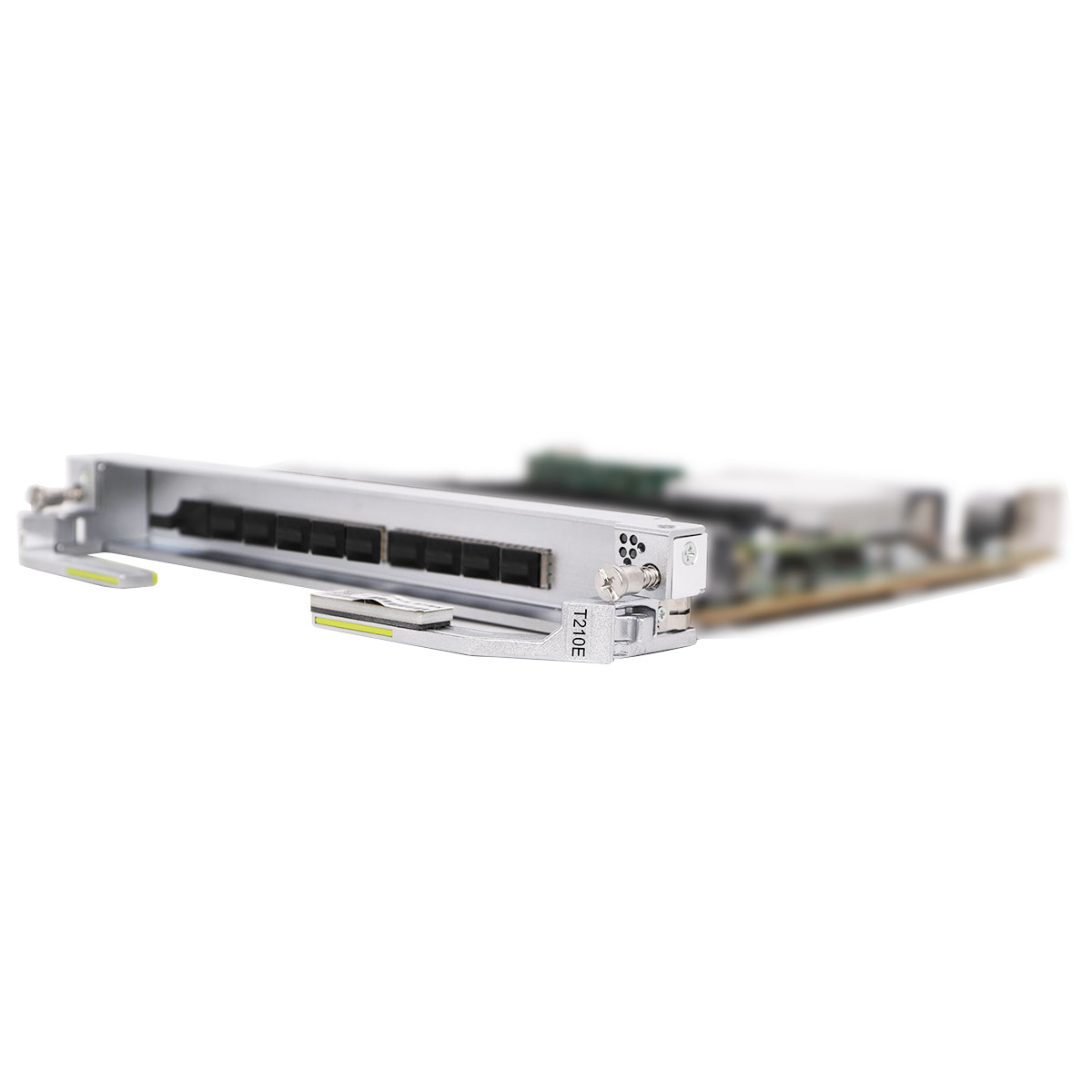

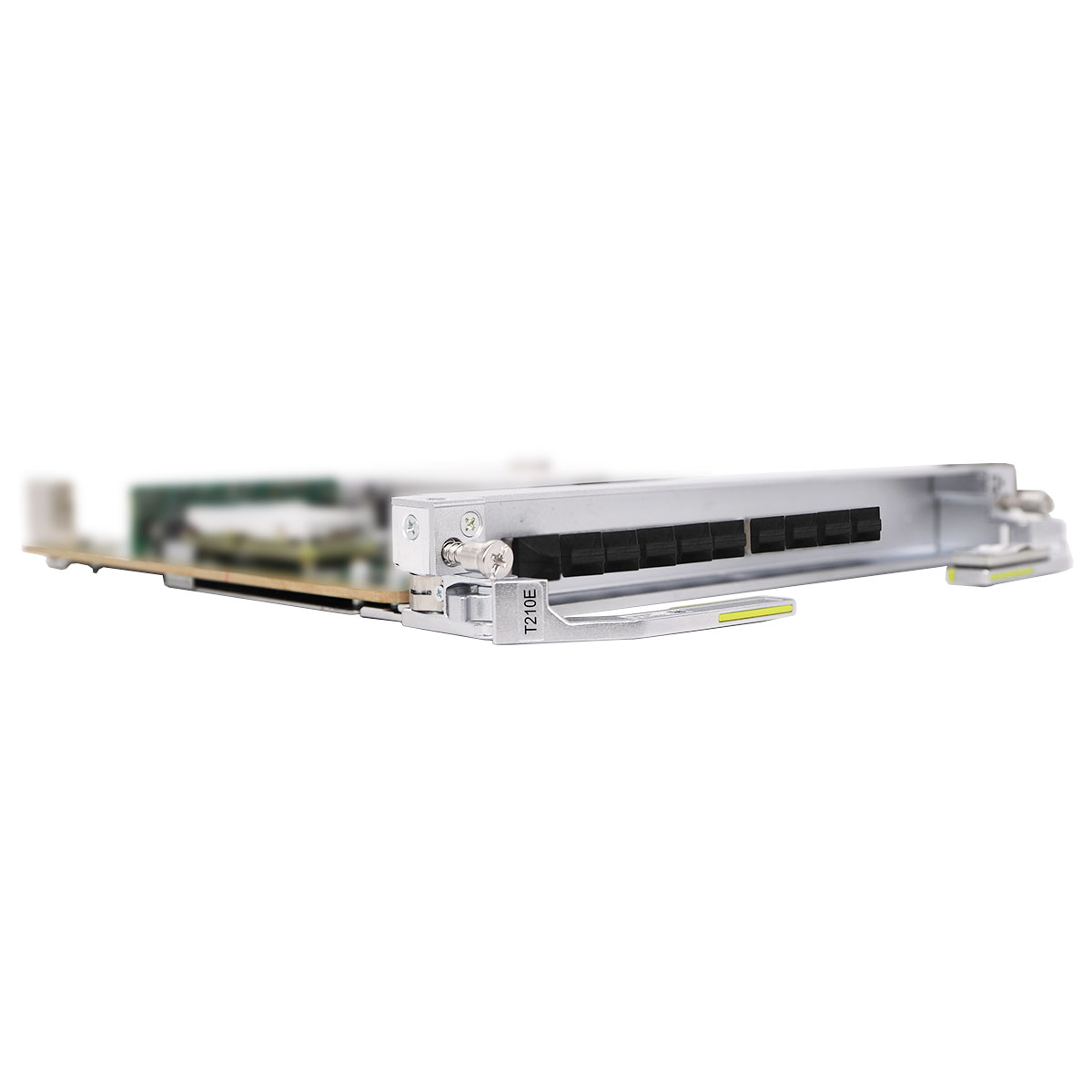

Huawei OptiX OSN 9800 TNG1T210E 10 x FE/GE or 2 x 10GE Ethernet Aggregation Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG1T210Eoverview

TNG1T210E 10 x FE/GE or 2 x 10GE Ethernet Aggregation Board applied to Huawei OptiX OSN 9800 M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG1T210E board has only one variant, that is, TNG1T210ES01.

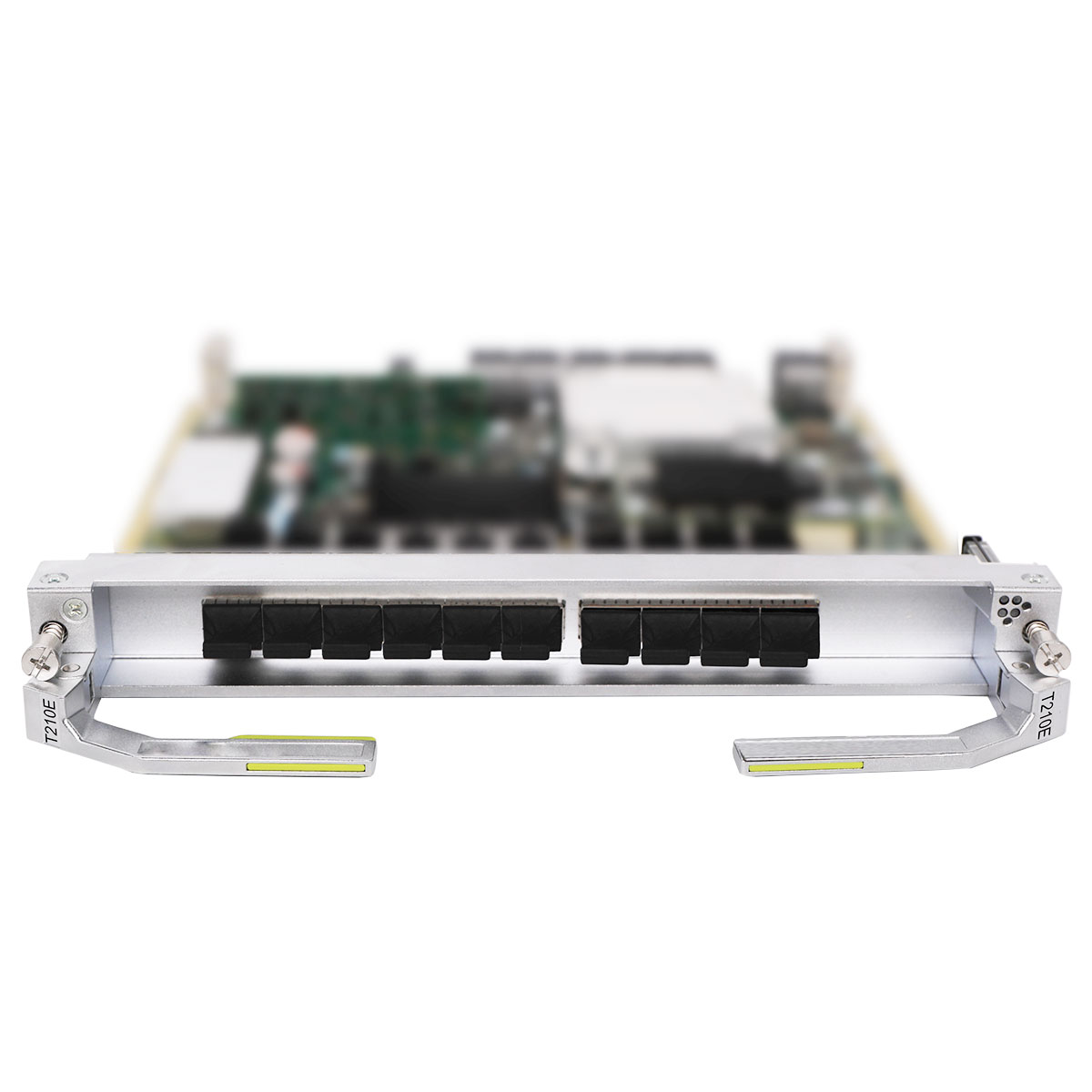

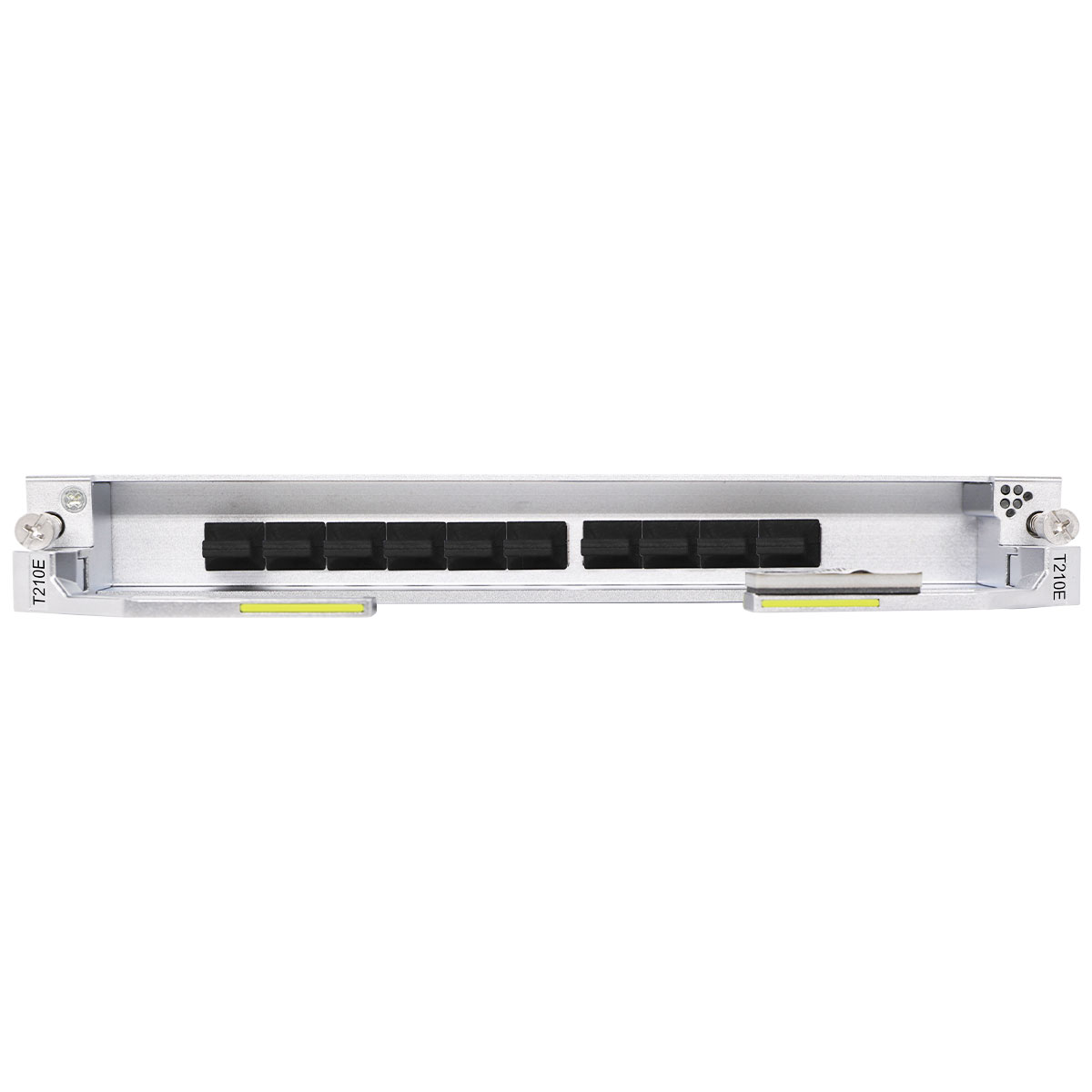

Front panel of the TNG1T210E board

Front panel of the TNG1T210E board

Valid slots for the TNG1T210E board in a M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M24	1	IU1 to IU24	IU1 to IU24

Item	TNG1T210E
Basic function	Supports conversion between Ethernet services and ODU/OSU signals. Supports L2 processing of Ethernet services. For details about the service mapping path, see Application.
Backplane bandwidth	The total backplane bandwidth is 20 Gbit/s. NOTE: The hybrid access of client-side services is supported, and the total capacity does not exceed the maximum backplane bandwidth.
Port rate	FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Port working mode	GE optical port: 1000M Full-Duplex, Auto-Negotiation FE optical port: 100M Full-Duplex GE electrical port: Auto-Negotiation,10M Full-Duplex, 100M Full-Duplex, 1000M Full-Duplex 10GE LAN optical port: 10G Full-Duplex LAN NOTE: The FE electrical signals are accessed through the GE electrical port in 100M full-duplex mode.
OTN overhead	ODU0/ODU1/ODU2/ODUflex/OSUflex layer: supports PM overhead processing.
OSU	Supported NOTE: The OSU function requires a license.
QinQ	Supports basic QinQ.
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port	The MFL value ranges from 960 bytes to 9600 bytes. Supports a jumbo frame containing a maximum of 9600 bytes.
Service bearing medium	Port, QinQ
Native E-Line service type	Point-to-point transparently transmitted E-Line services VLAN-based E-Line services (supporting VLAN tag switching) QinQ-based E-Line services NOTE: Inter-board E-Line services are not supported.
Native E-LAN service type	E-LAN services based on Tag-Transparent (802.1d bridge) E-LAN services based on C-Aware (802.1q bridge) E-LAN services based on S-Aware
Diffserv	Supported, compliant with RFC 2474 and RFC 2475.
Traffic classification	Supported simple traffic classification. Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing	Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping	Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance	WRED, tail dropping
Congestion management	Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS	Not supported
LPT	Supported
Client 1+1 protection	Not supported
ODUk SNCP	Supported
OSUflex SNCP	Supported NOTE: The board supports a maximum of 96 OSUflex SNCP protection groups.
Tributary SNCP	Supported NOTE: Supports tributary SNCP SNC/I protection. The inter-board LAG must work with the tributary SNCP SNC/I protection. Tributary SNCP SNC/I protection switching can be triggered only when the board is not powered on or offline after it is removed or reset (cold).
Electrical-layer ASON	Supported
ERPS	ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG	Supports intra-board and inter-board LAG of Ethernet ports, and intra-board LAG of VP ports, compliant with IEEE 802.1ax. NOTE: The inter-board LAG must work with the tributary SNCP SNC/I protection.
MC-LAG	Supported NOTE: MC-LAG can only work with MC-SNCP for cross-node protection. MC-SNCP is implemented by boards that support the OTN line mode and EoO boards. For details, see the MC-LAG+MC-SNCP feature.
IGMP Snooping	Not supported
L1 service encryption	Not supported
LLDP	When the interface type is ethernet port: Supported When the interface type is Vp: Not Supported
Ethernet service OAM	Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/ITU-T G.8013 and ITU-T Y.1730
Ethernet port OAM	Supported
RMON	Supported
Physical clock	Synchronous Ethernet processing supported; synchronous Ethernet transparent transmission not supported
IEEE 1588v2	Supported NOTE: The port equipped with an electrical module does not support the function. The function is not supported when the interface type is Vp.
ITU-T G.8275.1	Supported
ITU-T G.8273.2	Supported
High-precision clock synchronization	Supported NOTE: The high-precision clock synchronization function can be implemented only after the corresponding license is obtained. The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide. The port equipped with an electrical module does not support the function. The function is not supported when the interface type is Vp.
PRBS	Supported the PRBS function in the backplane direction.
Latency measurement	Supported NOTE: In the OSU application scenario: unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Inband DCN	Supported
Channel loopback	The OSUflex Channel Loopback is supported.
Port loopback	Supports ODUk inloops and ODUk outloops on the client side.. Supports OSUflex inloops and OSUflex outloops on the client side. NOTE: The board supports ODUk inloop and ODUk outloop only when bidirectional cross-connections are configured. When the service type is set to None, ODUk Outloop is not supported. The board supports a maximum of eight OSUflex loopback.
MAC layer loopback	Supported
PHY layer loopback	Not supported
Alarm and performance event monitoring	Monitors bit interleaved parity 8 (BIP8) bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, operating temperature, and optical power of a laser.
Dimensions (H x W x D)	237.10 × 30.50 × 220.00 (mm) 9.34 × 1.20 × 8.67 (in.)
Weight	1.38 kg 3.04 lb.

Item	TNG1T210E
Basic function	Supports conversion between Ethernet services and ODU/OSU signals. Supports L2 processing of Ethernet services. For details about the service mapping path, see Application.
Backplane bandwidth	The total backplane bandwidth is 20 Gbit/s. NOTE: The hybrid access of client-side services is supported, and the total capacity does not exceed the maximum backplane bandwidth.
Port rate	FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Port working mode	GE optical port: 1000M Full-Duplex, Auto-Negotiation FE optical port: 100M Full-Duplex GE electrical port: Auto-Negotiation,10M Full-Duplex, 100M Full-Duplex, 1000M Full-Duplex 10GE LAN optical port: 10G Full-Duplex LAN NOTE: The FE electrical signals are accessed through the GE electrical port in 100M full-duplex mode.
OTN overhead	ODU0/ODU1/ODU2/ODUflex/OSUflex layer: supports PM overhead processing.
OSU	Supported NOTE: The OSU function requires a license.
QinQ	Supports basic QinQ.
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port	The MFL value ranges from 960 bytes to 9600 bytes. Supports a jumbo frame containing a maximum of 9600 bytes.
Service bearing medium	Port, QinQ
Native E-Line service type	Point-to-point transparently transmitted E-Line services VLAN-based E-Line services (supporting VLAN tag switching) QinQ-based E-Line services NOTE: Inter-board E-Line services are not supported.
Native E-LAN service type	E-LAN services based on Tag-Transparent (802.1d bridge) E-LAN services based on C-Aware (802.1q bridge) E-LAN services based on S-Aware
Diffserv	Supported, compliant with RFC 2474 and RFC 2475.
Traffic classification	Supported simple traffic classification. Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing	Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping	Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance	WRED, tail dropping
Congestion management	Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS	Not supported
LPT	Supported
Client 1+1 protection	Not supported
ODUk SNCP	Supported
OSUflex SNCP	Supported NOTE: The board supports a maximum of 96 OSUflex SNCP protection groups.
Tributary SNCP	Supported NOTE: Supports tributary SNCP SNC/I protection. The inter-board LAG must work with the tributary SNCP SNC/I protection. Tributary SNCP SNC/I protection switching can be triggered only when the board is not powered on or offline after it is removed or reset (cold).
Electrical-layer ASON	Supported
ERPS	ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG	Supports intra-board and inter-board LAG of Ethernet ports, and intra-board LAG of VP ports, compliant with IEEE 802.1ax. NOTE: The inter-board LAG must work with the tributary SNCP SNC/I protection.
MC-LAG	Supported NOTE: MC-LAG can only work with MC-SNCP for cross-node protection. MC-SNCP is implemented by boards that support the OTN line mode and EoO boards. For details, see the MC-LAG+MC-SNCP feature.
IGMP Snooping	Not supported
L1 service encryption	Not supported
LLDP	When the interface type is ethernet port: Supported When the interface type is Vp: Not Supported
Ethernet service OAM	Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/ITU-T G.8013 and ITU-T Y.1730
Ethernet port OAM	Supported
RMON	Supported
Physical clock	Synchronous Ethernet processing supported; synchronous Ethernet transparent transmission not supported
IEEE 1588v2	Supported NOTE: The port equipped with an electrical module does not support the function. The function is not supported when the interface type is Vp.
ITU-T G.8275.1	Supported
ITU-T G.8273.2	Supported
High-precision clock synchronization	Supported NOTE: The high-precision clock synchronization function can be implemented only after the corresponding license is obtained. The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide. The port equipped with an electrical module does not support the function. The function is not supported when the interface type is Vp.
PRBS	Supported the PRBS function in the backplane direction.
Latency measurement	Supported NOTE: In the OSU application scenario: unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Inband DCN	Supported
Channel loopback	The OSUflex Channel Loopback is supported.
Port loopback	Supports ODUk inloops and ODUk outloops on the client side.. Supports OSUflex inloops and OSUflex outloops on the client side. NOTE: The board supports ODUk inloop and ODUk outloop only when bidirectional cross-connections are configured. When the service type is set to None, ODUk Outloop is not supported. The board supports a maximum of eight OSUflex loopback.
MAC layer loopback	Supported
PHY layer loopback	Not supported
Alarm and performance event monitoring	Monitors bit interleaved parity 8 (BIP8) bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, operating temperature, and optical power of a laser.
Dimensions (H x W x D)	237.10 × 30.50 × 220.00 (mm) 9.34 × 1.20 × 8.67 (in.)
Weight	1.38 kg 3.04 lb.
