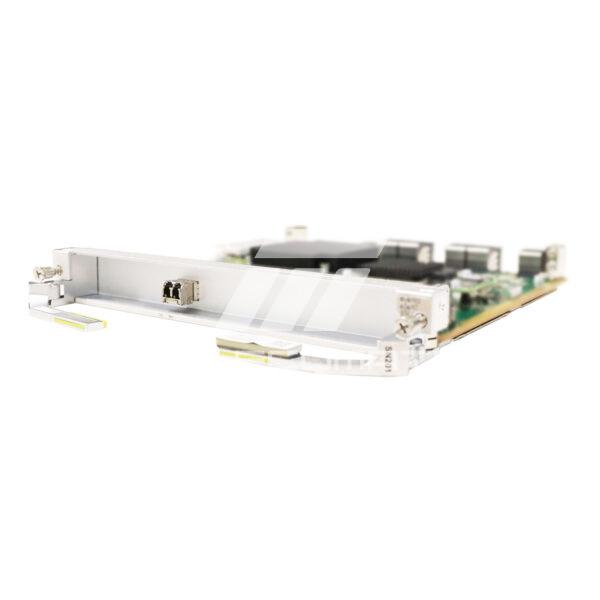

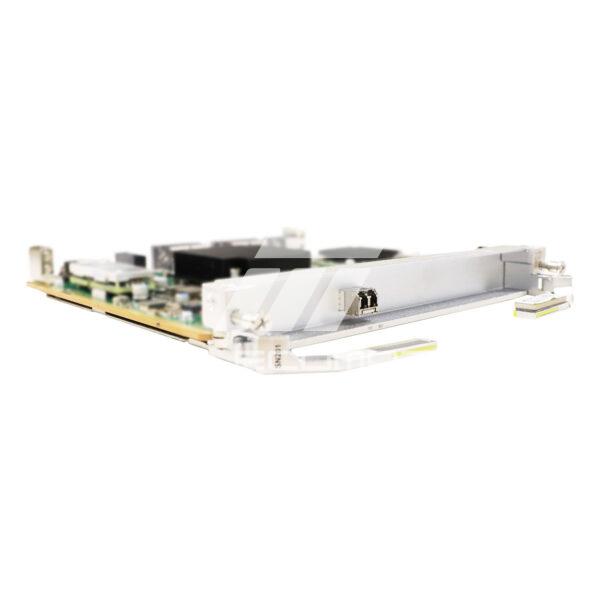

Huawei OptiX OSN 9800 TNG1SN201 1*10G Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG1SN201 overview

TNG1SN201 10 Gbit/s tributary service processing board applied to Huawei OptiX OSN 9800 M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG1SN201 board has only one variant, that is, TNG1SN201S01.

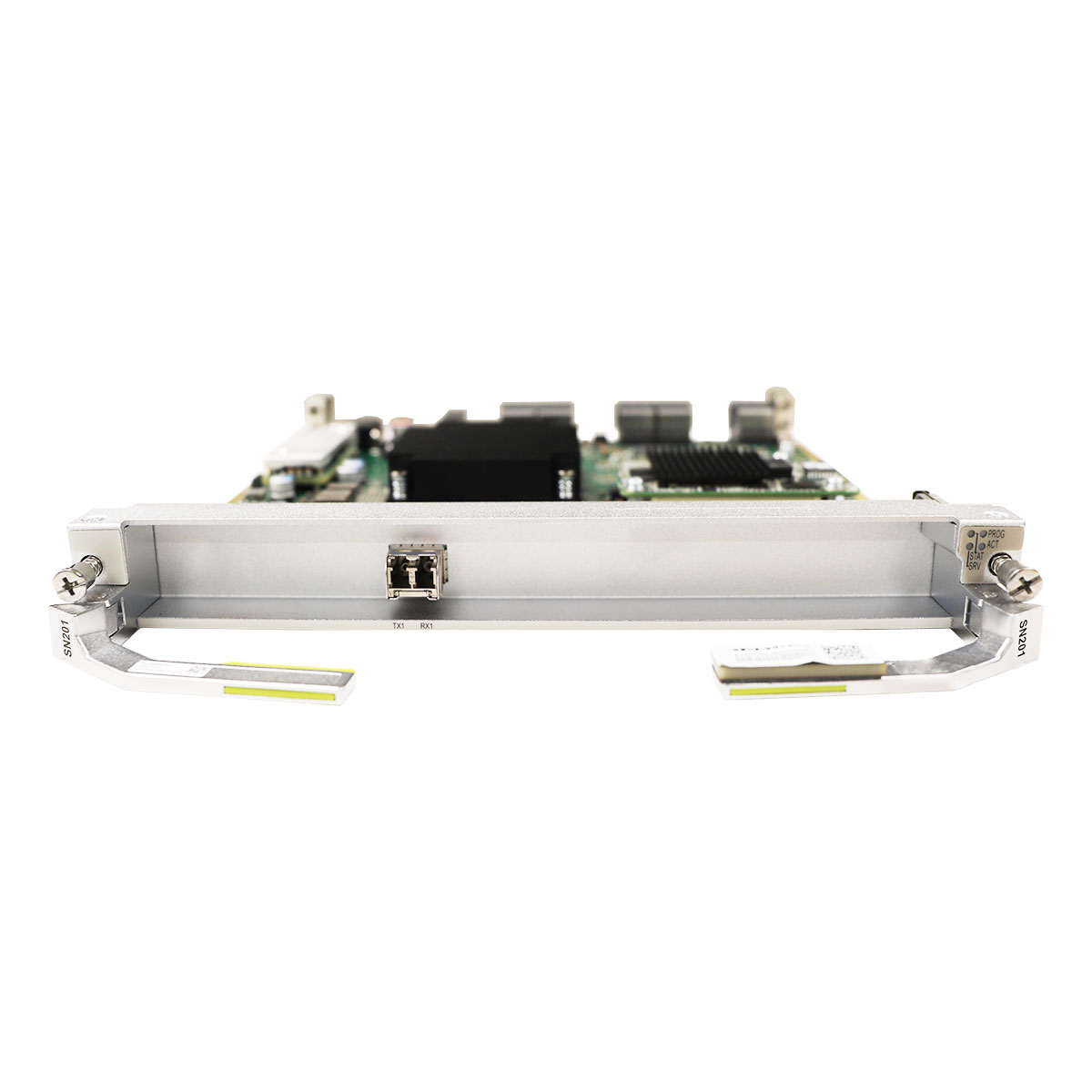

Front panel of the TNG1SN201 board

Front panel of the TNG1SN201 board

Valid slots for the TNG1SN201 board in a M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M24	1	IU1 to IU24	IU1 to IU24

Item	TNG1SN201
Backplane capacity	The total backplane bandwidth is 10 Gbit/s.
Tunable wavelength	Supports tunable wavelength optical modules that provide for: 40 wavelengths tunable in the C band with 100 GHz channel spacing 80 wavelengths tunable in the C band with 50 GHz channel spacing
FEC coding	FEC AFEC
Line modulation format	NRZ
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	Supports OTU2/OTU2e on the WDM side. OTU2/OTU2e layer: supports SM overhead processing. ODUk (k=0, 1, 2, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. OSUflex layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OSU	Supported NOTE: The OSU function requires a license.
Intra-board 1+1 protection	Supported
ODUk SNCP	Supported
OSUflex SNCP	Supported NOTE: The board supports a maximum of 512 OSUflex SNCP protection groups.
Tributary SNCP	Supported
Electrical-layer ASON	Supported
Optical-layer ASON	Supported
Digital optical label	Not supported
Physical clock	Supported NOTE: When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Outband DCN	Supported
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	Supports latency measurement in the WDM-side optical port direction (upstream direction). When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement. When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement. Supports PM and TCM latency measurement at the OSUflex layer. NOTE: In OSU application scenarios, only bidirectional latency measurement is supported, and unidirectional latency measurement is not supported.
Channel loopback	Supports ODUk (k=0, 1, flex) channel loopbacks. Supports OSUflex channel loopback.
Port loopback	Supports WDM Side Loopback.
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of OTN alarms and performance events. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring.
Functions and Features of the TNG1SN201 Board (SDH)
Basic function	Receives/Transmits 1 x STM-16 optical signals.
Backplane capacity	The total backplane bandwidth is 2.5 Gbit/s.
Service processing	Supports the VC-12, VC-3, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services.
Overhead processing	Processes the section overheads of STM-16 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports DCC transparent transmission. Provides orderwire byte channels.
SDH SNCP	Supported
Linear MSP	Supported
Ring MSP	Supports two-fiber bidirectional ring MSP.
SDH ASON	Supported
Physical clock	Supports SDH clock synchronization.
IEEE 1588v2	Not supported
Outband DCN	Supported
PRBS	Supported
Channel loopback	Supports VC-4 channel loopbacks.
Port loopback	Supports Virtual Port loopbacks.
2M ASON	Supported
Alarm and performance event monitoring	Monitors B1 bytes to help locate faults. Monitors B2 bytes to help locate faults.
Functions and Features of the TNG1SN201 Board (Regeneration)
Basic function	Electrically regenerates optical signals at an electrical REG station.
Regeneration mode	Unidirectional regeneration
Regeneration rate	OTU2 OTU2e
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelength optical modules that provide for: 40 wavelengths tunable in the C band with 100 GHz channel spacing 80 wavelengths tunable in the C band with 50 GHz channel spacing
FEC coding	FEC AFEC
Line modulation format	NRZ
OTN overhead	Supports OTU2/OTU2e interface the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU2 layer: supports SM overhead processing. ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON	Supported
ALS	Supported
Clock	In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN	Supported
Test frame	Not supported
PRBS	Not supported
Port loopback	Not supported
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of OTN alarms and performance events. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring.
Dimensions (H x W x D)	237.10 × 30.50 × 220.00 (mm) 9.34 × 1.20 × 8.67 (in.)
Weight	1.27 kg 2.80 lb.

Item	TNG1SN201
Backplane capacity	The total backplane bandwidth is 10 Gbit/s.
Tunable wavelength	Supports tunable wavelength optical modules that provide for: 40 wavelengths tunable in the C band with 100 GHz channel spacing 80 wavelengths tunable in the C band with 50 GHz channel spacing
FEC coding	FEC AFEC
Line modulation format	NRZ
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	Supports OTU2/OTU2e on the WDM side. OTU2/OTU2e layer: supports SM overhead processing. ODUk (k=0, 1, 2, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. OSUflex layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OSU	Supported NOTE: The OSU function requires a license.
Intra-board 1+1 protection	Supported
ODUk SNCP	Supported
OSUflex SNCP	Supported NOTE: The board supports a maximum of 512 OSUflex SNCP protection groups.
Tributary SNCP	Supported
Electrical-layer ASON	Supported
Optical-layer ASON	Supported
Digital optical label	Not supported
Physical clock	Supported NOTE: When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2	Not supported
ITU-T G.8275.1	Not supported
ITU-T G.8273.2	Not supported
Outband DCN	Supported
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Latency measurement	Supports latency measurement in the WDM-side optical port direction (upstream direction). When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement. When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement. Supports PM and TCM latency measurement at the OSUflex layer. NOTE: In OSU application scenarios, only bidirectional latency measurement is supported, and unidirectional latency measurement is not supported.
Channel loopback	Supports ODUk (k=0, 1, flex) channel loopbacks. Supports OSUflex channel loopback.
Port loopback	Supports WDM Side Loopback.
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of OTN alarms and performance events. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring.
Functions and Features of the TNG1SN201 Board (SDH)
Basic function	Receives/Transmits 1 x STM-16 optical signals.
Backplane capacity	The total backplane bandwidth is 2.5 Gbit/s.
Service processing	Supports the VC-12, VC-3, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services.
Overhead processing	Processes the section overheads of STM-16 signals. Supports the transparent transmission and termination of path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports ECC communication. Supports DCC transparent transmission. Provides orderwire byte channels.
SDH SNCP	Supported
Linear MSP	Supported
Ring MSP	Supports two-fiber bidirectional ring MSP.
SDH ASON	Supported
Physical clock	Supports SDH clock synchronization.
IEEE 1588v2	Not supported
Outband DCN	Supported
PRBS	Supported
Channel loopback	Supports VC-4 channel loopbacks.
Port loopback	Supports Virtual Port loopbacks.
2M ASON	Supported
Alarm and performance event monitoring	Monitors B1 bytes to help locate faults. Monitors B2 bytes to help locate faults.
Functions and Features of the TNG1SN201 Board (Regeneration)
Basic function	Electrically regenerates optical signals at an electrical REG station.
Regeneration mode	Unidirectional regeneration
Regeneration rate	OTU2 OTU2e
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelength optical modules that provide for: 40 wavelengths tunable in the C band with 100 GHz channel spacing 80 wavelengths tunable in the C band with 50 GHz channel spacing
FEC coding	FEC AFEC
Line modulation format	NRZ
OTN overhead	Supports OTU2/OTU2e interface the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU2 layer: supports SM overhead processing. ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON	Supported
ALS	Supported
Clock	In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN	Supported
Test frame	Not supported
PRBS	Not supported
Port loopback	Not supported
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of OTN alarms and performance events. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring.
Dimensions (H x W x D)	237.10 × 30.50 × 220.00 (mm) 9.34 × 1.20 × 8.67 (in.)
Weight	1.27 kg 2.80 lb.
